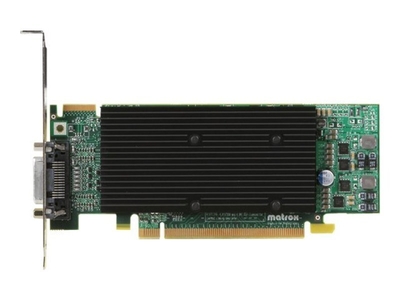

Matrox 512mb Gddr2 Pci Express X16 Low Profile
The Matrox M9120 Plus LP PCIe x16 low-profile, dual monitor graphics card renders pristine image quality on up to two displays, at resolutions up to 1920x1200 (digital) or 2048x1536 (analog) each. This card also supports up to four analog displays via an aftermarket quad-upgradeable cable, at resolutions of up to 1920x1200 each. High-resolution two monitor support: Support resolutions up to 1920 x 1200 (Digital) and 2048 x 1536 (Analog) per output Native PCI express x16 performance Maximum bandwidth to ensure best performance Upgrade option to four monitor Support four VGA displays via cable (CAB-L60-4XAF); enables up to 1920 x 1200 per output 512 MB of memory For enhanced performance in demanding multi-monitor applications Low-profile form factor To fit in a wide variety of systems;
includes bracket for full-height ATX form factor Passive cooling and low power consumption Fanless design eliminates noise and increases product reliability Stretched and independent desktop modes Expand your desktop across multiple monitors or set each monitor independent of each other Edge Overlap Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors. M-Series multi-card support1 Add an additional M-Series card into the same system to drive up to 12 displays from two cards Joined graphics card mode2 Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop Matrox Clone View a copy of one display on the other displays Wide enterprise flexibility Unified driver
package compatible with other Matrox products Matrox PowerDesk software Easily configure and manage program windows on multiple monitors Multiple operating system support Display drivers for Microsoft Windows8 (32-bit, 64-bit), Windows Server 2012 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Embedded Standard 7 (32-bit), Windows Vista (32-bit, 64-bit), Windows Server 2008 R1 (32-bit, 64-bit), Windows Server 2008 R2, Windows XP (32-bit, 64-bit), Windows Server 2003 and Linux3 Hardware Included Matrox M9120 Plus LP PCIe x16 graphics card with factory-installed low-profile bracket (ATX bracket in the box) LFH60-to- 2 x DVI-I dual-monitor adapter cable (1 ft) Two DVI-I-to-HD15 connector adapters Part Number - M9120-E512LPUF Bus Type - PCIe x16 Graphics Memory - 512MB
DDR2 Card Form Factor (PCB / bracket) - LP / LP Extra bracket in the box - ATX Card Dimensions - 6.6" (L) x 2.7" (H) Connectors - LFH-60 Breakout / Splitter Cables included - LFH-60 to 2 x DVI-I (same as current: F16123-00) DVI to Analog (HD15) Adapters - 2 Max Display Outputs per Card - 2 (4 with aftermarket analog upgrade cable) Supported Display Output Types - DVI SL, Analog Max Digital Resolution per Output - 1920x1200 Max Analog Resolution per Output - 2048x1536 (1920x1200 with quad analog upgrade cable) Independent Desktop Mode - Yes Stretched Desktop Mode - Yes Joined Adapter Mode - Yes1 Matrox Clone - Yes Pivot Support - Yes Passive Cooling - Yes Unified Driver Package - Yes PowerDesk Software - Yes EMC Certifications - Class B Aftermarket Cable Upgrades - Quad analog output cable
(Part CAB-L60-4XAF) Supported Operating Systems Microsoft Windows 8 (32-bit, 64-bit), Windows Server 2012 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Embedded Standard 7 (32-bit), Windows Vista (32-bit, 64-bit), Windows Server 2008 R1 (32-bit, 64-bit), Windows Server 2008 R2, Windows XP (32-bit, 64-bit), Windows Server 2003 and Linux2 Open GL support - 2.0
includes bracket for full-height ATX form factor Passive cooling and low power consumption Fanless design eliminates noise and increases product reliability Stretched and independent desktop modes Expand your desktop across multiple monitors or set each monitor independent of each other Edge Overlap Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors. M-Series multi-card support1 Add an additional M-Series card into the same system to drive up to 12 displays from two cards Joined graphics card mode2 Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop Matrox Clone View a copy of one display on the other displays Wide enterprise flexibility Unified driver
package compatible with other Matrox products Matrox PowerDesk software Easily configure and manage program windows on multiple monitors Multiple operating system support Display drivers for Microsoft Windows8 (32-bit, 64-bit), Windows Server 2012 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Embedded Standard 7 (32-bit), Windows Vista (32-bit, 64-bit), Windows Server 2008 R1 (32-bit, 64-bit), Windows Server 2008 R2, Windows XP (32-bit, 64-bit), Windows Server 2003 and Linux3 Hardware Included Matrox M9120 Plus LP PCIe x16 graphics card with factory-installed low-profile bracket (ATX bracket in the box) LFH60-to- 2 x DVI-I dual-monitor adapter cable (1 ft) Two DVI-I-to-HD15 connector adapters Part Number - M9120-E512LPUF Bus Type - PCIe x16 Graphics Memory - 512MB
DDR2 Card Form Factor (PCB / bracket) - LP / LP Extra bracket in the box - ATX Card Dimensions - 6.6" (L) x 2.7" (H) Connectors - LFH-60 Breakout / Splitter Cables included - LFH-60 to 2 x DVI-I (same as current: F16123-00) DVI to Analog (HD15) Adapters - 2 Max Display Outputs per Card - 2 (4 with aftermarket analog upgrade cable) Supported Display Output Types - DVI SL, Analog Max Digital Resolution per Output - 1920x1200 Max Analog Resolution per Output - 2048x1536 (1920x1200 with quad analog upgrade cable) Independent Desktop Mode - Yes Stretched Desktop Mode - Yes Joined Adapter Mode - Yes1 Matrox Clone - Yes Pivot Support - Yes Passive Cooling - Yes Unified Driver Package - Yes PowerDesk Software - Yes EMC Certifications - Class B Aftermarket Cable Upgrades - Quad analog output cable
(Part CAB-L60-4XAF) Supported Operating Systems Microsoft Windows 8 (32-bit, 64-bit), Windows Server 2012 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Embedded Standard 7 (32-bit), Windows Vista (32-bit, 64-bit), Windows Server 2008 R1 (32-bit, 64-bit), Windows Server 2008 R2, Windows XP (32-bit, 64-bit), Windows Server 2003 and Linux2 Open GL support - 2.0
