Hyper X Savage 32GB Kit (4x 8GB)- DDR4 2666 M Hz Intel XMP CL13 DIMM Memory Hyper X HX426C13SB2K4/32 is a kit of four 1G x 64-bit (8GB) DDR4-2666 CL13 SDRAM (Synchronous DRAM) 2 Rx 8, memory modules, based on sixteen 512M x 8-bit FBGA components per module. Total kit capacity is 32GB. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2666 at a low latency timing of 13-15-15 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2666 CL13-15-15 @1.35V XMP Profile 2: DDR4-2400 CL13-14-14 @1.35V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 45ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm)

...

Hyper X Savage 4GB
- DDR4 2800 M Hz Intel XMP CL14 DIMM Memory Hyper X HX428C14SB2/4 is a 512M x 64-bit (4GB) DDR4-2800 CL14 SDRAM
...

Hyper X Savage 8GB
- DDR4 2800 M Hz Intel XMP CL14 DIMM Memory Hyper X HX428C14SB2/8 is a 1G x 64-bit (8GB) DDR4-2800 CL14 SDRAM
...

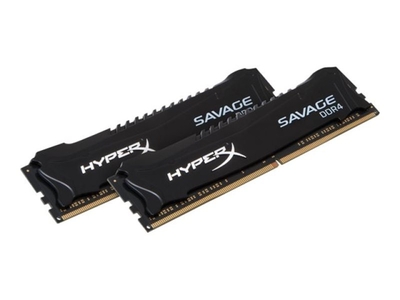

Hyper X Savage 8GB
- DDR4 3000 M Hz Intel XMP CL15 DIMM Memory Hyper X HX430C15SB2/8 is a 1G x 64-bit (8GB) DDR4-3000 CL15 SDRAM
...

Hyper X Savage 8GB Kit (2x 4GB)- DDR4 2800 M Hz Intel XMP CL14 DIMM Memory Hyper X HX428C14SB2K2/8 is a kit of two 512M x 64-bit (4GB) DDR4-2800 CL14 SDRAM (Synchronous DRAM) 1 Rx 8, memory modules, based on eight 512M x 8-bit FBGA components per module. Total kit capacity is 8GB. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2800 at a low latency timing of 14-16-16 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2800 CL14-16-16 @1.35V XMP Profile 2: DDR4-2666 CL14-15-15 @1.35V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm)

...

Hyper X Savage solid-state drive offers extreme performance for the extreme performer. The fastest Hyper X SATA-based SSD, it’s powered by a quad-core, 8-channel Phison S10 controller that delivers incredible speeds up to 560MB/s read & 530MB/s write, with read/write IOPS up to 100k/89k. The result is ultra-responsive multitasking & an overall faster system that maintains performance even as the drive fills up. With its low profile & slim, 7mm form factor, Hyper X Savage SSD fits in most notebooks, desktops & HTPC builds. Its unique look, with high-quality red steel & aluminum casing & diamond-cut design, helps you stand out in the crowd & complements the latest PC hardware. Hyper X Savage SSD is 100-percent factory tested & backed by a three-year warranty, free technical support & legendary reliability. Form factor
- 2.5" Interface
- SATA Rev. 3.0 (6 Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3 Gb/s) Capacity
- 120GB Controller
- Phison PS3110-S10 Baseline Performance Compressible Data Transfer (ATTO) 120GB — 560MB/s Read & 360MB/s Write Incompressible Data Transfer (AS-SSD & Crystal Disk Mark) 120GB — 520MB/s Read & 350MB/s Write IOMETER Maximum Random 4k Read/ Write 120GB — up to 100, 000/ up to 84, 000 IOPS Random 4k Read/ Write 120GB — up to 93, 000/ up to 83, 000 IOPS PCMARK Vantage HDD Suite Score 120GB — 84, 000 PCMARK 8 Storage Bandwidth 120GB — 260MB/s PCMARK 8 Storage Score 120GB — 4, 970 Anvil Total Score (Incompressible Workload) 120GB — 5, 000 Power Consumption 0.39W Idle / 0.5W Avg / 1.4W (MAX) Read / 4.35W (MAX) Write Storage temperature -40°C~85°C Operating temperature 0°C~70°C

Dimensions 100.0mm x 69.9mm x 7.0mm Weight 120GB — 92g Vibration operating 2.17G Peak (7–800 Hz) Vibration non-operating 20G Peak (10–2000 Hz) Life expectancy 1 million hours MTBF





...

Hyper X Savage solid-state drive offers extreme performance for the extreme performer. The fastest Hyper X SATA-based SSD, it’s powered by a quad-core, 8-channel Phison S10 controller that delivers incredible speeds of up to 560MB/s read & 530MB/s write, with read/write IOPS up to 100k/89k. The result is ultra-responsive multitasking & an overall faster system that maintains performance even as the drive fills up. With its low profile & slim, 7mm form factor, Hyper X Savage SSD fits in most notebooks, desktops & HTPC builds. Its unique look, with high-quality red steel & aluminium casing & diamond-cut design, helps you stand out in the crowd & complements the latest PC hardware. It’s available in a bundle kit that

Includes:: everything you need to install Savage in your existing system, including a USB (Universal Serial Bus) 3.0 enclosure to transfer data from 2.5" hard drives; a 2.5"–3.5" adapter to mount in a desktop environment; SATA data cable; multi-bit screwdriver & Acronis data migration software. Hyper X Savage SSD is 100 per cent factory tested & backed by a three-year warranty, free technical support & legendary reliability.

...

Attack the competition with Hyper X Savage memory. Its unique, asymmetrical red heat spreader is made from high-quality aluminum & has a black PCB & a diamond cut finish to make your game shine & help you stand out in the crowd. The heat spreader dissipates heat so your system stays cool & reliable & its low profile fits under oversized CPU coolers. Featuring a design that works well with the latest trends in gaming, Hyper X Savage comes in a wide range of high-performance speeds, from 1600 M Hz to 2400 M Hz, & capacities from 4GB to 8GB in single modules & 8GB to 32GB kits. In CL9-CL11 latencies, it delivers ultra-responsive multitasking & an overall faster system. Dual & quad channel kits are available. Built-in, h&-tuned XMP profiles let users reach higher-performing frequencies, timings & voltages simply by enabling Intel's XMP tool. Even noobs can overclock their platforms with no need for manual adjustments in BIOS. Hyper X Savage is backed by a lifetime warranty & free technical support. ...

Attack the competition with Hyper X Savage memory. Its unique, asymmetrical red heat spreader is made from high-quality aluminum & has a black PCB & a diamond cut finish to make your game shine & help you stand out in the crowd. The heat spreader dissipates heat so your system stays cool & reliable & its low profile fits under oversized CPU coolers. Featuring a design that works well with the latest trends in gaming, Hyper X Savage comes in a wide range of high-performance speeds, from 1600 M Hz to 2400 M Hz, & capacities from 4GB to 8GB in single modules & 8GB to 32GB kits. In CL9-CL11 latencies, it delivers ultra-responsive multitasking & an overall faster system. Dual & quad channel kits are available. Built-in, h&-tuned XMP profiles let users reach higher-performing frequencies, timings & voltages simply by enabling Intel's XMP tool. Even noobs can overclock their platforms with no need for manual adjustments in BIOS. Hyper X Savage is backed by a lifetime warranty & free technical support. ...

Hyper X Savage 16GB Kit* (2x 8GB)- DDR4 2400 M Hz Intel XMP CL12 DIMM Memory Hyper X HX424C12SB2K2/16 is a kit of two 1G x 64-bit (8GB) DDR4-2400 CL12 SDRAM (Synchronous DRAM) 2 Rx 8, memory modules, based on sixteen 512M x 8-bit FBGA components per module. Total kit capacity is 16GB. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2400 at a low latency timing of 12-14-14 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2400 CL12-14-14 @1.35V XMP Profile 2: DDR4-2133 CL13-13-13 @1.2V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC * Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm)

...
