Hyper X Savage 8GB
- DDR4 3000 M Hz Intel XMP CL15 DIMM Memory Hyper X HX430C15SB2/8 is a 1G x 64-bit (8GB) DDR4-3000 CL15 SDRAM
...

Hyper X Savage 8GB Kit (2x 4GB)- DDR4 2800 M Hz Intel XMP CL14 DIMM Memory Hyper X HX428C14SB2K2/8 is a kit of two 512M x 64-bit (4GB) DDR4-2800 CL14 SDRAM (Synchronous DRAM) 1 Rx 8, memory modules, based on eight 512M x 8-bit FBGA components per module. Total kit capacity is 8GB. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2800 at a low latency timing of 14-16-16 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2800 CL14-16-16 @1.35V XMP Profile 2: DDR4-2666 CL14-15-15 @1.35V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm)

...

Hyper X Savage 8GB Kit (2x 4GB)- DDR4 3000 M Hz Intel XMP CL15 DIMM Memory Hyper X HX430C15SB2K2/8 is a kit of two 512M x 64-bit (4GB) DDR4-3000 CL15 SDRAM (Synchronous DRAM) 1 Rx 8, memory modules, based on eight 512M x 8-bit FBGA components per module. Total kit capacity is 8GB. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-3000 at a low latency timing of 15-17-17 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-3000 CL15-17-17 @1.35V XMP Profile 2: DDR4-2666 CL14-15-15 @1.35V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm)

...

Hyper X Savage solid-state drive offers extreme performance for the extreme performer. The fastest Hyper X SATA-based SSD, it’s powered by a quad-core, 8-channel Phison S10 controller that delivers incredible speeds up to 560MB/s read & 530MB/s write, with read/write IOPS up to 100k/89k. The result is ultra-responsive multitasking & an overall faster system that maintains performance even as the drive fills up. With its low profile & slim, 7mm form factor, Hyper X Savage SSD fits in most notebooks, desktops & HTPC builds. Its unique look, with high-quality red steel & aluminum casing & diamond-cut design, helps you stand out in the crowd & complements the latest PC hardware. Hyper X Savage SSD is 100-percent factory tested & backed by a three-year warranty, free technical support & legendary reliability. Form factor
- 2.5" Interface
- SATA Rev. 3.0 (6 Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3 Gb/s) Capacity
- 120GB Controller
- Phison PS3110-S10 Baseline Performance Compressible Data Transfer (ATTO) 120GB — 560MB/s Read & 360MB/s Write Incompressible Data Transfer (AS-SSD & Crystal Disk Mark) 120GB — 520MB/s Read & 350MB/s Write IOMETER Maximum Random 4k Read/ Write 120GB — up to 100, 000/ up to 84, 000 IOPS Random 4k Read/ Write 120GB — up to 93, 000/ up to 83, 000 IOPS PCMARK Vantage HDD Suite Score 120GB — 84, 000 PCMARK 8 Storage Bandwidth 120GB — 260MB/s PCMARK 8 Storage Score 120GB — 4, 970 Anvil Total Score (Incompressible Workload) 120GB — 5, 000 Power Consumption 0.39W Idle / 0.5W Avg / 1.4W (MAX) Read / 4.35W (MAX) Write Storage temperature -40°C~85°C Operating temperature 0°C~70°C

Dimensions 100.0mm x 69.9mm x 7.0mm Weight 120GB — 92g Vibration operating 2.17G Peak (7–800 Hz) Vibration non-operating 20G Peak (10–2000 Hz) Life expectancy 1 million hours MTBF





...

Hyper X Savage solid-state drive offers extreme performance for the extreme performer. The fastest Hyper X SATA-based SSD, it’s powered by a quad-core, 8-channel Phison S10 controller that delivers incredible speeds of up to 560MB/s read & 530MB/s write, with read/write IOPS up to 100k/89k. The result is ultra-responsive multitasking & an overall faster system that maintains performance even as the drive fills up. With its low profile & slim, 7mm form factor, Hyper X Savage SSD fits in most notebooks, desktops & HTPC builds. Its unique look, with high-quality red steel & aluminium casing & diamond-cut design, helps you stand out in the crowd & complements the latest PC hardware. It’s available in a bundle kit that

Includes:: everything you need to install Savage in your existing system, including a USB (Universal Serial Bus) 3.0 enclosure to transfer data from 2.5" hard drives; a 2.5"–3.5" adapter to mount in a desktop environment; SATA data cable; multi-bit screwdriver & Acronis data migration software. Hyper X Savage SSD is 100 per cent factory tested & backed by a three-year warranty, free technical support & legendary reliability.

...

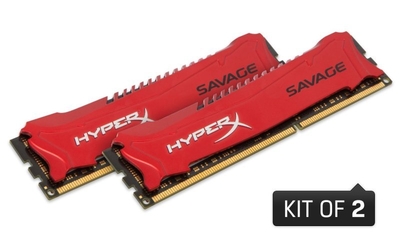

Attack the competition with Hyper X Savage memory. Its unique, asymmetrical red heat spreader is made from high-quality aluminum & has a black PCB & a diamond cut finish to make your game shine & help you stand out in the crowd. The heat spreader dissipates heat so your system stays cool & reliable & its low profile fits under oversized CPU coolers. Featuring a design that works well with the latest trends in gaming, Hyper X Savage comes in a wide range of high-performance speeds, from 1600 M Hz to 2400 M Hz, & capacities from 4GB to 8GB in single modules & 8GB to 32GB kits. In CL9-CL11 latencies, it delivers ultra-responsive multitasking & an overall faster system. Dual & quad channel kits are available. Built-in, h&-tuned XMP profiles let users reach higher-performing frequencies, timings & voltages simply by enabling Intel's XMP tool. Even noobs can overclock their platforms with no need for manual adjustments in BIOS. Hyper X Savage is backed by a lifetime warranty & free technical support. ...

Hyper X Savage 16GB Kit* (2x 8GB)- DDR4 2400 M Hz Intel XMP CL12 DIMM Memory Hyper X HX424C12SB2K2/16 is a kit of two 1G x 64-bit (8GB) DDR4-2400 CL12 SDRAM (Synchronous DRAM) 2 Rx 8, memory modules, based on sixteen 512M x 8-bit FBGA components per module. Total kit capacity is 16GB. Each module supports Intel XMP (Extreme Memory Profiles). Each module has been tested to run at DDR4-2400 at a low latency timing of 12-14-14 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical & mechanical specifications are as follows: XMP TIMING PARAMETERS JEDEC: DDR4-2133 CL15-15-15 @1.2V XMP Profile 1: DDR4-2400 CL12-14-14 @1.35V XMP Profile 2: DDR4-2133 CL13-13-13 @1.2V SPECIFICATIONS CL (IDD) 15 cycles Row Cycle Time (t R Cmin) 46.5ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 33ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC * Power will vary depending on the SDRAM used. FEATURES Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP
- 2.5V Typical VDDSPD = 2.25V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Height 1.36” (34.57mm)

...

Hyper X Savage 16GB Kit* (4x 4GB)
- DDR4 2400 M Hz Intel XMP CL12 DIMM Memory Hyper X HX424C12SB2K4/16 is a kit of four 512M x
...

Hyper X Savage solid-state drive offers extreme performance for the extreme performer. The fastest Hyper X SATA-based SSD, it’s powered by a quad-core, 8-channel Phison S10 controller that delivers incredible speeds of up to 560MB/s read & 530MB/s write, with read/write IOPS up to 100k/89k. The result is ultra-responsive multitasking & an overall faster system that maintains performance even as the drive fills up. With its low profile & slim, 7mm form factor, Hyper X Savage SSD fits in most notebooks, desktops & HTPC builds. Its unique look, with high-quality red steel & aluminium casing & diamond-cut design, helps you stand out in the crowd & complements the latest PC hardware. Performance Incredible speeds for enhanced productivity Unique design stunning red casing to give an edge to the latest PC hardware Slim 7mm thickness to fit in most desktops & notebooks Guaranteed Three-year warranty & free technical support Form factor 2.5inch Interface SATA Rev. 3.0 (6 Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3 Gb/s) Capacity 240GB Controller Phison PS3110-S10 Baseline Performance Compressible Data Transfer (ATTO) 240GB — 560MB/s Read & 530MB/s Write Incompressible Data Transfer (AS-SSD & Crystal Disk Mark) 240GB — 520MB/s Read & 510MB/s Write IOMETER Maximum Random 4k Read/ Write 240GB — up to 100, 000/ up to 89, 000 IOPS Random 4k Read/ Write 240GB — up to 93, 000/ up to 89, 000 IOPS PCMARK Vantage HDD Suite Score 240GB — 84, 000 PCMARK 8 Storage Bandwidth 240GB — 260MB/s PCMARK 8 Storage Score 240GB — 4, 940 Anvil Total Score (Incompressible Workload) 240GB — 4, 700 Power Consumption 0.39W Idle / 0.5W Avg / 1.4W (MAX) Read / 4.35W (MAX) Write Storage temperature -40°C~85°C Operating temperature 0°C~70°C

Dimensions 100.0mm x 69.9mm x 7.0mm Weight 240GB — 92g Vibration operating 2.17G Peak (7–800 Hz) Vibration non-operating 20G Peak (10–2000 Hz) Life expectancy 1 million hours MTBF Warranty/support 3-year warranty with free technical support

...

Hyper X Savage solid-state drive offers extreme performance for the extreme performer. The fastest Hyper X SATA-based SSD, it’s powered by a quad-core, 8-channel Phison S10 controller that delivers incredible speeds of up to 560MB/s read & 530MB/s write, with read/write IOPS up to 100k/89k. The result is ultra-responsive multitasking & an overall faster system that maintains performance even as the drive fills up. With its low profile & slim, 7mm form factor, Hyper X Savage SSD fits in most notebooks, desktops & HTPC builds. Its unique look, with high-quality red steel & aluminium casing & diamond-cut design, helps you stand out in the crowd & complements the latest PC hardware. It’s available in a bundle kit that

Includes:: everything you need to install Savage in your existing system, including a USB (Universal Serial Bus) 3.0 enclosure to transfer data from 2.5" hard drives; a 2.5"–3.5" adapter to mount in a desktop environment; SATA data cable; multi-bit screwdriver & Acronis data migration software. Hyper X Savage SSD is 100 per cent factory tested & backed by a three-year warranty, free technical support & legendary reliability.

...
