SPECIFICATIONS CL (IDD) 10 cycles Row Cycle Time (t R Cmin) 44.75ns (min.) Refresh to Active/ Refresh 260ns (min.) Command Time (t RFCmin) Row Active Time (t RASmin) 32.125ns (min.) Maximum Operating Power TBD W* (per module) UL Rating 94 V
- 0 Operating Temperature 0oC to 85oC Storage Temperature -55oC to +100oC * Power will vary depending on the SDRAM used. FEATURES • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply • VDDQ = 1.5V (1.425V ~ 1.575V) • 933 M Hz f CK for 1866 Mb/sec/pin • 8 independent internal bank • Programmable CAS Latency: 13, 11, 10, 9, 8, 7, 6 • Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock • 8-bit pre-fetch • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] • Bi-directional Differential Data Strobe • Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) • On Die Termination using ODT pin • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C • Asynchronous Reset • PCB: Height 1.180” (30.00mm), single sided component


...

SPECIFICATIONS CL (IDD) 10 cycles Row Cycle Time (t R Cmin) 48.125ns (min.) Refresh to Active/ Refresh 260ns (min.) Command Time (t RFCmin) Row Active Time (t RASmin) 37.5ns (min.) Maximum Operating Power TBD W* (per module) UL Rating 94 V
- 0 Operating Temperature 0C to 85C Storage Temperature -55C to +100C * Power will vary depending on the SDRAM used. FEATURES • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply • VDDQ = 1.5V (1.425V ~ 1.575V) • 800 M Hz f CK for 1600 Mb/sec/pin • 8 independent internal bank • Programmable CAS Latency: 11, 10, 9, 8, 7, 6 • Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock • 8-bit pre-fetch • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] • Bi-directional Differential Data Strobe • Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) • On Die Termination using ODT pin • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C • Asynchronous Reset • PCB: Height 1.180” (30.00mm), single sided component


...

SPECIFICATIONS CL (IDD) 10 cycles Row Cycle Time (t R Cmin) 48.125ns (min.) Refresh to Active/ Refresh 260ns (min.) Command Time (t RFCmin) Row Active Time (t RASmin) 37.5ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to 85oC Storage Temperature -55oC to +100oC * Power will vary depending on the SDRAM used. FEATURES • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply • VDDQ = 1.5V (1.425V ~ 1.575V) • 800 M Hz f CK for 1600 Mb/sec/pin • 8 independent internal bank • Programmable CAS Latency: 11, 10, 9, 8, 7, 6 • Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock • 8-bit pre-fetch • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] • Bi-directional Differential Data Strobe • Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) • On Die Termination using ODT pin • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C • Asynchronous Reset • PCB: Height 1.180” (30.00mm), double sided component


...

SPECIFICATIONS CL (IDD) 10 cycles Row Cycle Time (t R Cmin) 44.75ns (min.) Refresh to Active/ Refresh 260ns (min.) Command Time (t RFCmin) Row Active Time (t RASmin) 32.125ns (min.) Maximum Operating Power TBD W* (per module) UL Rating 94 V
- 0 Operating Temperature 0oC to 85oC Storage Temperature -55oC to +100oC * Power will vary depending on the SDRAM used. FEATURES • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply • VDDQ = 1.5V (1.425V ~ 1.575V) • 933 M Hz f CK for 1866 Mb/sec/pin • 8 independent internal bank • Programmable CAS Latency: 13, 11, 10, 9, 8, 7, 6 • Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock • 8-bit pre-fetch • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] • Bi-directional Differential Data Strobe • Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) • On Die Termination using ODT pin • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C • Asynchronous Reset • PCB: Height 1.180” (30.00mm), single sided component


...

SPECIFICATIONS CL (IDD) 10 cycles Row Cycle Time (t R Cmin) 44.75ns (min.) Refresh to Active/ Refresh 260ns (min.) Command Time (t RFCmin) Row Active Time (t RASmin) 32.125ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to 85oC Storage Temperature -55oC to +100oC * Power will vary depending on the SDRAM used. FEATURES • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply • VDDQ = 1.5V (1.425V ~ 1.575V) • 933 M Hz f CK for 1866 Mb/sec/pin • 8 independent internal bank • Programmable CAS Latency: 13, 11, 10, 9, 8, 7, 6 • Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock • 8-bit pre-fetch • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] • Bi-directional Differential Data Strobe • Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) • On Die Termination using ODT pin • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C • Asynchronous Reset • PCB: Height 1.180” (30.00mm), double sided component


...

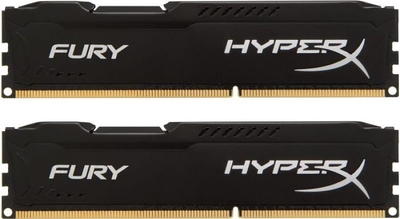

Get in the game with Hyper X FURY. Even newbies get up to speed fast, since FURY automatically recognises its host platform & automatically overclocks to up to 1866 M Hz, providing plenty of power for your next death match. FURY's asymmetric heatspreader design lets you stand out from the crowd. It's available in black, blue, red & -- for the first time in the Hyper X line -- white, with a black PCB. So your rig can reflect your style & you can show it off with pride. It's 100-percent tested & LAN-ready plus it's backed by free technical support. Hyper X Pn P memory will run in most DDR3 systems up to the speed allowed by the manufacturer's system BIOS. Pn P cannot increase the system memory speed faster than is allowed by the manufacturer's BIOS. Hyper X FURY is available in frequency speeds from 1333 M Hz to 1866 M Hz. Reach faster speeds & higher capacities by just installing the memory, no adjustments in BIOS needed. No matter if you are an Intel or AMD gamer, the Hyper X FURY is ideal for you. To make sure it works, Hyper X FURY has been tested with popular brands of motherboards. Does your system have enough memory to get you into the game? Kits are available to max out your system's memory with up to 16GB of high-performance goodness. ...

SPECIFICATIONS CL (IDD) 10 cycles Row Cycle Time (t R Cmin) 48.125ns (min.) Refresh to Active/ Refresh 260ns (min.) Command Time (t RFCmin) Row Active Time (t RASmin) 37.5ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to 85oC Storage Temperature -55oC to +100oC * Power will vary depending on the SDRAM used. FEATURES • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply • VDDQ = 1.5V (1.425V ~ 1.575V) • 800 M Hz f CK for 1600 Mb/sec/pin • 8 independent internal bank • Programmable CAS Latency: 11, 10, 9, 8, 7, 6 • Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock • 8-bit pre-fetch • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] • Bi-directional Differential Data Strobe • Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) • On Die Termination using ODT pin • Average Refresh Period 7.8us at lower than TCASE 85°C 3.9us at 85°C < TCASE < 95°C • Asynchronous Reset • PCB: Height 1.180” (30.00mm), double sided component


...

Get in the game with Hyper X FURY. Even newbies get up to speed fast, since FURY automatically recognises its host platform & automatically overclocks to up to 1866 M Hz, providing plenty of power for your next death match. FURY's asymmetric heatspreader design lets you stand out from the crowd. It's available in black, blue, red & -- for the first time in the Hyper X line -- white, with a black PCB. So your rig can reflect your style & you can show it off with pride. It's 100-percent tested & LAN-ready plus it's backed by free technical support. Hyper X Pn P memory will run in most DDR3 systems up to the speed allowed by the manufacturer's system BIOS. Pn P cannot increase the system memory speed faster than is allowed by the manufacturer's BIOS. Hyper X FURY is available in frequency speeds from 1333 M Hz to 1866 M Hz. Reach faster speeds & higher capacities by just installing the memory, no adjustments in BIOS needed. No matter if you are an Intel or AMD gamer, the Hyper X FURY is ideal for you. To make sure it works, Hyper X FURY has been tested with popular brands of motherboards. Does your system have enough memory to get you into the game? Kits are available to max out your system's memory with up to 16GB of high-performance goodness. Brand Hyper X Item Weight 27 g Product

Dimensions 33 x 11.4 x 0.3 cm Item model number HX318C10FW/8 Color White RAM Size 8192 MB Computer Memory Type DDR3 SDRAM Voltage 1.5 volts

...
