Features Intel 4th generation Core™ processors Intel Iris™ Pro graphics 5200 Supports 2.5” thickness 7.0/9.5mm Hard Drives (1 x 6 Gbps SATA3) Ultra compact PC design
- 0.79L (62 x 111.4 x 114.4 mm) 1 x m SATA SSD Slot 2 x SO-DIMM DDR3L Slots (1333 / 1600 MHz) IEEE 802.11 a/b/g/n/ac Wi-Fi / Bluetooth 4.0 Mini-PCIe card HDMI plus Mini Display Port Outputs (supports dual displays) 4K resolution output (4096 x 2304 via HDMI) 4 x USB (Universal Serial Bus) 3.0 Gigabit LAN Headphone jack with S/PDIF VESA mounting bracket (75 x 75mm + 100 x 100mm) The BRIX Pro takes the signature compact design philosophy of the GIGABYTE BRIX series, adding a high-performance Intel Core™ i 5 processor featuring Intel Iris™ Pro graphics 5200. As well as a featuring a true high-performance processor that is ideally suited to CPU-intensive applications like image design & video editing, the superior graphics performance of the BRIX Pro means it’s also great for 3D gaming. The BRIX Pro gives users the flexibility to independently choose integrated storage & system memory sizes, with two SO-DIMM DDR3L slots plus support for both m SATA SSD & standard 2.5” SSD installation. The BRIX Pro is one of the first devices to boast the cutting edge graphics capabilities of Intel Iris™ Pro graphics. Based on the latest graphics architecture from Intel, Iris™ Pro Graphics use an on-package 128M e DRAM cache that negates memory pipeline issues, greatly boosting overall performance in 3D applications. The GIGABYTE BRIX Pro features both Mini Display Port & HDMI ports on the rear panel, enabling support for simultaneous dual display connectivity, making it suited to both the work place, home theater & entertainment scenarios, including casual 3D gaming. The GIGABYTE BRIX Pro also supports the latest 4K displays via HDMI. Audio connectivity

Includes:: SPDIF audio via a front panel connector, useful in Home Theater scenarios that use an A/V receiver.

Dimensions
- 62 x 111.4 x 114.4 mm (2.4” x 4.3” x 4.5”) Motherboard Size
- 100 x 105 mm CPU
- 4th generation Intel Core™ i 5-4570R 3.20 GHz Chipset
- Intel HM87 Chipset Memory
- 2 x SO-DIMM DDR3L slots (DDR3 1.35V) 1333 / 1600 MHz Max 16GB LAN
- Gigabit LAN (Realtek RTL8111G) Audio
- Realtek ALC269 Graphics
- Intel Iris Pro graphics 5200 HDMI Resolution (Max.)
- 4096x 2304 @ 24 Hz Mini DP Resolution (Max.)
- 3840x 2160 @ 60 Hz Expansion Slots 1 x m SATA slot 1 x Half-size mini-PCIe slot occupied by the Wi Fi+BT card 1 x SATA slot Front I/O 2 x USB (Universal Serial Bus) 3.0 1 x head phone jack with SPDIF Rear I/O 1 x HDMI 1 x Mini Display Port 2 x USB (Universal Serial Bus) 3.0 1 x RJ45 1 x DC-In 1 x Kensington lock slot Storage Supports 2.5” thickness 7.0/9.5mm Hard Drives (1 x 6 Gbps SATA3) Power Supply Input: AC 100-240V Output: DC 19V 7.1A VESA Bracket included Supports 75 x 75 & 100 x 100 mm Support OS WIN7 32/64bit WIN8 32/64bit WIN8.1 32/64bit














...

Gigabyte GB-BXi 7-4500 BRIX / Ultra Compact PC kit The BRIX from GIGABYTE is an ultra compact & versatile DIY PC kit available with a broad choice of processors covering a range of performance points. The BRIX redefines the desktop PC in terms of miniaturization with a form factor that sits in the palm of your h&. Ideal for compact HTPC builds or as a standard desktop in the home or office, the BRIX doesnt hold back in terms of display & peripheral connectivity, or raw performance. Supports dual display video output via HDMI & mini Display Port.

Includes:: IEEE 802.11b/g/n Wi-Fi / Bluetooth 4.0/3.0 Combo Mini PCIe module.

Includes:: VESA bracket for discreet display & wall mounting. Redefining the Desktop PC: Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based around an anthracite aluminum frame & glass surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity & convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. Dual Display: With support for HDMI & Display Port, the BRIX can power two displays simultaneously, making a perfect choice as a high productivity PC in professional & home environments, or in any number of industrial & commercial multi-display applications. Flexible Compact PC Kit: The BRIX is sold as a DIY PC kit, shipping with a Mini PCIe Wi-Fi module pre-installed, plus a power adapter & cable conforming to local standards. Requiring only system memory & m SATA SSD, the BRIX gives users the flexibility to independently choose integrated storage & system memory size, without the trouble of sourcing components that are not widely available on the retail market. VESA Support: Bundled with a VESA bracket, the BRIX can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This makes it simple & effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit. Dimension
- 29.9 mm x 107.6 mm x 114.4 mm (1.18" x 4.24" x 4.5") Motherboard
- 100 x 105 mm CPU
- 4th generation Intel Core i 7-4500U 1.8 G Hz / 3.0 G Hz Memory: 2 x SO-DIMM DDR3L slots (DDR3 1.35V) 1333 / 1600 MHz Max. 16GB LAN
- Gigabit LAN (Realtek RTL8111G) Audio
- Realtek ALC269 Graphics
- Intel HD 4400 graphics Expansion Slots: 1 x m SATA slot 1 x Half-size mini-PCIe slot occupied by the Wi Fi+BT card Front I/O: 2 x USB (Universal Serial Bus) 3.0 1 x head phone jack with SPDIF Rear I/O: 1 x HDMI 1 x Mini Display Port 2 x USB (Universal Serial Bus) 3.0 1 x RJ45 1 x DC-In 1 x Kensington lock slot Power Supply Input: AC 100-240V Output: DC 19V 3.42A VESA: Bracket included Supports 75 x 75 & 100 x 100 mm









...

Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based around an anthracite aluminum frame & glass surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity & convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. Specifications

Dimensions 29.9 mm x 107.9 mm x 114.6 mm (1.18" x 4.24" x 4.5") Motherboard 100 x 105 mm CPU 3rd generation Intel Core i 5-3337U 1.8 G Hz / 2.7 G Hz Chipset Intel HM77 Memory 2 x SO-DIMM DDR3 slots 1333 / 1600 MHz Max. 16GB (8GB x 2) LAN Gigabit LAN (Realtek RTL8111E) Graphics Intel HD 4000 graphics Expansion Slots 1 x m SATA slot 1 x Half-size mini-PCIe slot occupied by the Wi Fi card Front I/O 1 x USB (Universal Serial Bus) 3.0 Rear I/O 1 x HDMI 1 x Mini Display Port 1 x USB (Universal Serial Bus) 3.0 1 x RJ45 1 x DC-In 1 x Kensington lock slot Power Supply Input: AC 100-240V Output: DC 19V 3.42A VESA Bracket included Supports 75 x 75 & 100 x 100 mm

...

Redefining the Desktop PC Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based around an anthracite aluminum frame & glass surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity & convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that make it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. Dual Display With support for HDMI & Display Port, the BRIX can power two displays simultaneously, making a perfect choice as a high productivity PC in professional & home environments, or in any number of industrial & commercial multi-display applications. Flexible Compact PC Kit The BRIX is sold as a DIY PC kit, shipping with a Wi-Fi Mini PCIe module pre-installed, plus a power adapter & cable conforming to local standards. Requiring only system memory & m SATA SSD, the BRIX gives users the flexibility to independently choose integrated storage & system memory size, without the trouble of sourcing components that are not widely available on the retail market. VESA Support Bundled with a VESA bracket, the BRIX can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This makes it simple & effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit. Dimension
- 29.9 x 107.9 x 114.6 mm Motherboard
- 100 x 105 mm CPU
- Intel Celeron 1037U 1.8 G Hz Chipset
- Intel NM70 Memory
- 2 x SO-DIMM DDR3 slots 1333 / 1600 MHz Max. 16GB (8GB x 2) LAN
- Gigabit LAN (Realtek RTL8111E) Graphics
- Intel HD graphics Expansion Slots 1 x m SATA slot 1 x Half-size mini-PCIe slot occupied by the Wi Fi card Front I/O 1 x USB (Universal Serial Bus) 2.0 Rear I/O 1 x HDMI 1 x Mini Display Port 1 x USB (Universal Serial Bus) 2.0 1 x RJ45 1 x DC-In 1 x Kensington lock slot Power Supply Input: AC 100-240V Output: DC 19V 3.42A VESA: Bracket included Supports 75 x 75 & 100 x 100 mm UK Plug not included.






...

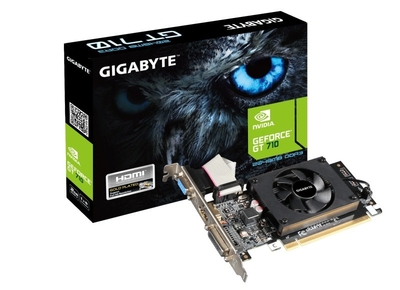

Gigabyte Ge Force GT 710 1GB DDR3 VGA Dual-Link DVI-D HDMI PCI-E Graphics card Ultra Durable 2 Technology Fitted with high quality components to deliver lower temperature, reliable operation & longer system lifespan. Ultra Cooling Low RDS (on) MOSFET Design Low Power Loss Ferrite Core Choke Design Longer Life All-Solid Capacitor Design OC GURU II Utility Adjust clock speeds, voltage, fan performance, power target, OSD setting can be monitored & tuned in real-time according to your own preference through this intuitive interface.

Specification Chipset GT 710 Core Clock 954 MHz (Standard: 954 MHz) Process Technology 28 nm Memory Clock 1800 MHz Memory Size 1GB Memory Bus 64-bit Memory Type DDR3 Card Bus PCI-E 2.0 x 8 Direct X 12 Open GL 4.5 PCB Form Low profile Digital max resolution 4096 X 2160 Analog max resolution 2048 x 1536 Multi-view 2 I/O Dual-link DVI-D*1 / HDMI*1 / D-Sub*1 Card size H=24 L=147 W=106 mm (TBD) Power requirement 300W

...

Gigabyte Ge Force GTX 660 2GB GDDR5 Dual DVI HDMI Display Port PCI-E Graphics Card Features & Benefits: Lower GPU Temperature Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU & memory temperature by doubling the copper inner layer of PCB. Better Overclocking Capability Ultra Durable VGA board reduces voltage ripples in normal & transient state, thus effectively lowers noises & ensures higher overclocking capability. Decrease Power Switching Loss Ultra Durable VGA board allows more bandwidth for electron passage & reduces circuit impedance. The less circuit impedance, the more stable flow of current & can effectively improve power efficiency. Chipset Ge Force GTX 660 Memory Clock
- 6008 MHz Process Technology
- 28 nm Memory Size
- 2048MB Memory Bus
- 192 bit Core Clock
- Base clock: 980 MHz Boost clock: 1033 MHz Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X 11.1 Open GL
- 4.3 PCB Form
- ATX Digital max resolution 4096 X 2160 (via a single HDMI connector & not supported with two DVI connectors) Analog max resolution 2048 x 1536 Multi-view
- 4 I/O Dual-link DVI-I *1 DVI-D *1 Display Port *1 HDMI *1 Card size
- H= 42mm, L=256.3 mm, W=131 mm Power requirement
- 450 W











...

Convex curves widen air range for both CPU & MOSFET cooling Universal design for Intel LGA 775 & AMD K8/AM2 platform 9cm fan with PWM Pure copper-base, nickel-coated for durability Heat pipe array comprising of 6mm thick heat piping

Specification Model no. GH-PSU22-PC Heat sink

Dimensions (W x H x D ) 101.8 x 121.9 x 138.8 mm Fan

Dimensions (W x H x D ) 90 x 90 x 25 mm Number of heat pipes 3 Base material Copper Fin material Aluminum Rated Voltage 12V Rated Current 0.12A (At 2300rpm) Fan Speed 2, 300 rpm Acoustic DUTY CYCLE 100%??25.6d B DUTY CYCLE 0~30% ??19d B Bearing Type EBR Fan connector 4-Pin MTBF 30, 000 hrs Weight 430 g Supports Intel Core™ i 7 / i 5 / i 3 Processor Series Intel Core™ 2 Extreme Processor Series Intel Core™ 2 Quad Processor Series Intel Core™ 2 Duo Processor Series Intel Pentium Extreme Edition Series Intel Pentium D Processor Series Intel Pentium 4 Processor Series (LGA775) AMD AM2 AMD Athlon™ FX Series AMD Athlon™ 64x 2 Series AMD Athlon™ 64 Series AMD Sempron Series





...

Key Features Laser precision: Experience high accuracy & fluid tracking on virtually any surface 800/ 1600 DPI adjustable: To switch 1600 or 800dpi resolution just by one-touch press in games Back & Forward Buttons: Quicken surfing on the internet & searching your documents. Gaming mouse with perfect weight: Equipped perfect weight- 100g (excluding cable), better grip for gamers. Ergonomic & total-comfort design: Comfort shape with soft rubber grips provide you a superior grasp even in the longest gaming sessions. Super-smooth feet: Slide easily across almost any surface. Specifications Features: Interface: USB (Universal Serial Bus) Laser engine 1600/800 DPI adjustable Back & Forward buttons Gaming mouse with perfect weight Ergonomic design & comfort grip. Laser precision Resolution: 800 / 1600 dpi switchable FPS (Frame rate per second): 3000 fps Maximum acceleration: 20g Maximum speed: 28 inches /sec Certificate: CE, FCC, BSMI Colour: Metal Black Cable Length: 1.5m

Dimensions: (L)127 x (W)75 x (H)42 mm Net Weight: 145g OS Support: Windows 98/2000/ME/XP 32bit/ Vista

...

Interface USB (Universal Serial Bus) Tracking system Laser Resolution 1600/ 800 dpi adjustable Frequency 2.4 Ghz RF Working distance 10m ID connection time Plug & Play! Auto-Link ID! Certificate CE/ FCC/ BSMI/ NCC/ Laser Product Class I Color Noble Black/ Pearl white/ Glossy Blue/ Glossy Red Dimension Mouse: (L)100x (W)60 x (H)36.5 mm Receiver: (L)16x (W)8 x (H)21 mm Support OS Windows 98/2000/ME/XP 32bit/ Vista 32/ 64bit/ Win 7 32/ 64bits Packing Contents Mouse/ Receiver/ CD Driver/ AAA Battery*2 Weight 60g ...

Specifications Chipset
- Ge Force GT 610 PCB Form
- Low Profile Core Clock
- 810 MHz Shader Clock
- 1620 MHz Memory Clock
-




...
