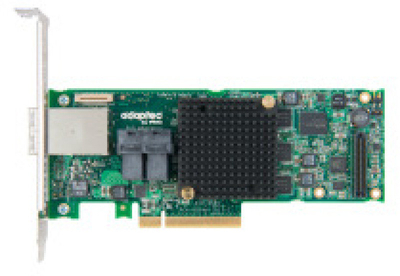

Adaptec 8885 SAS/SATA (8 Internal/8 External Port) RAID Adapter -
Single

Product Description

Adaptec Series 8 RAID Adapters
- Unmatched connectivity, performance & data protection Key Features 16 ports (8 internal, 8 external) 12 Gb/s throughput at each port Up to 16 native SAS/SATA ports in an LP/MD2 form factor PMC PM8063 ROC SAS 3.0 interface & PCIe Gen 3 Host Connection Data center, IT, & general consumer server environments have a broad range of requirements — from basic connectivity to extreme data storage capacities. The effectiveness at which their data is accessed & protected is crucial to their ultimate success.. The Adaptec Series 8 12 Gb/s RAID Adapter product family directly addresses the connectivity, performance, & data protection needs, unmatched by anything in the industry. The Adaptec Series 8 RAID adapter family features PMC's PM8063 RAID-on-Chip (ROC), which combines a x 8 PCIe Gen 3 interface with 12 Gb/s SAS ports to enable a new generation of high- performance RAID adapters for the 12 Gb/s storage ecosystem. Adaptec Series 8 RAID adapters are available with 8, or 16 native SAS/SATA ports in an LP/MD2 form factor. The mini SAS HD connectors combined with SAS HD cables allow for greater flexibility in configuration options by supporting up to 16 native SAS/SATA ports in a Low-Profile MD2 form factor. New Levels of Performance Series 8 adapters perform at up to 6.6 GB/s on sequential reads & up to 5.2 GB/s on sequential writes on parity RAID 5. With 16 direct-connected solid-state drives (SSDs), Series 8 adapters deliver more than 700K IOPS. Advanced Data Protection Adaptec RAID Code (ARC) delivers maximum reliability with RAID levels 0, 1, 1E, 5, 6, 10, 50 & 60. ARC also offers RAID Level Migration (the ability to easily migrate RAID levels), Online Capacity Expansion (expand capacity without powering down the server), & Copyback Hot Spare (when a failed drive has been replaced, data is automatically copied from the hot spare back to the restored drive). in addition, the auto configuration capability allows users to operate in HBA mode (expose drives to the host directly) or Simple Volume mode (use fast DRAM cache to reduce latency & improve performance), without the need to use setup tools. In RAID mode, they can mix & match all devices & handle them at the same time. Zero-Maintenance Cache Protection (ZMCP) Series 8 adapters can be combined with our third-generation AFM-700 flash-based cache protection module (sold separately) to enable instant battery-free cache protection. Zero-Maintenance Cache Protection (ZMCP), is a revolutionary advancement that solves BBU deficiencies by providing full protection to cached data with no monitoring, maintenance, disposal, or replacement costs. ZMCP features SLC based NAND flash memory with super capacitor technology. During a system power loss, the flash memory-based cache protection can preserve data for years. Adaptec max View Storage Manager Adaptec max View Storage Manager provides the powerful features of Adaptec Storage Manager™ in an HTML5 web interface that can be viewed in standard desktop or mobile browsers without the need for separate software installation. Highlights Models 8885: 16 ports (8 internal, 8 external) 8805: 8 internal ports All Series 8: 12 Gb/s throughput at each port Up to 16 native SAS/SATA ports in an LP/MD2 form factor PMC PM8063 ROC SAS 3.0 interface & PCIe Gen 3 Host Connection Maximum performance for up to 16 SSDs (No expander needed) Optional Adaptec Flash Module (AFM-700) for maintenance free cache protection Auto configuration of Simple Volume & HBA modes — "set it & forget it" Mini SAS HD connectors & SAS HD cables — for fit & function in dense server con-figurations Support for up to 256 SAS & SATA devices Support for SSD, HDD, Autoloader, RBOD, Tape Benefits Ideal for 12 Gb/s performance-hungry server & workstations platforms, without compromising proven Adaptec reliability Key Differentiators Third generation ZMCP; AFM-700 LP MD2 form factor for up to 16 native SAS/SATA ports Customer Needs High I/O transaction & high bandwidth processing; solutions that reduce energy consumption & maintenance costs. Key Software Features Flexible Configuration: HBA Mode & Auto Volume Mode for automatic deployment Optimized Disk Utilization (Multiple Arrays per disk) Supports up to 256 SAS or SATA devices using SAS expander Support for native 4K sector SAS & SATA devices in addition to 512byte sector devices Supported RAID levels: 0, 1, 1E, 5, 6, 10, 50, & 60 Hybrid RAID 1 & 10 Quick initialization Online Capacity Expansion Performance modes: Dynamic, OLTP & Big Block By Pass Copyback Hot Spare Dynamic caching algorithm Native Command Queuing (NCQ) Background initialization Hot-plug drive support RAID Level Migration Hot spares
- global, dedicated, & pooled Automatic/manual rebuild of hot spares SES & SAF-TE enclosure management Configurable stripe size Dual Firmware S.M.A.R.T. support Multiple arrays per disk drive Dynamic sector repair Staggered drive spin-up Bootable array support Support for Tape Devices, Autoloaders MSI-X support for all device driver for all supported Operating Systems Secure boot support for the u EFI host bios USB (Universal Serial Bus) image available, after shipping, on start.adaptec.com to boot max View GUI from any USB (Universal Serial Bus) device for enhanced GUI based setup & offline maintenance Management Utilities Software Adaptec max View Storage Manager Web based GUI Management Utility OS Support: Windows, Linux, Solaris VMware Remote configuration, monitoring & notification Remote firmware updates SMI-S Support SMTP ARCCONF Command Line Interface SMI-S support for VMware Adaptec BIOS Configuration Utility (CTRL+A) BIOS level configuration utility Flashable BIOS support Adaptec u EFI BIOS Configuration Utility HII based configuration utility Flashable BIOS support Operating System Microsoft Windows Red Hat Linux SUSE Linux Fedora Debian Linux Ubuntu Linux Solaris Free BSD VMware ESXi Data Transfer Rate 12 Gb/s per port Bus System Interface x 8 PCIe 3.0 Form Factor MD2-Low Profile Cache Memory 8885: 1024MB 8805: 1024MB Connector Configuration 8885: Two internal mini SAS HD (SFF-8643), two external mini SAS HD (SFF-8644) 8805: Two internal mini SAS HD (SFF-8643) Package Contents Model 8885 Adaptec RAID 8885 adapter Additional low profile vented bracket Model 8805 Adaptec RAID 8805 adapter Additional low profile vented bracket * Single does not include cables Physical Size 2.535"H x 6.6"L (64mm x 167mm) Operating Temperature 0°C to 55°C* (with 200 LFM airflow without AFM-700) 0°C to 50°C* (with 200 LFM airflow with AFM-700) Note: This Adaptec card contains a powerful RAID processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with recommended airflow (200 LFM). * Ambient temperature measured 1" away from the RAID processor Operating Current 0.1A @ 3.3 VDC 1.2A @ 12 VDC Regulatory Certification CE, FCC, UL, C-tick, VCCI, KCC, CNS Environmental Compliance Ro HS Mean Time Before Failure (MTBF) 645, 612 hours at 40°C Warranty 3 years
