The Fractal Design Edison M series of power supplies feature excellent electrical performance, including 80PLUS Gold certified efficiency. Designed for maximum reliability, the Edison M units feature Japanese electrolytic capacitors with a full protection suite, including over-temperature protection. The modular cable system assists with a clean installation & the extra-long ATX12V cable accommodates cases with bottom mounted PSU positions. Fractal Design Edison M units are equipped with a large, temperature-controlled FDB-bearing 120mm fan contributing to a maximum lifespan while keeping noise levels at a minimum. The Edison M is a highly reliable choice, for both gaming computers & powerful workstations. Key Features Modular construction to assist with a clean build with only the most essential cables permanently attached 80PLUS Gold efficiency with a 5 year warranty on the PSU ATX 2.4 compliant, including full support for the new C6 / C7 power states introduced with the 4th generation Intel Core CPUs DC-DC design for enhanced system stability & maximum 12V output Tight voltage regulation: +/- 2% for +12V & +/- 3% for minor rails Japanese electrolytic capacitors, rated at 105°C; Japanese & Taiwanese solid polymer capacitors Extra long ATX 12V cable Silent, temperature-controlled 120mm fan with quiet, long-life FDB bearings Full protection suite: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection & Over Temperature Protection Sleek look to add to the overall design of your build 80 PLUS Gold certified efficiency Edison M PSUs meet the 80 PLUS Gold

Specification for providing power at an extremely competitive price point, priving excellent value. in addition, because Edison M PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels. superb Electrical Performance Fractal Design Edison M Series PSUs feature excellent DC voltage regulation & ripple suppression: they can deliver their full-rated wattage continuously even with an intake temperature as high as 40°C at full load or 50°C at 80% load. Compliant with the latest standards Edison M PSUs are compliant with the latest PC PSU standard: ATX 2.4 / EPS 2.92 High end capacitors Edison M PSUs feature Japanese electrolytic capacitors, rated at 105°C as well as Japanese & Taiwanese solid polymer capacitors. Silent, temperature-controlled 120mm FDB fan Generally, larger fans move more air with less noise than smaller fans: Edison M Series PSUs are equipped with a 120mm FDB bearing, which keeps noise levels at a minimum. Extra-long ATX12V cable Edison M PSUs are equipped with an extra long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases. Computer protection Edison M PSUs feature a full suite of computer protection, including: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection & Over Temperature Protection.

...

The Fractal Design Edison M series of power supplies feature excellent electrical performance, including 80PLUS Gold certified efficiency. Designed for maximum reliability, the Edison M units feature Japanese electrolytic capacitors with a full protection suite, including over-temperature protection. The modular cable system assists with a clean installation & the extra-long ATX12V cable accommodates cases with bottom mounted PSU positions. Fractal Design Edison M units are equipped with a large, temperature-controlled FDB-bearing 120mm fan contributing to a maximum lifespan while keeping noise levels at a minimum. The Edison M is a highly reliable choice, for both gaming computers & powerful workstations. Key Features Modular construction to assist with a clean build with only the most essential cables permanently attached 80PLUS Gold efficiency with a 5 year warranty on the PSU ATX 2.4 compliant, including full support for the new C6 / C7 power states introduced with the 4th generation Intel Core CPUs DC-DC design for enhanced system stability & maximum 12V output Tight voltage regulation: +/- 2% for +12V & +/- 3% for minor rails Japanese electrolytic capacitors, rated at 105°C; Japanese & Taiwanese solid polymer capacitors Extra long ATX 12V cable Silent, temperature-controlled 120mm fan with quiet, long-life FDB bearings Full protection suite: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection & Over Temperature Protection Sleek look to add to the overall design of your build 80 PLUS Gold certified efficiency Edison M PSUs meet the 80 PLUS Gold

Specification for providing power at an extremely competitive price point, priving excellent value. in addition, because Edison M PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels. superb Electrical Performance Fractal Design Edison M Series PSUs feature excellent DC voltage regulation & ripple suppression: they can deliver their full-rated wattage continuously even with an intake temperature as high as 40°C at full load or 50°C at 80% load. Compliant with the latest standards Edison M PSUs are compliant with the latest PC PSU standard: ATX 2.4 / EPS 2.92 High end capacitors Edison M PSUs feature Japanese electrolytic capacitors, rated at 105°C as well as Japanese & Taiwanese solid polymer capacitors. Silent, temperature-controlled 120mm FDB fan Generally, larger fans move more air with less noise than smaller fans: Edison M Series PSUs are equipped with a 120mm FDB bearing, which keeps noise levels at a minimum. Extra-long ATX12V cable Edison M PSUs are equipped with an extra long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases. Computer protection Edison M PSUs feature a full suite of computer protection, including: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection & Over Temperature Protection.

...

Real power: supports continuous output at full power rating Full protection suite for maximum reliability Quiet operation with large, temperature controlled fan ATX 2.31, Er P 2013 & Ro HS compliant Over 80% efficiency at low & medium output Black powder coating, seamlessly fits in modern PC cases Cables with full black mesh sleeving for easier management & a better look Interfaces/ Ports Power Connectors 1 x 20 +4 pin ATX SATA Connectors 4 x SATA CPU Connectors 1 x 4+4-pin Molex Connectors 2 x 4-pin Floppy Connectors 1 x Floppy Connector Compliance Standards OCP/SCP/OVP/OPP/UVP Electrical Voltage 230 V AC Power 500 W ...

Real power: supports continuous output at full power rating Full protection suite for maximum reliability Quiet operation with large, temperature controlled fan ATX 2.31, Er P 2013 & Ro HS compliant Over 80% efficiency at low & medium output Black powder coating, seamlessly fits in modern PC cases Cables with full black mesh sleeving for easier management & a better look ...

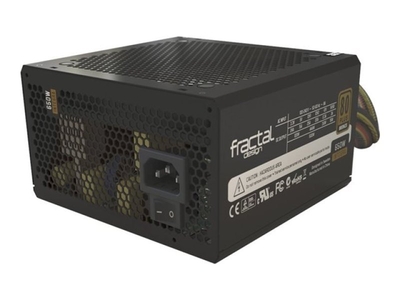

Summary Fractal Design Integra R2 Series power supply units (PSUs) provide stable power at an entry-level price. The Integra R2 is a great choice for medium-performance gaming computers & workstations. The visual appearance of Integra R2 Series PSUs is proof of Fractal Design's commitment to providing innovative computer components infused with stylish, elegant, contemporary Scandinavian design. Integra R2 PSUs meet the 80 PLUS Bronze

Specification for providing power with an efficiency that is typical of PSU's with much higher price points. in addition, because Integra R2 PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels. Fractal Design Integra R2 Series PSUs feature excellent DC voltage regulation & ripple suppression: they can deliver their full-rated wattage continuously even with an intake temperature as high as 40°C. Integra R2 PSUs are compliant with the latest PC PSU standard: ATX12V 2.31. Integra R2 PSUs are only 140mm long, which accommodates the smallest ATX compatible computer cases on the market. Generally, larger fans move more air with less noise than smaller fans: Integra R2 Series PSUs are equipped with a large, low speed, temperature controlled 120mm fan, which keeps noise level down. Description Integra R2 PSUs are equipped with a 650mm long 12V (P4) connector cable, which accommodates bottom mounted PSU computer cases. Integra R2 PSUs feature an impressive suit of computer protection, including: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection & Over Current Protection. Product Features 80 PLUS Bronze certified efficiency Excellent Electrical Performance Fractal Design Integra R2 Series PSUs feature excellent DC voltage regulation & ripple suppression Integra R2 PSUs are compliant with the latest PC PSU standard: ATX12V 2.31 Extremely short 140 mm case Silent, temperature-controlled 120mm fan Integra R2 Series PSUs are equipped with a large, low speed, temperature controlled 120mm fan Extra-long ATX12V cable Integra R2 PSUs are equipped with a 650mm long 12V ('P4') connector cable Computer protection Integra R2 PSUs feature an impressive suit of computer protection

...

Summary Fractal Design Integra R2 Series power supply units (PSUs) provide stable power at an entry-level price. The Integra R2 is a great choice for medium-performance gaming computers & workstations. The visual appearance of Integra R2 Series PSUs is proof of Fractal Designs commitment to providing innovative computer components infused with stylish, elegant, contemporary Scandinavian design. Integra R2 PSUs meet the 80 PLUS Bronze

Specification for providing power with an efficiency that is typical of PSUs with much higher price points. in addition, because Integra R2 PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels. Fractal Design Integra R2 Series PSUs feature excellent DC voltage regulation & ripple suppression: they can deliver their full-rated wattage continuously even with an intake temperature as high as 40°C. Integra R2 PSUs are compliant with the latest PC PSU standard: ATX12V 2.31. Integra R2 PSUs are only 140mm long, which accommodates the smallest ATX compatible computer cases on the market. Generally, larger fans move more air with less noise than smaller fans: Integra R2 Series PSUs are equipped with a large, low speed, temperature controlled 120mm fan, which keeps noise level down. Description Integra R2 PSUs are equipped with a 650mm long 12V (P4) connector cable, which accommodates bottom mounted PSU computer cases. Integra R2 PSUs feature an impressive suit of computer protection, including: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection & Over Current Protection. Product Features 80 PLUS Bronze certified efficiency Excellent Electrical Performance Fractal Design Integra R2 Series PSUs feature excellent DC voltage regulation & ripple suppression Integra R2 PSUs are compliant with the latest PC PSU standard: ATX12V 2.31 Extremely short 140 mm case Silent, temperature-controlled 120mm fan Integra R2 Series PSUs are equipped with a large, low speed, temperature controlled 120mm fan Extra-long ATX12V cable Integra R2 PSUs are equipped with a 650mm long 12V (P4) connector cable Computer protection Integra R2 PSUs feature an impressive suit of computer protection

...

Fractal Design Integra M Series power supply units feature excellent electrical performance, including 80PLUS Bronze certified efficiency. The modular flat cable system allows for a clean installation, & enhances airflow patterns inside the case. The short 140mm length makes for easy installation in small computer cases, & the extra-long ATX12V cable accommodates modern, bottom-PSU cases. Fractal Design Integra M units are equipped with a large temperature-controlled 120mm fan for reduced noise levels & optimum cooling. The Integra M is a great choice for medium-performance gaming computers & workstations. ...

Fractal Design Integra M Series power supply units feature excellent electrical performance, including 80PLUS Bronze certified efficiency. The modular flat cable system allows for a clean installation, & enhances airflow patterns inside the case. The short 140mm length makes for easy installation in small computer cases, & the extra-long ATX12V cable accommodates modern, bottom-PSU cases. Fractal Design Integra M units are equipped with a large temperature-controlled 120mm fan for reduced noise levels & optimum cooling. The Integra M is a great choice for medium-performance gaming computers & workstations. ...

Fractal Design Integra M Series power supply units feature excellent electrical performance, including 80PLUS Bronze certified efficiency. The modular flat cable system allows for a clean installation, & enhances airflow patterns inside the case. The short 140mm length makes for easy installation in small computer cases, & the extra-long ATX12V cable accommodates modern, bottom-PSU cases. Fractal Design Integra M units are equipped with a large temperature-controlled 120mm fan for reduced noise levels & optimum cooling. The Integra M is a great choice for medium-performance gaming computers & workstations. ...

Simple to install, silent operation, powerful performance & easy expandability define the Kelvin Series. The silent high-performance ceramic pump is strong enough to support considerable expansion, should you decide to include GPU blocks and/or additional radiators in the same loop. The Kelvin Series water cooling systems are constructed from enthusiast class components. Both the CPU block & the radiator are made from pure copper, for maximum performance & an increased product life span with zero maintenance required. All modern CPU sockets are supported by the versatile, easy-to-use mounting kit. Key features Fantastic cooling performance The strong pump & the full-copper construction places the Kelvin Series Water Cooling system ahead of the pack in cooling performance. Expandable system. Just open it up to get the full benefits of custom water cooling, with the ability to add any components you want to the loop, such as a graphics card cooler. High pressure pump allows strong water flow rates even when an additional CPU or GPU water block or an additional radiator has been added to the loop. All parts have fully standard G 1/4" thread fittings for compatibility with the vast majority of enthusiast water cooling products. The tubes are fastened with two-part brass fittings, providing a secure seal while being easy to open & re-seal with a standard wrench. Easy refilling with dedicated fill port Made with enthusiast-grade components developed in cooperation with Alphacool Highly reliable ceramic bearing pump, with custom tuned maximum RPM for the optimal balance between performance & noise level Full copper radiator Full copper CPU Water block design featuring strategic jet plate improvements Long lifetime. The performance of most pre-filled water cooling systems degrade quite significantly over time, because of galvanic corrosion & water loss. Galvanic corrosion occurs over time when two metals with different galvanic potential (such as aluminum & copper) are in contact. It can be slowed with anti-corrosion additives in the water, but the best way to maintain performance over time is to use metals with similar galvanic potential. The Kelvin Series water cooling system is constructed with pure copper in both the radiator & the water block, along with brass fittings. To avoid the common issue of most pre-filled water cooling units (that tend to lose performance over time due to water loss in the tubes), Fractal Design equipped the Kelvin series with a fill dedicated port. General Specifications Block/pump assembly measurements: 69*69*40 mm Tubing Measurements: 320mm long, 11mm outer & 8mm inner diameter Fitted with anti-kink coils for worry-free installation Kelvin S24 Radiator Measurements: 30*124*275mm Thread class for fill port & all tube fittings: G 1/4" Supported sockets: Intel: 775, 1150, 1155, 1156, 1366, 2011; AMD: AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ Fans included: 2 pcs Fractal Design Zero™ Thermal Paste ; 1 g syringe, sufficient for multiple mountings Colors Available: Black Net weight
- Base unit only, not including mounting or fans: 1.2kg Net weight
- SS-HP fan, per fan: 165 g Net weight
- Total excluding packaging & manual.

Includes:: fans, mounting kit for all platforms, cooling paste (including packaging for the cooling paste) & adapter cable: 1.8kg Package

Dimensions
- W x H x D: 350*250*151 mm Package weight: 2.5kg Fan Specifications Fractal Design Silent Series HP 120 mm 800
- 1700 RPM PWM control Max air flow: 62.4 CFM Max pressure: 2.33 mm H2O Acoustical noise: 26.9 d B (A) DC 12V, 0.18A Pump Specifications Ceramic bearing 2400 RPM Voltage control Maximum water flow: 72 l/h Maximum pressure: 1.0 m H2O Acoustical noise: 25.0 d B (A) DC 12V, 0.27A Package contents Fractal Design Kelvin S24 pre-assembled Water Cooling Unit 2 Fractal Design Silent Series HP PWM controlled fans Intel 775, 1150, 1155, 1156, 1366 mounting hardware (including back plate) Intel 2011 mounting hardware AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ mounting hardware PWM splitter cable Fractal Design Zero Thermal Paste, 1g Syringe Long & short radiator mounting screws User manual








...
