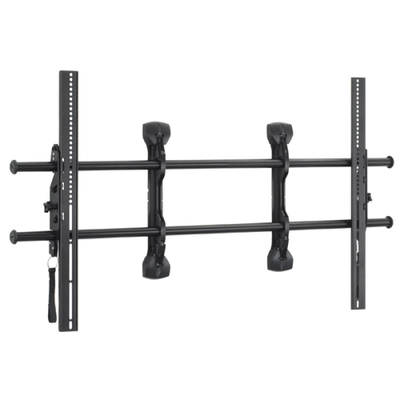

The installer-inspired tilt mount solves top flat panel installation problems, offering perfect TV positioning & flexible adjustments for extra-large flat panel screens. Provides low-profile, fingertip tilt Post-installation lateral shift for limitless centering Easy accessory attachment Offers post-installation height adjustment & lateral shift for faster & easier installation
Features: Control Zone™ Leveling for post-installation fine tuning of height & leveling Centris™ low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile Centerless™ Shift provides up to 23.5" (597 mm) of post-installation lateral shift
- 11.75" (298 mm) left/right of uprights
- for limitless centering Click Connect™ offers an audible click when the screen safely engages with the mount Built-in cable stand provides easy access under the screen A full line of accessories can be installed with the mount & the entire unit can be adjusted together Specifications: Tilt: 0
- 12° Max Lateral Shift: 23.5" (597 mm) Height Adjustment: +/-0.5" Mounts on Studs: 24" or 32" on-center Dimensions: Hx Wx D 16.5" x 48.44" x 1.99" (42 x 123 x 5 cm) Max Mounting Pattern: height
- 17.7" (450 mm), width
- 35.25" (895 mm) Weight Capacity: 250 lbs (113 kg)
Colour: Black
