The PFC is a lightweight mobile cart with a collapsible design, including telescoping height-adjustment & integrated cable management. Shelf accessory must be ordered separately, PAC710 Height-Adjustable Accessory Shelf shown Perfect for rental & staging to corporate applications Features Centris Technology provides fingertip tilt & effortless display adjustment Tool-less telescoping height adjustment Click Connect Technology provides an audible click to confirm the flat panel is locked in place Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen) Integrated cable management with flexible covers to hide cables for a clean installation Smooth rolling casters for effortless positioning (2 locking casters) Unique angled base design allows corner positioning for flexible placement options Specifications Height Adjustment: 4'
- 6' (1.2
- 1.8 m) Tilt: +/- 15 degrees Dimensions: (Hx Wx D) 81.6" x 37.13" x 32.13" (207 x 94.3 x 81.6 cm)
Colour: Black or Silver Weight Capacity: 200 lbs (90.7 kg)


...

View large flat panel TVs from any angle with the PNR Dual Arm Wall Mount. Dual swing arm solution for large flat panel displays with extension up to 24 7/8. The PNR is designed for installations that require a solid dual swing arm with shorter extension.

Features: Centris Fingertip Tilt means that you can select the perfect tension for your screen's center of gravity Post-installation height adjustment up to 1" (25 mm) for ultimate flexibility Click Connect Technology provides simplified tooless latching with an audible click Easy connect/disconnect without tools Extends up to 25" (635 mm) for viewing from any angle Cable Trac System provides channeled cable management for easy cable routing Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen) Specifications: Depth from Wall*: 3.25" (83 mm) Extension: 25" (635 mm) Height Adjustment: 1" (25 mm) Tilt: +5 degrees, -15 degrees Roll: +/-2.5° Swivel: 90° left/right (depending on screen size) Integrated Lateral Shift: 4.5" left/right

Dimensions (Hx Wx D): 22.04” x 27.25” x 3.25” (560 x 692 x 83 mm) Weight Capacity: 200 lbs (90.7 kg)
Colour: Black or Silver Arm Channel

Size: 0.63" Wide (16 mm) NOTE: Depth does not include screen interface (typically 1" or less)






...

The RPAU offers multiple ceiling mounting methods &

Includes:: everything needed for a quick installation.

...

Chief RPA Series Inverted Ceiling Mounts White Max Weight 22.7kg CHIEFRPAUW This universal projector mount offers multiple ceiling mounting methods &

Includes:: everything needed for a quick installation. Pitch: +/-25? Yaw: 360?

Dimensions (Hx Wx D): 1.75 x 6.5 x 5.5 (44 x 165 x 140 mm)
Colour: White Weight Capacity: 50 lbs (22.7 kg) NOTE:

Dimensions do not include interface bracket.






...

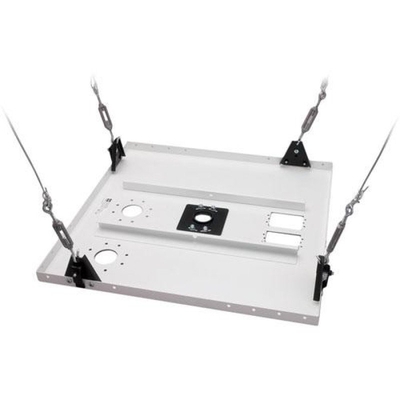

Focusing on speed of installation, the all-new Speed-Connect Series were designed as an upgrade to the popular CMA Series of ceiling mount accessories. The Speed-Connect Series integrates new easy-to-use features that focus on saving time & maximizing security. The new Speed-Connect lightweight suspended ceiling kit for

Includes:: a host of new features to make your installations faster & more secure. New design innovations include the Wire Vice Cable Suspension System for quick & easy tie-off & the Twistile Tile Cutter for piercing holes in your ceiling tile. This new design also features a continuously adjustable mounting slot for infinite placement options, a single & dual electrical outlet cutout, & All-Points tamper-resistant hardware at the column connection.

...

The Universal Smart Lift Bracket (SLB-U) provides a solution for simplifying inventory of RPA series mounts & SLB-U projector brackets. The SLB-U allows for exact alignment with the projector. The projector can be shifted around on the mounting plate until its weight is centered & balanced. The SLB-U is equipped with adjustable legs & feet, which can be moved to any angle, depending on the mounting-hole pattern on the projector. Leg & foot length, width, & height can readily be adjusted. The SLB-U is shipped with All-Points Security System hardware, which is designed to protect projectors from theft. ...

X-Large FIT Fixed Wall Display Mount The RXF2 fixed wall display mount features a unique hinged design & low-profile depth. Features Hinged design reduces packaging material Wide open wall plate allows for easy cable routing & connection Glide Lock with Kickstand secures TV to wall plate without tools &

Includes:: kickstand for easy cable connection Optional storage box provides a clean installation (PAC522, PAC521P) Specifications Certifications: - T&220;V Certified, UL Listed
Colour: - Black Lateral Shift: - Depends on mounting pattern of screen Minimum

Depth: - 0.8" (20 mm) Mounting Pattern Compatibility (Universal Versions): - 200 x 100mm
- 855 x 500mm Orientation: - Landscape Overall

Dimensions (H x W x D):
- 20.5" x 38.0" x 0.8" (521 x 965 x 20mm) Shipping Weight: - 6kg Solution Type: - Universal Typical Screen

Sizes: - 40
- 63" Wall Stud Compatibility (inches):
- 16, 24 Weight Capacity: - 175 lbs (79.4kg)












...

Chief upgraded fixed wall mounts based on installer feedback & direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Control Zone leveling adjustment & Click Connect Latching. New benefits included added stability, faster install, enhanced lateral shift, easier cable management & enhanced security. Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution. Features Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall Control Zone Leveling for post-installation fine tuning of height & leveling Centerless Shift provides up to 21.4" (543 mm) of post-installation lateral shift for limitless centering Set screws keep the mount rigid, stable & secure throughout the life of the installation Click Connect offers an audible click when the screen safely engages with the mount Built-in cable stand provides easy access under the screen A full line of accessories can be installed with the mount & the entire unit can be adjusted together Multiple installation options for various stud distances Exclusive nesting spacers can be stacked to achieve any depth Quick-Store Cords use magnets to easily store & access pull cords enhanced cable management with new end caps Integrated Security Ships with a custom hardware kit that can be hung from mount rails if installing in stages Easy Open box with less waste to throw away Specifications Certifications: UL Listed
Colour: Black Lateral Shift: 21.4" (543 mm) Manual Height Adjustment: 1" (25 mm) Minimum

Depth: 2.25" (57 mm) Mounting Pattern Compatibility (Universal Versions): 100 x 100 mm
- 1080 x 600 mm Orientation: Landscape Overall

Dimensions (H x W x D): 26.25 x 42.75 x 2.25" (667 x 1086 x 57 mm) Shipping Weight: 11kg Solution Type: Universal Typical Screen

Sizes: 55
- 82" Wall Stud Compatibility (inches): 24-42 Weight Capacity: 250 lbs (114 kg)








...

The installer-inspired fixed mount solves top flat panel installation problems, offering perfect TV positioning & flexible adjustments for extra-large flat panel screens. Provides an ultra low-profile mounting solution Post-installation lateral shift for limitless centering Easy accessory attachment Offers post-installation height adjustment & lateral shift for faster & easier installation

Features: Control Zone™ Leveling for post-installation fine tuning of height & leveling Centerless™ Shift provides up to 23.5" (597 mm) of post-installation lateral shift
- 11.75" (298 mm) left/right of uprights
- for limitless centering Click Connect™ offers an audible click when the screen safely engages with the mount Built-in cable stand provides easy access under the screen A full line of accessories can be installed with the mount & the entire unit can be adjusted together Multiple installation options, including 16", 20" & 24" centers Specifications: Depth from Wall: 1.96" (50 mm) Max Lateral Shift: 23.5" (597 mm) Height Adjustment: +/-0.5" Mounts on Studs: 24" or 32" on-center Dimensions: Hx Wx D 16.5" x 48.44" x 1.96" (41.9 x 123 x 5 cm) Max Mounting Pattern: height
- 25.6" (650 mm), width
- 48.6" (123.4 cm) Weight Capacity: 250 lbs (113 kg)
Colour: Black






...

The installer-inspired tilt mount solves top flat panel installation problems, offering perfect TV positioning & flexible adjustments for extra-large flat panel screens. Provides low-profile, fingertip tilt Post-installation lateral shift for limitless centering Easy accessory attachment Offers post-installation height adjustment & lateral shift for faster & easier installation

Features: Control Zone™ Leveling for post-installation fine tuning of height & leveling Centris™ low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile Centerless™ Shift provides up to 23.5" (597 mm) of post-installation lateral shift
- 11.75" (298 mm) left/right of uprights
- for limitless centering Click Connect™ offers an audible click when the screen safely engages with the mount Built-in cable stand provides easy access under the screen A full line of accessories can be installed with the mount & the entire unit can be adjusted together Specifications: Tilt: 0
- 12° Max Lateral Shift: 23.5" (597 mm) Height Adjustment: +/-0.5" Mounts on Studs: 24" or 32" on-center Dimensions: Hx Wx D 16.5" x 48.44" x 1.99" (42 x 123 x 5 cm) Max Mounting Pattern: height
- 17.7" (450 mm), width
- 35.25" (895 mm) Weight Capacity: 250 lbs (113 kg)
Colour: Black







...
