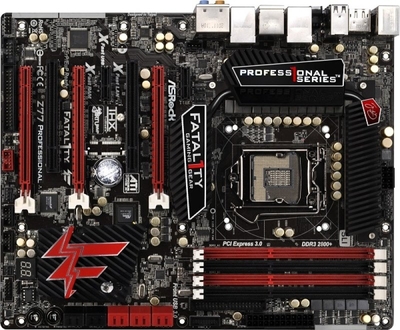

Asrock Fatal1ty Z77 Professional Socket 1155 HDMI DisplayPort 7.1
Channel Audio ATX Motherboard
Premium Gold Caps Digi Power Design, 16 + 8 Power Phase Design Supports Dual Channel DDR3 2800+(OC) 2 x PCIe 3.0 x16 Slots, Supports AMD Quad CrossFireX™, 3-Way CrossFireX, CrossFireX™ and NVIDIA Quad SLI™, SLI™ Supports Broadcom Dual PCIE GLAN with Teaming function Supports Intel HD Graphics with Built-in Visuals Dual VGA Output options: HDMI, DisplayPort Combo Cooler Option (C.C.O.) 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec) Supports ASRock XFast RAM, XFast LAN, XFast USB, OMG, Internet Flash, No-K OC, Dehumidifier, UEFI System Browser Supports Fatal1ty F-Stream, Fatal1ty Mouse Port Supports Intel Smart Connect, Intel Rapid Start, Lucid Virtu Universal MVP General CPU - Supports 3rd and 2nd Generation Intel Core™ i7
/ i5 / i3 / Xeon / Pentium / Celeron in LGA1155 Package - Digi Power Design - 16 + 8 Power Phase Design - Supports Intel Turbo Boost 2.0 Technology - Supports Intel K-Series unlocked CPU - Supports Hyper-Threading Technology Chipset - Intel Z77 - Supports Intel Rapid Start Technology and Smart Connect Technology *Intel Rapid Start Technology and Smart Connect Technology are only supported under Windows 7 OS or later versions. Memory - Dual Channel DDR3 memory technology - 4 x DDR3 DIMM slots - Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB* - Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2 *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for
system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 64Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment Audio, Video and Networking Graphics - Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video 2.0, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel HD Graphics 2500/4000 with Intel Ivy Bridge CPU - Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel HD Graphics 2000/3000, Intel Advanced Vector Extensions (AVX)
with Intel Sandy Bridge CPU - Pixel Shader 5.0, DirectX 11 with Intel Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel Sandy Bridge CPU - Max. shared memory 1760MB with Intel Ivy Bridge CPU. Max. shared memory 1759MB with Intel Sandy Bridge CPU - Dual VGA Output: support HDMI and DisplayPort ports by independent display controllers - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz - Supports DisplayPort with max. resolution up to 2560x1600 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) - Supports HDCP function with HDMI and DisplayPort ports - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI and DisplayPort ports *Intel HD Graphics Built-in Visuals and
the VGA outputs can be supported only with processors which are GPU integrated. **Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows Vista™ and Windows 7. ***Intel InTru™ 3D is only supported under Windows 7 and Windows 7 x64. Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec) - Premium Blu-ray audio support LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Broadcom BCM57781 - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE Expansion / Connectivity Slots - 2 x PCI Express 3.0 x16 slots (PCIE2/PCIE4: single at x16 (PCIE2) / x8 (PCIE4) or dual at x8/x8 mode) - 1 x PCI Express 2.0 x16 slot (PCIE5: x4 mode) - 2 x PCI Express 2.0 x1 slots
- 2 x PCI slots - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ - Supports NVIDIA Quad SLI™ and SLI™ *PCIe Gen3 is supported on 3rd Generation of Intel Core™ i5 and Core™ i7 CPUs. SATA3 - 2 x SATA3 6.0 Gb/s connectors by Intel Z77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel Smart Response Technology), NCQ, AHCI and "Hot Plug" functions - 4 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and "Hot Plug" functions (SATA3_A4 connector is shared with eSATA3 port) USB 3.0 - 2 x Rear USB 3.0 ports by Intel Z77, support USB 1.0/2.0/3.0 up to 5Gb/s - 4 x Rear USB 3.0 ports by Etron EJ188H, support USB 1.0/2.0/3.0 up to 5Gb/s - 1 x Front USB 3.0 header by
Intel Z77 (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s Connector - 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel Smart Response Technology), NCQ, AHCI and Hot Plug functions - 6 x SATA3 6.0 Gb/s connectors - 1 x ATA133 IDE connector (supports 2 x IDE devices) - 1 x Floppy connector - 1 x IR header - 1 x COM port header - 1 x HDMI_SPDIF header - 1 x IEEE 1394 header - 1 x Power LED header - 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) - 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin) - 1 x Power Fan connector (3-pin) - 24 pin ATX power connector - 8 pin 12V power connector - CD in header - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports) - 1 x USB 3.0 header (supports 2
USB 3.0 ports) - 1 x Dr. Debug with LED* - 1 x Power Switch with LED - 1 x Reset Switch with LED - 1 x Clear CMOS Switch with LED *Check the Dr. Debug code list here. Rear Panel I/O I/O Panel - 1 x PS/2 Keyboard/Mouse Port - 1 x HDMI Port - 1 x DisplayPort - 1 x Optical SPDIF Out Port - 5 x Ready-to-Use USB 2.0 Ports - 1 x Fatal1ty Mouse Port (USB 2.0) - 1 x eSATA3 Connector - 6 x Ready-to-Use USB 3.0 Ports - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x IEEE 1394 Port - 1 x Clear CMOS Switch with LED - HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Unique Feature - F-Stream - ASRock Instant Boot - ASRock Instant Flash - ASRock APP Charger - ASRock XFast USB - ASRock XFast LAN - ASRock XFast RAM - ASRock
Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock Internet Flash - ASRock Dehumidifier Function - ASRock No-K OC Technology - Lucid Virtu Universal MVP - Hybrid Booster: - CPU Frequency Stepless Control - ASRock U-COP - Boot Failure Guard (B.F.G.) - Combo Cooler Option (C.C.O.) - Good Night LED *Lucid Virtu Universal MVP can be supported only with processors which are GPU integrated. **LucidLogix Virtu MVP only supports Windows 7 OS or later versions. Hardware Monitor - CPU Temperature Sensing - Chassis Temperature Sensing - CPU/Chassis/Power Fan Tachometer - CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Chassis Fan Multi-Speed Control - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor - ATX Form Factor: 12.0-in x 9.6-in,
30.5 cm x 24.4 cm - Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
/ i5 / i3 / Xeon / Pentium / Celeron in LGA1155 Package - Digi Power Design - 16 + 8 Power Phase Design - Supports Intel Turbo Boost 2.0 Technology - Supports Intel K-Series unlocked CPU - Supports Hyper-Threading Technology Chipset - Intel Z77 - Supports Intel Rapid Start Technology and Smart Connect Technology *Intel Rapid Start Technology and Smart Connect Technology are only supported under Windows 7 OS or later versions. Memory - Dual Channel DDR3 memory technology - 4 x DDR3 DIMM slots - Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB* - Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2 *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for
system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 64Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment Audio, Video and Networking Graphics - Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video 2.0, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel HD Graphics 2500/4000 with Intel Ivy Bridge CPU - Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel HD Graphics 2000/3000, Intel Advanced Vector Extensions (AVX)
with Intel Sandy Bridge CPU - Pixel Shader 5.0, DirectX 11 with Intel Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel Sandy Bridge CPU - Max. shared memory 1760MB with Intel Ivy Bridge CPU. Max. shared memory 1759MB with Intel Sandy Bridge CPU - Dual VGA Output: support HDMI and DisplayPort ports by independent display controllers - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz - Supports DisplayPort with max. resolution up to 2560x1600 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) - Supports HDCP function with HDMI and DisplayPort ports - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI and DisplayPort ports *Intel HD Graphics Built-in Visuals and
the VGA outputs can be supported only with processors which are GPU integrated. **Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows Vista™ and Windows 7. ***Intel InTru™ 3D is only supported under Windows 7 and Windows 7 x64. Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec) - Premium Blu-ray audio support LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Broadcom BCM57781 - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE Expansion / Connectivity Slots - 2 x PCI Express 3.0 x16 slots (PCIE2/PCIE4: single at x16 (PCIE2) / x8 (PCIE4) or dual at x8/x8 mode) - 1 x PCI Express 2.0 x16 slot (PCIE5: x4 mode) - 2 x PCI Express 2.0 x1 slots
- 2 x PCI slots - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ - Supports NVIDIA Quad SLI™ and SLI™ *PCIe Gen3 is supported on 3rd Generation of Intel Core™ i5 and Core™ i7 CPUs. SATA3 - 2 x SATA3 6.0 Gb/s connectors by Intel Z77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel Smart Response Technology), NCQ, AHCI and "Hot Plug" functions - 4 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and "Hot Plug" functions (SATA3_A4 connector is shared with eSATA3 port) USB 3.0 - 2 x Rear USB 3.0 ports by Intel Z77, support USB 1.0/2.0/3.0 up to 5Gb/s - 4 x Rear USB 3.0 ports by Etron EJ188H, support USB 1.0/2.0/3.0 up to 5Gb/s - 1 x Front USB 3.0 header by
Intel Z77 (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s Connector - 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel Smart Response Technology), NCQ, AHCI and Hot Plug functions - 6 x SATA3 6.0 Gb/s connectors - 1 x ATA133 IDE connector (supports 2 x IDE devices) - 1 x Floppy connector - 1 x IR header - 1 x COM port header - 1 x HDMI_SPDIF header - 1 x IEEE 1394 header - 1 x Power LED header - 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) - 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin) - 1 x Power Fan connector (3-pin) - 24 pin ATX power connector - 8 pin 12V power connector - CD in header - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports) - 1 x USB 3.0 header (supports 2
USB 3.0 ports) - 1 x Dr. Debug with LED* - 1 x Power Switch with LED - 1 x Reset Switch with LED - 1 x Clear CMOS Switch with LED *Check the Dr. Debug code list here. Rear Panel I/O I/O Panel - 1 x PS/2 Keyboard/Mouse Port - 1 x HDMI Port - 1 x DisplayPort - 1 x Optical SPDIF Out Port - 5 x Ready-to-Use USB 2.0 Ports - 1 x Fatal1ty Mouse Port (USB 2.0) - 1 x eSATA3 Connector - 6 x Ready-to-Use USB 3.0 Ports - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x IEEE 1394 Port - 1 x Clear CMOS Switch with LED - HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Unique Feature - F-Stream - ASRock Instant Boot - ASRock Instant Flash - ASRock APP Charger - ASRock XFast USB - ASRock XFast LAN - ASRock XFast RAM - ASRock
Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock Internet Flash - ASRock Dehumidifier Function - ASRock No-K OC Technology - Lucid Virtu Universal MVP - Hybrid Booster: - CPU Frequency Stepless Control - ASRock U-COP - Boot Failure Guard (B.F.G.) - Combo Cooler Option (C.C.O.) - Good Night LED *Lucid Virtu Universal MVP can be supported only with processors which are GPU integrated. **LucidLogix Virtu MVP only supports Windows 7 OS or later versions. Hardware Monitor - CPU Temperature Sensing - Chassis Temperature Sensing - CPU/Chassis/Power Fan Tachometer - CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Chassis Fan Multi-Speed Control - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor - ATX Form Factor: 12.0-in x 9.6-in,
30.5 cm x 24.4 cm - Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
Product Description
Reviews/Comments
Add New
Intelligent Comparison
Available
AsRock Fatal1ty Z77 Professional-M Socket 1155 VGA DVI HDMI DisplayPort 7.1 Channel Audio M-ATX Moth Ebuyer Business
£131.99
Available
Asrock Z77 Extreme6 Socket 1155 VGA DVI HDMI DisplayPort 7.1 Channel Audio ATX Motherboard Ebuyer Business
£105.42
Available
Asrock Z77 Pro3 Socket 1155 VGA HDMI 7.1 Channel Audio ATX Motherboard Ebuyer Business
£73.00
Available
Asrock Z75 Pro3 Socket 1155 VGA HDMI 7.1 Channel Audio ATX Motherboard Ebuyer Business
£58.12
Available
Asus P8Z77-V LK Socket 1155 DVI HDMI DisplayPort 8 Channel Audio ATX Motherboard Ebuyer Business
£107.99
Available
Zotac H77-ITX WiFi Socket 1155 DVI HDMI DisplayPort 7.1 Channel Audio Mini-ITX Motherboard Ebuyer Business
£85.49
Available
Asus Z87-PRO Socket 1150 DVI HDMI DisplayPort 8 Channel Audio ATX Motherboard Ebuyer Business
£148.96
Available
Asrock H77 Pro4-M Socket 1155 VGA DVI HDMI 7.1 Channel Audio MATX Motherboard Ebuyer Business
£56.50
