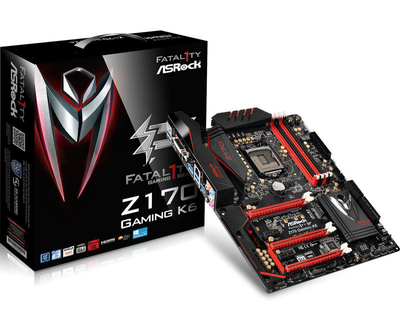

ASRock Fatal1ty Z170 Gaming K6 Socket 1151 DVI-D HDMI DisplayPort 7.1
CH HD Audio ATX Motherboard
ASRock Fatal1ty Z170 Gaming K6 Socket 1151 DVI-D HDMI DisplayPort 7.1 CH HD Audio ATX Motherboard Product Specifications: General: Gaming Armor CPU Power - Hi-Density Power Connector Memory - 15μ Gold Contact in DIMM Slots VGA Card - 15μ Gold Contact in VGA PCIe Slot (PCIE2) Internet - Killer™ E2400 LAN Cooling - XXL Aluminum Alloy Heatsink - Heat Pipe Design Audio - Purity Sound 3 Unique Feature: ASRock USB 3.1 ASRock USB 3.1 Type-A Port (10 Gb/s) ASRock USB 3.1 Type-C Port (10 Gb/s) ASRock Super Alloy XXL Aluminum Alloy Heatsink Premium 60A Power Choke Combo Caps (Nichicon 12K Platinum Caps) Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) I/O Armor Matte Black PCB High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection ASRock Live Update & APP Shop CPU Supports 6th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1151) Digi Power design 12 Power Phase design Supports Intel Turbo Boost 2.0 Technology Supports Intel K-Series unlocked CPUs Supports ASRock BCLK Full-range Overclocking Supports ASRock Hyper BCLK Engine Chipset - Intel Z170 Memory Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots Supports DDR4 3866+(OC)*/3600(OC)/3200(OC)/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, un-buffered memory Max. capacity of system memory: 64GB** Supports Intel Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots *3866+(OC) memory frequency can only be achieved when a single memory module is installed (Single channel memory). Please refer to Memory
Support List on ASRock's website for more information. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS: 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) Supports Secure Backup UEFI Technology ACPI 5.0 Compliant wake up events SMBIOS 2.7 Support CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment Audio, Video and Networking Graphics Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics
510/530 Pixel Shader 5.0, DirectX 12 Max. shared memory 1792MB Three graphics output options: DVI-D, HDMI and DisplayPort 1.2 Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports Accelerated Media Codecs: HEVC, VP8, VP9 Supports HDCP with DVI-D, HDMI and DisplayPort 1.2 Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.2 Ports *Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with
processors which are GPU integrated. **Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. ***Intel InTru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) Supports Purity Sound 3 Nichicon Fine Gold Series Audio Caps 115dB SNR DAC with differential amplifier TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) Pure Power-In Direct Drive Technology PCB isolate shielding Supports DTS Connect LAN PCIE x1 Gigabit LAN 10/100/1000 Mb/s Killer E2400 Series Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike
Protection) Supports Energy Efficient Ethernet 802.3az Supports PXE Expansion / Connectivity Slots 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))* 3 x PCI Express 3.0 x1 Slots (Flexible PCIe) Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ Supports NVIDIA Quad SLI™ and SLI™ 15μ Gold Contact in VGA PCIe Slot (PCIE2) *Supports NVMe SSD as boot disks Storage - 6 x SATA3 6.0 Gb/s Connectors by Intel Z170, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug 2 x
SATA Express 10 Gb/s Connectors* 1 x Ultra M.2 Socket, supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** *Support to be announced M2_1, SATA3_0, SATA3_1 and SATA_EXP0 share lanes. If either one of them is in use, the others will be disabled. **Supports ASRock U.2 Kit Supports NVMe SSD as boot disks Connector 1 x COM Port Header 1 x TPM Header 1 x Power LED and Speaker Header 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection
(ASRock Full Spike Protection)) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED Rear Panel I/O 1 x PS/2 Mouse/Keyboard Port 1 x DVI-D Port 1 x HDMI Port 1 x DisplayPort 1.2 1 x Optical SPDIF Out Port 1 x USB 3.1 Type-A Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.1 Type-C Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection)) 5 x USB 3.0 Ports (Intel Z170) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Fatal1ty Mouse Port (USB 3.0) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) 1 x Clear CMOS
Switch HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Software and BIOS Software ASRock F-Stream ASRock Disk Health Report ASRock USB Key ASRock Key Master ASRock APP Charger ASRock XFast RAM ASRock Fast Boot (Fast Boot, Restart to UEFI)* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock UEFI System Browser ASRock UEFI Tech Service ASRock Easy RAID Installer ASRock Easy Driver Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, XSplit, Killer Network
Manager Hardware Monitor CPU/Chassis temperature sensing CPU/Chassis Fan Tachometer CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) CPU/Chassis Fan multi-speed control Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA Form Factor - ATX Form Factor OS - Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* *To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows 10 driver, please visit ASRock's website for details. Certifications FCC, CE, WHQL ErP/EuP ready (ErP/EuP ready power supply is required)
ASRock Full Spike Protection ASRock Live Update & APP Shop CPU Supports 6th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1151) Digi Power design 12 Power Phase design Supports Intel Turbo Boost 2.0 Technology Supports Intel K-Series unlocked CPUs Supports ASRock BCLK Full-range Overclocking Supports ASRock Hyper BCLK Engine Chipset - Intel Z170 Memory Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots Supports DDR4 3866+(OC)*/3600(OC)/3200(OC)/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, un-buffered memory Max. capacity of system memory: 64GB** Supports Intel Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots *3866+(OC) memory frequency can only be achieved when a single memory module is installed (Single channel memory). Please refer to Memory
Support List on ASRock's website for more information. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS: 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) Supports Secure Backup UEFI Technology ACPI 5.0 Compliant wake up events SMBIOS 2.7 Support CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment Audio, Video and Networking Graphics Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics
510/530 Pixel Shader 5.0, DirectX 12 Max. shared memory 1792MB Three graphics output options: DVI-D, HDMI and DisplayPort 1.2 Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports Accelerated Media Codecs: HEVC, VP8, VP9 Supports HDCP with DVI-D, HDMI and DisplayPort 1.2 Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.2 Ports *Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with
processors which are GPU integrated. **Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. ***Intel InTru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) Supports Purity Sound 3 Nichicon Fine Gold Series Audio Caps 115dB SNR DAC with differential amplifier TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) Pure Power-In Direct Drive Technology PCB isolate shielding Supports DTS Connect LAN PCIE x1 Gigabit LAN 10/100/1000 Mb/s Killer E2400 Series Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike
Protection) Supports Energy Efficient Ethernet 802.3az Supports PXE Expansion / Connectivity Slots 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))* 3 x PCI Express 3.0 x1 Slots (Flexible PCIe) Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ Supports NVIDIA Quad SLI™ and SLI™ 15μ Gold Contact in VGA PCIe Slot (PCIE2) *Supports NVMe SSD as boot disks Storage - 6 x SATA3 6.0 Gb/s Connectors by Intel Z170, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug 2 x
SATA Express 10 Gb/s Connectors* 1 x Ultra M.2 Socket, supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** *Support to be announced M2_1, SATA3_0, SATA3_1 and SATA_EXP0 share lanes. If either one of them is in use, the others will be disabled. **Supports ASRock U.2 Kit Supports NVMe SSD as boot disks Connector 1 x COM Port Header 1 x TPM Header 1 x Power LED and Speaker Header 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection
(ASRock Full Spike Protection)) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED Rear Panel I/O 1 x PS/2 Mouse/Keyboard Port 1 x DVI-D Port 1 x HDMI Port 1 x DisplayPort 1.2 1 x Optical SPDIF Out Port 1 x USB 3.1 Type-A Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.1 Type-C Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection)) 5 x USB 3.0 Ports (Intel Z170) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Fatal1ty Mouse Port (USB 3.0) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) 1 x Clear CMOS
Switch HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Software and BIOS Software ASRock F-Stream ASRock Disk Health Report ASRock USB Key ASRock Key Master ASRock APP Charger ASRock XFast RAM ASRock Fast Boot (Fast Boot, Restart to UEFI)* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock UEFI System Browser ASRock UEFI Tech Service ASRock Easy RAID Installer ASRock Easy Driver Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, XSplit, Killer Network
Manager Hardware Monitor CPU/Chassis temperature sensing CPU/Chassis Fan Tachometer CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) CPU/Chassis Fan multi-speed control Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA Form Factor - ATX Form Factor OS - Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* *To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows 10 driver, please visit ASRock's website for details. Certifications FCC, CE, WHQL ErP/EuP ready (ErP/EuP ready power supply is required)
