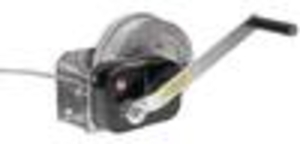

Hand Winch, 350 Kg, Fall Arrest Block With Recovery Westfalia

Product Description

The safety cable winch is fully galvanised, with automatic braking mechanism. Closed reduction gear with needle bearing, all bearings maintenance-free. To operate with minimum effort. The cable winches can be used for lifting & lowering, but also for pulling, eg, cars or boats. The winch type 900 pulls up to 1475kg on a 10% slope. Technical

Details: * Type 900 * Tractive force: 900 da N (kg) * Lift capacity: 810kg * Drum diameter: 63 mm * Wire rope diameter: 7 mm, DIN 3060 * Drum capacity: 20 m spool * Crank length: 300 mm * Width of cable winch: without the crank: approx 200 mm with crank: approx 220 mm with handle: approx 350 mm * Crank length: approx 340 mm * Length of the winch: approx 250 mm * Height of the winch: approx 190 mm * Outside diameter of the drum: approx 175 mm * Width of the drum: approx 55/85 mm (interior/exterior) * Cable roller diameter: approx 65 mm * Manual force: 25 da N (kg) * Reduction: 8.75:1 * Weight: 7kg Cable is not included.
