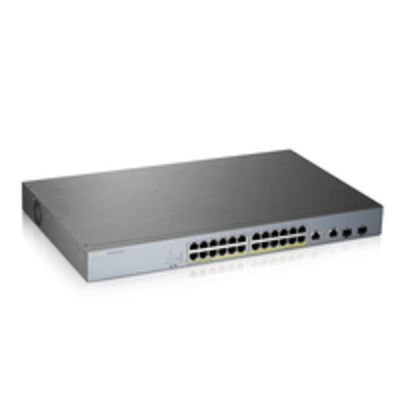

Zyxel GS1350-26HP Managed L2 Gigabit Ethernet (10/100/1000) Grey Power
Over Ethernet (PoE)

Product Description

Just For Surveillance\n Crafted for CCTV, Zyxel introduces the br&-new GS1350 smart managed switch for surveillance applications\n \n New outlook\n Coated in titanium grey, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch.\n \n Specialized Po E software features for surveillance\n \n Detect & recover failed IP cameras & powered devices automatically with customizable granular parameters suitable for any types of devices & scenarios.\n Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time.\n \n Easy for long-distance deployment\n Traditionally, Po E switch delivers power & data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money & effort with simply one Po E.\n \n High power budget, intuitive front panel design\n The GS1350 series

Includes:: four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time Po E status. In addition, the one-touch &156; Restore&157; button on GS1350 Series helps effortless recovery from misconfigurations.\n \n Unique hardware, robust design\n \n Stabilized power\n Filters electrical noise & surge to ensure supplying stable power to Po E & the system.\n \n Selected power supply\n 2X Surge & ESD protection.\n \n Isolated Circuit Design\n Provides protection to isolate power surges from Ethernet & power supply.\n \n Intelligent System Monitor\n Keeps the system operational from anomalies.\n \n Patented Ethernet Protection\n
- 4X Surge protection.\n
- 2X ESD resistant.\n \n
- Auto camera recovery\n
- Large power budget\n
- Up to 250 meters transmission\n
- Intuitive Po E usage LED\n
- Enhanced surge & ESD protection\n\n class="generic"> Management features Multicast support Yes Switch type Managed Web-based management Yes System event log Yes MIB support RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113 Switch layer L2 Configuring Location Settings (CLI) Yes Ports & interfaces Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-TBasic switching RJ-45 Ethernet ports quantity 24 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Combo SFP ports quantity 2 Networking IGMP snooping Yes IGMP proxy Yes Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-TNetworking standards IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z VLAN support Yes Spanning tree protocol Yes Rate limiting Yes Port mirroring Yes Number of VLANs 256 Flow control support Yes Broadcast storm control Yes 10G support No Virtual LAN features MAC address-based VLAN, Port-based VLANVirtual LAN features VLAN support Yes Number of VLANs 256 Virtual LAN features MAC address-based VLAN, Port-based VLANData transmission Number of VLANs 256 Packet buffer memory 0.525 MBMAC address table 8000 entries Switching capacity 52 Gbit/s Forwarding rate 38.7 Mpps Performance Packet buffer memory 0.525 MBNoise level 40.1 d B Mean time between failures (MTBF)888495 h Firmware upgradeable Yes Technical details Product colour Grey Noise level 40.1 d B Mean time between failures (MTBF)888495 h Firmware upgradeable Yes Rack mounting Yes Optical fiber Fiber ethernet cabling technology 1000BASE-XSecurity Loop protection Yes Security algorithms SNMP, SNMPv 3, SSH, SSL/TLSIGMP snooping Yes Queue scheduling algorithms SPQ, WFQ, Weighted Round Robin (WRR)IGMP proxy Yes DHCP features DHCP client, DHCP relay, DHCP snooping Multicast features Multicast support Yes Certificates Electromagnetic compatibility CE, FCC, C-Tick, A; BSMI CNS13438 Certification LVD EN62368-1, BSMI CNS14336-1, Ro HSMemory Packet buffer memory 0.525 MBDesign Product colour Grey LED indicators Yes Electromagnetic compatibility CE, FCC, C-Tick, A; BSMI CNS13438 Certification LVD EN62368-1, BSMI CNS14336-1, Ro HSRack mounting Yes Indication LED indicators Yes Power Power consumption (max)448.9 WAC input voltage 100
- 240 VAC input frequency 50/60 Hz Power over Ethernet (Po E) Total Power over Ethernet (Po E) budget 375 WPower over Ethernet (Po E) ports quantity 24 Power over Ethernet (Po E) Yes Operational conditions Storage temperature (T-T)-40
- 70 &176;CStorage relative humidity (H-H)5
- 95% Operating temperature (T-T)-20
- 50 &176;COperating relative humidity (H-H)5
- 95% Heat dissipation 1530.75 BTU/h Weight & dimensions Width 441 mm Depth 270 mm Height 44 mm Weight 3.58kg Packaging data Rack mount kit Yes Package width 622 mm Package depth 355 mm Package height 110 mm Package weight 4.65kg Cables included ACPackaging content Rack mount kit Yes Cables included AC\n\n\n\nhttp://objects.icecat.biz/objects/mmo_73313238_1565001887_3387_27489.pdf
