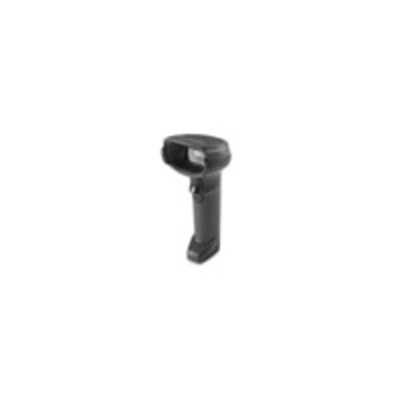

\n Zebra DS8108 Handheld bar code reader 1D/2D LED Black\n \n \n \n \n \n \n Manufacturer:\n Zebra\n \n \n Category:\n Printers & Scanners\n \n \n Sub-Category:\n Barcode Readers\n \n \n SKU:\n DS8108-SR00007ZCWW\n \n \n EAN:\n \n \n \n \n \n\n Description\n \n \n THE ULTIMATE IN PERFORMANCE, INNOVATION & MANAGEABILITY\n\n\n\n The checkout stand is the last chance you have to leave shoppers with a good impression. The quality of the checkout experience is heavily dependent upon the performance of the scanner you choose. Now, you can leave every shopper with the ultimate last impression with the DS8100 Series handheld imager.\n\n\n\n The DS8100 Series rises above conventional imagers to deliver unprecedented scanning performance on virtually every 1D & 2D barcode, keeping your checkout lines moving & your cashiers free to deliver a more personal checkout experience. The DS8100 Series " because when it comes to the checkout experience in your store, only the best will do.\n\n\n\n UNPRECEDENTED PERFORMANCE\n\n Only the DS8100 Series combines the power of an 800 MHz microprocessor, a high-resolution megapixel sensor & Zebra&153;s exclusive PRZM technology. With this unique combination of hardware & advanced algorithms, the DS8100 Series instantly captures the most problematic barcodes with lightning speed, including dense, poorly printed, crinkled, faded, distorted, dirty or damaged barcodes & electronic barcodes on smartphones " even when the screen is dimly lit.\n\n\n\n INNOVATION BEYOND THE BARCODE\n\n A wide range of innovations allows workers to do much more than scan barcodes one at a time. Workers can simultaneously capture multiple barcodes & transmit only those required in the proper directly to your application. Only the DS8100 Series can capture the information on a full 8.5 x 11 or A4 page, process the desired information into the right format for electronic storage & transmit the data to your applications " all with one press of the trigger. & support for Digimarc*&169; barcodes provides future-proofing, ensuring that the DS8100 Series you deploy today can support the barcodes of tomorrow.\n\n\n\n\n\n Only the DS8100 Series combines the power of an 800 MHz microprocessor, a high-resolution megapixel sensor & Zebra&153;s exclusive PRZM technology. With this unique combination of hardware & advanced algorithms, the DS8100 Series instantly captures the most problematic barcodes with lightning speed, including dense, poorly printed, crinkled, faded, distorted, dirty or damaged barcodes & electronic barcodes on smartphones " even when the screen is dimly lit.\n\n\n\n UNRIVALED MANAGEABILITY\n\n Our complimentary tools deliver unrivaled manageability. With visionary visibility into scanning performance & battery metrics, you can spot & correct issues before they impact device uptime, worker productivity & the quality of your customer service. You can control many aspects of your scanners from any Android, i OS & Windows smartphone or tablet, as well as any i OS or Windows PC. You can create a single configuration barcode to customize settings. & you can stage, configure & update firmware on all your DS8100 devices in all of your locations " no user actions required.\n \n \n\n Specifications\n \n Scanning Type Handheld bar code reader Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, GS1 Data Bar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C.2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, Maxi Code, Micro QR Code, Micro PDF417, PDF417, QR Code, TLC-39 Yaw reading angle 0
- 60&176; Wavelength 617 nm Tilt reading angle 0
- 360&176; Sensor type LEDScanner type 1D/2 D Pitch reading angle 0
- 60&176; Ports & interfaces PC connection RS-232/USBConnectivity technology Wired Standard interfaces RS-232, USB (Universal Serial Bus), Keyboard wedge Design Type Handheld bar code reader International Protection (IP) code IP42 Product colour Black Power Power consumption 450 m A Input voltage 5 VWeight & dimensions Width 66 mm Depth 107 mm Height 168 mm Weight 154 g Technical details Type Handheld bar code reader International Protection (IP) code IP42 Product colour Black PC connection RS-232/USBOperational conditions Storage temperature (T-T)-40
- 70 &176;COperating temperature (T-T)0
- 50 &176;COperating relative humidity (H-H)5
- 95%\n \n \n\n\n\n\n\n
