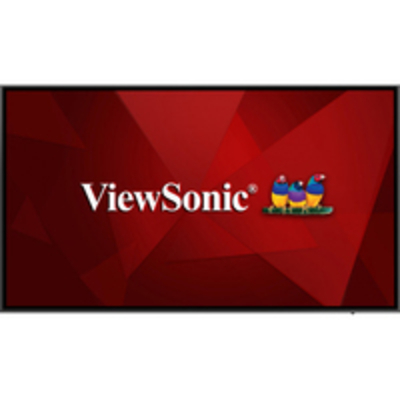

CDE7520 Description\n 75" 4K Premium Commercial Display The View Sonic&174; CDE7520 is a 75&157; premium 4K commercial display. With features including a razor-sharp resolution of 3840 x 2160, 450-nit high brightness, 178-degree ultra- wide viewing angles, 2 x 12W speakers, & wireless screen sharing, the display is designed with the meeting room scenario in mind. The built-in screen sharing software*, View Board&174; Cast & Stream, as well as View Board&174; Cast USB (Universal Serial Bus)-C sender enable multiple users, whether on-site or on-line, to participate in conferences & share content with each other simultaneously, transforming the CDE7520 into a dynamic content hub. This reliable commercial display is equipped with a quad-core processor & 16GB internal memory, allowing constant multimedia play from internal storage or a USB (Universal Serial Bus) flash drive. Supporting remote configuration & content management system, the View Sonic&174; CDE7520 is also suitable for diverse signage applications. * Chrome, Android, Windows, Mac OS, & i OS complaint\n\n\n\n Specifications\n\n\n\n\n Display\n\n\n Display number of colours\n 1.07 billion colours\n\n\n LED backlighting type\n Direct-LED\n\n\n Touchscreen\n No\n\n\n Active display area (W x H)\n 1649.664 x 927.936 mm\n\n\n Display technology\n IPS\n\n\n Display diagonal\n 190.5 cm (75")\n\n\n Display resolution\n 3840 x 2160 pixels\n\n\n Display brightness\n 450 cd/m&178;\n\n\n HD type\n 4K Ultra HD\n\n\n Response time\n 8 ms\n\n\n Contrast ratio (typical)\n 1200:1\n\n\n Contrast ratio (dynamic)\n 5000:1\n\n\n Viewing angle, horizontal\n 178&176;\n\n\n Viewing angle, vertical\n 178&176;\n\n\n Pixel pitch\n 0.4296 x 0.4296 mm\n\n\n Display diagonal (metric)\n 191 cm\n\n\n Panel life\n 30000 h\n\n\n Native aspect ratio\n 16:9\n\n\n Anti-glare screen\n Yes\n\n\n Surface hardness\n 3H\n\n\n Ports & interfaces\n\n\n USB port\n Yes\n\n\n Display Ports in\n 1\n\n\n Wi-Fi\n No\n\n\n PC Audio in\n Yes\n\n\n Display Ports quantity\n 1\n\n\n Ethernet LAN\n Yes\n\n\n HDMI ports quantity\n 3\n\n\n DVI port\n No\n\n\n VGA (D-Sub) input ports\n 1\n\n\n Ethernet LAN (RJ-45) ports\n 1\n\n\n RS-232 interface\n Yes\n\n\n USB version\n 2.0/3.2 Gen 1 (3.1 Gen 1)\n\n\n USB ports quantity\n 3\n\n\n OPS module slot\n Yes\n\n\n HDMI input ports quantity\n 2\n\n\n HDMI output ports quantity\n 1\n\n\n Audio\n\n\n Number of built-in speakers\n 2\n\n\n RMS rated power\n 32 W\n\n\n Built-in speaker (s)\n Yes\n\n\n Design\n\n\n Product design\n Digital signage flat panel\n\n\n Placement supported\n Indoor\n\n\n Orientation\n Horizontal\n\n\n Product colour\n Black\n\n\n Panel mounting interface\n 400 x 200 mm\n\n\n Certification\nc U Lus, FCC, Energy Star, EPEAT, MX-CoC, Mexico Energy, CE, CB, Ro HS, Er P, REACH, WEEE, Custom Union, Ukr SEPRO, RCM, MEPS\n\n\n VESA mounting\n Yes\n\n\n Anti-glare screen\n Yes\n\n\n Performance\n\n\n Purpose\n Universal\n\n\n Wi-Fi\n No\n\n\n Panel life\n 30000 h\n\n\n Power\n\n\n Power consumption (typical)\n 240 W\n\n\n Power consumption (standby)\n 0.5 W\n\n\n AC input voltage\n 100-240 V\n\n\n AC input frequency\n 50/60 Hz\n\n\n Computer system\n\n\n Computer system\n Yes\n\n\n Processor cores\n 4\n\n\n Processor family\n ARM Cortex\n\n\n Processor frequency\n 1.1 GHz\n\n\n Operating system installed\n Android 8.0\n\n\n Internal memory\n 3 GB\n\n\n Internal storage capacity\n 16 GB\n\n\n Video formats supported\n H.263, H.264, H.265, M-JPEG, MPEG1, MPEG4, VC-1, VP8, VP9\n\n\n Audio formats supported\n ALAC, FLAC, LPCM\n\n\n Image formats supported\n BMP, GIF, JPEG, JPG, PNG\n\n\n Built-in processor\n Yes\n\n\n Weight & dimensions\n\n\n Width\n 1672 mm\n\n\n Depth\n 70 mm\n\n\n Height\n 955 mm\n\n\n Weight\n 29.3 kg\n\n\n Packaging data\n\n\n Package width\n 1828 mm\n\n\n Package depth\n 220 mm\n\n\n Package height\n 1098 mm\n\n\n Package weight\n 41.7 kg\n\n\n Batteries included\n Yes\n\n\n Remote control included\n Yes\n\n\n Cables included\n AC, HDMI\n\n\n Packaging content\n\n\n Batteries included\n Yes\n\n\n Remote control included\n Yes\n\n\n Cables included\n AC, HDMI\n\n\n Operational conditions\n\n\n Operating temperature (T-T)\n 0
- 40 &176;C\n\n\n Operating relative humidity (H-H)\n 20
- 80%\n\n\n Storage temperature (T-T)\n-10
- 60 &176;C\n\n\n Storage relative humidity (H-H)\n 10
- 80%\n\n\n Certificates\n\n\n Certification\nc U Lus, FCC, Energy Star, EPEAT, MX-CoC, Mexico Energy, CE, CB, Ro HS, Er P, REACH, WEEE, Custom Union, Ukr SEPRO, RCM, MEPS\n\n\n Technical details\n\n\n VESA mounting\n Yes\n\n\n Display Ports in\n 1\n\n\n LED backlighting type\n Direct-LED\n\n\n Sustainability certificates\n CE, ENERGY STAR, REACH, Ro HS\n\n\n Thin Client\n\n\n Processor family\n ARM Cortex\n\n\n Processor frequency\n 1.1 GHz\n\n\n Operating system installed\n Android 8.0\n\n\n Internal memory\n 3 GB\n\n\n Internal storage capacity\n 16 GB\n\n\n Video formats supported\n H.263, H.264, H.265, M-JPEG, MPEG1, MPEG4, VC-1, VP8, VP9\n\n\n Audio formats supported\n ALAC, FLAC, LPCM\n\n\n Image formats supported\n BMP, GIF, JPEG, JPG, PNG\n\n\n Other features\n\n\n Display Ports in\n 1\n\n\n Wi-Fi\n No\n\n\n Display technology\n IPS\n\n\n OPS module slot\n Yes\n\n\n Energy efficiency class (old)\n A+\n\n\n\n
