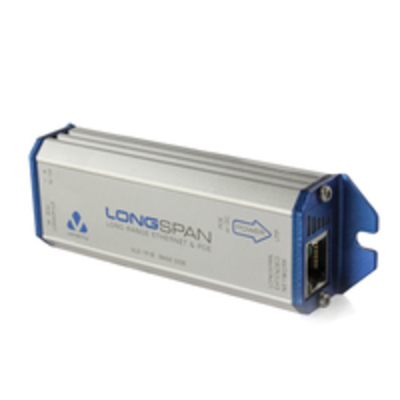

\n Veracity LONGSPAN Base Network transmitter Blue, Metallic\n \n \n \n \n \n \n Manufacturer:\n Veracity\n \n \n Category:\n Networking\n \n \n Sub-Category:\n Network Extenders\n \n \n SKU:\n VLS-1P-B\n \n \n EAN:\n 0892314002241 5052182917077 5711045565991\n \n \n \n \n\n Description\n \n \n LONGSPAN Base Unit: long-range POE (powered via POE-in or VPSU-57V-X). Working together, LONGSPAN&153;s Base & Camera units deliver unprecedented power & bandwidth over extreme lengths of regular Cat 5e or Cat 6 network cable, enabling a dependable connection to IP cameras & other remote network devices. IP cameras can demand peak network bandwidth of several times their average data rate while transmitting critical high-activity or low-light scenes. That's why LONGSPAN has been designed to support the full 200 Mbps bandwidth required for reliable 100 Base-T Ethernet at up to 840 metres Cat 6 (or 690 metres Cat 5e). \n\n\n\n- As a point-to-point solution with no mid-cable equipment & smart, automatic self-configuration, installation is simple & instantaneous.\n\n- LONGSPAN even supports single-pair UTP cables, providing a fast upgrade solution for legacy analogue systems. \n\n- For longer distances, LONGSPAN can automatically negotiate a 10 Base-T connection, supporting a range in excess of 1000 metres & over ten times the conventional limit for cabled Ethernet.\n \n \n\n Specifications\n \n Performance Type Network transmitter Maximum transfer distance 1000 m Power over Ethernet (Po E) Yes Data transfer rate 200 Mbit/s Cable types supported Cat 5e, Cat 6, Fiber Full duplex Yes Auto-negotiation Yes Technical details LED indicators Yes Type Network transmitter Maximum transfer distance 1000 m Power over Ethernet (Po E) Yes Data transfer rate 200 Mbit/s Cable types supported Cat 5e, Cat 6, Fiber Full duplex Yes Auto-negotiation Yes Networking Cabling technology 10/100 Base-T (X) Networking standards IEEE 802.3af, IEEE 802.3at Ports & interfaces Power over Ethernet (Po E) ports quantity 2 Ethernet LAN (RJ-45) ports 2 Design LED indicators Yes Certification FCC, CE, Ro HSRo HS compliance Yes Product colour Blue, Metallic Power Power consumption (typical)1 WOperational conditions Operating temperature (T-T)-40
- 70 &176;CStorage relative humidity (H-H)0
- 85% Weight & dimensions Width 35 mm Depth 93 mm Height 21 mm Weight 80 g Colour Product colour Blue, Metallic Certificates Certification FCC, CE, Ro HSRo HS compliance Yes Packaging content Quick start guide Yes Manual Yes Packaging data Package width 60 mm Package depth 137 mm Package height 31 mm Package weight 100 g\n \n \n\n\n\n\n\n
