Tripp Lite introduces it's new OM4 Laser-Optimized Multimode Fiber (LOMMF) " Aqua" cables, for use with 40/100 Gb Ethernet applications. These new technology, 50/125um, LC/LC Fiber Optic cables, provide nearly ten times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 40/100 Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, & high-speed parallel interconnects for head-ends, central offices, & data centers.\n- Designed for 40/100-Gig Ethernet applications...OM4 Rated\n
- Backward compatible with existing 50/125 fiber\n
- Max 40/100 Gb distance of 300 Metres @850nm \n

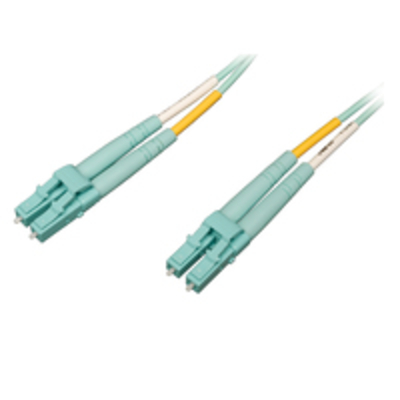

- Low-Smoke, Zero Halogen (LSZH) Aqua jacket\n\n- 2 Metre (6ft) Duplex Multimode 50/125 Aqua OM4 Fiber Patch Cable, LC/LC\n
- 2 Metre (6ft) LC/LC, OM4 Rated\n
- 40/100gb Ethernet speed to 300 Metres @850nm \n
- Use with VCSEL & LED laser light sources \n
- High-Speed, High-Bandwidth, Low-Cost \n
- Backward compatible with legacy LAN's \n
- Ideal for Fibre Channel (SAN) applications\n
- IEEE 802.3ae & TIA LOMMF compliant Feature Feature Value Cable length 2 m Fiber optic type OM4 Connector 1LCConnector 2LCConnector gender Male connector / Male connector Cable colour Blue Full duplex Y Core diameter 50 &181;m Cladding diameter 125 &181;m Fiber mode structure Multi-mode Wavelengths supported 850 nm Data transfer rate 100 Gbit/s Ro HS compliance YREACH compliance N Certification TIA LOMMF
