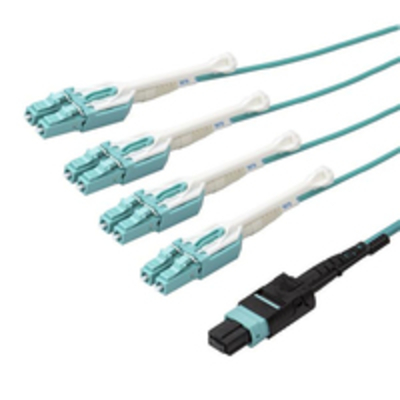

Fan out eight fibers from a 40 Gbps MPO connection to four 10 Gbps LC connections\n\n This MPO/MTP to 8x LC breakout cable lets you fan out a single 40 Gbps connection from a 40 G Base-SR4 QSFP+ transceiver to four 10 Gbps LC SFP+ transceivers.\n\n The push-&-pull tabs optimize accessibility & let you install or remove the connectors with one h&, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space & improves cable management.\n\n The MPO cable is housed in a plenum-rated jacket & is ideal for installations where CMP fire rating is required.\n\n Each OM3 fiber cable has been individually tested for insertion loss & return loss. The full test report is included in each cable bag.\n\n The MPO8LCPL2M from Star Tech.com is backed by a lifetime warranty.\n\n The Star Tech.com Advantage\n\n- Obtain higher port density with eight LC network connections combined into a single MPO/MTP connector\n- Optimize accessibility & install or remove connectors with one hand using the push-&-pull tabs\n- Save space & improve cable management with slim uniboot connectors\n\n class="generic"> Technical details Fiber mode structure Multi-mode Connector 1MPO/MTPConnector 28x LCCable length 2 m Core diameter 50 &181;m Cladding diameter 125 &181;m Cable colour Aqua Features Cable colour Aqua Fiber optic type OM3 Connector gender Male/ Male Fiber mode structure Multi-mode Connector 1MPO/MTPConnector 28x LCCable length 2 m Core diameter 50 &181;m Cladding diameter 125 &181;m Data transfer rate 40 Gbit/s Ro HS compliance Yes Data transmission Data transfer rate 40 Gbit/s Colour Cable colour Aqua Certificates Ro HS compliance Yes Weight & dimensions Cable length 2 m Package width 200 mm Package depth 220 mm Package height 10 mm Weight 47.8 g Package weight 54 g Packaging data Package width 200 mm Package depth 220 mm Package height 10 mm Package weight 54 g\n\n\n\nhttp://objects.icecat.biz/objects/mmo_55710520_1525782410_6304_9982.pdf
