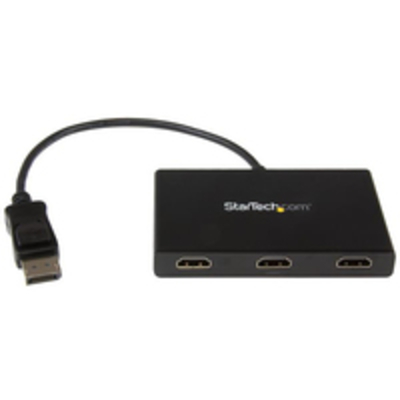

StarTech.com DisplayPort To HDMI Multi-Monitor Splitter - 3-Port MST
Hub

Product Description

Use this adapter to connect three independent displays to a single DP 1.2 port\n\n This MST hub lets you connect three HDMI monitors to your Display Port (DP) 1.2 equipped Windows laptop or desktop.\n\n Increase productivity with multiple screens\n\n The newest generations of computers are more portable than ever, which often means that you&153;re left with fewer video outputs & smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier. \n\n Configure your displays for any environment\n\n Using the MST hub, you can extend your desktop onto additional monitors & stream independent content to each display. You can also mirror the same image onto multiple HDMI televisions or projectors for remote viewing applications such as digital signage.\n\n Enjoy amazing video quality without draining system resources\n\n MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming & medical imaging.\n\n Note: When using a Display Port 1.1 video card the MSTDP123HD will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.\n\n The MSTDP123HD supports plug-&-play installation for a hassle-free setup, & is backed by a Star Tech.com 3-year warranty & free lifetime technical support.\n\n Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support & will only output to three displays in total. If more than three monitors are attached the fourth will be disabled. Some monitors limit available resolution\n\n Average Resolution Bandwidth Allocation\n\n 1920x 1080 (High-definition 1080p) @60hz
- 22%\n\n 1920x 1200 @60hz
- 30%\n\n 2560x 1440 @60hz
- 35%\n\n 2560x 1600 @60hz
- 38%\n\n 3840 x 2160 (Ultra HD 4K) @30hz
- 43%\n\n Note: Exceeding 100% will reduce functionality.\n\n Examples of Supported Resolution Configurations\n\n Screen 1 Resolution\n\n Screen 2 Resolution\n\n Screen 3 Resolution\n\n Total % of Bandwidth\n\n 1920x 1200 @60hz (30%)\n\n 1920x 1200 @60hz (30%)\n\n 1920x 1200 @60hz (30%)\n\n 90%\n\n 2560x 1440 @60hz (35%)\n\n 2560x 1440 @60hz (35%)\n\n 1920x 1200 @60hz (30%)\n\n 92%\n\n 2560x 1600 @60hz (38%)\n\n 2560x 1600 @60hz (38%)\n\n 1920x 1080 @60hz (22%)\n\n 98%\n\n 3840x 2160 @30hz (43%)\n\n 1920x 1200 @60hz (30%)\n\n 1920x 1080 @60hz (22%)\n\n 95%\n\n 3840x 2160 @30hz (43%)\n\n 3840x 2160 @30hz (43%)\n\n None\n\n 86%\n\n Examples of Unsupported Resolution Configurations\n\n Screen 1 Resolution\n\n Screen 2 Resolution\n\n Screen 3 Resolution\n\n Total % of Bandwidth\n\n 2560x 1600 @60hz (38%)\n\n 2560x 1600 @60hz (38%)\n\n 1920x 1200 @60hz (30%)\n\n 106%\n\n 3840x 2160 @30hz (43%)\n\n 2560x 1600 @60hz (43%)\n\n 1920x 1200 @60hz (30%)\n\n 116%\n\n 3840x 2160 @30hz (43%)\n\n 2560x 1600 @60hz (43%)\n\n 2560x 1440 @60hz (35%)\n\n 121%\n\n 3840x 2160 @30hz (43%)\n\n 3840x 2160 @30hz (43%)\n\n 3840x 2160 @30hz (38%)\n\n 124%\n\n The Star Tech.com Advantage\n\n- Maximize your productivity by connecting up to three independent displays to your computer using the MST Hub\n- Connect your Display Port computer to HDMI televisions, monitors or projectors, avoiding the hassle of additional HDMI adapters\n- Increase external video performance with support for resolutions up to 4 K Feature Feature Value Video ports quantity 3 Video port type Display Port Video out 3x HDMIMaximum resolution 3840 x 2160 pixels Product colour Black Maximum refresh rate 60 Hz Cable length 0.19 m Plug & Play Y Ro HS compliance Y Certification CE, FCC, REACHWindows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x 64, Windows 10 Enterprise, Windows 10 Enterprise x 64, Windows 10 Home, Windows 10 Home x 64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x 64, Windows 10 x 64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x 64, Windows 8 Pro, Windows 8 Pro x 64, Windows 8 x 64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x 64, Windows 8.1 Pro, Windows 8.1 Pro x 64, Windows 8.1 x 64 Input voltage 110
- 240 VInput current 0.5 AOutput voltage 5 VOutput current 3 APower consumption (typical)15 WWidth 66 mm Depth 386 mm Height 14 mm Weight 131 g Package width 241 mm Package depth 154 mm Package height 63 mm Package weight 506 g Manual YAC adapter included Y Operating temperature (T-T)0
- 45 &176;CStorage temperature (T-T)-20
- 70 &176;COperating relative humidity (H-H)50
- 90%
