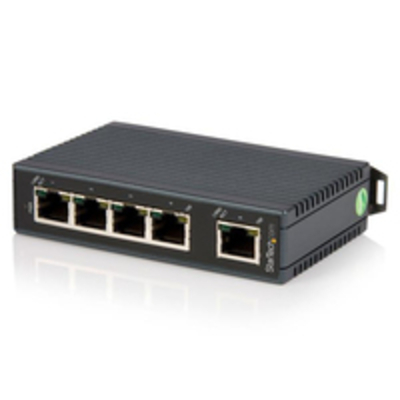

StarTech.com 5-port Industrial Ethernet Switch - DIN Rail Mountable

Product Description

Expand your network connectivity with this rugged unmanaged 10/100 Mbps switch\n\n This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity & durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories & warehouses.\n\n Conquer the tough demands of industrial environments\n\n Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.\n\n Get up & running in no time\n\n This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks & cabinets.\n\n Now you can eliminate the hassle of troubleshooting mismatched speed & duplex settings. This switch gives you full/half-duplex auto-negotiation & auto MDI/MDIX operation, enabling you to connect your network devices quickly & easily with little to no configuration required.\n\n Reduce your energy costs with Energy-Efficient Ethernet\n\n With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.\n\n The IES5102 is backed by a Star Tech.com 2-year warranty & free lifetime technical support.\n\n The Star Tech.com Advantage\n\n- Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch\n- Wide-range 12-48V DC terminal block input\n- Easy installation with an integrated DIN rail bracket Feature Feature Value Switch type Unmanaged Quality of Service (Qo S) support Y Basic switching RJ-45 Ethernet ports quantity 5 Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u 10G support N Full duplex Y Auto MDI/MDI-XYAuto-negotiation Y Store-&-forward Y Jumbo frames support N Rack mounting Y Product colour Black Housing material Plastic LED indicators Activity, Link, Power International Protection (IP) code IP30 Certification CE, FCCMaximum cable length 100 m Buffer size 56 KBMaximum data transfer rate 200 Mbit/s Mean time between failures (MTBF)1179133 h Power consumption (max)2.12 WOperating temperature (T-T)-10
- 60 &176;CStorage temperature (T-T)-25
- 85 &176;COperating relative humidity (H-H)5
- 95% Width 25 mm Depth 70 mm Height 110 mm Weight 148 g Manual Y Terminal block included Y Package width 177 mm Package depth 196 mm Package height 79 mm Package weight 335 g Input voltage 12
- 48 VRegulatory Approvals EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea
