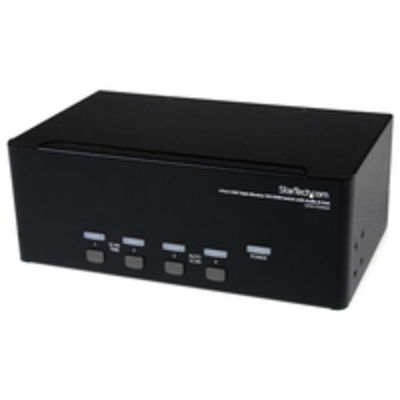

StarTech.com 4 Port Triple Monitor DVI USB KVM Switch With Audio & USB
2.0 Hub

Product Description

The SV431TDVIUA 4-Port Triple Monitor DVI USB (Universal Serial Bus) KVM Switch allows 4 PCs (each with 3 DVI video outputs) to share monitors, 1 microphone & set of speakers, 1 keyboard & 1 mouse, as well as an additional USB (Universal Serial Bus) 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam.\n\n The Triple DVI KVM switch enables you to switch back & forth between 4 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x 1200. The triple DVI KVM switch also features an integrated USB (Universal Serial Bus) hub port which allows USB (Universal Serial Bus) 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs & offering the convenience of sharing stored data between PCs.\n\n The SV431TDVIUA 4-Port Triple Monitor DVI KVM Switch is backed by a Star Tech.com 3-year warranty & free lifetime technical support.\n\n PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM & KVM to console connections.\n\n Rackmount your KVM switch\n If you&153;d like to mount this KVM switch to your server rack, Star Tech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.\n\n The Star Tech.com Advantage\n- By enabling control of four triple display computer systems using a single set of peripherals, the switch helps saves cost & work space\n- With support for high definition resolutions (1920x 1200) on each of the 3 connected monitors, the triple head KVM switch offers maximum screen real estate for optimized productivity\n- Integrated USB (Universal Serial Bus) 2.0 hub & mic/audio ports enable you to have full multimedia control of two computers, while sharing USB (Universal Serial Bus) peripherals Feature Feature Value Number of computers controlled 4 Keyboard port type USBMouse port type USBVideo port type DVI-IConsole ports 3.5mm headphone, 3.5mm mic, USB AHDCPYConsole USB (Universal Serial Bus) ports quantity 4 Audio connections Y Headphone outputs 4 Number of microphone inputs 4DC-in jack Y Maximum resolution 1920 x 1200 pixels Maximum digital resolution 1920 x 1200 pixels Scan interval 3, 8, 15, 30 s Daisy chain N Number of users 1 user (s) Rack mounting Y Product colour Black Housing material Steel LED indicators Y Hot keys Y Ro HS compliance Y Certification CE, FCC, ULBuilt-in display NAC input voltage 110-240 VInput current 0.8 AOutput voltage 12 VOutput current 1.5 AExternal power adapter Y Power plug type Type MCompatible power plug types EU, UK, USOperating temperature (T-T)0
- 40 &176;CStorage temperature (T-T)-10
- 60 &176;COperating relative humidity (H-H)0
- 80% Width 219 mm Depth 137 mm Height 81 mm Weight 1.5kg Package width 273 mm Package depth 295 mm Package height 110 mm Package weight 2.2kg Manual YAC adapter included Y Rubber feet Y Audio support YIP control N
