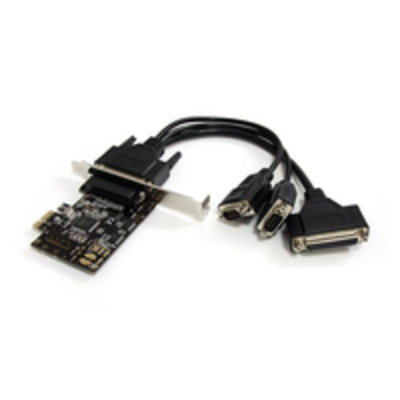

Add a parallel port & two RS-232 serial ports to your PC through a PCI-Express expansion slot\n\n The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel & Serial cards, adding 2 RS232 serial ports & 1 parallel port through a single PCI Express (PCIe) slot.\n\n Suitable for almost any computer, the card offers a low profile/half-height design &
Includes:: an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows 7/ Server 2008 R2/ Vista/XP/ Server 2003/2000/98SE (32/64 bit), Linux & Mac OS X.\n\n The card also features a native single-chip design that provides enhanced speed & reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.\n\n This product is a replacement for our PEX2S1P552B card.\n\n Backed by a Star Tech.com Lifetime warranty & free lifetime technical support.\n\n The Star Tech.com Advantage\n\n- Break-out cable design with low & standard profile brackets offers a versatile, single slot solution for adding 3 additional ports (2 serial, 1 parallel) to almost any system, including space-sensitive embedded applications\n- Native single-chip design reduces CPU load for enhanced performance & reliability\n- Broad Operating System support, including 64-bit Windows systems, for easy integration into mixed environments Feature Feature Value Host interface PCIe Output interface Parallel, Serial Expansion card form factor Low-profile Internal Y Product colour Black, Silver FIFO (First In, First Out)256 BLogical block addressing (LBA) support 8 bit Supports EPP & ECPYOperating temperature (T-T)0
- 70 &176;CStorage temperature (T-T)-40
- 150 &176;COperating relative humidity (H-H)5
- 85% Width 23 mm Depth 95 mm Height 79 mm Weight 50 g Package width 143 mm Package depth 174 mm Package height 38 mm Package weight 300 g Data transfer rate 0.250 Mbit/s Mac compatibility Y Compatible operating systems DOS, Windows 95/ 98SE/ 2000/ XP (32/64bit)/ Server 2003 (32/64bit)/ Vista (32/64bit)/ 7 (32/64bit)/ Server 2008 R2, Linux, Mac OS 10.4.x, Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0
