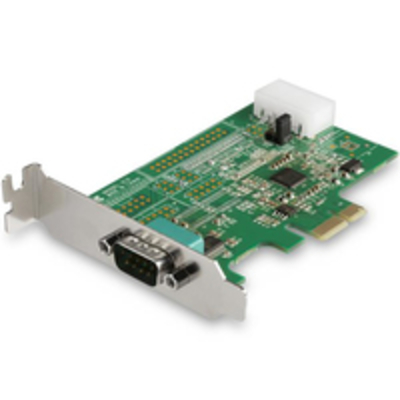

PCI Express to Serial Adapter &pipe; 921.4 Kbps &pipe; Windows & Linux Compatible\n\n This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, & modems, at speeds of up-to 921.4 Kbps.\n\n Maximum Compatibility\n\n With broad OS support, including for Windows & Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, &
Includes:: an optional full-profile bracket, so installation is easy regardless of the case form factor.\n\n Experience Optimal Technology\n\n This PCIe to serial adapter supports the following
Features:\n\n Compatible with industry standard 16950 UART\n\n Supports max baud rate of up-to 921.4 Kbps\n\n Provides 5/12V power output on Pin 9 when external power is connected\n\n 128-byte depth FIFO per transmitter & receiver\n\n Supports 9, 8, 7, 6, 5 data bits\n\n Asix AX99100 chipset\n\n PCI Express 1.1 compliant\n\n PEX1S953LP is backed by a Star Tech.com lifetime warranty & free lifetime technical support.\n\n The Star Tech.com Advantage\n\n- Add RS232 DB9 capabilities without purchasing a new server or computer\n- PCI Express 1.1 compliant ensuring a reliable performance\n- Maximize case form factor integration with a low-profile or full-profile bracket Feature Feature Value Host interface PCIe Output interface Serial Expansion card standard PCIe 1.1 Peripheral (Molex) power connectors (4-pin)1 Internal Y Product colour Green Ro HS compliance Y Certification CE, FCC, REACH, Microsoft WHQLChipset Asix AX99100 Baud rate 921.4 Kbit/s FIFO (First In, First Out)256 BData bits 5, 6, 7, 8, 9 Stop bits 1, 1.5, 2 Flow control support Y Operating temperature (T-T)0
- 70 &176;CStorage temperature (T-T)-20
- 80 &176;COperating relative humidity (H-H)20
- 80% Linux operating systems supported Y Server operating systems supported Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 Width 67 mm Depth 98 mm Height 18 mm Weight 46.2 g Quantity 1 Mounting brackets included Y Manual Y Package width 142 mm Package depth 170 mm Package height 30 mm Package weight 124.6 g
