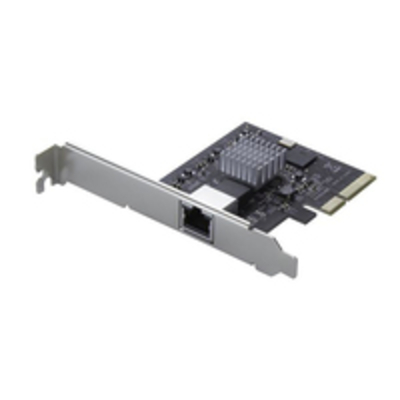

StarTech.com 1 Port PCIe 4 Speed 5GBASE-T/NBASE T Ethernet Network
Card

Product Description

Add an Ethernet port to a PC client, server or workstation supporting four network speeds: 5G/2.5G/1G/100 Mbps\n\n This 4-speed NBASE-T PCIe network card offers an inexpensive network upgrade solution, providing access to your network at multiple speeds up to 5G, using your existing Cat 5e copper cabling.\n\n Cost-effective Multi-Gigabit Ethernet\n\n Fully compliant with 2.5GBASE-T, 5GBASE-T, & NBASE-T (Draft IEEE802.3bz) specifications, the PCIe NIC offers a cost-effective & versatile networking solution. It provides additional bandwidth at multiple speeds, to meet your network needs without the expense of overhauling your existing cable infrastructure.\n\n Advanced technology for optimal performance\n\n The featured NBASE-T technology & multi-gigabit speeds support Cisco campus switches, including Catalyst 4500E, 3850 & 3560-CX. The Marvell 88E2010 chipset is optimized for achieving 2.5 & 5G rates over your existing Cat 5e copper cable setup without upgrading to the more expensive Cat 6A cabling required for 10 Gbps speeds.\n\n Operating efficiency & flexible use\n\n The Tehuti Networks TN4010 chipset, compliant with IEEE 802.3az, ensures peak operating efficiency with reduced power consumption. The network card also supports 9K jumbo frames, 802.1q VLAN tagging & is backward compatible with 1000BASE-T. For additional versatility, the controller card is equipped with a standard-profile bracket &

Includes:: a low-profile bracket for installation in small form-factor computers.\n\n The ST5GPEXNB is backed by a Star Tech.com 2-year warranty.\n\n The Star Tech.com Advantage\n\n- Cost-effective & versatile Ethernet connectivity supporting four network speeds: 5G, 2.5G, 1G & 100 Mbps\n- Achieve up to 2.5 Gbps & 5 Gbps speeds on your existing Cat 5e cabling infrastructure\n- Compliant with 5 G Base-T & NBase-T (Draft IEEE802.3bz) specifications Feature Feature Value Connectivity technology Wired Host interface PCI Express Interface Ethernet Ethernet LAN (RJ-45) ports 1PCI version 2.0 Maximum data transfer rate 5000 Mbit/s Networking standards IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3bz, IEEE 802.3u Ethernet LANYEthernet interface type Gigabit Ethernet Ethernet LAN data rates 10, 100, 1000, 2500, 5000 Mbit/s Copper ethernet cabling technology 100BASE-TX, 1000BASE-TAuto MDIX IEEEYFull duplex Y Auto-negotiation Y Jumbo frames support YVLAN tagging Y Jumbo frames 9000 Internal Y Product colour Black LED indicators Activity, Link Ro HS compliance Y Certification CE, FCCOperating temperature (T-T)0
- 70 &176;CStorage temperature (T-T)-40
- 85 &176;COperating relative humidity (H-H)10
- 90% Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x 64, Windows 10 Enterprise, Windows 10 Enterprise x 64, Windows 10 Home, Windows 10 Home x 64, Windows 10 Pro, Windows 10 Pro x 64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x 64, Windows 7 Home Basic, Windows 7 Home Basic x 64, Windows 7 Home Premium, Windows 7 Home Premium x 64, Windows 7 Professional, Windows 7 Professional x 64, Windows 7 Starter, Windows 7 Starter x 64, Windows 7 Ultimate, Windows 7 Ultimate x 64, Windows 7 x 64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x 64, Windows 8 Pro, Windows 8 Pro x 64, Windows 8 x 64 Mac operating systems supported Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave Linux operating systems supported Y Server operating systems supported Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 Width 120 mm Depth 80 mm Height 20 mm Weight 46 g Manual Y Drivers included Y Low-profile bracket Y Package width 142 mm Package depth 170 mm Package height 30 mm Package weight 55 g Chipset Tehuti
- TN4010, Marvell
- 88E2010P
