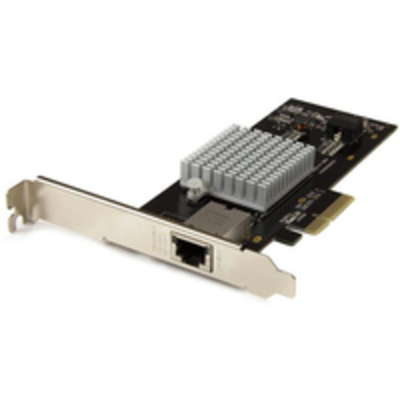

StarTech.com 1-Port 10G Ethernet Network Card - PCI Express - Intel
X550-AT Chip

Product Description

Upgrade your server or workstation to 10G networking over copper, by adding a 10 G Base-T / NBASE-T RJ45 port\n\n Here&153;s a powerful & cost-effective solution for upgrading your server or workstation to 10 Gigabit Ethernet networking over copper. This PCI Express 10G NIC lets you add an Ethernet port to your server or desktop computer & access your network at multiple speeds: 10G, 5G, 2.5G 1G & 100 Mbps. \n\n Reliable, high-performance connectivity\n\n This 10G network card utilizes the Intel X550-AT chipset, delivering the power, performance & enhanced capabilities you need for dependable network connections. Compliant with IEEE 802.3u/ab/an standards, the 1-port 10G card delivers a dependable way to upgrade or replace your existing network port, providing throughput capability of up to 10 Gbps in each direction (20 Gbps total). It connects easily through a single, four-lane (x 4 or higher) PCI Express slot.\n\n The Intel X550-AT chipset provides many advanced features including Intel Virtualization Technology for connectivity & PXE network boot support. The Intel chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput & provide greater data reliability. It supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering & resource reservation. It also lets you take advantage of advanced features such as VLAN tagging, up to 15K jumbo frame support & Auto MDIX.\n\n Cost-effective & versatile multimode connectivity\n\n This five-speed NIC provides a cost-effective & versatile networking solution, by giving you the additional bandwidth your network needs without having to overhaul your infrastructure wiring. It lets you add an Ethernet port which can be accessed at multiple speeds 10G, 5G, 2.5G 1G & 100 Mbps. Compatible with a broad range of operating systems, the 10G NIC is fully compliant with 10 G Base-T & NBASE-T specifications. (10G network speeds require Cat 6a cable. All other speeds require Cat 5e cable.)\n\n The PCIe 10G network card features advanced NBASE-T technology, supporting the latest multigigabit equipment, including new Cisco campus switches & Aruba Networks access points. The card enables you to connect to NBASE-T based equipment at network speeds of 2.5 Gbps or 5 Gbps, over your existing Cat 5e infrastructure, without having to upgrade to more expensive Cat 6a. The Ethernet network card also supports the more common 10G over copper, & 1G network connections using existing Cat 6/ Cat 5e or better cabling.\n\n Easy installation\n\n With its dual-profile design, the network card is easy to install into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, &

Includes:: a low-profile/half-height installation bracket that you can use as needed.\n\n The ST10000SPEXI is backed by a Star Tech.com 2-year warranty & free lifetime technical support.\n\n The Star Tech.com Advantage\n\n- Add a 10G /5G/2.5G/1G/100 Mbps R-J45 Ethernet port to provide cost-effective network connectivity for high bandwidth workstations & servers\n- Compliant with 10 G Base-T & NBASE-T specifications\n- Intel X550-AT chipset with Intel Virtualization Technology for connectivity (Intel VT-c) Feature Feature Value Connectivity technology Wired Host interface PCI Express Interface Ethernet Ethernet LAN (RJ-45) ports 1PCI version 2.0 Maximum data transfer rate 20000 Mbit/s Networking standards IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x Ethernet LANYEthernet interface type 10 Gigabit Ethernet Ethernet LAN data rates 10, 100, 1000, 10000 Mbit/s Auto MDIX IEEEYFull duplex Y Flow control support Y Jumbo frames support YVLAN tagging Y Jumbo frames 9000 Internal YPCI Card form factor Full-height (low-profile)LED indicators Activity, Link Ro HS compliance Y Certification CE, FCCOperating temperature (T-T)5
- 50 &176;CStorage temperature (T-T)-20
- 60 &176;COperating relative humidity (H-H)20
- 80% Windows operating systems supported Windows 10 Education, Windows 10 Education x 64, Windows 10 Enterprise, Windows 10 Enterprise x 64, Windows 10 Home, Windows 10 Home x 64, Windows 10 Pro, Windows 10 Pro x 64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x 64, Windows 7 Home Basic, Windows 7 Home Basic x 64, Windows 7 Home Premium, Windows 7 Home Premium x 64, Windows 7 Professional, Windows 7 Professional x 64, Windows 7 Starter, Windows 7 Starter x 64, Windows 7 Ultimate, Windows 7 Ultimate x 64, Windows 7 x 64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x 64, Windows 8 Pro, Windows 8 Pro x 64, Windows 8 x 64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x 64, Windows 8.1 Pro, Windows 8.1 Pro x 64, Windows 8.1 x 64 Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave Linux operating systems supported Y Server operating systems supported Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 Width 68.5 mm Depth 152.5 mm Height 121 mm Weight 96 g Quick start guide Y Low-profile bracket Y Package width 142 mm Package depth 170 mm Package height 30 mm Package weight 200 g Chipset Intel X550AT
