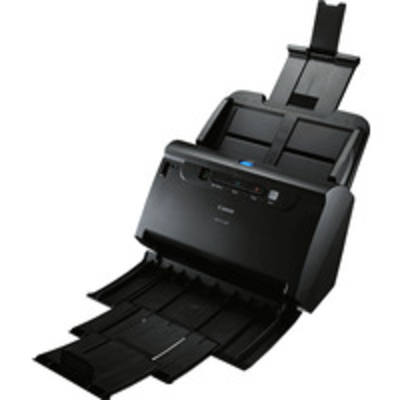

A compact document scanner with the speed, power & flexibility to thrive in the most-demanding & fast-paced environments.\n\n Compact, modern design & powerful efficiency-driving features\n Small stature, big performance " the image FORMULA DR-C230 offers consummate reliability & supreme productivity, at an affordable price point. This robust desktop scanner captures multiple document formats & sizes with ease.\n\n Premium performance\n With scan speeds of up to 30ppm & 60ipm, the image FORMULA DR-C230 offers exceptional productivity at a pleasantly modest price point.\n\n Class-leading reliability\n The DR-C230 has been engineered to ensure maximum dependability. Its 60-sheet ADF seamlessly feeds various media sizes, delivering up to 3, 500 scans per day.\n\n Simple, swift scanning\n This convenient desktop model allows users to scan with a single button press, & offers useful features such as automatic page size & text direction detection.\n\n\n Broad software selection\n Featuring an impressive range of applications, the DR-C230 has the tool for every job, with Capture Perfect & Capture On Touch V4 Pro included.\n\n Cost-effective operation\n Consuming just 19W in operation & 1.4W in standby, the DR-C230 is both environmentally & fiscally efficient, without compromising on performance. Feature Feature Value Maximum scan size 216 x 356 mm Optical scanning resolution 600 x 600 DPIColour scanning Y Duplex scanning YADF scan speed (b/w, A4)30 ppm Output colour depth 24 bit Output grayscale depth 8 bit Gray scale levels 256ADF scan speed (colour, A4)30 ppm Duplex ADF scan speed (b/w, A4)60 ipm Duplex ADF scan speed (colour, A4)60 ipm Scanner type Sheet-fed scanner Product colour Black Sensor type CMOS CISDaily duty cycle (max)3500 pages Light source RGB LEDScan drivers ISIS, TWAINStandard input capacity 60 sheets Maximum ISO A-series paper size A4 Scanning media types supported Business Card, Plastic Card Multi feed detection Y Media thickness (min)0.06 mm Maximum scan width 21.6 cm Maximum scan length 3 m Standard interfaces USB 2.0 Power supply type ACPower consumption (typical)19 WPower consumption (standby)1.4 WPower consumption (off)0.1 WAC input frequency 50
- 60 Hz Input voltage 100-240 VWindows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x 64, Windows 10 Enterprise, Windows 10 Enterprise x 64, Windows 10 Home, Windows 10 Home x 64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x 64, Windows 7 Enterprise, Windows 7 Enterprise x 64, Windows 7 Home Basic, Windows 7 Home Basic x 64, Windows 7 Home Premium, Windows 7 Home Premium x 64, Windows 7 Professional, Windows 7 Professional x 64, Windows 7 Starter, Windows 7 Starter x 64, Windows 7 Ultimate, Windows 7 Ultimate x 64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x 64, Windows 8.1 Pro, Windows 8.1 Pro x 64, Windows 8.1 x 64 Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra Server operating systems supported Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 Operating temperature (T-T)10
- 32.5 &176;COperating relative humidity (H-H)20
- 80% Ro HS compliance Y Energy Star certified Y Weight 2.8kg Width 291 mm Depth 253 mm Height 231 mm Cables included AC, USBAC adapter included Y Scan media weight 27
- 209 g/m&178;
