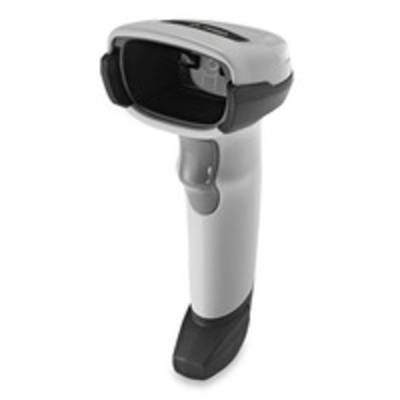

\n Zebra DS2208 Handheld bar code reader 1D/2D LED Black, White\n \n \n \n \n \n \n Manufacturer:\n Zebra\n \n \n Category:\n Printers & Scanners\n \n \n Sub-Category:\n Barcode Readers\n \n \n SKU:\n DS2208-SR6U2100SGW\n \n \n EAN:\n 5711783398493\n \n \n \n \n\n Description\n \n \n AFFORDABILITY & SIMPLICITY DELIVERED\n\n 2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed & electronic coupons & loyalty cards.\n\n\n\n Your 1D scanner can&153;t capture the new 2D codes, leading to exceptions that slow down the check-out process & frustrate customers at that key last personal touchpoint in your store.\n\n\n\n But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn&153;t compromise performance or features for price. & you can choose the model that best fits your POS needs " the corded DS2208 or the cordless DS2278. The DS2200 Series " the affordability your budget demands, with the deployment, ease of use & management simplicity your business requires.\n \n \n\n Specifications\n \n Scanning Type Handheld bar code reader Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 Data Bar Expanded, Interleaved 2 of 5, MSI, U.P.C.2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, Maxi Code, Micro QR Code, PDF417, QR Code, TLC-39 Yaw reading angle-65
- 65&176; Working distance 36.8 cm Wavelength 645 nm Tilt reading angle-65
- 65&176; Sensor type LEDScanner type 1D/2 D Pitch reading angle-65
- 65&176; Optical sensor resolution (W x H)640 x 480 pixels Ports & interfaces Connectivity technology Wired Standard interfaces USB (Universal Serial Bus), RS-232, RS-485, Keyboard wedge Design Type Handheld bar code reader Ro HS compliance Yes LED indicators Yes International Protection (IP) code IP42 Product colour Black, White Certification EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07\n IEC 62471\n EN 55022 (Class B); EN 55032 (Class B)\n EN 55024\n EN 61000-3-2\n EN 61000-3-3\n 47 CFR Part 15, Subpart B, Class B\n ICES-003 Issue 6, Class BPower Power consumption 250 m A Power source type DCAC adapter output voltage 5 VWeight & dimensions Width 66 mm Depth 99 mm Height 165 mm Weight 161.6 g Technical details Type Handheld bar code reader Ro HS compliance Yes LED indicators Yes International Protection (IP) code IP42 Product colour Black, White Certification EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07\n IEC 62471\n EN 55022 (Class B); EN 55032 (Class B)\n EN 55024\n EN 61000-3-2\n EN 61000-3-3\n 47 CFR Part 15, Subpart B, Class B\n ICES-003 Issue 6, Class BPackaging data Charging base No Cables included Micro-USBOperational conditions Storage temperature (T-T)-40
- 70 &176;COperating temperature (T-T)0
- 50 &176;COperating relative humidity (H-H)5
- 95% Packaging content Charging base No Cables included Micro-USB\n \n \n\n\n\n\n\n
