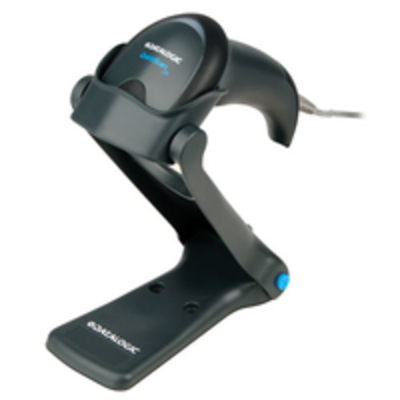

Datalogic QuickScan Lite QW2100 1D Laser Black Handheld Bar Code
Reader

Product Description

\n Datalogic Quick Scan Lite QW2100 Handheld bar code reader 1D Laser Black\n \n \n \n \n \n \n Manufacturer:\n Datalogic\n \n \n Category:\n Printers & Scanners\n \n \n Sub-Category:\n Barcode Readers\n \n \n SKU:\n QW2120-BKK1S\n \n \n EAN:\n 5712505145807 4054318470976 4016138960525 0032017020344 5054533406568\n \n \n \n \n\n Description\n \n \n The Quick Scan&132;&162; reader series is Datalogic ADC's value line of general purpose handheld data collection products. The Quick Scan Lite QW2100 linear imager is an entry level product created specifically for reading long & truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing & banking/finance environments.\n\n\n\n The QW2100 imager is small, lightweight & its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D bar codes & features a wide scanning angle with an extended scanning line which is perfect for capturing longer & wider bar codes typically found on utility bills & used by manufacturers of electronic parts. in addition, the scanning line is thinner & brighter, allowing users to scan at wide angles without having to increase the scanning distance.\n\n\n\n A specially designed stand has been created for the QW2100 imager which is light in weight, collapsible to use as a holder instead of a st&, & also has a &152;tiltable head&153; for various angle settings.\n\n\n\n The QW2100 imager is available with two interface options: USB (Universal Serial Bus) or Keyboard Wedge / RS-232 &

Includes:: various packaging options so that it can be ordered as a scanner only or as a kit equipped with a scanner, cable & stand to facilitate hands-free reading options. The Datalogic Aladdin&132;&162; configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.\n\n\n\n Because this imager was created for specific areas of the world, please check with your Datalogic Representative to inquire if the QW2100 imager is available in your area.\n\n\n\n Features\n\n- Wide scan angle\n\n- Laser-like thinner & extended scan line\n\n- Datalogic&153;s patented &152; Green Spot&153; technology for good-read feedback\n\n- Water & Particulate Sealing Rating: IP42\n\n- Drop Resistance to 1.5 m / 5.0 ft\n\n- Uses the same cables & power supplies as the current Quick Scan products\n\n- Bulk packaging available (10 scanners per box)\n\n- USB (Universal Serial Bus) Certified Kits available\n \n \n\n Specifications\n \n Scanning Type Handheld bar code reader Linear (1D) barcodes supported EAN 5, EAN-13, EAN-8, GS1-128 (UCC/EAN-128)2D (matrix & stacked) barcodes supported Not supported Yaw reading angle-70
- 70&176; Wavelength 650 nm Tilt reading angle-45
- 45&176; Sensor type Laser Scanner type 1DRead rate (max)400 reads/s Pitch reading angle-65
- 65&176; Ports & interfaces Connectivity technology Wired Standard interfaces USBDesign Type Handheld bar code reader International Protection (IP) code IP42 Product colour Black Power Power consumption 340 m A Power source type DCInput voltage 5 VWeight & dimensions Width 170 mm Depth 65 mm Height 70 mm Weight 119 g Technical details Type Handheld bar code reader International Protection (IP) code IP42 Product colour Black Packaging data Cables included USBOperational conditions Storage temperature (T-T)-40
- 70 &176;COperating temperature (T-T)5
- 40 &176;COperating relative humidity (H-H)5
- 95% Packaging content Cables included USB\n \n \n\n\n\n\n\n
