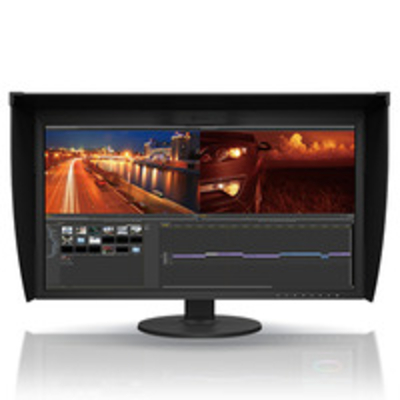

EIZO ColorEdge CG319X Computer Monitor 79 Cm (31.1") 4K DCI LED Flat
Black

Product Description

A professional 4096 x 2160 monitor equipped with HLG & the PQ gamma curve for editing HDR video content, as well as a wide color gamut for displaying vibrant images.\n\n Built-In Sensor to Automate Your Workflow\n The Color Edge CG319X is equipped with a built-in sensor which can be set to calibrate the monitor automatically at designated times. This eliminates the need for a third-party calibration device & ensures your screen stays color-accurate. In addition, the monitor features the latest sensor technology, which means that you can continue using it even during recalibration. The sensor swings onto the screen, taking up minimal space, so your work remains uninterrupted.\n\n Color Navigator 7 Color Management Software\n Color Navigator 7 is the latest calibration & quality control software for Color Edge color management monitors. It combines all the features of EIZO's previous color management software, Color Navigator 6 & Color Navigator NX, to create a new & enhanced solution for creatives in a range of fields. The proprietary software makes calibration simple & produces predictable results for photography, design, print, & video creation.\n\n Color Navigator Network Quality Control Software\n Color Navigator Network provides centralized quality control of Color Edge monitors that have Color Navigator 7 or NX installed. Administrators can set color modes, schedule self-calibration, register or adjust asset management settings, & other tasks whether the monitors are local or remote. Color Navigator Network is hosted on a secure cloud server to free you from the initial investment & running costs of providing your own server.\n\n DCI 4K Resolution\n The Color Edge CG319X displays the DCI 4K standard (4096 x 2160) which is more than four times that of full HD (1920 x 1080). It's ideal for creating, editing, & referencing with 2D & 3D CGI, VFX, compositing, & color grading.\n\n Large 31.1" Screen\n Whether you are creating, editing, or checking your work, this screen offers ample space to focus on 4K content. At a dense 149 ppi, it&153;s suited for not only video editing but also photo retouching & printing.\n\n HDR Gamma Support\n The Color Edge CG319X is equipped with HLG (hybrid log-gamma) & the PQ (perceptual quantization) curve for displaying & editing HDR (high dynamic range) video content. The optimized gamma curves render images to appear more true to how the human eye perceives the real world compared to SDR (standard dynamic range). This ensures professional creators can reliably display HDR content for editing & color grading.\n\n Vivid Colors Reproduced to Industry Standards\n This wide-gamut monitor faithfully reproduces 98% of the DCI-P3 standard used in digital cinema & supports the Rec. 2020 standard used in broadcasting. In addition, it covers 99% of the Adobe RGB color space so images shot in Adobe RGB will be displayed correctly. The wide color gamut also ensures reproduction of almost the entire ISO-coated & US web-coated CMYK color spaces used in printing.\n\n True Black Display\n In compliance with the DCI standard, the Color Edge CG319X offers a high contrast ratio of 1500:1* for producing true blacks that are otherwise difficult to display on a typical LCD monitor. When viewing the screen from an angle in a dimly lit room, dark tones typically appear washed out due to the display characteristics of LCD backlights. The CG Series is equipped with a retardation film which allows tones to retain their depth even when viewed from an angle.\n\n 3D LUT for Accurate Color Display\n A 3D LUT is included which adjusts colors individually on an RGB cubic table. With the supported Color Navigator NX software&153;s emulation function, creators can check how content will appear to their audience. The 3D LUT also improves the monitor's additive color mixture (combination of RGB), which is a key factor in its ability to display neutral gray tones.\n\n 10-Bit Simultaneous Display\n With 10-bit simultaneous display from a 24-bit look-up-table (LUT), the Color Edge CG319X can show more than one billion colors simultaneously. This results in smooth color gradations & reduced Delta-E between two adjacent colors.\n\n Broadcast & Cinema Presets\n Preset modes for DCI-P3, Rec. 709, & Rec. 2020 ensure you can work in the appropriate color spaces & gamma values. In addition, preset modes for PQ (DCI & Rec. 2100) & HLG (Rec. 2100) are available for viewing HDR content. With the built-in calibration sensor, you can conveniently adjust or maintain the brightness setting for each preset.\n\n Luminance Warning\n The Color Edge CG319X

Includes:: a PQ & HLG Clipping function that shows the areas of an image which display at brightness levels higher than the current setting. The areas which cannot be displayed at the correct brightness with the current settings are shown in yellow or magenta. PQ & HLG Clipping can be viewed for brightness levels of 300, 500, 1000, & 4000 cd/m 2.\n\n Safe Area Marker\n A safe area marker designates the area of the screen that will be displayed when the monitor is connected to a particular device. This means that you can check that subtitles & other text will be visible. The color of the marker is changeable to ensure it remains with any imagery.\n\n Aspect Marker\n An aspect marker designates the areas of the screen size that will be shown on a display device when you input DCI 4K (4096 x 2160) or DCI 2K (2048 x 1080). This means that you can confirm how the screen size & composition of the scene will appear in other viewing environments. Aspect ratios 1.85:1, 2.35:1, & 2.39:1 can be selected.\n\n 4K Zoom Function\n Enlarge areas of the screen to confirm small details & check focus accuracy in photos using the 4K zoom function. It is quickly & easily accessible using the monitor&153;s front buttons.\n\n Rec. 709 Out of Gamut Warning\n The monitor

Includes:: a Gamut Warning preset. When selected, the areas of a Rec. 2020 image that cannot be reproduced using Rec. 709 are clearing indicated by converting them to shades of gray. An additional mode called Rec. 709 Clipping allows the editor to view Rec. 2020 images within the Rec. 709 color space, simulating how it would look to their audience in an HDTV environment.\n\n Adjusted at the Factory for Smooth Color Gradations\n The gamma level for each Color Edge monitor is adjusted at the factory by measuring the R, G, & B gamma values from 0
- 255, then using the monitor's 24-bit look-up-table (LUT) to select the most appropriate tones & achieve the desired value. This ensures the smoothest color gradations in your images.\n\n Stable Display Using Industry-First AI\n The color & brightness of an LCD monitor can shift due to changes in ambient temperature & the temperature of the monitor itself. Color Edge monitors are equipped with a temperature sensor for accurately measuring the temperature inside the monitor, as well as estimating the temperature of the surrounding environment. With this temperature sensing & estimation technology, the monitor adjusts in real-time so gradations, color, brightness, & other characteristics continue to be displayed accurately. Furthermore, EIZO uses AI (artificial intelligence)* in the estimation algorithm of the CG319X so it can distinguish between various temperature changing patterns to calculate even more accurate correction.\n\n Stable Color in Just 3 Minutes\n A typical monitor takes 30 minutes or more for its brightness, chromaticity, & tone characteristics to stabilize. The Color Edge CG319X takes a mere 3 minutes. Whether you are working in a studio or taking the monitor with you on location, you get reliable color display soon after turning the monitor on.\n\n Uniformity Across the Screen\n LCD monitors commonly exhibit fluctuations in brightness & chromaticity across the screen, affecting color accuracy. To counter this, Color Edge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology which corrects deviations in every tone across the screen to ensure stable display.\n\n Minimized Reflections with Non-Glare Panel\n The monitor is equipped with an IPS non-glare panel for high visibility. It also uses dimming technology to minimize flicker & help prevent eye fatigue for a more comfortable working environment.\n\n Wide Viewing Angles with IPS Panel\n The 178&176; wide viewing angles afforded by the IPS panel technology allow two or more people to view the screen at once with little change in color or contrast.\n\n Light Shielding Hood\n The CG Series comes bundled with a shading hood that effectively prevents glare on the monitor's screen caused by ambient lighting. The Color Edge CG319X's shading hood attaches to the monitor magnetically. This allows the users to attach the hood quickly & easily without needing to connect separate parts.\n\n Ergonomic Stand for Comfort & Convenience\n Adjust the screen to the most comfortable angle & reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, & swivel adjustments. The stand is also equipped with a quick release that means that you can easily remove the screen from the stand with a single touch.\n\n Built-In Carrying Handle\n A carrying handle on the back of the monitor means that you can easily move it from one location to another.\n\n Noiseless, Fanless Operation\n The monitor provides noiseless, fanless operation while still maintaining low heat output without impacting performance.\n\n Multiple Inputs\n The Color Edge CG319X is equipped with two Display Port & two HDMI inputs. It supports various video formats of up to 10-bit 4:4:4 at 50/60p via Display Port & 10-bit 4:2:2 at 50/60p via HDMI. Feature Feature Value Display diagonal 79 cm (31.1") Display brightness (typical)350 cd/m&178; Display resolution 4096 x 2160 pixels Native aspect ratio 17:9 Response time 9 ms Panel type IPSHD type 4K DCIDisplay technology LEDScreen shape Flat Contrast ratio (typical)1500:1 Viewing angle, horizontal 178&176; Viewing angle, vertical 178&176; Display number of colours 1.073 billion colors Backlight type W-LEDDisplay diagonal (metric)78.9 cm Pixel pitch 0.17 x 0.17 mm Pixel density 149 ppi Viewable size, horizontal 69.8 cm Viewable size, vertical 36.8 cm Digital horizontal frequency 15
- 136 k Hz Digital vertical frequency 23
- 61 Hz Colour gamut 99% Market positioning Graphics design Product colour Black Certification CB, CE, TUV/GS, c TUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, Ro HS, WEEE, TUV/ Ergonomics, TUV/ Color Accuracy (Quick Stability), Fogra Cert Softproofing System (class A) Built-in USB (Universal Serial Bus) hub Y Display Ports quantity 2USB hub version USB 3.0 (3.1 Gen 1)USB upstream port type USB Type-BNumber of upstream ports 1USB Type-A downstream ports quantity 3USB Power Delivery YUSB Power Delivery up to 10.5 WHDMI ports quantity 2HDCPYVESA mounting Y Height adjustment Y Panel mounting interface 100 x 100 mm Height adjustment 15.4 cm Swivelling Y Tilt adjustment Y Tilt angle range-5
- 35&176; On Screen Display (OSD)YPower consumption (typical)52 WPower consumption (standby)1.2 WPower consumption (max)140 WAC input voltage 100
- 240 VAC input frequency 50
- 60 Hz Operating temperature (T-T)0
- 35 &176;COperating relative humidity (H-H)20
- 80% Width 735 mm Depth 71.5 mm Height 423 mm Weight 8.3kg Width (with stand)735 mm Depth (with stand)290 mm Height (with stand)588 mm Weight (with stand)12.4kg Cables included AC, Display Port to Mini Display Port, HDMI, USBQuick start guide Y
