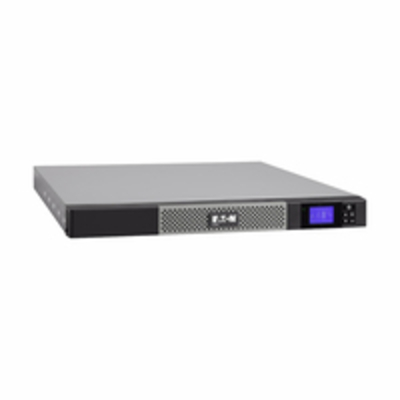

Eaton 5P850IRBS Uninterruptible Power Supply (UPS) Line-Interactive
0.85 KVA 600 W 4 AC Outlet(s)

Product Description

The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD & energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers & storage devices, in tower or rack format.\n\n\n\n Power Output power factor 0.7 Output power 600 WInput operation voltage (min)150 VInput operation voltage (max)294 VOutput operation voltage (min)200 VOutput operation voltage (max)240 VEfficiency 97% Power factor 0.7 Output power capacity 0.85 k VAPerformance UPS topology Line-Interactive Waveform Sine Automatic Voltage Regulation (AVR) Yes Number of output phases 1 Number of input phases 1 Power protection features Overdischarge Noise level 40 d B Features Output frequency 50/60 Hz UPS topology Line-Interactive Waveform Sine Automatic Voltage Regulation (AVR) Yes Number of output phases 1 Number of input phases 1 Output power factor 0.7 Output power 600 WInput operation voltage (min)150 VInput operation voltage (max)294 VOutput operation voltage (min)200 VOutput operation voltage (max)240 VEfficiency 97% Power protection features Overdischarge Power factor 0.7 Noise level 40 d B Output power capacity 0.85 k VAInput frequency 47/70 Hz Ports & interfaces USB port Yes Serial interface Yes Serial interface type RS-232AC outlets quantity 4 AC outlet (s)AC outlet types C13 coupler Power plug C14 coupler Serial ports quantity 1USB port type USB Type-BBattery Battery voltage 12 VBattery capacity 7 Ah Battery technology Sealed Lead Acid (VRLA) Typical backup time at full load 4 min Automatic battery test Yes Design Form factor Rackmount Product colour Black, Silver Display LCDCertification IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC c TUVus Operational conditions Operating relative humidity (H-H)0
- 90% Operating altitude 0
- 2000 m Technical details Output frequency 50/60 Hz Sustainability compliance Yes Sustainability certificates CEWeight & dimensions Weight 11kg Width 600 mm Height 160 mm Depth 550 mm Packaging data Quick installation guide Yes Cables included Input power cable, Serial, USB (Universal Serial Bus) cable Rack mount kit Yes Certificates Certification IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC c TUVus Packaging content Quick installation guide Yes Cables included Input power cable, Serial, USB (Universal Serial Bus) cable Rack mount kit Yes\n\n\n\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/uploads/pdf/mmo_93624527_1635301376_1014_4340.pdf
