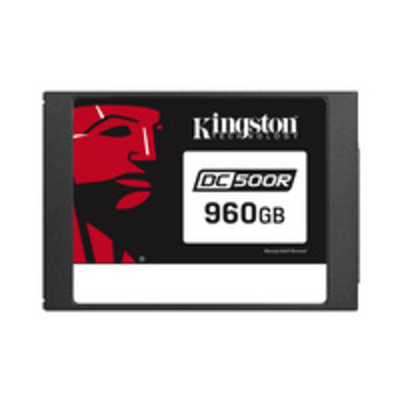

Kingston Technology DC500 2.5" 960 GB Serial ATA III 3D TLC

Product Description

Performance, Reliability & Consistency\n \n Data Centre 500 Series\n Kingston's Data Centre 500 (DC500R / DC500M) series of solid-state drives are high-performance 6 Gbps SATA SSDs that use the latest 3D TLC N&, designed for read-centric & mixed-use server workloads. They implement Kingston's strict Qo S requirements to ensure predictable random I/O performance as well as predictable low latencies over a wide range of read & write workloads. They can increase productivity for AI, machine learning, big data analytics, cloud computing, software-defined storage, operational databases (ODB), database applications & data warehousing. Capacities from 480GB, 960GB, 1.92TB, 3.84TB ****\n \n Enterprise Data Centre SSD\n Delivering on business demands for 24/7 uptime & reliability, Kingston Enterprise SSDs offer high-performing storage that combines predictable performance with rigorously tested reliability. Kingston's DC500 Series SSDs offer features that enable data centres to select the most cost-effective SSD for their workload (s). Businesses require results in order to deliver on products, solutions & service level agreements (SLAs). Kingston's DC500 Series SSDs are designed to deliver on these expectations.\n \n DC500R: Read-centric SSD\n DC500R is a highly optimised SSD designed for read-centric workloads, enabling data centres to select SSDs tailored for workloads without overspending on more expensive write-intensive SSDs. It delivers I/O speeds & response times (latency) that a data centre can deploy with complete confidence to ensure high levels of performance in the working application & downstream at the user interface. These are typically defined by applications that require real-time results. Serving large amounts of data & delivering responsive results from a variety of databases & web-based applications can leverage the receptive performance of the DC500R.\n \n DC500M: Mixed-use SSD\n DC500M is a powerful SSD designed for mixed-use workload applications where the demand has a more balanced mix of read & write operations. It delivers greater write endurance over a wide range of workloads while maintaining the strict performance consistency requirements designed into all of Kingston's data centre SSDs. Data centres that host databases & various web-based applications can leverage the predictable I/O & latency performance while controlling infrastructure costs.\n \n End-to-end Protection\n The DC500 series SSDs incorporate end-to-end data path protection to help guarantee that all user data transferred into the SSD is protected against transient errors. The DC500R & DC500M both include on-board power-loss protection (PLP) via power capacitors & firmware. This ensures data-in-flight is written to the NAND Flash memory in the event of unexpected power loss. in addition, PLP ensures that the drives' mapping table (FTL) is updated prior to power being removed from the drive. These power loss safeguards reduce the chance of data loss & ensure that the drive will successfully re-initialise on the next power-up of the system.\n \n Quality of Service (Qo S)\n The DC500 series delivers on Qo S (*, **, ***) with consistency, predictability of latency (response time) & IOPS (IOs per Second) performance while servicing balanced read & write workloads. Performance predictability is essential for web hosting applications that must deliver on SLAs promised to customers. The DC500 series efficiency produces the reliability needed for web server applications that require read-centric drives or mixed-use intensive workloads where uptime is mission critical.\n \n Application use cases\n Designed for service providers running a wide range of customer applications including:\n Virtualisation\n High-speed databases\n High-bandwidth media streaming\n SQL server reporting services (SSRS)\n SAP\n BI, ERP, CRM, GL, OLAP, OLTP, ERM & EDW workloads\n Cloud service providers\n \n Both DC500R & DC500M feature enterprise-class reliability with end-to-end data path protection, SMART health monitoring & strong ECC. They are backed by legendary pre & post-sales support along with a five-year limited warranty. *****\n \n
- Predictable random I/O performance & latencies over a wide range of workloads\n
- Read-centric design for performance in high read-intensive workloads (DC500R)\n
- Mixed-use design for balanced performance in high read/write-intensive workloads (DC500M)\n
- Configurable over-provisioning\n
- On-board power loss protection (PLP)\n \n * Workload based on FIO, random 4KB QD=1 workload, measured as the time taken for 99.9% of commands to finish the round-trip from host to drive & to host.\n ** Measurement taken once the workload has reached a steady state but including all background activities required for normal operation & data reliability.\n *** Based on 960GB capacity.\n **** Some of the listed capacity on a Flash storage device is used for formatting & other functions & is thus not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston&153;s Flash Guide at kingston.com/flashguide.\n ***** Limited warranty based on 5 years or SSD &156; Life Remaining&157;, which can be found using the Kingston SSD Manager (kingston.com/SSDManager). A new, unused product will show a wear indicator value of one hundred (100), whereas a product that has reached its endurance limit of program erase cycles will show a wear indicator value of one (1). See kingston.com/wa for details.\n\n class="generic"> Hard drive SSD capacity 960 GBMemory type 3D TLCData transmission Read speed 555 MB/s Write speed 525 MB/s Random write (4KB)20000 IOPSRandom read (4KB)98000 IOPSWrite latency 2000 &181;s Read latency 500 &181;s Data transfer rate 6 Gbit/s Security Security algorithms 256-bit AESEndurance Mean time between failures (MTBF)2000000 h Performance Interface Serial ATA IIIComponent for Server/ Workstation Power loss protection Yes TBW rating 876 End-to-End Data Protection Yes SSD capacity 960 GBSecurity algorithms 256-bit AESS.M.A.R.T. support Yes Read speed 555 MB/s Write speed 525 MB/s Memory type 3D TLCRandom write (4KB)20000 IOPSRandom read (4KB)98000 IOPSMean time between failures (MTBF)2000000 h Write latency 2000 &181;s Read latency 500 &181;s Hardware encryption Yes Data transfer rate 6 Gbit/s Design Component for Server/ Workstation SSD form factor 2.5 Features Interface Serial ATA IIIComponent for Server/ Workstation Power loss protection Yes TBW rating 876 End-to-End Data Protection Yes SSD capacity 960 GBSecurity algorithms 256-bit AESS.M.A.R.T. support Yes Read speed 555 MB/s Write speed 525 MB/s Memory type 3D TLCRandom write (4KB)20000 IOPSRandom read (4KB)98000 IOPSMean time between failures (MTBF)2000000 h Write latency 2000 &181;s Read latency 500 &181;s Hardware encryption Yes Data transfer rate 6 Gbit/s SSD form factor 2.5 Power Power consumption (average)1.6 WPower consumption (write)7.5 WPower consumption (read)1.8 WPower consumption (idle)1.56 WOperational conditions Operating temperature (T-T)0
- 70 &176;CStorage temperature (T-T)-40
- 85 &176;COperating vibration 2.17 GNon-operating vibration 20 GTechnical details Interface Serial ATA IIIS.M.A.R.T. support Yes Operating temperature (T-T)0
- 70 &176;CStorage temperature (T-T)-40
- 85 &176;COperating vibration 2.17 GNon-operating vibration 20 GHardware encryption Yes SSD form factor 2.5 Weight & dimensions Package type Blister Width 69.9 mm Weight 92.34 g Height 7 mm Depth 100 mm Packaging data Package type Blister\n\n\n\nhttp://objects.icecat.biz/objects/mmo_69479812_1552661932_3626_28971.pdf
