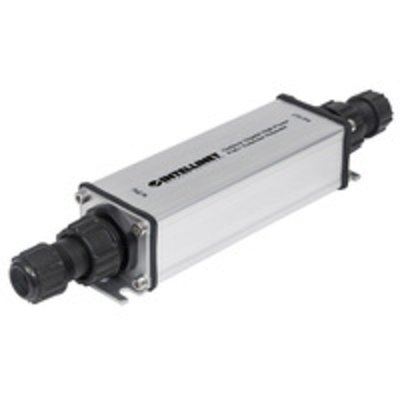

Intellinet Outdoor Gigabit High-Power PoE+ Extender Repeater, IEEE
802.3at/af Power Over Ethernet (PoE+/PoE), Extends Range Up To 100m,
Metal, IP65

Product Description

Extend the range of a Po E connection
- even in harsh outdoor conditions.nn The Intellinet Network Solutions Outdoor Gigabit High-Power Po E+ Extender Repeater (561211) is designed to extend connection distances from a Po E source to an output device up to 100 m (328 ft.) via Cat 5e or Cat 6 cable. Cover even longer distances by cascading up to five extenders. The Po E+ Extender Repeater does not need an additional power supply, as it draws the power it needs from the Po E input.nn Designed for Outdoor Usenn With an IP65 rating & a vast operating temperature range of -40 75&176;C (-40
- 167&176; F), the Intellinet Network Solutions Outdoor Gigabit High-Power Po E+ Extender Repeater can be deployed in harsh conditions, which sets it apart from its indoor counterpart, the Intellinet Network Solutions Po E+ Extender (560962).nn Simple Installationnn Simply connect the "" Po E In"" port with your Po E injector or Po E switch & connect the "" Po E Out"" with the Po E device that you wish to connect (e.g., a Vo IP phone or a Po E network camera). That's it. There is nothing to configure. It simply could not be any easier.nn Reduced Wiring Costsnn No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the Po E Extender to the LAN switch port & use the existing Cat 5 cabling to deliver DC power as well as transfer data.nn Power over Ethernet 802.3at Compliantnn The Intellinet Network Solutions Outdoor Gigabit High-Power Po E+ Extender Repeater supports the IEEE 802.3at protocol. It is designed to forward data at Gigabit speeds & provide up to 25 watts of input power to a connected IEEE 802.3af- or IEEE 802.3at-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance to 200 m (656 ft.).nn Cascading Powernn Daisy-chaining multiple Po E extenders increase the transmission distance even farther. Be advised that each added Po E extender draws up to 4 W of usable PD power, & additional power losses will occur as the cable length increases.\n\n\n\n Product ID: 561211\n\n\n\n\n\n Model: Outdoor Gigabit High-Power Po E+ Extender Repeater, IEEE 802.3at/af Power over Ethernet (Po E+/ Po E), Extends Range up to 100m, Metal, IP65\n\n Datasheet: http://objects.icecat.biz/objects/mmo_38321863_1532525124_9791_6471.pdf\n\n\n\n Manual: http://objects.icecat.biz/objects/mmo_38321863_1532525136_6103_28443.pdf\n\n\n\n\n\n\n\n
