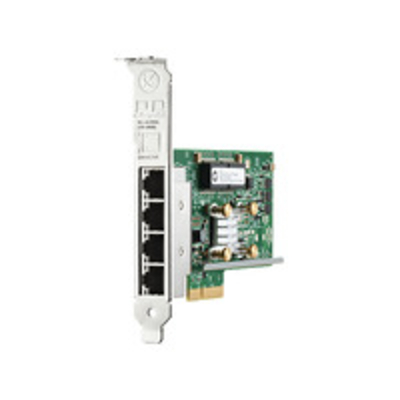

\n Hewlett Packard Enterprise 331T Ethernet 2000 Mbit/s Internal\n \n \n \n \n \n \n Manufacturer:\n Hewlett Packard Enterprise\n \n \n Category:\n Computer Components\n \n \n Sub-Category:\n Networking Cards\n \n \n SKU:\n 647594-B21\n \n \n EAN:\n 0886111431069 4948382807205 4053162258198 5711045374081 5054629290453 2514101412245 5054484407805 5054533407800 5057454830269 8861114310698 7106221816741\n \n \n \n \n\n Description\n \n \n The HP Ethernet 1 Gb 4-Port 331T Adapter features the next generation of Ethernet integration, offering a single chip solution that reduces power requirements & optimizes I/O slot utilization. It delivers full line-rate performance across all ports with low power consumption. The HP 331T is ideal for virtualization, security, server consolidation, network segmentation, & other applications requiring maximum throughput & port density. The total aggregate throughput of 4 Gb meets the needs of customers desiring high bandwidth. The HP 331T supports advanced features such as Large Send & Receive offload capability, TCP checksum & segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588, & virtualization features such as VMware Net Queue & Microsoft VMQ. Support for HP Sea of Sensors 3D Technology enhances server performance while reducing energy use & expense.\n\n\n\n The HP 331T is designed for maximum throughput & high port density.\n\n An aggregate, full duplex transfer rate of 8 Gbps per adapter delivers outstanding network performance that improves response time & removes bottlenecks. Comprehensive stateless offloads optimize host efficiency & VM density by leaving host CPU available for other duties. Virtualization support for VMware Net Queue & Microsoft VMQ help meet the performance demands of consolidated virtual workloads. Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores. Support for Energy Efficient Ethernet (EEE) reduces operating expenses.\n \n \n\n Specifications\n \n Ports & interfaces Internal Yes Connector (s)RJ-45 Ethernet LAN (RJ-45) ports 4 Compatible memory cards Not supported Interface Ethernet Host interface PCI Express Connectivity technology Wired Bandwidth Data transfer rate 1 Gbit/s Bandwidth 8 Gbit/s Full duplex Yes Maximum data transfer rate 2000 Mbit/s Wireless LAN features Wi-Fi No Networking Data transfer rate 1 Gbit/s Chipset Broadcom BCM5719 Bandwidth 8 Gbit/s Wi-Fi No Ethernet LANYes Cabling technology 10/100/1000 Base T (X) Networking standards IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x Maximum operating distance 100 m Jumbo frames support Yes Full duplex Yes Ethernet LAN data rates 10, 100, 1000 Mbit/s Maximum data transfer rate 2000 Mbit/s Technical details Product colour Green, Grey Compatible memory cards Not supported Performance Compatible memory cards Not supported Design Product colour Green, Grey Certification FCC Part 15 Class B\n ICES=--3, Issue 4\n VCCI V3 (2010.04) Class B\n KN22 Class B, KN24\n EN55022:2006+A12007 class B\n EN55024:1998+A1:2011+A2; EN61000-3-2:2006, EN61000-3-3:2008\n EN55022:2006 + A1:2007 Class B\n UL/c UL\n CE\n EN 60590 Internal Yes Power Power consumption (typical)4.3 WOperational conditions Operating temperature (T-T)0
- 55 &176;CStorage temperature (T-T)-65
- 85 &176;COperating relative humidity (H-H)10
- 90% Storage relative humidity (H-H)5
- 95% System requirements Compatible operating systems Windows Server 2008 (32/64), Enterprise, Web, Embedded, R2\n Microsoft Windows HPC Server 2008\n Microsoft Windows 2008 Standard (32/x 64)\n Microsoft Windows 2008 Enterprise (32/x 64)\n Microsoft Windows Small Business Server 2011 (SBS V7)\n Microsoft Windows Small Business Server 2011 Essentials\n RHEL 5.7 x 86/ AMD 64 & EM 64T\n RHEL 6.1 x 86/ AMD 64 & EM 64T\n SLES10: x 86 / AMD 64 & EM 64T\n SLES 11: x 86 / AMD 64 & EM64T\n Solaris 10\n VMWare v Sphere 4.1/5.0\n Citrix\n Hyper V (Windows 2008 32 & 64) Weight & dimensions Width 68.6 mm Depth 132.1 mm Certificates Certification FCC Part 15 Class B\n ICES=--3, Issue 4\n VCCI V3 (2010.04) Class B\n KN22 Class B, KN24\n EN55022:2006+A12007 class B\n EN55024:1998+A1:2011+A2; EN61000-3-2:2006, EN61000-3-3:2008\n EN55022:2006 + A1:2007 Class B\n UL/c UL\n CE\n EN 60590 Other features Data transfer rate 1 Gbit/s Chipset Broadcom BCM5719 Cable type Cat 5 Connector (s)RJ-45 Compatible operating systems Windows Server 2008 (32/64), Enterprise, Web, Embedded, R2\n Microsoft Windows HPC Server 2008\n Microsoft Windows 2008 Standard (32/x 64)\n Microsoft Windows 2008 Enterprise (32/x 64)\n Microsoft Windows Small Business Server 2011 (SBS V7)\n Microsoft Windows Small Business Server 2011 Essentials\n RHEL 5.7 x 86/ AMD 64 & EM 64T\n RHEL 6.1 x 86/ AMD 64 & EM 64T\n SLES10: x 86 / AMD 64 & EM 64T\n SLES 11: x 86 / AMD 64 & EM64T\n Solaris 10\n VMWare v Sphere 4.1/5.0\n Citrix\n Hyper V (Windows 2008 32 & 64)\n \n \n\n\n\n\n\n
