Managed Gigabit Edge Switchesn The Centre COM&174; GS970M Series of Layer 3 switches provide high performance with gigabit to the desktop, the ability to connect & power endpoints, & lower management costs"a high value network edge solution from Allied Telesis. nn Overviewn- Reduce costs & automate network & device management with the Allied Telesis Autonomous Management Framework&132;&162; (AMF)n- Flexible deployment with 10, 18 & 28 port modelsn- High-speed gigabit network access for power usersn- Support converged networks with Po E+ to power devices like wireless access points, digital surveillance cameras & IP phones n- Easy management with an industry-standard Command Line Interface (CLI) & intuitive Graphical User Interface (GUI)nn Key Featuresn- Allied Ware Plus Enterprise-class operating systemn- Eco-friendly for reduced running costsn- Network Access Control (NAC) for edge securityn- Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networksn- Static Routing & RIP support Layer 3 environments\n\n\n\n Product ID: 990-005799-50\n\n\n\n\n\n Model: AT-GS970M/10PS-50\n\n Datasheet: http://objects.icecat.biz/objects/mmo_37347822_1501052328_9018_16019.pdf\n\n\n\n Manual: http://objects.icecat.biz/objects/mmo_37347822_1501052322_7789_16323.pdf\n\n Product Video: https://www.youtube.com/watch?v=ho MB-gu CE1Y&index=8&list=PLn 7 Sjd 1KGfzp Y Yrae A Xp Kmnt B9j Ag Kb V9\n\n\n\n\n\n ...

Managed Gigabit Edge Switchesn The Centre COM&174; GS970M Series of Layer 3 switches provide high performance with gigabit to the desktop, the ability to connect & power endpoints, & lower management costs"a high value network edge solution from Allied Telesis. nn Overviewn- Reduce costs & automate network & device management with the Allied Telesis Autonomous Management Framework&132;&162; (AMF)n- Flexible deployment with 10, 18 & 28 port modelsn- High-speed gigabit network access for power usersn- Support converged networks with Po E+ to power devices like wireless access points, digital surveillance cameras & IP phones n- Easy management with an industry-standard Command Line Interface (CLI) & intuitive Graphical User Interface (GUI)nn Key Featuresn- Allied Ware Plus Enterprise-class operating systemn- Eco-friendly for reduced running costsn- Network Access Control (NAC) for edge securityn- Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networksn- Static Routing & RIP support Layer 3 environments\n\n\n\n Product ID: 990-005797-50\n\n\n\n\n\n Model: AT-GS970M/18PS-50\n\n Datasheet: http://objects.icecat.biz/objects/mmo_37287135_1501054331_9729_14892.pdf\n\n\n\n Manual: http://objects.icecat.biz/objects/mmo_37287135_1501054342_2328_5921.pdf\n\n Product Video: https://www.youtube.com/watch?v=ho MB-gu CE1Y&index=8&list=PLn 7 Sjd 1KGfzp Y Yrae A Xp Kmnt B9j Ag Kb V9\n\n\n\n\n\n ...

The Allied Telesis Centre COM GS980M Series of Layer 3 Gigabit switches enable a cost-effective & fully managed network. A high-density, space saving solution, with Power over Ethernet (Po E+) to connect & power devices such as video surveillance cameras & IP phones, makes the GS980M Series ideal for applications at the network edge.nn Overviewn Allied Telesis GS980M Series switches provide an excellent access solution for today&153;s networks, supporting Gigabit to the desktop for maximum performance. Deploying the GS980M as an AMF edge node when an AMF Master switch is available in the network, helps reduce network running costs by automating & simplifying many day-to-day administration tasks. 48 Gigabit ports & 4 SFP uplinks enable high-density & secure connectivity at the network edge, & the Po E+ model can supply up to 30 Watts to powered end-points.\n\n\n\n\n\n\n\n\n\n Model: AT-GS980M/52PS-50\n\n Datasheet: http://objects.icecat.biz/objects/mmo_66962714_1570615845_6876_10661.pdf\n\n\n\n Manual: http://objects.icecat.biz/objects/mmo_66962714_1570612123_3632_11596.pdf\n\n Product Video: https://www.youtube.com/watch?v=f Pq QQ11GBNk\n\n\n\n\n\n ...

With configurable per-port power distribution, our Gigabit 12-port switch is the ideal solution for variable power deployments, such as point/tilt/zoom cameras, lighting controllers, & point-of-sale kiosks. nn The AT-IE300-12GP is a Power over Ethernet Power Sourcing Device (Po E PSD), which is compliant with IEEE802.3af & IEEE802.3at standards.nn Each port supplies either 15.40W Po E with 12.95W available to the powered device, or 30.00W Po E+ with 25.50W available to the powered device.nn Four ports are configurable for Hi-Po E (also known as Ultra Po E, High Po E, Po E++, & others because there is no current standard), which uses all four pairs in the cable to provide up to 60W"double the capacity of Po E+.nn You can configure the overall power budget & the power feeding limit on a per-port basis, to establish a close relationship between the power sourcing feature with the real capabilities of the external Power Supply Unit (PSU).nn Enabling the unique High Availability Network Power (HANP) feature, the switch retains Po E sourcing during restart events, such as those due to operator comm&, software exception, watchdog timeout or diagnostic failures. The restart event is not propagated to the end devices, & camera operation is not affected.nn Product configuration:n- 4-port, 100/1000X SFPn- 8-port, 10/100/1000 Tn- 24 Gbps switch fabric & 17.8 Mpps forwarding packet rate (64-byte size)n- 16K MAC addressesn- 9KB jumbo frame sizen- 8 Qo S priority queuesn- 1K (Layer 2), 256 (Layer 3) Multicast groupsn- 8-port, IEEE802.3af & IEEE802.3at power sourcingn- 4-port, Hi-Po E power sourcing (60W)n- Configurable Po E power budget & power feeding limit on a per-port basisn- HANP to retain Po E sourcing over restart\n\n\n\n Product ID: 990-004755-80\n\n\n\n\n\n Model: AT-IE300-12GP-80\n\n\n\n Additional Datasheet: http://objects.icecat.biz/objects/mmo_32876050_1471277440_7632_8665.pdf&pipe;http://objects.icecat.biz/objects/mmo_32876050_1471277474_0777_25496.pdf\n\n\n\n Product Video: http://objects.icecat.biz/objects/32876050_3078958.mp 4\n\n\n\n\n\n ...

With configurable per-port power distribution, our Gigabit 12-port switch is the ideal solution for variable power deployments, such as point/tilt/zoom cameras, lighting controllers, & point-of-sale kiosks. nn The AT-IE300-12GP is a Power over Ethernet Power Sourcing Device (Po E PSD), which is compliant with IEEE802.3af & IEEE802.3at standards.nn Each port supplies either 15.40W Po E with 12.95W available to the powered device, or 30.00W Po E+ with 25.50W available to the powered device.nn Four ports are configurable for Hi-Po E (also known as Ultra Po E, High Po E, Po E++, & others because there is no current standard), which uses all four pairs in the cable to provide up to 60W"double the capacity of Po E+.nn You can configure the overall power budget & the power feeding limit on a per-port basis, to establish a close relationship between the power sourcing feature with the real capabilities of the external Power Supply Unit (PSU).nn Enabling the unique High Availability Network Power (HANP) feature, the switch retains Po E sourcing during restart events, such as those due to operator comm&, software exception, watchdog timeout or diagnostic failures. The restart event is not propagated to the end devices, & camera operation is not affected.nn Product configuration:n- 4-port, 100/1000X SFPn- 8-port, 10/100/1000 Tn- 24 Gbps switch fabric & 17.8 Mpps forwarding packet rate (64-byte size)n- 16K MAC addressesn- 9KB jumbo frame sizen- 8 Qo S priority queuesn- 1K (Layer 2), 256 (Layer 3) Multicast groupsn- 8-port, IEEE802.3af & IEEE802.3at power sourcingn- 4-port, Hi-Po E power sourcing (60W)n- Configurable Po E power budget & power feeding limit on a per-port basisn- HANP to retain Po E sourcing over restart\n\n\n\n Product ID: 990-004755-80\n\n\n\n\n\n Model: AT-IE300-12GP-80\n\n\n\n Additional Datasheet: http://objects.icecat.biz/objects/mmo_32876050_1471277440_7632_8665.pdf&pipe;http://objects.icecat.biz/objects/mmo_32876050_1471277474_0777_25496.pdf\n\n\n\n Product Video: http://objects.icecat.biz/objects/32876050_3078958.mp 4\n\n\n\n\n\n ...

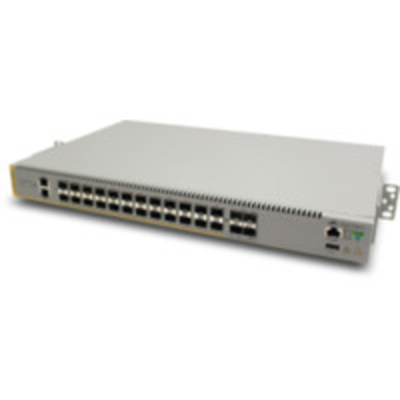

The Allied Telesis AT-IE510-28GSX-80 switch is a high-performing & feature-rich choice for today&153;s networks. It offers a versatile solution for NSP, Enterprise, & industrial Ethernet applications.nn The AT-IE510-28GSX-80 is a 24-port model with four additional 1/10 Gigabit uplink ports, plus the power of Allied Telesis Virtual Chassis Stacking (VCStack&132;&162;). The AT-IE510-28GSX-80 can connect anything from FTTH to small workgroups & large businesses to industrial Ethernet applications.\n\n\n\n Product ID: 990-004636-80\n\n\n\n\n\n Model: AT-IE510-28GSX-80\n\n Datasheet: http://objects.icecat.biz/objects/mmo_26983020_1584460076_483_20017.pdf\n\n Additional Datasheet: http://objects.icecat.biz/objects/mmo_26983020_1470903209_2389_527.pdf\n\n\n\n Product Video: http://objects.icecat.biz/objects/26983020_3065949.mp 4\n\n\n\n\n\n ...

Extended Networksn The Allied Telesis Industrial Media Converter (IMC) Series is designed to extend the distance of a network by converting data between twisted pair cabling & multi-mode or singlemode fiber-optic cabling. The IMC100 features a 100FX fixed SC fiber port, while the IMC1000 features an SFP port for maximum flexibility.nn VLAN Supportn Many new backbone switch products now support the industry-standard IEEE 802.1Q

Specification for Virtual LANs (VLANs) that send extra-long data packets on the network. IMC Series switches are fully compatible with these long packets, enabling them to be used in modern networks. Switches not supporting this feature will discard these extra-long packets, making them unsuitable for modern networks.nn Small & Flexiblen The small size & dual external power supply inputs of the IMC Series allows them to be used almost anywhere in harsh environmental conditions. in addition, they can be mounted both on DIN rail (EN50022) or by wall-mount, allowing users to deploy any mix of network conversions required.\n\n\n\n Product ID: 990-003869-80\n\n\n\n\n\n Model: AT-IMC1000TP/SFP-80\n\n Datasheet: http://objects.icecat.biz/objects/mmo_33120954_1471527864_1327_2662.pdf\n\n\n\n\n\n\n\n\n\n\n\n

...

Extended Networksn The Allied Telesis Industrial Media Converter (IMC) Series is designed to extend the distance of a network by converting data between twisted pair cabling & multi-mode or singlemode fiber-optic cabling. The IMC100 features a 100FX fixed SC fiber port, while the IMC1000 features an SFP port for maximum flexibility.nn VLAN Supportn Many new backbone switch products now support the industry-standard IEEE 802.1Q

Specification for Virtual LANs (VLANs) that send extra-long data packets on the network. IMC Series switches are fully compatible with these long packets, enabling them to be used in modern networks. Switches not supporting this feature will discard these extra-long packets, making them unsuitable for modern networks.nn Small & Flexiblen The small size & dual external power supply inputs of the IMC Series allows them to be used almost anywhere in harsh environmental conditions. in addition, they can be mounted both on DIN rail (EN50022) or by wall-mount, allowing users to deploy any mix of network conversions required.\n\n\n\n Product ID: 990-003869-80\n\n\n\n\n\n Model: AT-IMC1000TP/SFP-80\n\n Datasheet: http://objects.icecat.biz/objects/mmo_33120954_1471527864_1327_2662.pdf\n\n\n\n\n\n\n\n\n\n\n\n

...

Ethernet media converter enable service providers to use fiber cabling to extend the size of UTP networks. Supporting ST fiber connector, this converter can be used to extend networks with up to 2km of fiber.\n\n\n\n Product ID: AT-MC101XL-60\n\n\n\n\n\n Model: AT-MC101XL\n\n\n\n\n\n\n\n\n\n\n\n\n\n ...

Fibre connectionsrn The Allied Telesyn range of Fast Ethernet Media converters provides a complete family of conversion devices, allowing users to extend the size of UTP networks with the use of fibre cabling. Supporting both SC & ST fibre connectors, these converters can be used to extend networks with up to 2km of fibre.rnrn Auto-negotiation & Missing Link&132;&162; rn The Missing Link&132;&162; feature enables the fibre optic ports on the media converter to pass the &152; Link&153; status of their connections to eachrnother. When the media converter detects a problem with one of the ports, such as the loss of connection to an end-node, the media converter shuts down the connection to the other port, thus notifying the node that the connection has been lost.rnrn Simple installation rn Both media converters feature an internal MDI/MDI-X switch, allowing the converter to be connected to either a PC, hub or switchrnwith a simple UTP cable. The media converters also allow the installer to test the integrity of fibre connection, by forcing the converters to communicate over the fibre cable. This &152; Link Test&153; feature allows installers to check for cable faults without the need for expensive fibre-optic test equipment.rnrn Standalone or rackmounted rn Each small media converter is powered by an external power supply unit for use in standalone applications. Where multiple media converters are being used, up to 12 standalone devices can be inserted into a lowrncost rackmount chassis, allowing all the converters to be powered by a single internal power supply. In critical applications, a secondrnload sharing internal power supply can be installed into the rackmount chassis.\n\n\n\n Product ID: AT-MC102XL-60\n\n\n\n\n\n Model: AT-MC102XL\n\n\n\n\n\n\n\n\n\n\n\n\n\n ...
