Lenovo Think System DE2000H is a low-cost, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, & high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, & enhanced data management features. The Think System DE2000H is a perfect fit for small offices & remote & branch offices of large enterprises that run a wide range of workloads, including big data & analytics, video surveillance, technical computing, backup & recovery, & other storage I/O-intensive applications. Think System DE2000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or 12 large form-factor (3.5-inch LFF) drives (2U12 LFF) & include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb i SCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity, with an option for 12 Gb SAS or 1/10 Gb i SCSI RJ-45 connections with the host interface cards. The Think System DE2000H Storage Array scales up to 96 drives with the attachment of Lenovo Think System DE120S 2U12 & DE240S 2U24 SFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) & 3.5-inch (LFF) form factors, 10 K rpm SAS & 7.2 K rpm NL SAS hard disk drives (HDDs), & SAS solid-state drives (SSDs).\n\n\n\n Storage Hot-swap drive bays Yes Installed storage drive type No Supported storage drive types HDD & SSDNumber of storage drives supported 24 Storage drives installed No Maximum supported storage capacity 368.64 TBRAID levels 0, 1, 3, 5, 6, 10 Supported storage drive interfaces SASPorts & interfaces USB connectivity Yes RJ-45 ports quantity 3 Serial interface type RJ-45 Technical details Device class Small & Medium Business Product colour Black LED indicators Yes Chassis type Rack (2U) Design Built-in display Yes Product colour Black LED indicators Yes Chassis type Rack (2U) Performance Device class Small & Medium Business Hard drive RAID levels 0, 1, 3, 5, 6, 10 Power Power supply unit (PSU) capacity 913 WNumber of power supply units 2AC input voltage 100
- 240 VRedundant power supply (RPS) support Yes Weight & dimensions Width 449 mm Depth 553 mm Height 85 mm\n\n\n\n
...

Abstract\n The Think System RAID 730-8i family is a 12 Gb SAS/SATA internal RAID adapter that offers a cost-effective RAID solution for small to medium business customers. The 730-8i is available either as a 1GB cache adapter without power backup, or a 2GB flash adapter with flash backup. The adapters support RAID levels 0, 1, 10, 5, & 50 (the 2GB adapter also supports 6 & 60), & include an extensive list of RAS & management features.\n\n This product guide provides essential presales information to understand the Think System RAID 730-8i RAID adapter familyt & its key features, specifications, & compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, & other IT professionals who want to learn more about the RAID adapters & consider their use in IT solutions.\n\n Introduction\n The Think System RAID 730-8i family is a 12 Gb SAS/SATA internal RAID adapter that offers a cost-effective RAID solution for small to medium business customers. The 730-8i is available either as a 1GB cache adapter without flash backup, or a 2GB cache adapter with flash backup. The adapters support RAID levels 0, 1, 10, 5, & 50 (the 2GB adapter also supports 6 & 60), & include an extensive list of RAS & management features.\n\n\n\n\n\n\n\n Model: Think System RAID 730-8i\n\n\n\n\n\n\n\n ...

Features Connector (s)x 16/x 8 PCIe Type Mounting kit Compatibility Think System SR550/SR590/SR650 Ports & interfaces Connector (s)x 16/x 8 PCIe Packaging content Screws included Yes Mounting kit Yes Number of screws 2 Screw type M3.5 Technical details Type Mounting kit Compatibility Think System SR550/SR590/SR650\n\n\n\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/uploads/pdf/mmo_37486607_1547815976_243_4606.pdf ...

Features Connector (s)x 16/x 8 PCIe Type Mounting kit Compatibility Think System SR550/SR590/SR650 Ports & interfaces Connector (s)x 16/x 8 PCIe Packaging content Screws included Yes Mounting kit Yes Number of screws 2 Screw type M3.5 Technical details Type Mounting kit Compatibility Think System SR550/SR590/SR650\n\n\n\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/uploads/pdf/mmo_37486607_1547815976_243_4606.pdf ...

Features Connector (s)x 16/x 8 PCIe Type Mounting kit Compatibility Think System SR550/SR590/SR650 Ports & interfaces Connector (s)x 16/x 8 PCIe Packaging content Screws included Yes Mounting kit Yes Number of screws 2 Screw type M3.5 Technical details Type Mounting kit Compatibility Think System SR550/SR590/SR650\n\n\n\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/uploads/pdf/mmo_37486607_1547815976_243_4606.pdf ...

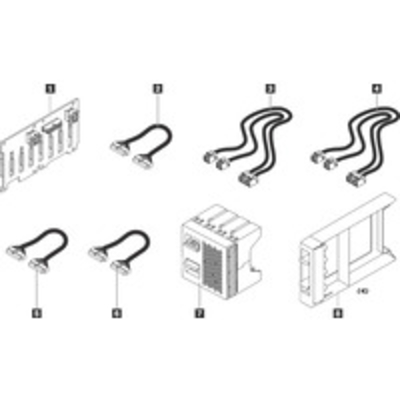

1 2U 2.5" SATA/SAS 8-Bay backplane\n 2 SR650 second& third 8x 2.5" or 12x 3.5" NVME HDD backplane power cable\n 3 SR650 8x 2.5" HDD backplane signal cable\n 4 SR550 8x 2.5" HDD backplane signal cable\n 5 SR550 second 8x 2.5" HDD backplane power cable, SR650 first 8x 3.5", 12x 3.5" or 8x 2.5" HDD backplane power cable\n 6 SR550 first 8x 2.5" HDD backplane power cable\n 7 4x 1 2.5" HDD filler\n 8 1x 1 2.5" HDD fillers (4) Feature Feature Value Rack capacity 2UCompatibility Think System SR550/SR650 Quantity per pack 8 pc (s) ...

Future defined data centern Lenovo delivers cost-effective, reliable & scalable solutions by combining industry-leading technology & the world&153;s best software-defined offerings with Lenovo Think Shield, XClarity, & Tru Scale Infrastructure Services to manage the life cycle of your data center needs. Think System SR630 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, High Performance Computing & much more.nn Workload-optimized supportn Intel&174; Optane&132;&162; DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offers an unprecedented combination of high capacity, affordability & persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically enhanced data replication with 14x lower latency & 14x higher IOPS, & greater security for persistent data built into hardware.*n* Based on Intel internal testing, August 2018.nn Flexible storagen Lenovo Any Bay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs & still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.nn Empowering IT managementn Lenovo XClarity Controller is the embedded management engine in all Think System servers that is designed to standardize, simplify, & automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages Think System servers, storage, & networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, & contain costs by seamlessly integrating XClarity into an existing IT environment.\n\n\n\n Product ID: 7X02A0F4EA\n\n Product Family: Think System\n\n\n\n Model: SR630\n\n Datasheet: http://objects.icecat.biz/objects/mmo_70275699_1574157823_1001_24514.pdf\n\n\n\n\n\n\n\n\n\n\n\n ...

Future defined data centern Lenovo delivers cost-effective, reliable & scalable solutions by combining industry-leading technology & the world&153;s best software-defined offerings with Lenovo Think Shield, XClarity, & Tru Scale Infrastructure Services to manage the life cycle of your data center needs. Think System SR630 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, High Performance Computing & much more.nn Workload-optimized supportn Intel&174; Optane&132;&162; DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offers an unprecedented combination of high capacity, affordability & persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically enhanced data replication with 14x lower latency & 14x higher IOPS, & greater security for persistent data built into hardware.*n* Based on Intel internal testing, August 2018.nn Flexible storagen Lenovo Any Bay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs & still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.nn Empowering IT managementn Lenovo XClarity Controller is the embedded management engine in all Think System servers that is designed to standardize, simplify, & automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages Think System servers, storage, & networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, & contain costs by seamlessly integrating XClarity into an existing IT environment.\n\n\n\n Product ID: 7X02A0F4EA\n\n Product Family: Think System\n\n\n\n Model: SR630\n\n Datasheet: http://objects.icecat.biz/objects/mmo_70275699_1574157823_1001_24514.pdf\n\n\n\n\n\n\n\n\n\n\n\n ...

Future defined data centern Lenovo delivers cost-effective, reliable & scalable solutions by combining industry-leading technology & the world&153;s best software-defined offerings with Lenovo Think Shield, XClarity, & Tru Scale Infrastructure Services to manage the life cycle of your data center needs. Think System SR630 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, High Performance Computing & much more.nn Workload-optimized supportn Intel&174; Optane&132;&162; DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offers an unprecedented combination of high capacity, affordability & persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically enhanced data replication with 14x lower latency & 14x higher IOPS, & greater security for persistent data built into hardware.*n* Based on Intel internal testing, August 2018.nn Flexible storagen Lenovo Any Bay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs & still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.nn Empowering IT managementn Lenovo XClarity Controller is the embedded management engine in all Think System servers that is designed to standardize, simplify, & automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages Think System servers, storage, & networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, & contain costs by seamlessly integrating XClarity into an existing IT environment.\n\n\n\n Product ID: 7X02A0ELEA\n\n Product Family: Think System\n\n\n\n Model: SR630\n\n Datasheet: http://objects.icecat.biz/objects/mmo_70275699_1574157823_1001_24514.pdf\n\n\n\n\n\n\n\n\n\n\n\n ...

Future defined data centern Lenovo delivers cost-effective, reliable, & scalable solutions by combining industry-leading technology & the world&153;s best software-defined offerings with Lenovo Think Shield, XClarity, & Tru Scale Infrastructure Services to manage the life cycle of your data center needs. Think System SR650 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing & much more.nn Workload-optimized supportn Intel&174; Optane&132;&162; DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offer an unprecedented combination of high capacity, affordability, & persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically enhanced data replication with 14x lower latency & 14x higher IOPS, & greater security for persistent data built into hardware.*n* Based on Intel internal testing, August 2018.nn Flexible storagen Lenovo Any Bay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs & still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.nn Empowering IT managementn Lenovo XClarity Controller is the embedded management engine in all Think System servers that is designed to standardize, simplify, & automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages Think System servers, storage, & networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, & contain costs by seamlessly integrating XClarity into an existing IT environment.\n\n\n\n Product ID: 7X06A0K9EA\n\n Product Family: Think System\n\n\n\n Model: SR650\n\n Datasheet: http://objects.icecat.biz/objects/mmo_78529436_1594281644_1095_20635.pdf\n\n Additional Datasheet: http://objects.icecat.biz/objects/mmo_78529436_1594281623_4199_29967.pdf\n\n\n\n\n\n\n\n\n\n ...
