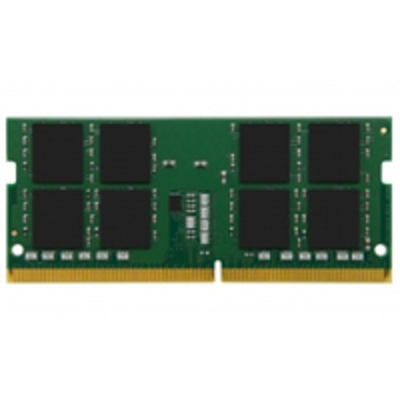

This document describes Value RAM's KVR26S19S6/4 as a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1 Rx 16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin SODIMM uses gold contact fingers.\n\n class="generic"> Power Memory voltage 1.2 VDesign Ro HS compliance Yes Halogen-free Yes Memory Buffered memory type Unregistered (unbuffered) Memory layout (modules x size)1 x 4 GBInternal memory 4 GBComponent for Notebook Memory form factor 260-pin SO-DIMMCAS latency 19 Memory voltage 1.2 VRow cycle time 45.75 ns Refresh row cycle time 350 ns Row active time 32 ns Memory ranking 1 Memory clock speed 2666 MHz Internal memory type DDR4 Programming power voltage (VPP)2.5 VFeatures Buffered memory type Unregistered (unbuffered) Ro HS compliance Yes Halogen-free Yes Memory layout (modules x size)1 x 4 GBInternal memory 4 GBComponent for Notebook Memory form factor 260-pin SO-DIMMCAS latency 19 Memory voltage 1.2 VRow cycle time 45.75 ns Refresh row cycle time 350 ns Row active time 32 ns Memory ranking 1 Memory clock speed 2666 MHz Internal memory type DDR4 Programming power voltage (VPP)2.5 VOperational conditions Operating temperature (T-T)0
- 85 &176;CStorage temperature (T-T)-55
- 100 &176;CWeight & dimensions Width 69.6 mm Depth 2.45 mm Height 30 mm\n\n\n\nhttp://objects.icecat.biz/objects/mmo_55718960_1546241408_0431_32549.pdf
