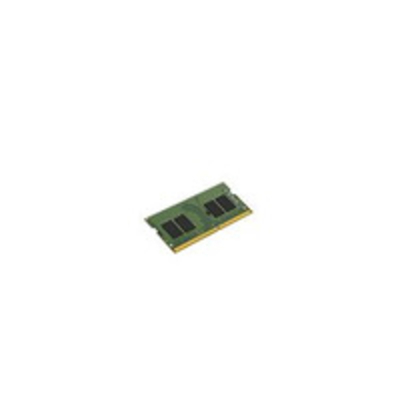

\n Kingston Technology KVR32S22S6/8 memory module 8 GB 1 x 8 GB DDR4 3200 MHz\n \n \n \n \n \n \n Manufacturer:\n Kingston Technology\n \n \n Category:\n Computer Components\n \n \n Sub-Category:\n Memory Modules\n \n \n SKU:\n KVR32S22S6/8\n \n \n EAN:\n 0740617310887\n \n \n \n \n \n Description\n \n \n This document describes Value RAM's KVR32S22S6/8 as a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1 Rx 16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin SODIMM uses gold contact fingers.\n \n \n \n Specifications\n \n Power Memory voltage 1.2 VDesign JEDEC standard Yes Memory Buffered memory type Unregistered (unbuffered) Memory layout (modules x size)1 x 8 GBInternal memory 8 GBComponent for Notebook Memory form factor 260-pin SO-DIMMCAS latency 22 Memory voltage 1.2 VRow cycle time 45.75 ns Refresh row cycle time 350 ns Row active time 32 ns SPD profile Yes ECCNo Memory clock speed 3200 MHz Internal memory type DDR4 Features Buffered memory type Unregistered (unbuffered) Memory layout (modules x size)1 x 8 GBInternal memory 8 GBComponent for Notebook Memory form factor 260-pin SO-DIMMCAS latency 22 Memory voltage 1.2 VRow cycle time 45.75 ns Refresh row cycle time 350 ns Row active time 32 ns SPD profile Yes ECCNo Memory clock speed 3200 MHz Internal memory type DDR4JEDEC standard Yes Operational conditions Operating temperature (T-T)0
- 85 &176;CStorage temperature (T-T)-55
- 100 &176;CTechnical details Sustainability certificates Ro HSWeight & dimensions Width 69.6 mm Height 30 mm\n \n \n\n\n\n\n\n\n\n
