Technical details International Protection (IP) code IP65 Wall mountable Yes Voice codecs G.711u Streaming capability Yes Frequency band 2.4
- 2.4835 GHz Echo cancellation Yes Built-in speaker (s) Yes Built-in microphone Yes Memory card slot Yes Compatible memory cards Micro SD (Trans Flash) Number of buttons 1 buttons Maximum memory card size 32 GBDisplay diagonal 17.8 cm (7") Colour Yes Noise-canceling Yes Connectivity technology Wired & Wireless Display Display technology LCDDisplay resolution 1024 x 600 pixels Touchscreen type Capacitive Touchscreen Yes Display diagonal 17.8 cm (7") Design International Protection (IP) code IP65 Proper use Indoor & outdoor LED indicators Yes Product colour Black, Grey, Silver Housing material Plastic Network Ethernet interface type Fast Ethernet Ethernet LAN data rates 10, 100 Mbit/s Ethernet LAN (RJ-45) ports 1 Cabling technology 10/100 Base-T (X) Power over Ethernet (Po E) Yes Supported network protocols TCP/IP, RTSPWi-Fi Yes Networking standards IEEE 802.3af Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n) Camera Viewing angle, vertical 75&176; Viewing angle, horizontal 129&176; Megapixel 2 MPMaximum video resolution 1920 x 1080 pixels Supported video modes 720p, 1080p Night vision Night vision Yes LED type IRPower Power consumption (typical)10 WAC adapter output voltage 12 VAC adapter output current 1 AOutdoor unit power type DCOperational conditions Main monitor station operating temperature (T-T)-10
- 55 &176;CDoor station operating temperature (T-T)-40
- 55 &176;COperating relative humidity (H-H)10

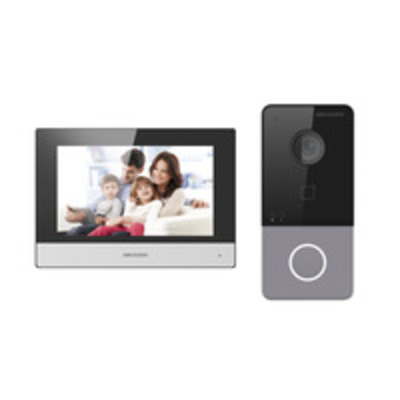

- 95% Software Operating system installed Linux Packaging data Indoor unit included Yes Outdoor unit included Yes\n\n\n\n\n\n\n\n Model: DS-KIS603-P (B)\n\n\n\n\n\n\n\n
