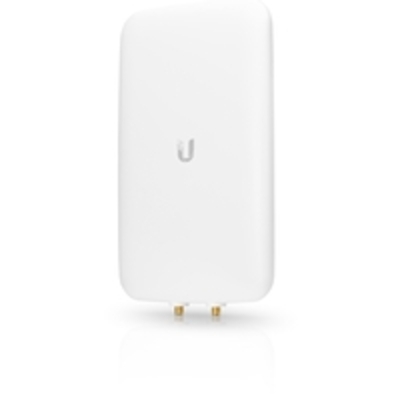

Directional Dual-Band Antenna for UAP-AC-M\n The UMA-D is a dual-b&, dual-polarity antenna optimized for 802.11ac. It offers a directional radiation pattern & a three-axis ball joint mount for precise aiming.\n\n Dual-Band Directivity\n Directivity means that you can get coverage where you need it. With its high-efficiency radiator, the UMA-D delivers significantly better performance for your desired coverage area & less interference with neighboring APs.\n\n Mounting Versatility\n Use the included mount for horizontal or vertical mounting on a wall, ceiling, or pole. The ball-joint system allows for quick & easy alignment: azimuth (left/right), elevation (up/down), & orientation (vertical or horizontal pole/surface).\n\n Specifications\n\n Dimensions: 201.3 x 128.0 x 32.5 mm (7.93 x 5.04 x 1.28")\n Weight: with Mount
- 480 g (16.93 oz), without Mount
- 400 g (14.11 oz)\n Enclosure: Outdoor UV Stabilized Plastic\n RF Connections: (2) RP-SMA\n Supported Frequency Range: 2.4
- 2.5 GHz, 5.1
- 5.9 GHz\n HPOL Beam
Width: 2.4 GHz
- 90&209;&143;"&144;&149;&156;, 5 GHz
- 45&209;&143;"&144;&149;&156;\n VPOL Beam
Width: 2.4 GHz
- 90&209;&143;"&144;&149;&156;, 5 GHz
- 45&209;&143;"&144;&149;&156;\n Elevation Beam
Width: 2.4 GHz
- 90&209;&143;"&144;&149;&156;, 5 GHz
- 45&209;&143;"&144;&149;&156;\n Maximum VSWR: 2:1\n Polarization: Dual-Linear\n Cross-Pol Isolation: 2.4 GHz
- 25 d B, 5 GHz
- 30 d B\n Antenna Gain: 2.4 GHz
- 10 d Bi, 5 GHz
- 15 d Bi\n Mounting: Wall/ Pole (Kits Included)\n\n\n\n\n\n\n\n\n\n
