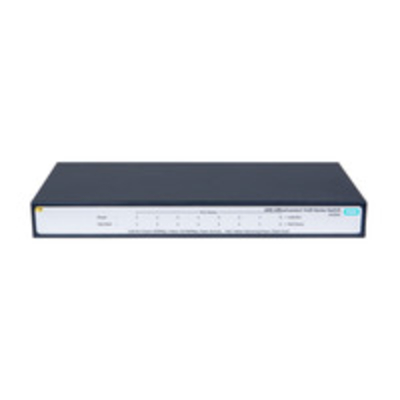

Hewlett Packard Enterprise OfficeConnect 1420 8G PoE+ (64W) Unmanaged
L2 Gigabit Ethernet (10/100/1000) Grey 1U Power Over Ethernet (PoE)

Product Description

\n Hewlett Packard Enterprise Office Connect 1420 8G Po E+ (64W) Unmanaged L2 Gigabit Ethernet (10/100/1000) Grey 1U Power over Ethernet (Po E)\n \n \n \n \n \n \n Manufacturer:\n Hewlett Packard Enterprise\n \n \n Category:\n Networking\n \n \n Sub-Category:\n Network Switches\n \n \n SKU:\n JH330A\n \n \n EAN:\n 0889296966739 0889296966746 0889296966661 0889296966685 4058154107676 0000099105358\n \n \n \n \n\n Description\n \n \n The HPE 1420 Switch Series consists of unmanaged Gigabit Ethernet switches for small businesses & others looking for plug-&-play basic Layer 2 connectivity for their network, including low-cost Po E+ & 10 Gb E uplink models. The HPE 1420 Switch Series has four models: 16-port 10/100/1000, 24-port 10/100/1000 with two SFP Gigabit ports, 24-port 10/100/1000 ports of which 12 are Po E+ enabled (124 W Po E budget), & 24-port 10/100/1000 with two SFP+ 10 Gb E ports.\n\n\n\n Features\n\n\n\n High-performance Gb E Layer 2 Switching, Cost-effective & Easy to Deploy\n\n- The HPE 1420 Switch Series offers small businesses & others Layer 2 Gigabit Ethernet switching with unmanaged affordability & plug-&-play simplicity.\n\n- Gigabit Ethernet is the most recommended & deployed networking technology today, delivering 10 times more performance than Fast Ethernet.\n\n- Unmanaged switches are the most economical offerings, ideal for locations needing only basic Layer 2 switching in a flat single tier network.\n\n\n\n Model Choices to Meet Most Design Needs for Basic Layer 2 Networking\n\n- The HPE 1420 Switch Series has four models to choose from, all with Gigabit performance but offering different uplink options. Consider the 16-port model for locations needing fewer connections & one of the 24-port models where more connectivity is required.\n\n- The 1420-24G-2SFP model with SFP uplinks is ideal where Gigabit fiber is required, while the 1420-24G-2SFP+ 10G Uplink model with SFP+ uplinks is available where 10 Gb E is needed now or in the future.\n\n- Anticipate the installation of IP voice, wireless Access points, or video surveillance cameras by deploying Power over Ethernet (Po E). Choose the Po E+ model for highly cost-effective Po E deployments.\n\n- All 1420 Switch Series models are fanless for silent operation, usable in office settings around workers. Units have internal power supplies with power-cord plug-in simplicity.\n\n- Units can be deployed for desktop operation or can be rack mounted.\n\n\n\n Automated Features for Hands-off Operation\n\n- All HPE 1420 Switch Series models are plug-&-play with zero configuration & no required ongoing administration.\n\n- The switch series has the company's only unmanaged Po E model, with fully automated support for powering compatible IP phones, video surveillance cameras or wireless Access Points.\n\n- The HPE 1420-24G-2SFP+ 10G Uplink Switch requires no configuration beyond installation of optional 10 Gb E transceivers to achieve 10 Gb E speeds. Alternatively, use today with Gigabit SFP transceivers if higher performance is merely a future requirement.\n\n- IEEE 802.1p prioritization & other Qo S features automate the preferred handling of high priority traffic, including Differentiated Services Code Point (DSCP) set priorities.\n\n- The 1420 Switch Series supports Jumbo packets to improve the performance of large data transfers.\n\n\n\n Cost-effective Ownership for Now & into the Future\n\n- The HPE 1420 Switch Series offers a cost-effective upgrade path to next-generation 10 Gb E networks to reduce performance bottlenecks when connecting to storage & servers.\n\n- The switch series

Includes:: Po E+ options to power IP devices without the cost of additional cabling for power.\n\n- Green features include energy-efficient Ethernet IEEE 802.3az, auto-power down mode on idle ports, & power savings on short distance cables for low power consumption.\n\n- Limited Lifetime Warranty.\n \n \n\n Specifications\n \n Ports & interfaces Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-TBasic switching RJ-45 Ethernet ports quantity 8 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Performance Packet buffer memory 1.5 MBStackable Yes Technical details Form factor 1UProduct colour Grey Stackable Yes Rack mounting Yes Management features Switch type Unmanaged Quality of Service (Qo S) support Yes Switch layer L2 Networking Auto-sensing Yes Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-TNetworking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Full duplex Yes Flow control support Yes Auto MDI/MDI-XYes 10G support No Data transmission Throughput 11.8 Mpps Latency (10-100 Mbps)3 &181;s Latency (1 Gbps)2.6 &181;s Packet buffer memory 1.5 MBMAC address table 4096 entries Switching capacity 16 Gbit/s Jumbo frames support Yes Memory Packet buffer memory 1.5 MBDesign Form factor 1UProduct colour Grey Stackable Yes Rack mounting Yes Power AC input voltage 100
- 240 VAC input frequency 50
- 60 Hz Power consumption (typical)80 WPower over Ethernet (Po E) Total Power over Ethernet (Po E) budget 64 WPower over Ethernet (Po E) Yes Operational conditions Storage temperature (T-T)-40
- 70 &176;CStorage relative humidity (H-H)15
- 95% Operating temperature (T-T)0
- 40 &176;COperating relative humidity (H-H)15
- 95% Weight & dimensions Width 234.7 mm Depth 104.9 mm Height 26.9 mm Weight 700 g\n \n \n\n\n\n\n\n
