The Eaton 5130 Rack/ Tower UPS provides line-interactive backup power & scalable runtimes for servers, storage systems, Vo IP gear & network equipment. With a two-in-one rack/tower form factor, the 5130 UPS packs up to three k VA of power into only 2U of rack space. The 5130 UPS provides additional battery runtime with 2U extended battery modules. To enhance compatibility with modern IT loads, the 5130 UPS is designed with a 0.9 power factor.
- Conserves valuable rack space with 2U form factor that

Includes:: internal batteries
- Provides more real power (watts) to protect more equipment & leave room for expanding IT systems with a 0.9 power factor
- Maximizes availability with extended battery runtime options, hot-swappable batteries & optional maintenance bypass
- Extends battery runtime for critical devices with load segments
- Offers choice of rackmount or tower installation with two-in-one form factor (4-post rail kit & tower pedestals included)
- Delivers control & visibility with free power management software featuring an intuitive user interface







...

The Eaton 5E is an essential line interactive UPS that provides cost effective & reliable power protection against power outages & bad power quality. Thanks to its small size the 5E can be installed easily either in a business environment or at home.\n\n\n\n\n\n\n\n Model: 5E650i USB\n\n\n\n Manual: https://d 5bm 31en 4blvo.cloudfront.net/uploads/pdf/mmo_22799038_1460718375_8811_26362.pdf\n\n\n\n ...

The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD & energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers & storage devices, in tower or rack format. ...

The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD & energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers & storage devices, in tower or rack format. ...

The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD & energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers & storage devices, in tower or rack format. ...

Power Output power factor 0.7 Output power 770 WInput operation voltage (min)150 VInput operation voltage (max)294 VEfficiency 97% Output power capacity 1150 k VAPerformance UPS topology Line-Interactive Waveform Sine Automatic Voltage Regulation (AVR) Yes Number of output phases 1 Number of input phases 1 Power protection features Overdischarge Noise level 40 d B Features Output frequency 50/60 Hz UPS topology Line-Interactive Waveform Sine Automatic Voltage Regulation (AVR) Yes Number of output phases 1 Number of input phases 1 Output power factor 0.7 Output power 770 WInput operation voltage (min)150 VInput operation voltage (max)294 VEfficiency 97% Power protection features Overdischarge Noise level 40 d B Output power capacity 1150 k VAInput frequency 47/70 Hz Ports & interfaces USB port Yes Serial interface Yes Serial interface type RS-232AC outlets quantity 6 AC outlet (s)AC outlet types C13 coupler Power plug C13 coupler Serial ports quantity 1USB port type USB Type-BBattery Number of batteries supported 2 Battery voltage 12 VBattery capacity 9 Ah Battery technology Sealed Lead Acid (VRLA) Typical backup time at full load 4 min Hot-swap battery Yes Automatic battery test Yes Design Form factor Rackmount Product colour Black, Silver Display LCDCertification TUV IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC c TUVus Operational conditions Operating relative humidity (H-H)0
- 90% Storage relative humidity (H-H)0
- 90% Operating altitude 0
- 2000 m Technical details Output frequency 50/60 Hz Sustainability compliance Yes Sustainability certificates CEWeight & dimensions Weight 11kg Width 600 mm Height 160 mm Depth 540 mm Packaging data Quick installation guide Yes Cables included Input power cable, Serial, USB (Universal Serial Bus) cable Rack mount kit Yes Certificates Certification TUV IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC c TUVus Packaging content Quick installation guide Yes Cables included Input power cable, Serial, USB (Universal Serial Bus) cable Rack mount kit Yes\n\n\n\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/uploads/pdf/mmo_93624528_1635115220_1785_572.pdf


...

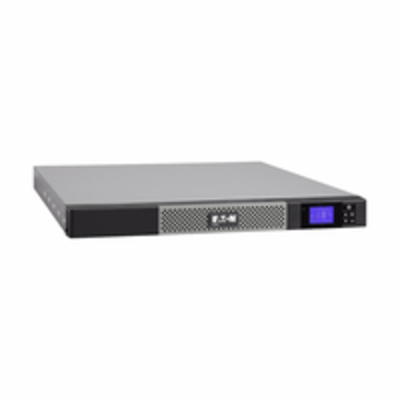

Eaton 5P Global 1U UPS, 1550 VA, 1100W, Input: (1) C14, Outputs: (6) C13, Rackmount/ Wallmount, Lithium-ion battery, true sine wave, network card optional\n\n\n\n\n\n\n\n Model: 5P1550GR-L\n\n\n\n\n\n\n\n ...

The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD & energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers & storage devices, in tower or rack format.\n\n\n\n Power Output power factor 0.7 Output power 1100 WInput operation voltage (min)150 VInput operation voltage (max)294 VOutput operation voltage (min)200 VOutput operation voltage (max)240 VEfficiency 97% Output power capacity 1.55 k VAPerformance UPS topology Line-Interactive Waveform Sine Automatic Voltage Regulation (AVR) Yes Number of output phases 1 Number of input phases 1 Power protection features Overdischarge Noise level 40 d B Features Output frequency 50/60 Hz UPS topology Line-Interactive Waveform Sine Automatic Voltage Regulation (AVR) Yes Number of output phases 1 Number of input phases 1 Output power factor 0.7 Output power 1100 WInput operation voltage (min)150 VInput operation voltage (max)294 VOutput operation voltage (min)200 VOutput operation voltage (max)240 VEfficiency 97% Power protection features Overdischarge Noise level 40 d B Output power capacity 1.55 k VAInput frequency 47/70 Hz Ports & interfaces USB port Yes Serial interface Yes Serial interface type RS-232AC outlets quantity 8 AC outlet (s)AC outlet types C13 coupler Power plug C14 coupler Serial ports quantity 1USB port type USB Type-BBattery Number of batteries supported 3 Battery voltage 12 VBattery capacity 9 Ah Battery technology Sealed Lead Acid (VRLA) Typical backup time at full load 4 min Hot-swap battery Yes Automatic battery test Yes Design Form factor Tower Product colour Black, Silver Display LCDCertification TUV IEC/EN 62040-1 IEC/EN 62040-2 EAC c TUVus UL 1778 Operational conditions Operating relative humidity (H-H)0
- 90% Storage relative humidity (H-H)0
- 90% Operating altitude 0
- 2000 m Technical details Output frequency 50/60 Hz Sustainability compliance Yes Sustainability certificates CEWeight & dimensions Weight 11kg Width 530 mm Height 330 mm Depth 230 mm Packaging data Rack mount kit No Certificates Certification TUV IEC/EN 62040-1 IEC/EN 62040-2 EAC c TUVus UL 1778 Packaging content Rack mount kit No\n\n\n\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/uploads/pdf/mmo_93624523_1635114708_1813_53229.pdf


...

The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD & energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers & storage devices, in tower or rack format.\n\n\n\n Power Output power factor 0.7 Output power 1100 WInput operation voltage (min)150 VInput operation voltage (max)294 VOutput operation voltage (min)200 VOutput operation voltage (max)240 VEfficiency 97% Output power capacity 1.55 k VAPerformance UPS topology Line-Interactive Waveform Sine Automatic Voltage Regulation (AVR) Yes Number of output phases 1 Number of input phases 1 Power protection features Overdischarge Noise level 40 d B Features Output frequency 50/60 Hz UPS topology Line-Interactive Waveform Sine Automatic Voltage Regulation (AVR) Yes Number of output phases 1 Number of input phases 1 Output power factor 0.7 Output power 1100 WInput operation voltage (min)150 VInput operation voltage (max)294 VOutput operation voltage (min)200 VOutput operation voltage (max)240 VEfficiency 97% Power protection features Overdischarge Noise level 40 d B Output power capacity 1.55 k VAInput frequency 47/70 Hz Ports & interfaces USB port Yes Serial interface Yes Serial interface type RS-232AC outlets quantity 8 AC outlet (s)AC outlet types C13 coupler Power plug C14 coupler Serial ports quantity 1USB port type USB Type-BBattery Number of batteries supported 3 Battery voltage 12 VBattery capacity 9 Ah Battery technology Sealed Lead Acid (VRLA) Typical backup time at full load 4 min Hot-swap battery Yes Automatic battery test Yes Design Form factor Tower Product colour Black, Silver Display LCDCertification TUV IEC/EN 62040-1 IEC/EN 62040-2 EAC c TUVus UL 1778 Operational conditions Operating relative humidity (H-H)0
- 90% Storage relative humidity (H-H)0
- 90% Operating altitude 0
- 2000 m Technical details Output frequency 50/60 Hz Sustainability compliance Yes Sustainability certificates CEWeight & dimensions Weight 11kg Width 530 mm Height 330 mm Depth 230 mm Packaging data Rack mount kit No Certificates Certification TUV IEC/EN 62040-1 IEC/EN 62040-2 EAC c TUVus UL 1778 Packaging content Rack mount kit No\n\n\n\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/uploads/pdf/mmo_93624523_1635114708_1813_53229.pdf


...

The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD & energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers & storage devices, in tower or rack format.\n\n\n\n Power Output power factor 0.65 Output power 420 WInput operation voltage (min)150 VInput operation voltage (max)294 VOutput operation voltage (min)200 VOutput operation voltage (max)240 VEfficiency 96% Power factor 0.65 Output power capacity 0.65 k VAPerformance UPS topology Line-Interactive Waveform Sine Automatic Voltage Regulation (AVR) Yes Number of output phases 1 Number of input phases 1 Noise level 40 d B Features Output frequency 50/60 Hz UPS topology Line-Interactive Waveform Sine Automatic Voltage Regulation (AVR) Yes Number of output phases 1 Number of input phases 1 Output power factor 0.65 Output power 420 WInput operation voltage (min)150 VInput operation voltage (max)294 VOutput operation voltage (min)200 VOutput operation voltage (max)240 VEfficiency 96% Power factor 0.65 Noise level 40 d B Output power capacity 0.65 k VAInput frequency 47/70 Hz Ports & interfaces USB port Yes Serial interface Yes AC outlets quantity 4 AC outlet (s)AC outlet types C13 coupler Serial ports quantity 1USB port type USB Type-BBattery Battery voltage 12 VBattery capacity 9 Ah Battery technology Sealed Lead Acid (VRLA) Typical backup time at full load 2 min Hot-swap battery Yes Design Form factor Tower Product colour Black, Silver Display LCDCertification IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC c TUVus Operational conditions Operating relative humidity (H-H)0
- 90% Operating altitude 0
- 2000 m Technical details Output frequency 50/60 Hz Sustainability compliance Yes Sustainability certificates CEWeight & dimensions Weight 11kg Width 430 mm Height 330 mm Depth 230 mm Packaging data Quick installation guide Yes Cables included Input power cable, Serial, USB (Universal Serial Bus) cable Rack mount kit No Certificates Certification IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC c TUVus Packaging content Quick installation guide Yes Cables included Input power cable, Serial, USB (Universal Serial Bus) cable Rack mount kit No\n\n\n\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/uploads/pdf/mmo_93624525_1635301129_1186_3635.pdf

...
