Draytek Vigor 2927 Dual Ethernet Gigabit WAN router ...

Vigor 300B Quad-WAN Load Balancer Overiew The Vigor 300B is a high-performance quad-WAN load balancer. The Vigor 300B provides high performance with Dray Tek's traditional ease of use & a comprehensive feature set with robust firewalling, flexible content filtering & multiple monitoring methods. Load Balancing & WAN Backup The four Gigabit WAN ports can provide load balancing or WAN failover. In failover mode, additional WAN connections are activated only when your primary or additional normal connectivity if interrupted. The failover/backup connections kick in automatically, keeping you online. In load balanced mode, up to four of the WAN fees are used all of the time, but your load (connections) is spread across all of the active connections, making the best use of your connectivity. Alternatively, the Vigor 300B can be set with load balance policies so that different traffic types use specific connections, for example reserving one connection for latency-sensitive or high priority data, or forcing low-priority data down your slowest connection. Extensive Qo S & VLAN facilities on the Vigor 300B help keep your network efficiency & online productivity at its best. The Vigor 300B can be rack-mounted (brackets provided) or used standalone. ...

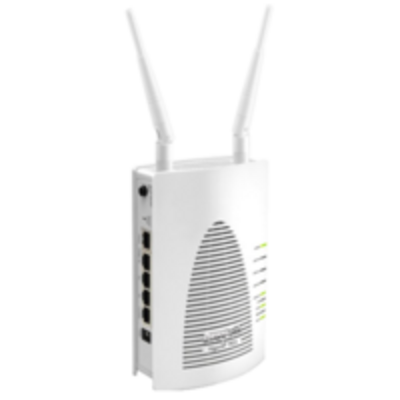

Vigor AP-710 Wireless Access Point\n The Dray Tek Vigor AP-710 is a standalone wireless access point, ideal for adding wireless connectivity to an existing LAN, or for expanding the range of an existing wireless LAN by using the WDS features.\n\n As an access point, the Vigor AP-710 connects to your existing ethernet switch or router. Wireless users can then connect to your LAN. You can restrict access to specific devices by locking in their hardware 'MAC address' & if you have a radius server, user access can be further limited requiring unique login using 802.1x authentication (MD5/PEAP mode).\n\n Where you wish to provide wireless access over a larger area, or throughout a larger building, you could install several AP-710's, each wired back to your central network. The AP-710 also supports limited functions within Dray Tek's Wireless management system.\n\n In addition, the AP-710 can operate in several other wireless modes:\n\n Access Point
- Standard Operation, as described above\n Universal Repeater
- The AP-710 acts as both a wireless client & access point simultaneously, effectively increasing the range of an existing access point.\n Bridge
- Using two AP-710's, each connected to a separate wired LAN, a wireless bridge can be formed connecting the two LANs. Ideal where a physical link (cable) isn't possible, for example, across a road.\n Station
- The AP-710 acts as a wireless client to another wireless access point. Ideal for games consoles or PCs which need a self-contained 'intelligent' wireless interface with connectivity provided via their Ethernet point.\n



...

Key
Features:\n\n G.fast (Ultrafast Fibre), VDSL2 (Superfast Fibre), ADSL & Ethernet Router\n Multi-WAN Gigabit Performance
...

Key
Features:\n\n G.fast (Ultrafast Fibre), VDSL2 (Superfast Fibre), ADSL & Ethernet Router\n Multi-WAN Gigabit Performance
...

Draytek Vigor AP 960C Description\n Vigor AP 960C is a Wi Fi 6 Access Point with Mesh, offering up to 1.8 Gbps Dual-Band wireless rates. Wi Fi 6 brings significantly enhanced efficiency, better overall performance & reliably handles more clients per AP. Dray Tek's Mesh with VLAN capability can significantly reduce the cost of network deployments, improve coverage & eliminate Wi-Fi dead zones for homes & businesses.\n\n\n\n Utilize Transmission Opportunity with OFDMA\n OFDMA has been used in LTE for many years, & is now available in 802.11ax for multi-user mode.\n\n Traditionally with OFDM, each frame is transmitted across the entire channel width. With low-rate transmission still using the whole channel, it brings latency & jitter to others & lower the overall efficiency.\n\n OFDMA splits a single transmission into groups of subcarriers, & each subcarrier can be used by different client. With multiple clients transmitting simultaneously in the same channel, it improves efficiency of every single transmission opportunity & thus increases the wireless experiences in high density environment.\n\n\n\n\n\n\n Making Transmission Effective\n Disassociate the Wireless clients who are out of the effective transmission range defined by custom Basic Rate or/and RSSI threshold, & force them to pick up another access point with a stronger signal.\n\n\n\n Resource Saving\n Proactively kick out the clients with a low basic rate or low RSSI can prevent the access points trying to do ineffective transmission but saving the airtime, which will results in better WLAN experience for all.\n\n\n\n No Controller Required\n Assisted Roaming is a feature built-in all Vigor Access Points & selected Wireless routers. They operate without a wireless controller, providing an ideal solution for simple network deployment.\n\n\n\n Stronger Signal Guaranteed\n By using the " Minimum RSSI with Adjacent AP" option, the AP/ Router on the same local subnet will exchange client information with each other, providing the choice to disassociate the client only when other AP detecting a stronger signal. Thus to keep the client stayed when there is no other AP nearby.\n\n\n\n\n\n\n\n Draytek Vigor AP 960C Specifications\n\n\n\n Data transmission\n\n\n Maximum data transfer rate\n 1201 Mbit/s\n\n\n Performance\n\n\n 2.4 GHz\n Yes\n\n\n 5 GHz\n Yes\n\n\n Wi-Fi Multimedia (WMM)/ (WME)\n Yes\n\n\n Syslog\n Yes\n\n\n Reset button\n Yes\n\n\n Firmware upgradeable\n Yes\n\n\n Web-based management\n Yes\n\n\n VLAN support\n Yes\n\n\n Networking standards\n IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n\n\n\n Channels quantity\n 3 channels\n\n\n Maximum data transfer rate\n 1201 Mbit/s\n\n\n MIMO type\n Multi User MIMO\n\n\n MIMO\n Yes\n\n\n Wireless LAN features\n\n\n Channels quantity\n 3 channels\n\n\n Network\n\n\n Networking standards\n IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n\n\n\n Security\n\n\n Cable lock slot\n Yes\n\n\n Number of SSID supported\n 8\n\n\n Security algorithms\n EAP-TLS, PEAP, WEP, WPA, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise\n\n\n MAC address filtering\n Yes\n\n\n Service Set Identifier (SSID) features\n Hidden SSID, Multiple SSIDs\n\n\n Management features\n\n\n VLAN support\n Yes\n\n\n Syslog\n Yes\n\n\n Firmware upgradeable\n Yes\n\n\n Web-based management\n Yes\n\n\n Local AP management\n Telnet\n\n\n Comm&-line interface (CLI)\n Yes\n\n\n Features\n\n\n 2.4 GHz\n Yes\n\n\n 5 GHz\n Yes\n\n\n Wi-Fi Multimedia (WMM)/ (WME)\n Yes\n\n\n VLAN support\n Yes\n\n\n Networking standards\n IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n\n\n\n Channels quantity\n 3 channels\n\n\n Maximum data transfer rate\n 1201 Mbit/s\n\n\n Fast roaming\n Yes\n\n\n MIMO type\n Multi User MIMO\n\n\n MIMO\n Yes\n\n\n Maximum data transfer rate (2.4 GHz)\n 574 Mbit/s\n\n\n Maximum data transfer rate (5 GHz)\n 1201 Mbit/s\n\n\n WLAN channel features\n WLAN channel management\n\n\n Protocols\n\n\n DHCP server\n Yes\n\n\n DHCP client\n Yes\n\n\n Ports & interfaces\n\n\n Internal RJ-45 ports quantity\n 1\n\n\n Ethernet LAN (RJ-45) ports\n 1\n\n\n Power\n\n\n Power consumption (max)\n 11 W\n\n\n Output voltage\n 12 V\n\n\n Power over Ethernet (Po E)\n Yes\n\n\n Design\n\n\n Placement\n Ceiling, Wall\n\n\n Product colour\n White\n\n\n Reset button\n Yes\n\n\n Cable lock slot\n Yes\n\n\n Antenna\n\n\n Antenna type\n Internal\n\n\n Polarization\n Dual polarization\n\n\n Antennas quantity\n 2\n\n\n Antenna gain level (max)\n 5 d Bi\n\n\n Technical details\n\n\n Reset button\n Yes\n\n\n Firmware upgradeable\n Yes\n\n\n Polarization\n Dual polarization\n\n\n Sustainability certificates\n Ro HS\n\n\n Operational conditions\n\n\n Operating relative humidity (H-H)\n 10
- 90%\n\n\n Operating temperature (T-T)\n 0
- 40 &176;C\n\n\n Software\n\n\n Fast roaming\n Yes\n\n\n Local AP management\n Telnet\n\n\n Weight & dimensions\n\n\n Width\n 178 mm\n\n\n Weight\n 380 g\n\n\n Height\n 35 mm\n\n\n Packaging data\n\n\n Quick start guide\n Yes\n\n\n Mounting kit\n Yes\n\n\n Cables included\n LAN (RJ-45)\n\n\n AC adapter included\n Yes\n\n\n Number of products included\n 1 pc (s)\n\n\n Packaging content\n\n\n Quick start guide\n Yes\n\n\n Mounting kit\n Yes\n\n\n Cables included\n LAN (RJ-45)\n\n\n AC adapter included\n Yes\n\n\n Number of products included\n 1 pc (s)\n\n\n Other features\n\n\n Polarization\n Dual polarization\n\n\n\n

...

The Vigor Switch G1240 is a high-performance Gigabit Ethernet switch. It provides extensive facilities for maximising your LAN performance & also increasing security, including VLAN groups (port or tag based) as well as Qo S prioritisation & traffic/bandwidth control. The G1240 is also compact, only 170mm deep, ideal for a crowded comms cabinet (it's a standard 19" rack in width). Rack mounting brackets are included or the unit can be used on a desk/shelf. The G1240 has four SFP (Fibre Module) ports. In comparison to 'copper' (RJ45), using fibre for uplinks provides longer range & resilience from electrical interference. Each of the four ports can be used instead of the corresponding copper port (Ports 21, 22, 23 & 24). The SFP port provides compatibility with your choice of SFP module & therefore the most appropriate fibre technology for your application. ...

\n Draytek Vigor Switch G2540x Managed L2+ Gigabit Ethernet (10/100/1000) 1U Black\n \n \n \n \n \n \n Manufacturer:\n Draytek\n \n \n Category:\n Networking\n \n \n Sub-Category:\n Network Switches\n \n \n SKU:\n VSG2540X-K\n \n \n EAN:\n 4710484741462\n \n \n \n \n \n Description\n \n \n 10 Gb E Gigabit Switch with 48 Gigabit Ports & 6 10 Gb E SFP+ Uplink Ports\n Vigor Switch G2540x is a 54 port Gigabit L2+ Managed switch with a plethora of management options & enterprise-level features to improve network stability & security for businesses.\n\n Use the 4 switchable SFP/RJ-45 ports & 2 dedicated SFP module slots to link with additional switches using link aggregation, or plug in a suitable SFP module to use optical Fibre as an Ethernet uplink.\n\n Designed for centralised management, the Vigor Switch G2540x can be provisioned & monitored through both the Vigor ACS management platform and/or, a Dray Tek Vigor router&153;s Central Switch Management. Easily provision the VLAN configuration through the router & clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.\n\n 10 Gb E SFP+ Ports for High Speed Uplinks\n The Dray Tek Vigor Switch G2540x has 6 dedicated SFP+ ports for uplinks, each operating at up to 10 Gigabits per second. The faster 10 Gigabit uplink capability means that you can make high bandwidth links to Network Attached Storage, Servers & other switches, to help reduce the risk of bottlenecks occurring within your network.\n\n The SFP+ ports provide compatibility with your choice of SFP / SFP+ modules (not included) & therefore the most appropriate medium for your application.\n\n Connect a passive Direct Attach SFP+ cable such as the Dray Tek DAC-CX10-01M to the SFP+ module port of 1 Gbps/10 Gbps capable Network Attached Storage, Servers & Switches, for a cost effective, up to 10 Gbps network link.\n\n Advanced Layer 2+ Routing Features\n The Vigor Switch G2540x adds the Layer 3 features VLAN Routing, DHCP Server & Static Route, which allow the switch to provide routing between VLANs at full speed. The switch's Access Control List gives full control of what traffic routes between those networks.\n\n VLAN Routing\n A Dray Tek Vigor Switch normally provides connectivity for multiple network segments with 802.1Q VLAN tags, which separate networks at Layer 2 (MAC level), relying on the router to connect different networks. VLAN Routing in the switch allows for Layer 3 (IP level) routing, to connect & route between different IP subnets with wire speed routing performance.\n\n Static Route\n Routing beyond the Vigor Switch G2540x, to the Internet & across VPNs is possible with Static Routes, using the switch to direct traffic to remote subnets through the correct gateway. Up to 512 static routes can be configured on the switch.\n\n Rack Mountable & Silent\n Install the Vigor Switch on a desk, shelf or wall, or use the included rack mount fittings to install the switch in any standard 19" rack with 1U height.\n\n Ideal for installation in quiet office environments, the Vigor Switch G2540x runs quietly, cooling without a fan.\n\n Managing a Vigor Switch through Vigor ACS\n Dray Tek's Vigor ACS central management system provides a centralised way to manage & view the status of any Dray Tek Vigor router, Vigor AP access point & Vigor Switch connected to the Vigor ACS server.\n\n Central Switch Management with a Dray Tek Vigor Router\n Dray Tek Vigor router Central Switch Management provisions & monitors Vigor Switch switches through a Dray Tek Vigor router, with profiles that can be applied to multiple switches & VLAN configuration all handled within the router.\n\n Central Switch Management requires firmware support on both the Vigor Switch & the Dray Tek Vigor router*\n*requires 3.9.3 firmware update\n\n This can simplify the setup of multiple subnets & VLANs, without needing in-depth knowledge of VLAN tagging & reduces setup time, with the time consuming step of configuring VLANs for each port handled by the router instead.\n \n \n \n Specifications\n \n Management features Multicast support Yes ARP inspection Yes Switch type Managed Quality of Service (Qo S) support Yes Switch layer L2+ Configuring Location Settings (CLI) Yes Ports & interfaces Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-LXBasic switching RJ-45 Ethernet ports quantity 48 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Installed SFP+ modules quantity 6 Network IGMP snooping Yes Access Control List (ACL) IPv 4 entries 512 Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-LXNetworking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x VLAN support Yes Spanning tree protocol Yes Rate limiting Yes Port mirroring Yes Link aggregation Yes Flow control support Yes 10G support Yes Auto-negotiation Yes Virtual LAN features VLAN support Yes I Pv 4 & IPv 6 features Access Control List (ACL) IPv 4 entries 512 Performance Auto-negotiation Yes Technical details Form factor 1UProduct colour Black Rack mounting Yes Data transmission Jumbo frames 12 Switching capacity 216 Gbit/s Number of queues 8 Jumbo frames support Yes Static route Yes Forwarding rate 160.7 Mpps Security Static port security Yes IGMP snooping Yes Access Control List (ACL) Yes Access Control List (ACL) IPv 4 entries 512DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping Multicast features Multicast support Yes Design Form factor 1UProduct colour Black Rack mounting Yes Power Power consumption (max)52 WAC input voltage 100
- 240 VPower over Ethernet (Po E) Power over Ethernet (Po E) No Operational conditions Storage temperature (T-T)-20
- 70 &176;COperating temperature (T-T)0
- 50 &176;COperating relative humidity (H-H)10
- 90% Weight & dimensions Width 441 mm Depth 270 mm Height 45 mm Weight 3.97kg Packaging data Rack mount kit Yes Quick start guide Yes Cables included AC, LAN (RJ-45) Packaging content Rack mount kit Yes Quick start guide Yes Cables included AC, LAN (RJ-45)\n \n \n\n\n\n\n\n\n\n



...

\n Draytek Vigor Switch G2540x Managed L2+ Gigabit Ethernet (10/100/1000) 1U Black\n \n \n \n \n \n \n Manufacturer:\n Draytek\n \n \n Category:\n Networking\n \n \n Sub-Category:\n Network Switches\n \n \n SKU:\n VSG2540X-K\n \n \n EAN:\n 4710484741462\n \n \n \n \n \n Description\n \n \n 10 Gb E Gigabit Switch with 48 Gigabit Ports & 6 10 Gb E SFP+ Uplink Ports\n Vigor Switch G2540x is a 54 port Gigabit L2+ Managed switch with a plethora of management options & enterprise-level features to improve network stability & security for businesses.\n\n Use the 4 switchable SFP/RJ-45 ports & 2 dedicated SFP module slots to link with additional switches using link aggregation, or plug in a suitable SFP module to use optical Fibre as an Ethernet uplink.\n\n Designed for centralised management, the Vigor Switch G2540x can be provisioned & monitored through both the Vigor ACS management platform and/or, a Dray Tek Vigor router&153;s Central Switch Management. Easily provision the VLAN configuration through the router & clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.\n\n 10 Gb E SFP+ Ports for High Speed Uplinks\n The Dray Tek Vigor Switch G2540x has 6 dedicated SFP+ ports for uplinks, each operating at up to 10 Gigabits per second. The faster 10 Gigabit uplink capability means that you can make high bandwidth links to Network Attached Storage, Servers & other switches, to help reduce the risk of bottlenecks occurring within your network.\n\n The SFP+ ports provide compatibility with your choice of SFP / SFP+ modules (not included) & therefore the most appropriate medium for your application.\n\n Connect a passive Direct Attach SFP+ cable such as the Dray Tek DAC-CX10-01M to the SFP+ module port of 1 Gbps/10 Gbps capable Network Attached Storage, Servers & Switches, for a cost effective, up to 10 Gbps network link.\n\n Advanced Layer 2+ Routing Features\n The Vigor Switch G2540x adds the Layer 3 features VLAN Routing, DHCP Server & Static Route, which allow the switch to provide routing between VLANs at full speed. The switch's Access Control List gives full control of what traffic routes between those networks.\n\n VLAN Routing\n A Dray Tek Vigor Switch normally provides connectivity for multiple network segments with 802.1Q VLAN tags, which separate networks at Layer 2 (MAC level), relying on the router to connect different networks. VLAN Routing in the switch allows for Layer 3 (IP level) routing, to connect & route between different IP subnets with wire speed routing performance.\n\n Static Route\n Routing beyond the Vigor Switch G2540x, to the Internet & across VPNs is possible with Static Routes, using the switch to direct traffic to remote subnets through the correct gateway. Up to 512 static routes can be configured on the switch.\n\n Rack Mountable & Silent\n Install the Vigor Switch on a desk, shelf or wall, or use the included rack mount fittings to install the switch in any standard 19" rack with 1U height.\n\n Ideal for installation in quiet office environments, the Vigor Switch G2540x runs quietly, cooling without a fan.\n\n Managing a Vigor Switch through Vigor ACS\n Dray Tek's Vigor ACS central management system provides a centralised way to manage & view the status of any Dray Tek Vigor router, Vigor AP access point & Vigor Switch connected to the Vigor ACS server.\n\n Central Switch Management with a Dray Tek Vigor Router\n Dray Tek Vigor router Central Switch Management provisions & monitors Vigor Switch switches through a Dray Tek Vigor router, with profiles that can be applied to multiple switches & VLAN configuration all handled within the router.\n\n Central Switch Management requires firmware support on both the Vigor Switch & the Dray Tek Vigor router*\n*requires 3.9.3 firmware update\n\n This can simplify the setup of multiple subnets & VLANs, without needing in-depth knowledge of VLAN tagging & reduces setup time, with the time consuming step of configuring VLANs for each port handled by the router instead.\n \n \n \n Specifications\n \n Management features Multicast support Yes ARP inspection Yes Switch type Managed Quality of Service (Qo S) support Yes Switch layer L2+ Configuring Location Settings (CLI) Yes Ports & interfaces Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-LXBasic switching RJ-45 Ethernet ports quantity 48 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Installed SFP+ modules quantity 6 Network IGMP snooping Yes Access Control List (ACL) IPv 4 entries 512 Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-LXNetworking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x VLAN support Yes Spanning tree protocol Yes Rate limiting Yes Port mirroring Yes Link aggregation Yes Flow control support Yes 10G support Yes Auto-negotiation Yes Virtual LAN features VLAN support Yes I Pv 4 & IPv 6 features Access Control List (ACL) IPv 4 entries 512 Performance Auto-negotiation Yes Technical details Form factor 1UProduct colour Black Rack mounting Yes Data transmission Jumbo frames 12 Switching capacity 216 Gbit/s Number of queues 8 Jumbo frames support Yes Static route Yes Forwarding rate 160.7 Mpps Security Static port security Yes IGMP snooping Yes Access Control List (ACL) Yes Access Control List (ACL) IPv 4 entries 512DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping Multicast features Multicast support Yes Design Form factor 1UProduct colour Black Rack mounting Yes Power Power consumption (max)52 WAC input voltage 100
- 240 VPower over Ethernet (Po E) Power over Ethernet (Po E) No Operational conditions Storage temperature (T-T)-20
- 70 &176;COperating temperature (T-T)0
- 50 &176;COperating relative humidity (H-H)10
- 90% Weight & dimensions Width 441 mm Depth 270 mm Height 45 mm Weight 3.97kg Packaging data Rack mount kit Yes Quick start guide Yes Cables included AC, LAN (RJ-45) Packaging content Rack mount kit Yes Quick start guide Yes Cables included AC, LAN (RJ-45)\n \n \n\n\n\n\n\n\n\n



...

Vigor Switch P2261 – 24-Port Managed Po E Switch Overview The Vigor Switch P2261 is a high-performance, fully-managed, layer 2 Gigabit Ethernet switch with Po E (Power over Ethernet). Its

Specification is packed with advanced features to aid reliability & switching performance to your network & is ready for the next generation with both IPv 4 & IPv 6 support. The P2261 has 20 standard (RJ45/copper) Gigabit Ethernet Ports, four selectable ports (can be either RJ45 or SFP) & two dedicated SFP ports (for fibre connection modules). Features for Quality of Service (Qo S), VLANs & network/switch security provide additional flexibility. The Vigor Switch P2261 is a Po E (Power over Ethernet) switch, providing power to any Po E-enabled device, most commonly IP phones, wireless access points or IP cameras over the Ethernet cable. As well as removing the need for local (at the desk) power supplies so making for tidier installations, Po E ensures power efficiency, providing only the power needed, as well as allowing for time schedules for powering up/down. Power is provided only when required. Po E also allows for installation of devices where there is no mains power (particularly useful for wireless access points). The P2261 supports both standard Po E (802.1af) & High-Power Po E (802.1at) devices. A ' Single IP Management' facility enabled you to have 32 Vigor Switch P2261 or G2260 units on the same local subnet & access the web interface of each from a single interface (IP address), moving quickly from one to another rather than having to log into each switch individually. The Dray Tek P2261 has 6 SFP (Fibre Module) ports. Four of the ports can be used instead of the corresponding RJ45 (copper) port No’s 21-24; the other two SFP ports are independent. In comparison to 'copper' (RJ45), using fibre for uplinks provides longer range & reliance from electrical interference. The SFP port provides compatibility with your choice of SFP module (not included) & therefore the most appropriate fibre technology for your application.

...
