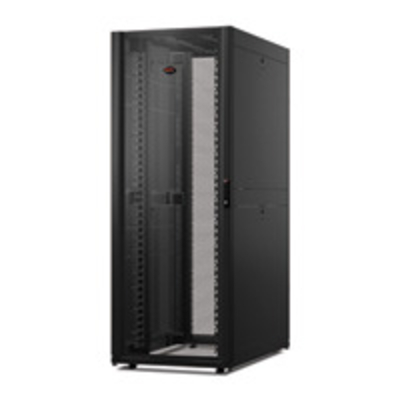

APC NetShelter SX 42U Freestanding Rack Black

Product Description

Integrated high density cable management Decrease installation time while supporting the cabling needs of large networking switches. Cable protection & pass-through Smooth plastic fingers provide proper bend radius. Optimized enclosure design for side-to-side airflow Airflow management panels, left vertical mounting rail, & side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle & provide isolation of hot air preventing it from re-entering the cold aisle. in addition, the front left vertical mounting rail acts as an air block for exhaust air from networking switches. enhanced cable access Maintain & organize large cable bundles for enhanced efficiency with open vertical mounting rails & large cable openings in roof. High density cable management The vertical mounting rails are opened up for increased cable access & the roof design has large open areas for cable entry/exit from the enclosure. Guaranteed Compatability Vendor-neutral mounting for guaranteed compatibility with all EIA-310 compliant 19" equipment. The APC " Fits Like a Glove" money back guarantee provides peace of mind that all of your EIA-310-E compliant rack-mount equipment will physically fit in a Net Shelter enclosure. Facilitates overhead cable management Overhead cable troughs & partitions install toollessly on the roof of the enclosure eliminating the need for ceiling mounted or underfloor mounted cable trays. Cable troughs & partitions are designed to manage both power & data cables while maintaining separation. Integrated with APC Infra Stru Xure products APC cooling, power distribution, & cable management products work seamlessly with the enclosures to provide a complete infrastructure support system. Cable Access Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor. Simple Selection No need to spend hours choosing from & compiling dozens of part numbers to create a single enclosure. APC has made it easy by handling the details & providing complete enclosures with single part numbers. Ventilated Perforated front & rear doors provide ample ventilation for rack-mount equipment. Quick release doors Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple lift-off design. Half-height side panels Half-height quick release side panels reduce size & weight for easy handling & access to equipment. Side panels are lockable utilizing a single key with the doors. Rear Cable Management channels Integrated & adjustable rear channel provides zero U mounting locations for toolless accessories. Each channel has two mounting bays to support a combination of up to four accessories such as PDUs & vertical cable organizers. Adjustable mounting rails The vertical mounting rails can be adjusted in 1/4 in (6.4 mm) increments covering virtually any mounting requirement for IT equipment. U positions are numbered front & back for rapid installation of equipment. Split rear doors Split rear doors improve access & serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. Only 11 inches (279 mm) of clearance is required behind the enclosures to allow for door swing. Castors & adjustable leveling feet Enclosures are shipped standard with both leveling feet & castors. Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench. Joining capability Enclosures include pre-installed joining hardware to join enclosures in a row & provide additional stability to the enclosure. Structural Stability A proven frame design, heavy-gauge mounting rails, & heavy-duty casters provide for 3000 lb (1364 kg) static & 2250 lb (1023 kg) dynamic load ratings. Integrated electrical grounding The roof, side panels & front & rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.\n\n\n\n Features Size (imperial)48.3 cm (19") Rack capacity 42 U Type Freestanding rack Maximum weight capacity 1704kg Product colour Black Certification UL 60950-1, Ro HS, REACHWeight & dimensions Package weight 183.2kg Mounting depth (max)95.9 cm Mounting depth (min)27.9 cm Width 750 mm Depth 1200 mm Height 1991 mm Weight 161.4kg Size (imperial)48.3 cm (19") Maximum weight capacity 1704kg Packaging data Package weight 183.2kg Package

Dimensions (Wx Dx H)850 x 1320 x 2118 mm Technical details Type Freestanding rack Size (imperial)48.3 cm (19") Dimensions (Wx Dx H)750 x 1200 x 1991 mm Static load 1363.64kg Dynamic load 1022.73kg Rack capacity 42 U Colour Product colour Black Certificates Certification UL 60950-1, Ro HS, REACHOther features Package

Dimensions (Wx Dx H)850 x 1320 x 2118 mm Dimensions (Wx Dx H)750 x 1200 x 1991 mm Static load 1363.64kg Dynamic load 1022.73 kg\n\n\n\n
