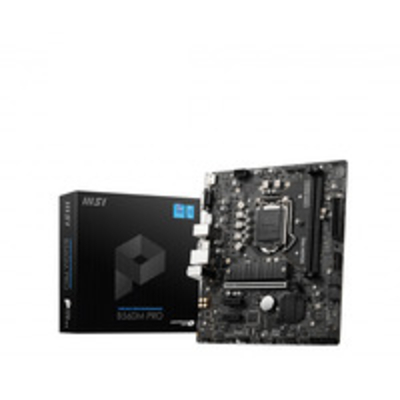

PRO series helps users work smarter by delivering an efficient & productive experience. Featuring stable functionality & high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting & longevity.\n\n USER FRIENDLY DESIGN\n MSI motherboards feature tons of convenient & smart design for DIY users, countless system tuning & troubleshooting tools are at your disposal to push your system to new heights & satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.\n\n M.2 SHIELD FROZR\n World&153;s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.\n\n FULLY CONTROLLABLE IN BIOS & SOFTWARE\n MSI motherboards let you manage speeds & temperatures for all your system & CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU & motherboard, which will adjust the fan speeds automatically.\n\n EZ DEBUG LED\n Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up & running again.\n\n XL CLIP\n The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger & safer.\n\n FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR\n MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points & support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.\n\n ULTIMATE MOTHERBOARD PROTECTION\n Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.\n\n CONNECTIVITY\n The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers&153; need. Stable LAN, faster storage & USB (Universal Serial Bus) transfer speed & other expandable connectors are ready to enlarge your flexibility.\n\n FAST & FUTURE-READY STORAGE\n MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.\n\n LIGHTNING GEN 4 M.2\n Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.\n\n USB 3.2 GEN 1\n Transfer lots of data, music & movies over USB (Universal Serial Bus) easier. USB (Universal Serial Bus) 3.2 ports are ready in both front & rear IO, provides wide variety of options to connect your USB (Universal Serial Bus) 3.2 devices.\n\n EXTEND YOUR RGB EXPERIENCE WITH EASE\n Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips & other RGB peripherals added to a system, without needing a separate RGB controller.\n\n EXPERIENCE MORE\n MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure & enjoy extreme sound quality. Moreover, with many years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.\n\n PCB WITH 2OZ THICKENED COPPER\n An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation & performance reliability especially during overclocking.\n\n LIGHTNING GEN 4 PCI-E\n MSI lightning Gen 4 PCI-E is the latest & the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward & forward compatibility with older & newer specifications. Optimized by steel armor design & server grade PCB, you can enjoy next-gen devices without any compromise.\n\n A HUGE STEP OF DDR PERFORMANCE\n MSI OC LAB does not merely work hard on extreme overclocking. Compared to B450 motherboard memory A-XMP profile, MSI does have great improvement on performance & efficiency for B550 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed & stability.\n\n CORE BOOST\n Core Boost technology combines MSI's premium layout & optimized power design which allows for faster & undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.\n\n DEDICATED HIGH DEFINITION AUDIO PROCESSOR\n Make sure you enjoy the purest sound quality in both stereo & surround sound.\n\n HIGH QUALITY AUDIO CAPACITORS\n A high fidelity sound experience with exceptional acoustics & realism for studio level headphones is ensured.\n\n HD AUDIO CONNECTORS\n Keep you sound perfect by transmit your aduio with pure digital signal.\n\n ISOLATED AUDIO DESIGN\n Like a dedicated sound card, audio components & circuits have been laid on a reserved motherboard section & electrically isolated.\n\n SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS\n Using separated layers in the PCB ensures equally pristine sound quality for both left & right audio channels.\n\n DRAGON CENTER\n MSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features & unleash endless possibilities.\n\n CLICK BIOS 5\n Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!\n\n\n\n\n\n Product Model: B550M PRO\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/pdf/mmo_86204228_1603369334_6289_24228.pdf\n\n ...

PRO series helps users work smarter by delivering an efficient & productive experience. Featuring stable functionality & high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting & longevity.\n\n USER FRIENDLY DESIGN\n MSI motherboards feature tons of convenient & smart design for DIY users, countless system tuning & troubleshooting tools are at your disposal to push your system to new heights & satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.\n\n M.2 SHIELD FROZR\n World&153;s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.\n\n FULLY CONTROLLABLE IN BIOS & SOFTWARE\n MSI motherboards let you manage speeds & temperatures for all your system & CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU & motherboard, which will adjust the fan speeds automatically.\n\n EZ DEBUG LED\n Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up & running again.\n\n XL CLIP\n The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger & safer.\n\n FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR\n MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points & support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.\n\n ULTIMATE MOTHERBOARD PROTECTION\n Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.\n\n CONNECTIVITY\n The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers&153; need. Stable LAN, faster storage & USB (Universal Serial Bus) transfer speed & other expandable connectors are ready to enlarge your flexibility.\n\n FAST & FUTURE-READY STORAGE\n MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.\n\n LIGHTNING GEN 4 M.2\n Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.\n\n USB 3.2 GEN 1\n Transfer lots of data, music & movies over USB (Universal Serial Bus) easier. USB (Universal Serial Bus) 3.2 ports are ready in both front & rear IO, provides wide variety of options to connect your USB (Universal Serial Bus) 3.2 devices.\n\n EXTEND YOUR RGB EXPERIENCE WITH EASE\n Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips & other RGB peripherals added to a system, without needing a separate RGB controller.\n\n EXPERIENCE MORE\n MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure & enjoy extreme sound quality. Moreover, with many years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.\n\n PCB WITH 2OZ THICKENED COPPER\n An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation & performance reliability especially during overclocking.\n\n LIGHTNING GEN 4 PCI-E\n MSI lightning Gen 4 PCI-E is the latest & the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward & forward compatibility with older & newer specifications. Optimized by steel armor design & server grade PCB, you can enjoy next-gen devices without any compromise.\n\n A HUGE STEP OF DDR PERFORMANCE\n MSI OC LAB does not merely work hard on extreme overclocking. Compared to B450 motherboard memory A-XMP profile, MSI does have great improvement on performance & efficiency for B550 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed & stability.\n\n CORE BOOST\n Core Boost technology combines MSI's premium layout & optimized power design which allows for faster & undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.\n\n DEDICATED HIGH DEFINITION AUDIO PROCESSOR\n Make sure you enjoy the purest sound quality in both stereo & surround sound.\n\n HIGH QUALITY AUDIO CAPACITORS\n A high fidelity sound experience with exceptional acoustics & realism for studio level headphones is ensured.\n\n HD AUDIO CONNECTORS\n Keep you sound perfect by transmit your aduio with pure digital signal.\n\n ISOLATED AUDIO DESIGN\n Like a dedicated sound card, audio components & circuits have been laid on a reserved motherboard section & electrically isolated.\n\n SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS\n Using separated layers in the PCB ensures equally pristine sound quality for both left & right audio channels.\n\n DRAGON CENTER\n MSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features & unleash endless possibilities.\n\n CLICK BIOS 5\n Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!\n\n\n\n\n\n Product Model: B550M PRO\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/pdf/mmo_86204228_1603369334_6289_24228.pdf\n\n ...

PRO series helps users work smarter by delivering an efficient & productive experience. Featuring stable functionality & high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting & longevity.\n\n USER FRIENDLY DESIGN\n MSI motherboards feature tons of convenient & smart design for DIY users, countless system tuning & troubleshooting tools are at your disposal to push your system to new heights & satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.\n\n M.2 SHIELD FROZR\n World&153;s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.\n\n FULLY CONTROLLABLE IN BIOS & SOFTWARE\n MSI motherboards let you manage speeds & temperatures for all your system & CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU & motherboard, which will adjust the fan speeds automatically.\n\n OPTIMIZED FOR WATER COOLING\n Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked &152;keep-out-zone&153; allows for easy & safe installation & a perfect fit.\n\n EASY BIOS RECOVERY WITH FLASH BIOS BUTTON\n Run into trouble when updating your BIOS? Simply flash the old BIOS version back & continue working within minutes with Flash BIOS Button. Flash BIOS Button even works without a CPU, memory or graphics card installed!\n\n EZ DEBUG LED\n Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up & running again.\n\n XL CLIP\n The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger & safer.\n\n FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR\n MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points & support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.\n\n ULTIMATE MOTHERBOARD PROTECTION\n Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.\n\n CONNECTIVITY\n The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers&153; need. Stable LAN, faster storage & USB (Universal Serial Bus) transfer speed & other expandable connectors are ready to enlarge your flexibility.\n\n FAST & FUTURE-READY STORAGE\n MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.\n\n LIGHTNING GEN 4 M.2\n Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.\n\n USB FRONT TYPE-C\n MSI motherboards support USB (Universal Serial Bus) Front Type-C that allows gamers to connect with the latest USB (Universal Serial Bus) devices. Built up a system with MSI PC case to have the most convenient experience.\n\n EXTEND YOUR RGB EXPERIENCE WITH EASE\n Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips & other RGB peripherals added to a system, without needing a separate RGB controller.\n\n EXPERIENCE MORE\n MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure & enjoy extreme sound quality. Moreover, with many years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.\n\n PCB WITH 2OZ THICKENED COPPER\n An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation & performance reliability especially during overclocking.\n\n LIGHTNING GEN 4 PCI-E\n MSI lightning Gen 4 PCI-E is the latest & the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward & forward compatibility with older & newer specifications. Optimized by steel armor design & server grade PCB, you can enjoy next-gen devices without any compromise.\n\n A HUGE STEP OF DDR PERFORMANCE\n MSI OC LAB does not merely work hard on extreme overclocking. Compared to B450 motherboard memory A-XMP profile, MSI does have great improvement on performance & efficiency for B550 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed & stability.\n\n CORE BOOST\n Core Boost technology combines MSI's premium layout & optimized power design which allows for faster & undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.\n\n DEDICATED HIGH DEFINITION AUDIO PROCESSOR\n Make sure you enjoy the purest sound quality in both stereo & surround sound.\n\n HIGH QUALITY AUDIO CAPACITORS\n A high fidelity sound experience with exceptional acoustics & realism for studio level headphones is ensured.\n\n HD AUDIO CONNECTORS\n Keep you sound perfect by transmit your aduio with pure digital signal.\n\n ISOLATED AUDIO DESIGN\n Like a dedicated sound card, audio components & circuits have been laid on a reserved motherboard section & electrically isolated.\n\n SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS\n Using separated layers in the PCB ensures equally pristine sound quality for both left & right audio channels.\n\n DRAGON CENTER\n MSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features & unleash endless possibilities.\n\n CLICK BIOS 5\n Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!\n\n\n\n\n\n Product Model: B550M PRO-VDH\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/pdf/mmo_86204226_1603368627_8573_10228.pdf\n\n ...

PRO series helps users work smarter by delivering an efficient & productive experience. Featuring stable functionality & high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting & longevity.\n\n USER FRIENDLY DESIGN\n MSI motherboards feature tons of convenient & smart design for DIY users, countless system tuning & troubleshooting tools are at your disposal to push your system to new heights & satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.\n\n M.2 SHIELD FROZR\n World&153;s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.\n\n FULLY CONTROLLABLE IN BIOS & SOFTWARE\n MSI motherboards let you manage speeds & temperatures for all your system & CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU & motherboard, which will adjust the fan speeds automatically.\n\n OPTIMIZED FOR WATER COOLING\n Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked &152;keep-out-zone&153; allows for easy & safe installation & a perfect fit.\n\n EASY BIOS RECOVERY WITH FLASH BIOS BUTTON\n Run into trouble when updating your BIOS? Simply flash the old BIOS version back & continue working within minutes with Flash BIOS Button. Flash BIOS Button even works without a CPU, memory or graphics card installed!\n\n EZ DEBUG LED\n Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up & running again.\n\n XL CLIP\n The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger & safer.\n\n FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR\n MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points & support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.\n\n ULTIMATE MOTHERBOARD PROTECTION\n Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.\n\n CONNECTIVITY\n The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers&153; need. Stable LAN, faster storage & USB (Universal Serial Bus) transfer speed & other expandable connectors are ready to enlarge your flexibility.\n\n FAST & FUTURE-READY STORAGE\n MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.\n\n LIGHTNING GEN 4 M.2\n Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.\n\n USB FRONT TYPE-C\n MSI motherboards support USB (Universal Serial Bus) Front Type-C that allows gamers to connect with the latest USB (Universal Serial Bus) devices. Built up a system with MSI PC case to have the most convenient experience.\n\n EXTEND YOUR RGB EXPERIENCE WITH EASE\n Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips & other RGB peripherals added to a system, without needing a separate RGB controller.\n\n EXPERIENCE MORE\n MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure & enjoy extreme sound quality. Moreover, with many years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.\n\n PCB WITH 2OZ THICKENED COPPER\n An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation & performance reliability especially during overclocking.\n\n LIGHTNING GEN 4 PCI-E\n MSI lightning Gen 4 PCI-E is the latest & the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward & forward compatibility with older & newer specifications. Optimized by steel armor design & server grade PCB, you can enjoy next-gen devices without any compromise.\n\n A HUGE STEP OF DDR PERFORMANCE\n MSI OC LAB does not merely work hard on extreme overclocking. Compared to B450 motherboard memory A-XMP profile, MSI does have great improvement on performance & efficiency for B550 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed & stability.\n\n CORE BOOST\n Core Boost technology combines MSI's premium layout & optimized power design which allows for faster & undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.\n\n DEDICATED HIGH DEFINITION AUDIO PROCESSOR\n Make sure you enjoy the purest sound quality in both stereo & surround sound.\n\n HIGH QUALITY AUDIO CAPACITORS\n A high fidelity sound experience with exceptional acoustics & realism for studio level headphones is ensured.\n\n HD AUDIO CONNECTORS\n Keep you sound perfect by transmit your aduio with pure digital signal.\n\n ISOLATED AUDIO DESIGN\n Like a dedicated sound card, audio components & circuits have been laid on a reserved motherboard section & electrically isolated.\n\n SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS\n Using separated layers in the PCB ensures equally pristine sound quality for both left & right audio channels.\n\n DRAGON CENTER\n MSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features & unleash endless possibilities.\n\n CLICK BIOS 5\n Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!\n\n\n\n\n\n Product Model: B550M PRO-VDH\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/pdf/mmo_86204226_1603368627_8573_10228.pdf\n\n ...

PRO series helps users work smarter by delivering an efficient & productive experience. Featuring stable functionality & high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting & longevity. M.2 SHIELD FROZR World&153;s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. FROZR AI COOLING Detecting CPU & GPU temperatures & automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. FULLY CONTROLLABLE IN BIOS & SOFTWARE MSI motherboards let you manage speeds & temperatures for all your system & CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU & motherboard, which will adjust the fan speeds automatically. EZ DEBUG LED Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up & running again. FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points & support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference. ULTIMATE MOTHERBOARD PROTECTION Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard. HIGH-BANDWIDTH & LOW-LATENCY NETWORK 2.5 Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. OPTIMIZE NETWORK FOR LOWER LATENCY! MSI LAN Manager automatically classifies & prioritizes the latency-sensitive applications, giving you the best online experience with low latency. A HUGE STEP OF DDR PERFORMANCE MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance & efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed & stability. CORE BOOST Core Boost technology combines MSI's premium layout & optimized power design which allows for faster & undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking. DEDICATED HIGH DEFINITION AUDIO PROCESSOR Make sure you enjoy the purest sound quality in both stereo & surround sound. HIGH QUALITY AUDIO CAPACITORS A high fidelity sound experience with exceptional acoustics & realism for studio level headphones is ensured. HD AUDIO CONNECTORS Keep you sound perfect by transmit your aduio with pure digital signal. ISOLATED AUDIO DESIGN Like a dedicated sound card, audio components & circuits have been laid on a reserved motherboard section & electrically isolated. SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS Using separated layers in the PCB ensures equally pristine sound quality for both left & right audio channels. DE-POP PROTECTION Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off. MSI CENTER MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features & unleash endless possibilities. CLICK BIOS 5 Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records! SYSTEM SAFETY All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use. Secure Boot Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, & the operating system. The PC boots while the signatures are valid.\n\n\n\n Internal I/ONumber of M.2 (M) slots 1 Total number of SATA connectors 612V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1TPM connector Yes Serial port headers 1 Number of SATA III connectors 6 Number of EATX power connectors 1 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes Chassis intrusion connector Yes ATX Power connector (24-pin) Yes Technical details Number of displays supported 2 Motherboard chipset family Intel Motherboard chipset Intel B560 Serial port headers 1HDMI version 2.0b Motherboard form factormicro ATXComponent for PCTotal number of SATA connectors 6 Number of mounting holes 6 Audio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel B560RAID levels 0, 1, 5, 10 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel&174; Pentium&174; Maximum number of SMP processors 1 Processor socket LGA 1200 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMNon-ECCYes Supported memory clock speeds 2133, 2666, 2933, 3200 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATARAID levels 0, 1, 5, 10 Graphics Number of displays supported 2 Maximum resolution 4096 x 2304 pixels Direct X version 12.0 Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4USB connector type USB Type-AUSB 2.0 ports quantity 4VGA (D-Sub) ports quantity 1PS/2 ports quantity 1 Microphone in Yes HDMI version 2.0b HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Network Ethernet LANYes Wi-Fi No LAN controller Realtek RTL8125 B Ethernet interface type 2.5 Gigabit Ethernet Features Power source type ATXNumber of mounting holes 6 Windows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel B560 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCAudio chip Realtek ALC897 Expansion slots Number of M.2 (M) slots 1PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes System Management BIOS (SMBIOS) version 3.0 Power Power source type ATXVideo Maximum resolution 4096 x 2304 pixels Direct X version 12.0 Software Windows operating systems supported Windows 10 x 64 Drivers included Yes Weight & dimensions Width 305 mm Depth 244 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/uploads/pdf/mmo_93894526_1642181074_3298_10375.pdf ...

PRO series helps users work smarter by delivering an efficient & productive experience. Featuring stable functionality & high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting & longevity.\n\n M.2 SHIELD FROZR\n World&153;s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.\n\n FROZR AI COOLING\n Detecting CPU & GPU temperatures & automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.\n\n FULLY CONTROLLABLE IN BIOS & SOFTWARE\n MSI motherboards let you manage speeds & temperatures for all your system & CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU & motherboard, which will adjust the fan speeds automatically.\n\n HIGH-BANDWIDTH & LOW-LATENCY NETWORK\n 2.5 Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.\n\n OPTIMIZE NETWORK FOR LOWER LATENCY!\n MSI LAN Manager automatically classifies & prioritizes the latency-sensitive applications, giving you the best online experience with low latency.\n\n FAST & FUTURE-READY STORAGE\n MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.\n\n LIGHTNING GEN 4 PCI-E\n MSI lightning Gen 4 PCI-E is the latest & the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward & forward compatibility with older & newer specifications.\n\n LIGHTNING GEN 4 M.2\n Utilizing 11th Gen Intel Core processors, MSI B560 PRO motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.\n\n OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD\n PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel&174; Optane&132;&162; Memory device. Intel&174; Optane&132;&162; technology provides an unparalleled combination of high throughput, low latency, high quality of service, & high endurance.\n\n A HUGE STEP OF DDR PERFORMANCE\n MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance & efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed & stability.\n\n CORE BOOST\n Core Boost technology combines MSI's premium layout & optimized power design which allows for faster & undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.\n\n DEDICATED HIGH DEFINITION AUDIO PROCESSOR\n Make sure you enjoy the purest sound quality in both stereo & surround sound.\n\n HIGH QUALITY AUDIO CAPACITORS\n A high fidelity sound experience with exceptional acoustics & realism for studio level headphones is ensured.\n\n HD AUDIO CONNECTORS\n Keep you sound perfect by transmit your aduio with pure digital signal.\n\n ISOLATED AUDIO DESIGN\n Like a dedicated sound card, audio components & circuits have been laid on a reserved motherboard section & electrically isolated.\n\n SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS\n Using separated layers in the PCB ensures equally pristine sound quality for both left & right audio channels.\n\n DE-POP PROTECTION\n Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.\n\n CLICK BIOS 5\n Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!\n\n MSI CENTER\n MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features & unleash endless possibilities.\n\n SYSTEM SAFETY\n All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.\n\n Secure Boot\n Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, & the operating system. The PC boots while the signatures are valid.\n\n\n\n\n\n Product Model: B560M PRO\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/pdf/mmo_89324840_1623786511_3033_57433.pdf\n\n ...

https://www.youtube.com/embed/ Qfh Yc Q_IQOA\n\n PRO series helps users work smarter by delivering an efficient & productive experience. Featuring stable functionality & high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting & longevity.\n\n M.2 SHIELD FROZR\n World&153;s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.\n\n FROZR AI COOLING\n Detecting CPU & GPU temperatures & automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.\n\n FULLY CONTROLLABLE IN BIOS & SOFTWARE\n MSI motherboards let you manage speeds & temperatures for all your system & CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU & motherboard, which will adjust the fan speeds automatically.\n\n AUTODETECT DC OR PWM MODE WITH HYSTERESIS\n MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds & silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.\n\n OPTIMIZED FOR WATER COOLING\n Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked &152;keep-out-zone&153; allows for easy & safe installation & a perfect fit.\n\n EZ DEBUG LED\n Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up & running again.\n\n FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR\n MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points & support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.\n\n ULTIMATE MOTHERBOARD PROTECTION\n Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.\n\n HIGH-BANDWIDTH & LOW-LATENCY NETWORK\n 2.5 Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.\n\n OPTIMIZE NETWORK FOR LOWER LATENCY!\n MSI LAN Manager automatically classifies & prioritizes the latency-sensitive applications, giving you the best online experience with low latency.\n\n MSI LAN MANAGER\n- means that you can change applications' traffic priority\n- means that you can customize bandwidth for each application\n\n FAST & FUTURE-READY STORAGE\n MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.\n\n LIGHTNING GEN 4 PCI-E\n MSI lightning Gen 4 PCI-E is the latest & the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward & forward compatibility with older & newer specifications.\n\n LIGHTNING GEN 4 M.2\n Utilizing 11th Gen Intel Core processors, MSI B560 PRO motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.\n\n OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD\n PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel&174; Optane&132;&162; Memory device. Intel&174; Optane&132;&162; technology provides an unparalleled combination of high throughput, low latency, high quality of service, & high endurance.\n\n Transfer lots of data, music & movies over USB (Universal Serial Bus) easier. USB (Universal Serial Bus) 3.2 Gen 1 ports are ready in both front & rear IO, provides wide variety of options to connect your USB (Universal Serial Bus) 3.2 Gen 1 devices.\n\n EXTEND YOUR RGB EXPERIENCE WITH EASE\n Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips & other RGB peripherals added to a system, without needing a separate RGB controller.\n\n A HUGE STEP OF DDR PERFORMANCE\n MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance & efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed & stability.\n\n CORE BOOST\n Core Boost technology combines MSI's premium layout & optimized power design which allows for faster & undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.\n\n DEDICATED HIGH DEFINITION AUDIO PROCESSOR\n Make sure you enjoy the purest sound quality in both stereo & surround sound.\n\n HIGH QUALITY AUDIO CAPACITORS\n A high fidelity sound experience with exceptional acoustics & realism for studio level headphones is ensured.\n\n HD AUDIO CONNECTORS\n Keep you sound perfect by transmit your aduio with pure digital signal.\n\n ISOLATED AUDIO DESIGN\n Like a dedicated sound card, audio components & circuits have been laid on a reserved motherboard section & electrically isolated.\n\n SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS\n Using separated layers in the PCB ensures equally pristine sound quality for both left & right audio channels.\n\n Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.\n\n CLICK BIOS 5\n Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!\n\n CREATOR GENIE\n Quickly overclock your CPU with a single button for more performance.\n\n XMP\n Choose from a preset XMP profile & automatically overclock compatible DDR memory.\n\n M-FLASH\n Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.\n\n HARDWARE MONITOR\n Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, & voltage.\n\n MEMORY TRY IT\n Get extreme speed out of your system memory & get more performance.\n\n SEARCH & FAVORITES\n A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.\n\n MSI CENTER\n MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features & unleash endless possibilities.\n\n SYSTEM SAFETY\n All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.\n\n Secure Boot\n Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, & the operating system. The PC boots while the signatures are valid.\n\n\n\n\n\n Product Model: B560M PRO-VDH\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/pdf/mmo_89488169_1618918940_4728_14151.pdf\n\n ...

https://www.youtube.com/embed/ Qfh Yc Q_IQOA\n\n PRO series helps users work smarter by delivering an efficient & productive experience. Featuring stable functionality & high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting & longevity.\n\n M.2 SHIELD FROZR\n World&153;s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.\n\n FROZR AI COOLING\n Detecting CPU & GPU temperatures & automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.\n\n FULLY CONTROLLABLE IN BIOS & SOFTWARE\n MSI motherboards let you manage speeds & temperatures for all your system & CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU & motherboard, which will adjust the fan speeds automatically.\n\n AUTODETECT DC OR PWM MODE WITH HYSTERESIS\n MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds & silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.\n\n OPTIMIZED FOR WATER COOLING\n Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked &152;keep-out-zone&153; allows for easy & safe installation & a perfect fit.\n\n EZ DEBUG LED\n Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up & running again.\n\n FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR\n MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points & support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.\n\n ULTIMATE MOTHERBOARD PROTECTION\n Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.\n\n HIGH-BANDWIDTH & LOW-LATENCY NETWORK\n 2.5 Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.\n\n OPTIMIZE NETWORK FOR LOWER LATENCY!\n MSI LAN Manager automatically classifies & prioritizes the latency-sensitive applications, giving you the best online experience with low latency.\n\n MSI LAN MANAGER\n- means that you can change applications' traffic priority\n- means that you can customize bandwidth for each application\n\n FAST & FUTURE-READY STORAGE\n MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.\n\n LIGHTNING GEN 4 PCI-E\n MSI lightning Gen 4 PCI-E is the latest & the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward & forward compatibility with older & newer specifications.\n\n LIGHTNING GEN 4 M.2\n Utilizing 11th Gen Intel Core processors, MSI B560 PRO motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.\n\n OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD\n PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel&174; Optane&132;&162; Memory device. Intel&174; Optane&132;&162; technology provides an unparalleled combination of high throughput, low latency, high quality of service, & high endurance.\n\n Transfer lots of data, music & movies over USB (Universal Serial Bus) easier. USB (Universal Serial Bus) 3.2 Gen 1 ports are ready in both front & rear IO, provides wide variety of options to connect your USB (Universal Serial Bus) 3.2 Gen 1 devices.\n\n EXTEND YOUR RGB EXPERIENCE WITH EASE\n Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips & other RGB peripherals added to a system, without needing a separate RGB controller.\n\n A HUGE STEP OF DDR PERFORMANCE\n MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance & efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed & stability.\n\n CORE BOOST\n Core Boost technology combines MSI's premium layout & optimized power design which allows for faster & undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.\n\n DEDICATED HIGH DEFINITION AUDIO PROCESSOR\n Make sure you enjoy the purest sound quality in both stereo & surround sound.\n\n HIGH QUALITY AUDIO CAPACITORS\n A high fidelity sound experience with exceptional acoustics & realism for studio level headphones is ensured.\n\n HD AUDIO CONNECTORS\n Keep you sound perfect by transmit your aduio with pure digital signal.\n\n ISOLATED AUDIO DESIGN\n Like a dedicated sound card, audio components & circuits have been laid on a reserved motherboard section & electrically isolated.\n\n SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS\n Using separated layers in the PCB ensures equally pristine sound quality for both left & right audio channels.\n\n Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.\n\n CLICK BIOS 5\n Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!\n\n CREATOR GENIE\n Quickly overclock your CPU with a single button for more performance.\n\n XMP\n Choose from a preset XMP profile & automatically overclock compatible DDR memory.\n\n M-FLASH\n Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.\n\n HARDWARE MONITOR\n Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, & voltage.\n\n MEMORY TRY IT\n Get extreme speed out of your system memory & get more performance.\n\n SEARCH & FAVORITES\n A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.\n\n MSI CENTER\n MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features & unleash endless possibilities.\n\n SYSTEM SAFETY\n All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.\n\n Secure Boot\n Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, & the operating system. The PC boots while the signatures are valid.\n\n\n\n\n\n Product Model: B560M PRO-VDH\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/pdf/mmo_89488169_1618918940_4728_14151.pdf\n\n ...

PRO series helps users work smarter by delivering an efficient & productive experience. Featuring stable functionality & high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting & longevity. M.2 SHIELD FROZR World&153;s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. FROZR AI COOLING Detecting CPU & GPU temperatures & automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. FULLY CONTROLLABLE IN BIOS & SOFTWARE MSI motherboards let you manage speeds & temperatures for all your system & CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU & motherboard, which will adjust the fan speeds automatically. EZ DEBUG LED Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up & running again. FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points & support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference. ULTIMATE MOTHERBOARD PROTECTION Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard. HIGH-BANDWIDTH & LOW-LATENCY NETWORK 2.5 Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. OPTIMIZE NETWORK FOR LOWER LATENCY! MSI LAN Manager automatically classifies & prioritizes the latency-sensitive applications, giving you the best online experience with low latency. A HUGE STEP OF DDR PERFORMANCE MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance & efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed & stability. CORE BOOST Core Boost technology combines MSI's premium layout & optimized power design which allows for faster & undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking. DEDICATED HIGH DEFINITION AUDIO PROCESSOR Make sure you enjoy the purest sound quality in both stereo & surround sound. HIGH QUALITY AUDIO CAPACITORS A high fidelity sound experience with exceptional acoustics & realism for studio level headphones is ensured. HD AUDIO CONNECTORS Keep you sound perfect by transmit your aduio with pure digital signal. ISOLATED AUDIO DESIGN Like a dedicated sound card, audio components & circuits have been laid on a reserved motherboard section & electrically isolated. SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS Using separated layers in the PCB ensures equally pristine sound quality for both left & right audio channels. DE-POP PROTECTION Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off. MSI CENTER MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features & unleash endless possibilities. CLICK BIOS 5 Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records! SYSTEM SAFETY All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use. Secure Boot Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, & the operating system. The PC boots while the signatures are valid.\n\n\n\n Internal I/ONumber of M.2 (M) slots 1 Total number of SATA connectors 612V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1TPM connector Yes Serial port headers 1 Number of SATA III connectors 6 Number of EATX power connectors 1 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes Chassis intrusion connector Yes ATX Power connector (24-pin) Yes Technical details Number of displays supported 2 Motherboard chipset family Intel Motherboard chipset Intel B560 Serial port headers 1HDMI version 2.0b Motherboard form factormicro ATXComponent for PCTotal number of SATA connectors 6 Number of mounting holes 6 Audio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel B560RAID levels 0, 1, 5, 10 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel&174; Pentium&174; Maximum number of SMP processors 1 Processor socket LGA 1200 Memory Number of memory slots 2 Memory slots type DIMMSupported memory types DDR4-SDRAMNon-ECCYes Supported memory clock speeds 2133, 2666, 2933, 3200 MHz Maximum internal memory 64 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATARAID levels 0, 1, 5, 10 Number of storage drives supported 7 Graphics Number of displays supported 2 Maximum resolution 4096 x 2304 pixels Direct X version 12.0 Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4USB connector type USB Type-AUSB 2.0 ports quantity 2VGA (D-Sub) ports quantity 1PS/2 ports quantity 1 Microphone in Yes HDMI version 2.0b HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Network Ethernet LANYes Wi-Fi No LAN controller Realtek RTL8125 B Ethernet interface type 2.5 Gigabit Ethernet Features Power source type ATXNumber of mounting holes 6 Windows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel B560 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCAudio chip Realtek ALC897 Expansion slots Number of M.2 (M) slots 1PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 256 Mbit ACPI version 6.2 System Management BIOS (SMBIOS) version 3.0 Power Power source type ATXVideo Maximum resolution 4096 x 2304 pixels Direct X version 12.0 Software Windows operating systems supported Windows 10 x 64 Drivers included Yes Weight & dimensions Width 236 mm Depth 202 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n Datasheet: https://d 5bm 31en 4blvo.cloudfront.net/uploads/pdf/mmo_89421717_1614122737_1775_57088.pdf ...

Let the Games Begin MSI B75 GAMING motherboards are designed to provide gamers with best-in- class features & technology. Backed by the imposing looks of MSI's dragon, each motherboard is an engineering masterpiece tailored to gaming perfection. The Best Gaming Weapons at Hand ? The highest frag & the lowest lag with Killer™ E2200 ? Game networking ? Military Class III components ? Gaming device port ? Optimized for multiple graphics cards ? Boosting performance thanks to OC Genie II ? finest top quality audio solution with Sound Blaster Cinema ? Supports DDR3 1600 memory for super fast loading Kill Your Lag! The Killer™ E2200 Intelligent Networking Platform is built for maximum networking performance for online games & high-quality streaming media. Featuring Advanced Stream Detect™, Killer E2200 automatically detects & accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance & the competitive edge. With this exclusive, automatic traffic prioritization, games & real-time chat get priority over low-level system chatter, giving you the lowest latency for game data on the most controllable network hardware available. Gaming Device Port You want more FPS, lower ping, but why use a pro-gaming mouse with old-fashioned standards? MSI Gaming Device Port is optimized for high polling rate mice (500 to 1000 Hz) which lowers your mouse's response time from 8 milliseconds to 1 millisecond! This gives a much smoother mouse response in games. The additional gold plating on the ports enhances the durability drastically & ensures your PS/2 & USB (Universal Serial Bus) ports are always working when you ship out to a LAN party. Optimized for Multiple Graphics Cards MSI B75 GAMING motherboards feature one or more PCI-Express 3.0 slots, perfectly aligned & with enough space for an optimal airflow when using multiple graphics cards. That way, you will never have to worry about an overheating PC, while you are enjoying the best graphics jumping off from your monitor when running an AMD Crossfire gaming setup. Click BIOS II Click BIOS 2 gives an easy to navigate full featured graphical user interface to the traditional BIOS features. Support-ing the latest hardware like 3TB hard drives & a wide range of languages. Total Fan Control Total Fan Control gives you complete control of all your fans to enable you to find the best balance of fan performance & silence. Because you can also monitor & record all your fan information, a great pool of information is available to base the fan settings on. Dragon Heat-sink With an awesome product comes an inspiring heat sink! Styled after the iconic MSI GAMING dragon. The heat sink is oversized to provide the best thermal transfer & heat dissipation to enable your PC to just game 24 hours per day. ...
