VISION Series motherboards are built for creator pc. It featured with reliable performance, impressive connectivity, expandable on graphics, & ultra-fast storage for creators to deal with heavy design workloads such as video editing & 3D rendering. It's the perfect fit for DIY creators to build their own ideal machine. ECC Memory To protect against data corruption Error Correction Code (ECC) memory corrects errors in your data as it passes in & out of memory to ensure reliability for critical applications. Multi-Card Support Make Your Expandability Flexible Multi-graphics configurations offer better graphics performance for applications which demand the highest frame rates without compromising on resolution. NVIDIA&174; QUADRO&174; Professional Graphics Supports NVIDIA&174; QUADRO&174; 3D Workstation Professional Graphics Solutions are designed & built specifically for artists, designers, & engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe&174; Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA & SOLIDWORKS, Siemens NX, PTC Creo, & many more. Thunderbolt&132;&162; 3 More Speed. More Pixels. More Possibilities. Thunderbolt&132;&162; 3 is the single most advanced port available. It uses USB (Universal Serial Bus) Type-C&132;&162; connectors & cables but as a single cable solution, creating one compact port that delivers the fastest connection to any dock display or data device. The only cable you need brings the limitless connectivity with you. Daisy-chain Multiple Devices GIGABYTE Thunderbolt&132;&162; motherboards allow users to daisy chain up to 12 devices simultaneously via an incredible bi-directional 40 Gbps data pipeline that

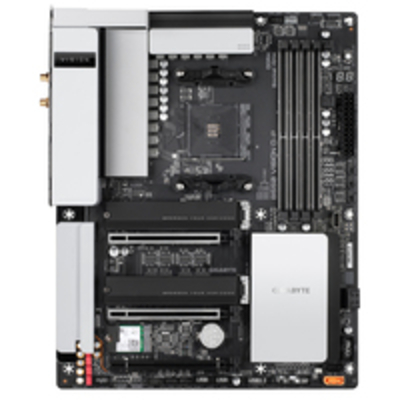

Includes:: both PCIe & Display Port traffic. It redefines desktop PC connectivity to make it far easier to connect multiple high-speed storage devices & HD displays to your PC than ever before. High-Bandwidth & Low-Latency Access-Layer Dual 2.5 Gb E Connectivity With both LAN ports designed, you'll benefit from increased bandwidth for speed, automated load balancing for smoother data flow, & instant failover if anything goes wrong. Adoption of dual 2.5G Ethernet provides an immediate boost to overall network performance, & greatly improves the bandwidth required at large file transfers, video editing, & professional workloads. Intel&174; Wi Fi 6 (Gig+) Make latency a thing of the past Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, fewer dropped connections, & speeds up to 2.4 Gbps. Wi-Fi 6 is designed to improve speed, increase efficiency, & reduce congestion in heavy bandwidth usage scenarios. Super Speed USB (Universal Serial Bus) 3.2 No Hassle Connection The back panel of B550 VISION D-P features with USB (Universal Serial Bus) 3.2 Gen 2 ports design, which is twice the bandwidth compared to its previous. Be enjoying ultimate connection flexibility & brilliant transfer speeds of up to 10 Gbps. Front-panel header with USB (Universal Serial Bus) 3.2 Gen 1 connectivity is ready for compatible devices. Cooling Technology Effective cooling solution is essential for a heavy design workload to get away with slow down, crashes, & unexpected shutdown. Unconventional Heatsinks is designed for better thermal dissipation but also aesthetically appealing to creators. Iconic curved heatsink covers the hottest VRM area to ensure efficient power delivery for stable performance. Creators transfer larger file with un-throttled storage performance by efficient M.2 heatsinks. Smart Fan 5 Eight hybrid fan headers & numerous temperature sensors are planted on the motherboard to monitor in real time & configure fan mode to fit different workloads via Smart Fan 5. Creators are allowed to set the trigger point to activate the fan & its corresponding speed. The fan completely stops when performing light tasks to avoid noise. PCI Express 4.0 Hardware Design For most prosumers & content creators, high bandwidth storage & high performance graphics card or accelerator cards are critical for their projects. This is especially true for 3D rendering & creating high resolution textures. To support most cutting edge devices, this motherboard uses the groundbreaking PCIe 4.0 hardware design. From PCB, several new IC to device connectors, everything that the PCIe 4.0 signal goes is a completely new generation, to make sure your content creation PC is future proof. PCIe Bandwidth Up to 31.5GB/s from new PCIe 4.0 x 16 slot designs for the next generation add on cards need tremendous bandwidth, including the graphics card, deep learning accelerator card, & the video capture card. SSD read speed Content creators workflows constantly involve huge files, such as images, videos, & 3D models. Time for editing, saving, & transferring those huge files can be substantially reduced with the new generation PCIe 4.0 SSD. PCIe M.2 Faster Speed. More Space. M.2 Drives keep the load times away. Breaking the barriers of SATA limitations. M.2 PCIe SSD gives you X7 faster data transferring experience compared to 2.5" SATA solid state drives. Dual NVMe PCIe x 4 M.2 M.2, the latest storage technology. GIGABYTE M.2 solution offers considerably faster storage performance & provides an ideal storage with RAID modes. To feature PCIe 4.0*/3.0 x 4 & PCIe 3.0 x 4 M.2 connectors for offering the best compatibility in terms of NVMe storage for creators who demand high capacity & seek the best performance. M.2 Ultra Cool With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. This unique M.2 Thermal Guard prevents throttling & bottlenecks from M.2 devices as it helps to reduce & dissipate heat before it becomes an issue. DTS:X&174; Ultra Immersive sounds to go DTS:X Ultra is capable of delivering consumers a truly premium entertainment experience by completely surrounding the listener & expanding the sound stage to create a more immersive environment. Supports channel-based, scene based, & object-based audio. Also, it takes movies, music, & interactive gaming experiences to an exciting new level.\n\n\n\n Technical details Motherboard chipset family AMDMotherboard chipset AMD B550 Supported processor sockets Socket AM4 Serial port headers 1PC health monitoring CPU, Fan, LED, Temperature, Voltage Parallel processing technology support Cross Fire X, Quad-GPU Cross Fire XHDMI version 2.0 Motherboard form factor ATXComponent for PCNumber of mounting holes 9 Audio Audio output channels 7.1 channels Performance Number of HDDs supported 4 Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family AMDMotherboard chipset AMD B550RAID levels 0, 1, 10 Supported processor sockets Socket AM4PC health monitoring CPU, Fan, LED, Temperature, Voltage Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer AMDCompatible processor series AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9, AMD Ryzen Threadripper 3rd Gen Supported processor sockets Socket AM4 Processor socket Socket AM4 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel ECCYes Non-ECCYes Supported memory clock speeds 2133, 2400, 2667, 2933, 3200, 3333, 3400, 3600, 4000, 4400, 4600, 4866, 5000, 5100, 5200, 5400 MHz Supported memory module capacities 2GB, 4GB, 8GB, 16GB, 32GBMaximum internal memory 128 GBUnbuffered memory Yes Storage controllers Number of HDDs supported 4 Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATA IIIRAID levels 0, 1, 10 Number of storage drives supported 2 Graphics Maximum graphics adapter memory 16000 MBParallel processing technology support Cross Fire X, Quad-GPU Cross Fire X Maximum resolution 5120 x 2880 pixels HDCPYes Discrete graphics support Yes Internal I/OFront panel connector Yes 12V power connector Yes Supported storage drive interfaces M.2, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2TPM connector Yes Serial port headers 1 Number of SATA III connectors 4 Number of chassis fan connectors 2 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Display Port version 1.4USB connector type USB Type-A, USB (Universal Serial Bus) Type-CUSB 2.0 ports quantity 2 Wi Fi-AP antenna jack 2 Thunderbolt ports quantity 2S/PDIF out port Yes PS/2 ports quantity 1 Microphone in Yes Headphone outputs 1HDMI version 2.0HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 2 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Ethernet interface type 2.5 Gigabit Ethernet Bluetooth Yes Bluetooth version 5.0 Top Wi-Fi standard Wi-Fi 6 (802.11ax)WLAN controller model Intel Wi-Fi 6 AX200 Features Number of mounting holes 9 Windows operating systems supported Windows 10 x 64 Motherboard chipset family AMDMotherboard chipset AMD B550 Supported processor sockets Socket AM4PC health monitoring CPU, Fan, LED, Temperature, Voltage Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCAudio chip Realtek ALC1220-VBExpansion slots PCI Express x 16 slots 2PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 256 Mbit ACPI version 5.0 System Management BIOS (SMBIOS) version 2.7 Desktop Management Interface (DMI) version 2.7 Video Maximum graphics adapter memory 16000 MBMaximum resolution 5120 x 2880 pixels HDCPYes Discrete graphics support Yes Software Windows operating systems supported Windows 10 x 64 Bundled software Norton&174; Internet Security (OEM version) c Fos Speed Weight & dimensions Width 305 mm Depth 244 mm Packaging content Bundled software Norton&174; Internet Security (OEM version) c Fos Speed\n\n\n\n
