AMD introduces the latest Ryzen&132;&162; 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400-series motherboards perfectly fit the latest AMD Ryzen&132;&162; 2000 series processors' computing performance with more features & more control. Users can enjoy the benefits brought by AMD Ryzen&132;&162; 2000 series processors. \n\n AMD Store MI technology\n GIGABYTE 400-series maximize your PC's potential with AMD Store MI technology. Store MI accelerates traditional storage devices to reduce boot times & enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, & transforms the everyday PC to a performance driven system. \n\n The benefits of AMD Store MI:\n&162; Making the PC experience fast, smooth & easy\n&162; Optimizing computer responsiveness from system boot to application launch\n&162; Offering SSD performance with HDD capacity at an affordable cost\n&162; Quickly accessing key files by automatically learning users' computing behaviors\n\n AORUS PERFORMANCE\n\n Hybrid Digital PWM + Lower RDS (on) MOSFETs\n AORUS 400-series motherboards use Hybrid Digital PWM + Lower RDS (on) MOSFETs design to support the 2nd Gen AMD Ryzen&132;&162; processors by offering incredible precision in developing power of the motherboard&153;s most power-hungry & energy-sensitive components as well as delivering enhanced system performance & ultimate hardware scalability.\n\n Extreme Performance with NVMe PCIe Gen 3 x 4, x 2 SSDs\n With Dual M.2s available on the AORUS 400-series motherboards, configuring RAID Arrays has never been simpler.\n\n GIGABYTE Ultra-Efficient M.2 Thermal Guard\n With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling & bottlenecks from M.2 devices as it helps to reduce & dissipate heat before it becomes an issue.\n\n Exclusive Realtek 8118 Gaming LAN\n High Speed Gigabit LAN with Automatic Bandwidth Allocation\n Realtek 8118 LAN is a high performance & friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features & the fastest & smoothest Internet experience. \n\n RGB Fusion with Digital LEDs Support\n With AORUS Motherboards, RGB Fusion is even better with Digital LEDs. RGB Fusion offers users the option to control onboard RGB & external RGBW / Digital LED light strips for their PC. Already feature filled with colors & patterns, RGB Fusion on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, & illuminations.\n AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips & up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns & various speed settings with more to come. \n\n Multi-Zone Light Show Design\n Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support & a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.\n\n Supports RGBW & UV Light Strips\n Independently Programmable Onboard Pin Header for RGBW/UV LED Strips\n Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header & control its color from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter & more vibrant shades of colors.\n\n Smart Fan 5\n With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.\n\n Intelligent Fan Control Design\n Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, & at what temperature"all of it can be customized to your liking. \n\n Hybrid Fan Pin Headers\n Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers"giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. \n\n New Smart Fan 5 Software\n Choose from different modes, Quiet to Full Speed, to match your system usage scenario.\n For each fan or pump, you can use the intuitive fan curve to define trigger thresholds & corresponding fan speeds.\n\n High Quality Onboard Audio Design\n Delivers high quality sound resolution & sound expansion to create the most realistic sound effects for professional gamers. \n\n Integrated I/O Shield Armor\n Durable Design & Easy Installation\n With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier & convenient. Users can expect excellent durability with the durable design of the pre-installed I/O shield. \n\n Solid Pin Power Connectors\n Make Good Connection & Significantly Lower the Wires Capacity\n AORUS 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading. \n\n Refreshed BIOS\n The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI & easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.\n\n CEC 2019 Ready\n Save the power as easy as one click\n CEC Requirement: PC power consumption must be under a certain level when it's in off mode, idle mode, st&-by mode. With high power efficiency hardware components & fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode & fully comply with new CEC 2019 (California Energy Commission) power consumption requirement. \n\n 4K Ultra HD Support\n 4K resolution is the next technological milestone in high-definition content delivery, utilizing Approx. 4, 000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon&174; Graphics via HDMI. \n\n HDMI&132;&162;
- The Next Generation Multimedia Interface\n HDMI&132;&162; is a High-Definition Multimedia Interface which provides up to 5 Gb/s video transmitting bandwidth & 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video & audio, HDMI&132;&162; ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces & their digital-to-analog conversion. In addition, HDMI&132;&162; is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD & other protected media content.\n\n- Supports AMD 2nd Generation Ryzen&132;&162;/ Ryzen&132;&162; with Radeon&132;&162; Vega Graphics/ 1st Generation Ryzen&132;&162; Processors\n- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs\n- HDMI, DVI-D Ports for Multiple Display\n- Integrated I/O Shield of Ultra Durable&132;&162; Design\n- Dual Ultra-Fast NVMe PCIe Gen 3 M.2 (x 4, x 2) with One Thermal Guard\n- High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting\n- RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips\n- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management\n- Smart Fan 5 Features 6 Temperature Sensors & 4 Hybrid Fan Headers with FAN STOP\n- APP Center Including Easy Tune&132;&162; & Cloud Station&132;&162; Utilities\n- CEC 2019 Ready, Save Power with a Simple Click Feature Feature Value Processor manufacturer AMDProcessor socket Socket AM4 Compatible processor series AMD Ryzen Supported memory types DDR4-SDRAMNumber of memory slots 4 Memory slots type DIMMSupported memory clock speeds 2133, 2400, 2667, 2933 MHz Maximum internal memory 64 GBMemory channels Dual ECCYNon-ECCYUnbuffered memory Y Supported storage drive types SSDRAID levels 0, 1, 10 Parallel processing technology support Cross Fire Maximum resolution 4096 x 2160 pixels HDCPYUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 Number of SATA III connectors 6S/PDIF out connector Y Front panel audio connector Y Front panel connector YATX Power connector (24-pin)YCPU fan connector Y Number of chassis fan connectors 3TPM connector Y Serial port headers 112V power connector YRGB LED pin header YUSB 2.0 ports quantity 4USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 Ethernet LAN (RJ-45) ports 1PS/2 ports quantity 1HDMI ports quantity 1DVI-D ports quantity 1 Headphone outputs 6 Ethernet LANYEthernet interface type Gigabit Ethernet Component for PCMotherboard form factor ATXMotherboard chipset family AMDMotherboard chipset AMD B450 Audio output channels 7.1 channels Audio chip Realtek ALC892 Windows operating systems supported Windows 10, Windows 7 Certification CE, FCCPCI Express x 1 slots 2PCI Express x 16 slots 2 Number of M.2 (M) slots 2BIOS type UEFI AMIBIOS memory size 128 Mbit ACPI version 5.0 Clear CMOS jumper Y Plug & Play Y Desktop Management Interface (DMI) version 2.7 System management BIOS (SMBIOS) version 2.7 Intel&174; High Definition Audio (Intel&174; HD Audio)YIntel Extreme Memory Profile (XMP)YWidth 305 mm Depth 235 mm
...

AMD introduces the latest Ryzen&132;&162; 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400-series motherboards perfectly fit the latest AMD Ryzen&132;&162; 2000 series processors' computing performance with more features & more control. Users can enjoy the benefits brought by AMD Ryzen&132;&162; 2000 series processors.\n\n AMD Store MI technology\n GIGABYTE 400-series maximize your PC's potential with AMD Store MI technology. Store MI accelerates traditional storage devices to reduce boot times & enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, & transforms the everyday PC to a performance driven system. \n\n The benefits of AMD Store MI:\n- Making the PC experience fast, smooth & easy\n- Optimizing computer responsiveness from system boot to application launch\n- Offering SSD performance with HDD capacity at an affordable cost\n- Quickly accessing key files by automatically learning users' computing behaviors\n\n Hybrid Digital PWM + Lower RDS (on) MOSFETs\n AORUS 400-series motherboards use Hybrid Digital PWM + Lower RDS (on) MOSFETs design to support the 2nd Gen AMD Ryzen&132;&162; processors by offering incredible precision in developing power of the motherboard&153;s most power-hungry & energy-sensitive components as well as delivering enhanced system performance & ultimate hardware scalability.\n\n Fast Onboard Storage with NVMe \n PCIe Gen 3 x 4 110mm M.2 (Up to 32 Gb/s)\n GIGABYTE' M.2 solution offers considerably faster storage performance & support for both PCIe & SATA interfaces for M.2 SSD devices.\n\n AORUS M.2 Thermal Guard\n GIGABYTE Ultra-Efficient M.2 Thermal Guard\n With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling & bottlenecks from M.2 devices as it helps to reduce & dissipate heat before it becomes an issue.\n\n Native USB (Universal Serial Bus) 3.1 Gen 2\n AMD 400-series chipset provides native USB (Universal Serial Bus) 3.1 Gen 2 ports with speeds up to 10 Gbps. Available over the USB (Universal Serial Bus) Type-A connector, the USB3.1 Gen 2 is much enhanced with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 & USB3.1 Gen 1.\n\n Exclusive Realtek 8118 Gaming LAN\n High Speed Gigabit LAN with Automatic Bandwidth Allocation\n Realtek 8118 LAN is a high performance & friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features & the fastest & smoothest Internet experience.\n\n RGB Fusion with Digital LEDs Support\n With AORUS Motherboards, RGB Fusion is even better with Digital LEDs. RGB Fusion offers users the option to control onboard RGB & external RGBW / Digital LED light strips for their PC. Already feature filled with colors & patterns, RGB Fusion on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, & illuminations. \n\n AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips & up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns & various speed settings with more to come.\n\n Supports RGBW & UV Light Strips\n Independently Programmable Onboard Pin Header for RGBW/UV LED Strips\n Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header & control its color from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter & more vibrant shades of colors.\n\n Smart Fan 5\n With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.\n\n Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, & at what temperature"all of it can be customized to your liking.\n\n Hybrid Fan Pin Headers\n Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers"giving you absolute mastery over your PC. \n All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.\n\n New Smart Fan 5 Software\n Choose from different modes, Quiet to Full Speed, to match your system usage scenario. \n For each fan or pump, you can use the intuitive fan curve to define trigger thresholds & corresponding fan speeds.\n\n Fan Curve \n Customize fan curves based on specific temperatures with the intuitive graphical UI.\n\n Interoperable Sensors & Fans \n Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).\n\n High Quality Onboard Audio Design\n Delivers high quality sound resolution & sound expansion to create the most realistic sound effects for professional gamers.\n\n Solid Pin Power Connectors\n Make Good Connection & Significantly Lower the Wires Capacity\n AORUS 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.\n\n Refreshed BIOS\n The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI & easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.\n\n Tri Def &174; Smart Cam &pipe; Custom Stream Modding\n To facilitate being the full streaming solution each AORUS motherboard

Includes:: Tri Def &174; Smart Cam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the Smart Cam application you can now apply live filters, & fully control your background, not only while streaming, but also through other video applications such as Skype.\n\n Save the power as easy as one click\n CEC Requirement: PC power consumption must be under a certain level when it's in off mode, idle mode, st&-by mode. With high power efficiency hardware components & fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode & fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.\n\n 4K Ultra HD Support\n 4K resolution is the next technological milestone in high-definition content delivery, utilizing Approx. 4, 000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel &174; HD Graphics via HDMI.\n\n HDMI&132;&162;
- The Next Generation Multimedia Interface\n HDMI&132;&162; is a High-Definition Multimedia Interface which provides up to 5 Gb/s video transmitting bandwidth & 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video & audio, HDMI&132;&162; ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces & their digital-to-analog conversion. In addition, HDMI&132;&162; is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD & other protected media content.\n\n- Supports AMD 2nd Generation Ryzen&132;&162;/ Ryzen&132;&162; with Radeon&132;&162; Vega Graphics/ 1st Generation Ryzen&132;&162; Processors\n- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs\n- HDMI, DVI-D Ports for Multiple Display\n- Ultra-Fast NVMe PCIe Gen 3 x 4 M.2 with Thermal Guard\n- High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting\n- RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips\n- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management\n- Smart Fan 5 Features 5 Temperature Sensors & 3 Hybrid Fan Headers with FAN STOP\n- APP Center Including Easy Tune&132;&162; & Cloud Station&132;&162; Utilities\n- Anti-Sulfur Resistors Design Feature Feature Value Processor manufacturer AMDProcessor socket Socket AM4 Compatible processor series AMD Ryzen Maximum number of SMP processors 1 Supported memory types DDR4-SDRAMNumber of memory slots 4 Memory slots type DIMMSupported memory clock speeds 2133, 2400, 2667, 2933, 3200 MHz Maximum internal memory 64 GBMemory channels Dual ECCYNon-ECCYUnbuffered memory Y Supported storage drive types HDD, SSDHDD size 2.5/3.5" Number of HDDs supported 6RAID levels 0, 1, 10 Parallel processing technology support 2-Way Cross Fire X Maximum graphics adapter memory 16384 MBMaximum resolution 4096 x 2160 pixels HDCPYUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 Number of SATA III connectors 6S/PDIF out connector Y Front panel audio connector Y Front panel connector YATX Power connector (24-pin)YCPU fan connector Y Number of chassis fan connectors 2EPS power connector (8-pin)YTPM connector Y Parallel connector Y Serial port headers 1RGB LED pin header YUSB 2.0 ports quantity 2USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Ethernet LAN (RJ-45) ports 1PS/2 ports quantity 1HDMI ports quantity 1DVI-D ports quantity 1 Headphone outputs 1 Microphone in Y Ethernet LANYEthernet interface type Gigabit Ethernet Component for PCMotherboard form factor Micro ATXMotherboard chipset family AMDMotherboard chipset AMD B450 Audio output channels 7.1 channels Audio chip Realtek ALC892PC health monitoring FAN, Temperature, Voltage Cooling type Passive Power source type ATXWindows operating systems supported Windows 10 Education x 64, Windows 10 Enterprise x 64, Windows 10 Home x 64, Windows 10 Pro x 64, Windows 7 Enterprise x 64, Windows 7 Home Basic x 64, Windows 7 Home Premium x 64, Windows 7 Professional x 64, Windows 7 Starter x 64, Windows 7 Ultimate x 64, Windows 7 x 64PCI Express x 1 slots 1PCI Express x 16 (Gen 3.x) slots 2 Number of M.2 (M) slots 1BIOS type UEFI AMIBIOS memory size 32 Mbit ACPI version 5.0 Clear CMOS jumper Y Desktop Management Interface (DMI) version 2.7 System management BIOS (SMBIOS) version 2.7 Intel Extreme Memory Profile (XMP)YWidth 244 mm Depth 244 mm Cables included SATAQuick installation guide Y Manual Y Drivers included Y Bundled software Norton Internet Security (OEM version)n Realtek 8118 Gaming LAN Bandwidth Control Utility


...

AMD introduces the latest Ryzen&132;&162; 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400-series motherboards perfectly fit the latest AMD Ryzen&132;&162; 2000 series processors' computing performance with more features & more control. Users can enjoy the benefits brought by AMD Ryzen&132;&162; 2000 series processors.\n\n AMD Store MI technology\n GIGABYTE 400-series maximize your PC's potential with AMD Store MI technology. Store MI accelerates traditional storage devices to reduce boot times & enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, & transforms the everyday PC to a performance driven system. \n\n The benefits of AMD Store MI:\n- Making the PC experience fast, smooth & easy\n- Optimizing computer responsiveness from system boot to application launch\n- Offering SSD performance with HDD capacity at an affordable cost\n- Quickly accessing key files by automatically learning users' computing behaviors\n\n Hybrid Digital PWM + Lower RDS (on) MOSFETs\n AORUS 400-series motherboards use Hybrid Digital PWM + Lower RDS (on) MOSFETs design to support the 2nd Gen AMD Ryzen&132;&162; processors by offering incredible precision in developing power of the motherboard&153;s most power-hungry & energy-sensitive components as well as delivering enhanced system performance & ultimate hardware scalability.\n\n Fast Onboard Storage with NVMe \n PCIe Gen 3 x 4 110mm M.2 (Up to 32 Gb/s)\n GIGABYTE' M.2 solution offers considerably faster storage performance & support for both PCIe & SATA interfaces for M.2 SSD devices.\n\n AORUS M.2 Thermal Guard\n GIGABYTE Ultra-Efficient M.2 Thermal Guard\n With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling & bottlenecks from M.2 devices as it helps to reduce & dissipate heat before it becomes an issue.\n\n Native USB (Universal Serial Bus) 3.1 Gen 2\n AMD 400-series chipset provides native USB (Universal Serial Bus) 3.1 Gen 2 ports with speeds up to 10 Gbps. Available over the USB (Universal Serial Bus) Type-A connector, the USB3.1 Gen 2 is much enhanced with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 & USB3.1 Gen 1.\n\n Exclusive Realtek 8118 Gaming LAN\n High Speed Gigabit LAN with Automatic Bandwidth Allocation\n Realtek 8118 LAN is a high performance & friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features & the fastest & smoothest Internet experience.\n\n RGB Fusion with Digital LEDs Support\n With AORUS Motherboards, RGB Fusion is even better with Digital LEDs. RGB Fusion offers users the option to control onboard RGB & external RGBW / Digital LED light strips for their PC. Already feature filled with colors & patterns, RGB Fusion on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, & illuminations. \n\n AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips & up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns & various speed settings with more to come.\n\n Supports RGBW & UV Light Strips\n Independently Programmable Onboard Pin Header for RGBW/UV LED Strips\n Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header & control its color from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter & more vibrant shades of colors.\n\n Smart Fan 5\n With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.\n\n Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, & at what temperature"all of it can be customized to your liking.\n\n Hybrid Fan Pin Headers\n Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers"giving you absolute mastery over your PC. \n All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.\n\n New Smart Fan 5 Software\n Choose from different modes, Quiet to Full Speed, to match your system usage scenario. \n For each fan or pump, you can use the intuitive fan curve to define trigger thresholds & corresponding fan speeds.\n\n Fan Curve \n Customize fan curves based on specific temperatures with the intuitive graphical UI.\n\n Interoperable Sensors & Fans \n Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).\n\n High Quality Onboard Audio Design\n Delivers high quality sound resolution & sound expansion to create the most realistic sound effects for professional gamers.\n\n Solid Pin Power Connectors\n Make Good Connection & Significantly Lower the Wires Capacity\n AORUS 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.\n\n Refreshed BIOS\n The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI & easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.\n\n Tri Def &174; Smart Cam &pipe; Custom Stream Modding\n To facilitate being the full streaming solution each AORUS motherboard

Includes:: Tri Def &174; Smart Cam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the Smart Cam application you can now apply live filters, & fully control your background, not only while streaming, but also through other video applications such as Skype.\n\n Save the power as easy as one click\n CEC Requirement: PC power consumption must be under a certain level when it's in off mode, idle mode, st&-by mode. With high power efficiency hardware components & fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode & fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.\n\n 4K Ultra HD Support\n 4K resolution is the next technological milestone in high-definition content delivery, utilizing Approx. 4, 000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel &174; HD Graphics via HDMI.\n\n HDMI&132;&162;
- The Next Generation Multimedia Interface\n HDMI&132;&162; is a High-Definition Multimedia Interface which provides up to 5 Gb/s video transmitting bandwidth & 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video & audio, HDMI&132;&162; ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces & their digital-to-analog conversion. In addition, HDMI&132;&162; is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD & other protected media content.\n\n- Supports AMD 2nd Generation Ryzen&132;&162;/ Ryzen&132;&162; with Radeon&132;&162; Vega Graphics/ 1st Generation Ryzen&132;&162; Processors\n- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs\n- HDMI, DVI-D Ports for Multiple Display\n- Ultra-Fast NVMe PCIe Gen 3 x 4 M.2 with Thermal Guard\n- High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting\n- RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips\n- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management\n- Smart Fan 5 Features 5 Temperature Sensors & 3 Hybrid Fan Headers with FAN STOP\n- APP Center Including Easy Tune&132;&162; & Cloud Station&132;&162; Utilities\n- Anti-Sulfur Resistors Design Feature Feature Value Processor manufacturer AMDProcessor socket Socket AM4 Compatible processor series AMD Ryzen Maximum number of SMP processors 1 Supported memory types DDR4-SDRAMNumber of memory slots 4 Memory slots type DIMMSupported memory clock speeds 2133, 2400, 2667, 2933, 3200 MHz Maximum internal memory 64 GBMemory channels Dual ECCYNon-ECCYUnbuffered memory Y Supported storage drive types HDD, SSDHDD size 2.5/3.5" Number of HDDs supported 6RAID levels 0, 1, 10 Parallel processing technology support 2-Way Cross Fire X Maximum graphics adapter memory 16384 MBMaximum resolution 4096 x 2160 pixels HDCPYUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 Number of SATA III connectors 6S/PDIF out connector Y Front panel audio connector Y Front panel connector YATX Power connector (24-pin)YCPU fan connector Y Number of chassis fan connectors 2EPS power connector (8-pin)YTPM connector Y Parallel connector Y Serial port headers 1RGB LED pin header YUSB 2.0 ports quantity 2USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Ethernet LAN (RJ-45) ports 1PS/2 ports quantity 1HDMI ports quantity 1DVI-D ports quantity 1 Headphone outputs 1 Microphone in Y Ethernet LANYEthernet interface type Gigabit Ethernet Component for PCMotherboard form factor Micro ATXMotherboard chipset family AMDMotherboard chipset AMD B450 Audio output channels 7.1 channels Audio chip Realtek ALC892PC health monitoring FAN, Temperature, Voltage Cooling type Passive Power source type ATXWindows operating systems supported Windows 10 Education x 64, Windows 10 Enterprise x 64, Windows 10 Home x 64, Windows 10 Pro x 64, Windows 7 Enterprise x 64, Windows 7 Home Basic x 64, Windows 7 Home Premium x 64, Windows 7 Professional x 64, Windows 7 Starter x 64, Windows 7 Ultimate x 64, Windows 7 x 64PCI Express x 1 slots 1PCI Express x 16 (Gen 3.x) slots 2 Number of M.2 (M) slots 1BIOS type UEFI AMIBIOS memory size 32 Mbit ACPI version 5.0 Clear CMOS jumper Y Desktop Management Interface (DMI) version 2.7 System management BIOS (SMBIOS) version 2.7 Intel Extreme Memory Profile (XMP)YWidth 244 mm Depth 244 mm Cables included SATAQuick installation guide Y Manual Y Drivers included Y Bundled software Norton Internet Security (OEM version)n Realtek 8118 Gaming LAN Bandwidth Control Utility


...

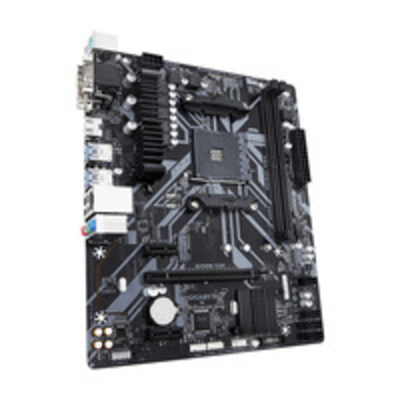

AMD B450 Ultra Durable Motherboard with Realtek&174; Gb E LAN with c Fos Speed, PCIe Gen 3 x 4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor, CEC 2019 ready\n\n AMD introduces the latest Ryzen&132;&162; 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400 series motherboards perfectly fit the latest AMD Ryzen&132;&162; 2000 series processors' computing performance with more features & more control. Users can enjoy the benefits brought by AMD Ryzen&132;&162; 2000 series processors.\n\n AMD Store MI technology\n GIGABYTE 400-series motherboards maximize your PC's potential with AMD Store MI technology. Store MI accelerates traditional storage devices to reduce boot times & enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, & transforms the everyday PC to a performance driven system. \n\n The benefits of AMD Store MI:\n&162; Making the PC experience fast, smooth & easy\n&162; Optimizing computer responsiveness from system boot to application launch\n&162; Offering SSD performance with HDD capacity at an affordable cost\n&162; Quickly accessing key files by automatically learning users' computing behaviors\n\n Fast Onboard Storage with NVMe\n PCIe Gen 3 x 4 110mm M.2 (Up to 32 Gb/s)\n GIGABYTE M.2 solution offers considerably faster storage performance & support for both PCIe & SATA interfaces* for M.2 SSD devices.\n\n Realtek Gb E LAN with c Fos Speed Internet Accelerator Software\n Realtek Gigabit LAN features c Fos Speed, a network traffic management application which helps to improve network latency & maintain low ping times to deliver better responsiveness in crowded LAN environments.\n\n The Industry's Leading LAN Static-Electricity & Surge Protection\n GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard & its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, & your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular & inconsistent power delivery.\n\n Smart Fan 5\n With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.\n\n Hybrid Fan Pin Headers\n Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers"giving you absolute mastery over your PC. \n All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.\n\n Supports RGB Light Strips in 7 Colors\n Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!\n\n GIGABYTE RGB Fusion APP\n Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try & adjust colors & speeds for different modes, all this can be achieved away from the keyboard & monitor of their PC.\n\n Solid Pin Power Connectors\n Make Good Connection & Significantly Lower the Wires Capacity\n GIGABYTE 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.\n\n START SULFURIZATION PROTECTION\n Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change & causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.\n\n Humidity Protection Glass Fabric PCB\n There is nothing more harmful to the longevity of your PC than moisture, & most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid & damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit & system malfunction caused by humid & damp conditions.\n\n High Temperature Protection Lower RDS (on) MOSFETs Design\n GIGABYTE motherboards use Low RDS (on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users & the environment without impacting system performance.\n\n Tri Def &174; Smart Cam &pipe; Custom Stream Modding\n To facilitate being the full streaming solution each AORUS motherboard

Includes:: Tri Def &174; Smart Cam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the Smart Cam application you can now apply live filters, & fully control your background, not only while streaming, but also through other video applications such as Skype.\n\n CEC 2019 Ready\n Save the power as easy as one click\n CEC Requirement: PC power consumption must be under a certain level when it's in off mode, idle mode, st&-by mode. With high power efficiency hardware components & fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode & fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.\n\n- Supports AMD 2nd Generation Ryzen&132;&162;/ Ryzen&132;&162; with Radeon&132;&162; Vega Graphics/ 1st Generation Ryzen&132;&162; Processors\n- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs\n- HDMI, DVI-D Ports for Multiple Display\n- Ultra-Fast PCIe Gen 3 x 4 M.2 with PCIe NVMe & SATA mode support\n- High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting\n- RGB Fusion supports RGB LED Strips in 7-Colors\n- Realtek&174; Gigabit LAN with c Fos Speed Internet Accelerator Software\n- Smart Fan 5 Features 5 Temperature Sensors & 2 Hybrid Fan Headers with FAN STOP\n- APP Center Including Easy Tune&132;&162; & Cloud Station&132;&162; Utilities\n- CEC 2019 Ready, Save Power with a Single Click Feature Feature Value Processor manufacturer AMDProcessor socket Socket AM4 Compatible processor series AMD Ryzen Supported memory types DDR4-SDRAMNumber of memory slots 4 Memory slots type DIMMSupported memory clock speeds 2133, 2400, 2667, 2933, 3200 MHz Maximum internal memory 64 GBMemory channels Dual Supported memory module capacities 4GB, 8GB, 16GBUnbuffered memory Y Registered N Supported storage drive types HDD, SSDHDD size 2.5/3.5"USB 2.0 connectors 2USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 4 Front panel audio connector Y Front panel connector YATX Power connector (24-pin)YPower fan connector YCPU fan connector YEPS power connector (8-pin)YTPM connector Y Serial port headers 1RGB LED pin header YUSB 2.0 ports quantity 4USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 Ethernet LAN (RJ-45) ports 1PS/2 ports quantity 1HDMI ports quantity 1DVI-D ports quantity 1 Ethernet LANYEthernet interface type Gigabit Ethernet Component for PCMotherboard form factor Micro ATXMotherboard chipset family AMDMotherboard chipset AMD B450 Audio output channels 7.1 channels Windows operating systems supported Windows 10, Windows 7PCI Express x 1 slots 1PCI Express x 16 slots 2BIOS type UEFI AMIBIOS memory size 256 Mbit ACPI version 5.0 Desktop Management Interface (DMI) version 2.7 System management BIOS (SMBIOS) version 2.7 Width 244 mm Depth 215 mm Bundled software Norton Internet Security (OEM version)nc Fos Speed

...

AMD B450 Ultra Durable Motherboard with Realtek&174; Gb E LAN with c Fos Speed, PCIe Gen 3 x 4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor, CEC 2019 ready\n\n AMD introduces the latest Ryzen&132;&162; 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400 series motherboards perfectly fit the latest AMD Ryzen&132;&162; 2000 series processors' computing performance with more features & more control. Users can enjoy the benefits brought by AMD Ryzen&132;&162; 2000 series processors.\n\n AMD Store MI technology\n GIGABYTE 400-series motherboards maximize your PC's potential with AMD Store MI technology. Store MI accelerates traditional storage devices to reduce boot times & enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, & transforms the everyday PC to a performance driven system. \n\n The benefits of AMD Store MI:\n&162; Making the PC experience fast, smooth & easy\n&162; Optimizing computer responsiveness from system boot to application launch\n&162; Offering SSD performance with HDD capacity at an affordable cost\n&162; Quickly accessing key files by automatically learning users' computing behaviors\n\n Fast Onboard Storage with NVMe\n PCIe Gen 3 x 4 110mm M.2 (Up to 32 Gb/s)\n GIGABYTE M.2 solution offers considerably faster storage performance & support for both PCIe & SATA interfaces* for M.2 SSD devices.\n\n Realtek Gb E LAN with c Fos Speed Internet Accelerator Software\n Realtek Gigabit LAN features c Fos Speed, a network traffic management application which helps to improve network latency & maintain low ping times to deliver better responsiveness in crowded LAN environments.\n\n The Industry's Leading LAN Static-Electricity & Surge Protection\n GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard & its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, & your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular & inconsistent power delivery.\n\n Smart Fan 5\n With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.\n\n Hybrid Fan Pin Headers\n Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers"giving you absolute mastery over your PC. \n All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.\n\n Supports RGB Light Strips in 7 Colors\n Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!\n\n GIGABYTE RGB Fusion APP\n Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try & adjust colors & speeds for different modes, all this can be achieved away from the keyboard & monitor of their PC.\n\n Solid Pin Power Connectors\n Make Good Connection & Significantly Lower the Wires Capacity\n GIGABYTE 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.\n\n START SULFURIZATION PROTECTION\n Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change & causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.\n\n Humidity Protection Glass Fabric PCB\n There is nothing more harmful to the longevity of your PC than moisture, & most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid & damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit & system malfunction caused by humid & damp conditions.\n\n High Temperature Protection Lower RDS (on) MOSFETs Design\n GIGABYTE motherboards use Low RDS (on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users & the environment without impacting system performance.\n\n Tri Def &174; Smart Cam &pipe; Custom Stream Modding\n To facilitate being the full streaming solution each AORUS motherboard

Includes:: Tri Def &174; Smart Cam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the Smart Cam application you can now apply live filters, & fully control your background, not only while streaming, but also through other video applications such as Skype.\n\n CEC 2019 Ready\n Save the power as easy as one click\n CEC Requirement: PC power consumption must be under a certain level when it's in off mode, idle mode, st&-by mode. With high power efficiency hardware components & fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode & fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.\n\n- Supports AMD 2nd Generation Ryzen&132;&162;/ Ryzen&132;&162; with Radeon&132;&162; Vega Graphics/ 1st Generation Ryzen&132;&162; Processors\n- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs\n- HDMI, DVI-D Ports for Multiple Display\n- Ultra-Fast PCIe Gen 3 x 4 M.2 with PCIe NVMe & SATA mode support\n- High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting\n- RGB Fusion supports RGB LED Strips in 7-Colors\n- Realtek&174; Gigabit LAN with c Fos Speed Internet Accelerator Software\n- Smart Fan 5 Features 5 Temperature Sensors & 2 Hybrid Fan Headers with FAN STOP\n- APP Center Including Easy Tune&132;&162; & Cloud Station&132;&162; Utilities\n- CEC 2019 Ready, Save Power with a Single Click Feature Feature Value Processor manufacturer AMDProcessor socket Socket AM4 Compatible processor series AMD Ryzen Supported memory types DDR4-SDRAMNumber of memory slots 4 Memory slots type DIMMSupported memory clock speeds 2133, 2400, 2667, 2933, 3200 MHz Maximum internal memory 64 GBMemory channels Dual Supported memory module capacities 4GB, 8GB, 16GBUnbuffered memory Y Registered N Supported storage drive types HDD, SSDHDD size 2.5/3.5"USB 2.0 connectors 2USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 4 Front panel audio connector Y Front panel connector YATX Power connector (24-pin)YPower fan connector YCPU fan connector YEPS power connector (8-pin)YTPM connector Y Serial port headers 1RGB LED pin header YUSB 2.0 ports quantity 4USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 Ethernet LAN (RJ-45) ports 1PS/2 ports quantity 1HDMI ports quantity 1DVI-D ports quantity 1 Ethernet LANYEthernet interface type Gigabit Ethernet Component for PCMotherboard form factor Micro ATXMotherboard chipset family AMDMotherboard chipset AMD B450 Audio output channels 7.1 channels Windows operating systems supported Windows 10, Windows 7PCI Express x 1 slots 1PCI Express x 16 slots 2BIOS type UEFI AMIBIOS memory size 256 Mbit ACPI version 5.0 Desktop Management Interface (DMI) version 2.7 System management BIOS (SMBIOS) version 2.7 Width 244 mm Depth 215 mm Bundled software Norton Internet Security (OEM version)nc Fos Speed

...

AMD introduces the latest Ryzen&132;&162; 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400 series motherboards perfectly fit the latest AMD Ryzen&132;&162; 2000 series processors' computing performance with more features & more control. Users can enjoy the benefits brought by AMD Ryzen&132;&162; 2000 series processors.\n\n AMD Store MI technology\n GIGABYTE 400-series motherboards maximize your PC's potential with AMD Store MI technology. Store MI accelerates traditional storage devices to reduce boot times & enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, & transforms the everyday PC to a performance driven system.\n\n Fast Onboard Storage with NVMe\n PCIe Gen 3 x 4 80mm M.2 (Up to 32 Gb/s)\n GIGABYTE M.2 solution offers considerably faster storage performance & support for both PCIe & SATA interfaces* for M.2 SSD devices.\n\n Exclusive Realtek 8118 Gaming LAN\n High Speed Gigabit LAN with Automatic Bandwidth Allocation\n Realtek 8118 LAN is a high performance & friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features & the fastest & smoothest Internet experience.\n\n The Industry's Leading LAN Static-Electricity & Surge Protection\n GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard & its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, & your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular & inconsistent power delivery.\n\n Smart Fan 5\n With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.\n\n Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, & at what temperature"all of it can be customized to your liking.\n\n Hybrid Fan Pin Headers\n Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers"giving you absolute mastery over your PC.\n All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.\n\n Supports RGB Light Strips in 7 Colors\n Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!\n\n RGB Fusion (Advanced mode)\n RGB Calibration\n Different light strips sometimes have different RGB pin definitions, RGB Fusion softwear can relocate each pin location for the best compatibility.\n\n GIGABYTE RGB Fusion APP\n Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try & adjust colors & speeds for different modes, all this can be achieved away from the keyboard & monitor of their PC.\n\n High Quality Onboard Audio Design\n Delivers high quality sound resolution & sound expansion to create the most realistic sound effects for professional gamers.\n\n Solid Pin Power Connectors\n Make Good Connection & Significantly Lower the Wires Capacity\n GIGABYTE 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.\n\n START SULFURIZATION PROTECTION\n Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change & causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.\n\n Humidity Protection Glass Fabric PCB\n There is nothing more harmful to the longevity of your PC than moisture, & most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid & damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit & system malfunction caused by humid & damp conditions.\n\n High Temperature Protection Lower RDS (on) MOSFETs Design\n GIGABYTE motherboards use Low RDS (on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users & the environment without impacting system performance.\n\n Refreshed BIOS\n The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI & easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.\n\n X Split Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere\n Now set up your stage & share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats"keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!\n\n 4K Ultra HD Support\n 4K resolution is the next technological milestone in high-definition content delivery, utilizing Approx. 4, 000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon&174; Graphics via HDMI.\n\n HDMI&132;&162;
- The Next Generation Multimedia Interface\n HDMI&132;&162; is a High-Definition Multimedia Interface which provides up to 5 Gb/s video transmitting bandwidth & 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video & audio, HDMI&132;&162; ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces & their digital-to-analog conversion. In addition, HDMI&132;&162; is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD & other protected media content.\n\n- Supports AMD 2nd Generation Ryzen&132;&162;/ Ryzen&132;&162; with Radeon&132;&162; Vega Graphics/ 1st Generation Ryzen&132;&162; Processors\n- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs\n- HDMI, DVI-D, D-sub Ports for Multiple Display\n- Ultra-Fast PCIe Gen 3 x 4 M.2 with PCIe NVMe & SATA mode support\n- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management\n- RGB Fusion supports RGB LED Strips in 7-Colors\n- High Quality Audio Capacitors & Audio Noise Guard Design\n- Smart Fan 5 features 5 Temperature Sensors & 2 Hybrid Fan Headers\n- APP Center Including Easy Tune&132;&162; & Cloud Station&132;&162; Utilities Feature Feature Value Processor manufacturer AMDProcessor socket Socket AM4 Compatible processor series AMD Ryzen Supported memory types DDR4-SDRAMNumber of memory slots 2 Memory slots type DIMMSupported memory clock speeds 2133, 2400, 2667, 2933, 3200 MHz Maximum internal memory 32 GBMemory channels Dual ECCYNon-ECCYSupported storage drive interfaces M.2, Serial ATA IIISupported storage drive types HDD, SSDRAID levels 0, 1, 10 Maximum graphics adapter memory 2000 MBMaximum resolution 4096 x 2160 pixels USB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 Number of SATA III connectors 4S/PDIF out connector Y Front panel audio connector Y Front panel connector YATX Power connector (24-pin)YCPU fan connector Y Chassis intrusion connector YTPM connector Y12V power connector YUSB 2.0 ports quantity 2USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 Ethernet LAN (RJ-45) ports 1PS/2 ports quantity 2VGA (D-Sub) ports quantity 1HDMI ports quantity 1DVI-D ports quantity 1 Ethernet LANYEthernet interface type Fast Ethernet, Gigabit Ethernet Motherboard form factor Micro ATXMotherboard chipset family AMDMotherboard chipset AMD B450 Audio output channels 7.1 channels Audio chip Realtek ALC887 Windows operating systems supported Y Certification CE, FCCPCI Express x 1 slots 2PCI Express x 16 slots 1BIOS type UEFI AMIBIOS memory size 16 Mbit ACPI version 5.0 Clear CMOS jumper Y Plug & Play Y Desktop Management Interface (DMI) version 2.7 System management BIOS (SMBIOS) version 2.7 Intel Extreme Memory Profile (XMP)YWidth 244 mm Depth 205 mm Bundled software Norton&174; Internet Security (OEM version)n Realtek&174; 8118 Gaming LAN Bandwidth Control Utility
...

VISION Series motherboards are built for creator pc. It featured with reliable performance, impressive connectivity, expandable on graphics, & ultra-fast storage for creators to deal with heavy design workloads such as video editing & 3D rendering. It's the perfect fit for DIY creators to build their own ideal machine. ECC Memory To protect against data corruption Error Correction Code (ECC) memory corrects errors in your data as it passes in & out of memory to ensure reliability for critical applications. Multi-Card Support Make Your Expandability Flexible Multi-graphics configurations offer better graphics performance for applications which demand the highest frame rates without compromising on resolution. NVIDIA&174; QUADRO&174; Professional Graphics Supports NVIDIA&174; QUADRO&174; 3D Workstation Professional Graphics Solutions are designed & built specifically for artists, designers, & engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe&174; Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA & SOLIDWORKS, Siemens NX, PTC Creo, & many more. Thunderbolt&132;&162; 3 More Speed. More Pixels. More Possibilities. Thunderbolt&132;&162; 3 is the single most advanced port available. It uses USB (Universal Serial Bus) Type-C&132;&162; connectors & cables but as a single cable solution, creating one compact port that delivers the fastest connection to any dock display or data device. The only cable you need brings the limitless connectivity with you. Daisy-chain Multiple Devices GIGABYTE Thunderbolt&132;&162; motherboards allow users to daisy chain up to 12 devices simultaneously via an incredible bi-directional 40 Gbps data pipeline that

Includes:: both PCIe & Display Port traffic. It redefines desktop PC connectivity to make it far easier to connect multiple high-speed storage devices & HD displays to your PC than ever before. High-Bandwidth & Low-Latency Access-Layer Dual 2.5 Gb E Connectivity With both LAN ports designed, you'll benefit from increased bandwidth for speed, automated load balancing for smoother data flow, & instant failover if anything goes wrong. Adoption of dual 2.5G Ethernet provides an immediate boost to overall network performance, & greatly improves the bandwidth required at large file transfers, video editing, & professional workloads. Intel&174; Wi Fi 6 (Gig+) Make latency a thing of the past Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, fewer dropped connections, & speeds up to 2.4 Gbps. Wi-Fi 6 is designed to improve speed, increase efficiency, & reduce congestion in heavy bandwidth usage scenarios. Super Speed USB (Universal Serial Bus) 3.2 No Hassle Connection The back panel of B550 VISION D-P features with USB (Universal Serial Bus) 3.2 Gen 2 ports design, which is twice the bandwidth compared to its previous. Be enjoying ultimate connection flexibility & brilliant transfer speeds of up to 10 Gbps. Front-panel header with USB (Universal Serial Bus) 3.2 Gen 1 connectivity is ready for compatible devices. Cooling Technology Effective cooling solution is essential for a heavy design workload to get away with slow down, crashes, & unexpected shutdown. Unconventional Heatsinks is designed for better thermal dissipation but also aesthetically appealing to creators. Iconic curved heatsink covers the hottest VRM area to ensure efficient power delivery for stable performance. Creators transfer larger file with un-throttled storage performance by efficient M.2 heatsinks. Smart Fan 5 Eight hybrid fan headers & numerous temperature sensors are planted on the motherboard to monitor in real time & configure fan mode to fit different workloads via Smart Fan 5. Creators are allowed to set the trigger point to activate the fan & its corresponding speed. The fan completely stops when performing light tasks to avoid noise. PCI Express 4.0 Hardware Design For most prosumers & content creators, high bandwidth storage & high performance graphics card or accelerator cards are critical for their projects. This is especially true for 3D rendering & creating high resolution textures. To support most cutting edge devices, this motherboard uses the groundbreaking PCIe 4.0 hardware design. From PCB, several new IC to device connectors, everything that the PCIe 4.0 signal goes is a completely new generation, to make sure your content creation PC is future proof. PCIe Bandwidth Up to 31.5GB/s from new PCIe 4.0 x 16 slot designs for the next generation add on cards need tremendous bandwidth, including the graphics card, deep learning accelerator card, & the video capture card. SSD read speed Content creators workflows constantly involve huge files, such as images, videos, & 3D models. Time for editing, saving, & transferring those huge files can be substantially reduced with the new generation PCIe 4.0 SSD. PCIe M.2 Faster Speed. More Space. M.2 Drives keep the load times away. Breaking the barriers of SATA limitations. M.2 PCIe SSD gives you X7 faster data transferring experience compared to 2.5" SATA solid state drives. Dual NVMe PCIe x 4 M.2 M.2, the latest storage technology. GIGABYTE M.2 solution offers considerably faster storage performance & provides an ideal storage with RAID modes. To feature PCIe 4.0*/3.0 x 4 & PCIe 3.0 x 4 M.2 connectors for offering the best compatibility in terms of NVMe storage for creators who demand high capacity & seek the best performance. M.2 Ultra Cool With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. This unique M.2 Thermal Guard prevents throttling & bottlenecks from M.2 devices as it helps to reduce & dissipate heat before it becomes an issue. DTS:X&174; Ultra Immersive sounds to go DTS:X Ultra is capable of delivering consumers a truly premium entertainment experience by completely surrounding the listener & expanding the sound stage to create a more immersive environment. Supports channel-based, scene based, & object-based audio. Also, it takes movies, music, & interactive gaming experiences to an exciting new level.\n\n\n\n Technical details Motherboard chipset family AMDMotherboard chipset AMD B550 Supported processor sockets Socket AM4 Serial port headers 1PC health monitoring CPU, Fan, LED, Temperature, Voltage Parallel processing technology support Cross Fire X, Quad-GPU Cross Fire XHDMI version 2.0 Motherboard form factor ATXComponent for PCNumber of mounting holes 9 Audio Audio output channels 7.1 channels Performance Number of HDDs supported 4 Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family AMDMotherboard chipset AMD B550RAID levels 0, 1, 10 Supported processor sockets Socket AM4PC health monitoring CPU, Fan, LED, Temperature, Voltage Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer AMDCompatible processor series AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9, AMD Ryzen Threadripper 3rd Gen Supported processor sockets Socket AM4 Processor socket Socket AM4 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel ECCYes Non-ECCYes Supported memory clock speeds 2133, 2400, 2667, 2933, 3200, 3333, 3400, 3600, 4000, 4400, 4600, 4866, 5000, 5100, 5200, 5400 MHz Supported memory module capacities 2GB, 4GB, 8GB, 16GB, 32GBMaximum internal memory 128 GBUnbuffered memory Yes Storage controllers Number of HDDs supported 4 Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATA IIIRAID levels 0, 1, 10 Number of storage drives supported 2 Graphics Maximum graphics adapter memory 16000 MBParallel processing technology support Cross Fire X, Quad-GPU Cross Fire X Maximum resolution 5120 x 2880 pixels HDCPYes Discrete graphics support Yes Internal I/OFront panel connector Yes 12V power connector Yes Supported storage drive interfaces M.2, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2TPM connector Yes Serial port headers 1 Number of SATA III connectors 4 Number of chassis fan connectors 2 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Display Port version 1.4USB connector type USB Type-A, USB (Universal Serial Bus) Type-CUSB 2.0 ports quantity 2 Wi Fi-AP antenna jack 2 Thunderbolt ports quantity 2S/PDIF out port Yes PS/2 ports quantity 1 Microphone in Yes Headphone outputs 1HDMI version 2.0HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 2 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Ethernet interface type 2.5 Gigabit Ethernet Bluetooth Yes Bluetooth version 5.0 Top Wi-Fi standard Wi-Fi 6 (802.11ax)WLAN controller model Intel Wi-Fi 6 AX200 Features Number of mounting holes 9 Windows operating systems supported Windows 10 x 64 Motherboard chipset family AMDMotherboard chipset AMD B550 Supported processor sockets Socket AM4PC health monitoring CPU, Fan, LED, Temperature, Voltage Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCAudio chip Realtek ALC1220-VBExpansion slots PCI Express x 16 slots 2PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 256 Mbit ACPI version 5.0 System Management BIOS (SMBIOS) version 2.7 Desktop Management Interface (DMI) version 2.7 Video Maximum graphics adapter memory 16000 MBMaximum resolution 5120 x 2880 pixels HDCPYes Discrete graphics support Yes Software Windows operating systems supported Windows 10 x 64 Bundled software Norton&174; Internet Security (OEM version) c Fos Speed Weight & dimensions Width 305 mm Depth 244 mm Packaging content Bundled software Norton&174; Internet Security (OEM version) c Fos Speed\n\n\n\n

...

PERFORMANCEnn 5+3 Phases Pure Digital VRM Solution with Low RDS (on) MOSFETsn GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS (on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry & energy-sensitive components as well as delivering enhanced system performance & ultimate hardware scalability.nn CONNECTIVITYnn Dual NVMe PCIe 4.0/3.0 M.2 Connectorsn With NVMe PCIe 4.0/3.0 x 4 & PCIe 3.0 x 2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.nn Exclusive Realtek 8118 Gaming LANn High Speed Gigabit LAN with Automatic Bandwidth Allocationn Realtek 8118 LAN is a high performance & friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features & the fastest & smoothest Internet experience.nn HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Supportn HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 & offering 48 Gb/s of bandwidth " twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR & HDCP 2.3 support, to offer the best visual experience for viewers.nn COOLINGnn Enlarged MOSFET Heatsinkn- Enlarged MOSFET Heatsink ensures lower temperature.n- Pre-installed IO Shield for easier assembly.nn Smart Fan 5n With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.nn Intelligent Fan Control Designn Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, & at what temperature"all of it can be customized to your liking.nn Hybrid Fan Pin Headersn Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate & water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors"giving you absolute mastery over your PC.n- All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.nn New Smart Fan 5 Softwaren Choose from different modes, Quiet to Full Speed, to match your system usage preferences.n For each fan or pump, you can use the intuitive fan curve to define trigger thresholds & corresponding fan speeds.nn LIGHTINGnn RGB FUSION 2.0n With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB & external RGB / Addressable LED light strips for their PC build. Already feature filled with colors & patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, & illuminations.nn With B550 Motherboards support the external 5V Addressable LED lighting strips & up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns & various speed settings with more to come.nn With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style & show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.nn GIGABYTE RGB Fusion APPn Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try & adjust colors & speeds for different modes, all this can be achieved away from the keyboard & monitor of their PC.nn AUDIOnn High-End Audio Capacitorsn GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution & high fidelity audio to provide the most realistic sound effects for gamers.nn Audio Noise Guardn GIGABYTE motherboards feature an audio noise guard that essentially separates the board&153;s sensitive analog audio components from potential noise pollution at the PCB level.nn ULTRA DURABLEnn Q-Flash Plusn Update the BIOS easily without installing the CPU, memory & graphics card.n With GIGABYTE Q-Flash Plus, you don&153;t need to install the CPU, memory & graphics card nor enter the BIOS menu to flash the BIOS. Just download & save a new BIOS file (rename to gigabyte.bin) on the USB (Universal Serial Bus) flash drive, then press the dedicated Q-Flash Plus button & you&153;re good to go!nn Solid Pin Power Connectorsn B550 motherboards feature solid plated ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.nn Solid Pin Power connector advantagesn- Larger contact area for electricityn- More metal quantity to sustain higher power & generated heatn- Ultra durable & longer lifespannn START SULFURIZATION PROTECTIONn Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change & causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.nn GIGABYTE EXCELLENCEnn New User Interfacen All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.n My Favoritesn Add constantly used items into the favorite menu for quick access.n Storage Informationn Show all kinds of storage information including SATA, PCIE & M.2 interface.n Changelogn List all changes before saving & exiting bios. Quickly review overall settings modification.n Intuitive Load Line Curven Clearly show each loadline calibration setting in an intuitive curve graph.nn APP CENTERn GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities & drivers, you can choose any utility you want to install from APP CENTER & keep you updated with latest utilities & drivers version.nn Easy Tunen GIGABYTE's Easy Tune is a simple & easy-to-use interface that allows users to fine-tune their system settings or adjust system & memory clocks & voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.nn@BIOSn The GIGABYTE @BIOS app means that you can update your system&153;s BIOS from within Windows using a simple & slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also means that you can save your current BIOS to a file, recover your previous BIOS from an image & backup your BIOS to an image.nn System Information Viewern GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks & processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.nn X Split Gamecaster + Broadcaster: Cast Your Game Anytime, Anywheren Now set up your stage & share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats"keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!\n\n\n\n\n\n\n\n\n\n Model: B550M AORUS ELITE\n\n\n\n\n\n Manual: http://objects.icecat.biz/objects/mmo_80121216_1593682720_868_17208.pdf\n\n Product Video: https://youtu.be/449N8h 2 Gdl U\n\n\n\n\n\n ...

ULTIMATE POWER DESIGN\n To fully support the latest 3rd Gen AMD Ryzen&132;&162; processors, B550 AORUS motherboards equip with the ultimate power solution which is power balanced, digital & multiple phases. After countless experiments & testing, GIGABYTE presents the unbeatable B550 AORUS motherboards for enthusiast. No Compromise & never stop to achieve higher.\n\n UNPARALLELED PERFORMANCE\n GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it & implement on products. Adopting Daisy Chain, apply PCIe 4.0 components to get B550 motherboards ready to enter next generation & get upgrade.\n\n Memory Layout
- Daisy Chain Design\n With the optimized daisy-chain routing, the B550 motherboard provides a proven speed of DDR4-4000 M Hz & beyond with high density memory modules*. Optimized daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, providing professional gamers a denser & faster system memory experience.\n\n Dual NVMe M.2 PCIe SSDs in RAID 0 Support\n\n Performance with PCIe 4.0 x 4 + PCIe 3.0 x 4 NVMe PCIe SSDs\n B550 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity & seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 6560 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.\n\n ADVANCED THERMAL SOLUTION\n Unthrottled performance is guaranteed by the advanced thermal solution which including Heatsinks & Thermal Guards. B550 motherboards are cool on MOSFETs & M.2 SSDs even on full loading. It provides lower temperatures for users.\n\n NEXT GENERATION CONNECTIVITY\n A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 AORUS motherboards provide all next generation network & storage to keep you up to speed.\n\n AORUS M.2 Thermal Guard\n\n GIGABYTE Ultra-Efficient M.2 Thermal Guard\n With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling & bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.\n\n Smart Fan 5\n With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.\n\n NEXT GENERATION CONNECTIVITY\n A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 AORUS motherboards provide all next generation network & storage to keep you up to speed.\n\n 2.5 Gb E LAN Onboard\n\n 2X Faster than ever\n Adoption of 2.5G LAN provide up to 2.5 Gb E network connectivity, with at least two times faster transfer speeds as compared to general 1 Gb E networking. It&153;s perfectly suit for gamers & streamer with ultimate & smooth online experience. It also backward compatible with Multi-Gig (10/100/1000/2500 Mbps)of RJ-45 ethernet.\n\n HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support\n HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 & offering 48 Gb/s of bandwidth " twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR & HDCP 2.3 support, to offer the best visual experience for viewers.\n\n Native USB (Universal Serial Bus) 3.2 Gen 2\n AMD B550 chipset provides native USB (Universal Serial Bus) 3.2 Gen 2 ports with speeds up to 10 Gbps. Available over the USB (Universal Serial Bus) Type-A connector, the USB3.2 Gen 2 is much enhanced with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 & USB3.2 Gen 1.\n\n HI-FI AUDIO SYSTEM\n For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high quality audio components to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.\n\n High-End Audio Capacitors\n GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution & high fidelity audio to provide the most realistic sound effects for gamers.\n\n Audio Noise Guard\n GIGABYTE motherboards feature an audio noise guard that essentially separates the board&153;s sensitive analog audio components from potential noise pollution at the PCB level.\n\n DEFINITIVE AESTHETICS\n B550 motherboards feature RGB FUSION 2.0 & offer the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make your PC unique & stylish.\n\n ULTRA DURABLE\n GIGABYTE is reputable for its product durability & high standard of manufactured process. Needless to say, we use the best, high quality components on B550 motherboards & reinforce each part of components to be solid & durable.\n\n With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style & show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.\n\n GIGABYTE RGB Fusion APP\n Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try & adjust colors & speeds for different modes, all this can be achieved away from the keyboard & monitor of their PC.\n\n ULTRA DURABLE\n GIGABYTE is reputable for its product durability & high standard of manufactured process. Needless to say, we use the best, high quality components on B550 motherboards & reinforce each part of components to be solid & durable.\n\n GIGABYTE BIOS & APP CENTER\n Good software goes hand in hand with perfect hardware. B550 motherboards bundled several useful & intuitive software to help users to control every aspect of motherboard.\n\n Solid Pin Power Connectors\n B550 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.\n\n Q-Flash Plus\n Update the BIOS easily without installing the CPU, memory & graphics card.\n\n GIGABYTE BIOS & APP CENTER\n Good software goes hand in hand with perfect hardware. B550 motherboards bundled several useful & intuitive software to help users to control every aspect of motherboard.\n\n X Split Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere\n Now set up your stage & share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats"keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!\n\n APP CENTER\n GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities & drivers, you can choose any utility you want to install from APP CENTER & keep updated with the latest utilities & drivers version.\n\n Easy Tune\n GIGABYTE's Easy Tune&132;&162; is a simple & easy-to-use interface that allows users to fine-tune their system settings or adjust system & memory clocks & voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.\n\n@BIOS\n The GIGABYTE @BIOS app means that you can update your system's BIOS from within Windows using a simple & slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also means that you can save your current BIOS to a file, recover your previous BIOS from an image & backup your BIOS to an image.\n\n System Information Viewer\n GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks & processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.\n\n\n\n\n\n Product Model: B550M AORUS PRO-P (rev. 1.0)\n\n\n
...

ULTIMATE POWER DESIGN\n To fully support the latest 3rd Gen AMD Ryzen&132;&162; processors, B550 AORUS motherboards equip with the ultimate power solution which is power balanced, digital & multiple phases. After countless experiments & testing, GIGABYTE presents the unbeatable B550 AORUS motherboards for enthusiast. No Compromise & never stop to achieve higher.\n\n UNPARALLELED PERFORMANCE\n GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it & implement on products. Adopting Daisy Chain, apply PCIe 4.0 components to get B550 motherboards ready to enter next generation & get upgrade.\n\n Memory Layout
- Daisy Chain Design\n With the optimized daisy-chain routing, the B550 motherboard provides a proven speed of DDR4-4000 M Hz & beyond with high density memory modules*. Optimized daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, providing professional gamers a denser & faster system memory experience.\n\n Dual NVMe M.2 PCIe SSDs in RAID 0 Support\n\n Performance with PCIe 4.0 x 4 + PCIe 3.0 x 4 NVMe PCIe SSDs\n B550 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity & seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 6560 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.\n\n ADVANCED THERMAL SOLUTION\n Unthrottled performance is guaranteed by the advanced thermal solution which including Heatsinks & Thermal Guards. B550 motherboards are cool on MOSFETs & M.2 SSDs even on full loading. It provides lower temperatures for users.\n\n NEXT GENERATION CONNECTIVITY\n A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 AORUS motherboards provide all next generation network & storage to keep you up to speed.\n\n AORUS M.2 Thermal Guard\n\n GIGABYTE Ultra-Efficient M.2 Thermal Guard\n With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling & bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.\n\n Smart Fan 5\n With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.\n\n NEXT GENERATION CONNECTIVITY\n A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 AORUS motherboards provide all next generation network & storage to keep you up to speed.\n\n 2.5 Gb E LAN Onboard\n\n 2X Faster than ever\n Adoption of 2.5G LAN provide up to 2.5 Gb E network connectivity, with at least two times faster transfer speeds as compared to general 1 Gb E networking. It&153;s perfectly suit for gamers & streamer with ultimate & smooth online experience. It also backward compatible with Multi-Gig (10/100/1000/2500 Mbps)of RJ-45 ethernet.\n\n HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support\n HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 & offering 48 Gb/s of bandwidth " twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR & HDCP 2.3 support, to offer the best visual experience for viewers.\n\n Native USB (Universal Serial Bus) 3.2 Gen 2\n AMD B550 chipset provides native USB (Universal Serial Bus) 3.2 Gen 2 ports with speeds up to 10 Gbps. Available over the USB (Universal Serial Bus) Type-A connector, the USB3.2 Gen 2 is much enhanced with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 & USB3.2 Gen 1.\n\n HI-FI AUDIO SYSTEM\n For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high quality audio components to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.\n\n High-End Audio Capacitors\n GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution & high fidelity audio to provide the most realistic sound effects for gamers.\n\n Audio Noise Guard\n GIGABYTE motherboards feature an audio noise guard that essentially separates the board&153;s sensitive analog audio components from potential noise pollution at the PCB level.\n\n DEFINITIVE AESTHETICS\n B550 motherboards feature RGB FUSION 2.0 & offer the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make your PC unique & stylish.\n\n ULTRA DURABLE\n GIGABYTE is reputable for its product durability & high standard of manufactured process. Needless to say, we use the best, high quality components on B550 motherboards & reinforce each part of components to be solid & durable.\n\n With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style & show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.\n\n GIGABYTE RGB Fusion APP\n Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try & adjust colors & speeds for different modes, all this can be achieved away from the keyboard & monitor of their PC.\n\n ULTRA DURABLE\n GIGABYTE is reputable for its product durability & high standard of manufactured process. Needless to say, we use the best, high quality components on B550 motherboards & reinforce each part of components to be solid & durable.\n\n GIGABYTE BIOS & APP CENTER\n Good software goes hand in hand with perfect hardware. B550 motherboards bundled several useful & intuitive software to help users to control every aspect of motherboard.\n\n Solid Pin Power Connectors\n B550 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.\n\n Q-Flash Plus\n Update the BIOS easily without installing the CPU, memory & graphics card.\n\n GIGABYTE BIOS & APP CENTER\n Good software goes hand in hand with perfect hardware. B550 motherboards bundled several useful & intuitive software to help users to control every aspect of motherboard.\n\n X Split Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere\n Now set up your stage & share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats"keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!\n\n APP CENTER\n GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities & drivers, you can choose any utility you want to install from APP CENTER & keep updated with the latest utilities & drivers version.\n\n Easy Tune\n GIGABYTE's Easy Tune&132;&162; is a simple & easy-to-use interface that allows users to fine-tune their system settings or adjust system & memory clocks & voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.\n\n@BIOS\n The GIGABYTE @BIOS app means that you can update your system's BIOS from within Windows using a simple & slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also means that you can save your current BIOS to a file, recover your previous BIOS from an image & backup your BIOS to an image.\n\n System Information Viewer\n GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks & processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.\n\n\n\n\n\n Product Model: B550M AORUS PRO-P (rev. 1.0)\n\n\n
...
