Intel&174; H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32 Gbps M.2 slot, Intel&174; 1 Gb Ethernet, Display Port, HDMI, D-Sub, USB (Universal Serial Bus) 3.2 Gen 1 Type-A, SATA 6 Gbps, & AURA Addressable Gen 2 headers\n\n\n\n Internal I/ONumber of M.2 (M) slots 1 Audio connector Yes 12V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1S/PDIF out connector Yes Peripheral (Molex) power connectors (4-pin)3 Number of SATA III connectors 4 Number of EATX power connectors 1 Number of COM connectors 1 Number of chassis fan connectors 2 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Number of displays supported 3 Motherboard chipset family Intel Motherboard chipset Intel H510HDMI version 2.0 Motherboard form factormicro ATXComponent for PCNumber of mounting holes 6 Audio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel H510 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCExpansion card interfaces Audio connector Yes Processor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel&174; Pentium&174; Maximum number of SMP processors 1 Processor socket LGA 1200 Memory Number of memory slots 2 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933 MHz Maximum internal memory 64 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATANumber of storage drives supported 5 Graphics Number of displays supported 3 Maximum resolution 4096 x 2304 pixels Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 Display Port version 1.4USB 2.0 ports quantity 4VGA (D-Sub) ports quantity 1PS/2 ports quantity 2 Microphone in Yes Headphone outputs 1HDMI version 2.0HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi No LAN controller Intel&174; I219-VEthernet interface type Gigabit Ethernet Features Power source type ATXNumber of mounting holes 6 Windows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel H510 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCAudio chip Realtek ALC887 / Realtek ALC897 Expansion slots Number of M.2 (M) slots 1PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 128 Mbit Power Power source type ATXVideo Maximum resolution 4096 x 2304 pixels Software Windows operating systems supported Windows 10 x 64 Drivers included Yes Weight & dimensions Width 226 mm Depth 211 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n ...

Intel&174; H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32 Gbps M.2 slot, Intel&174; Wi Fi 5, Intel&174; 1 Gb Ethernet, Display Port, HDMI, D-Sub, USB (Universal Serial Bus) 3.2 Gen 1 Type-A, SATA 6 Gbps, & AURA Addressable Gen 2 headers\n\n\n\n Internal I/ONumber of M.2 (M) slots 1 Audio connector Yes 12V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1TPM connector Yes S/PDIF out connector Yes Peripheral (Molex) power connectors (4-pin)3 Number of SATA III connectors 4 Number of EATX power connectors 1 Number of COM connectors 1 Number of chassis fan connectors 2 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Number of displays supported 3 Motherboard chipset family Intel Motherboard chipset Intel H510HDMI version 2.0 Motherboard form factormicro ATXComponent for PCNumber of mounting holes 6 Audio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel H510 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCExpansion card interfaces Audio connector Yes Processor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel&174; Pentium&174; Maximum number of SMP processors 1 Processor socket LGA 1200 Memory Number of memory slots 2 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933 MHz Maximum internal memory 64 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATANumber of storage drives supported 5 Graphics Number of displays supported 3 Maximum resolution 4096 x 2304 pixels Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 Display Port version 1.4USB 2.0 ports quantity 4 Wi Fi-AP antenna jack 2VGA (D-Sub) ports quantity 1PS/2 ports quantity 2 Microphone in Yes Headphone outputs 1HDMI version 2.0HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi Yes Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)LAN controller Intel&174; I219-VEthernet interface type Gigabit Ethernet Bluetooth Yes Bluetooth version 5.1 Top Wi-Fi standard Wi-Fi 5 (802.11ac)WLAN controller model Intel Dual Band Wireless-AC 9462 Features Power source type ATXNumber of mounting holes 6 Windows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel H510 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCAudio chip Realtek ALC887 / Realtek ALC897 Expansion slots Number of M.2 (M) slots 1PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 128 Mbit Power Power source type ATXVideo Maximum resolution 4096 x 2304 pixels Software Windows operating systems supported Windows 10 x 64 Drivers included Yes Weight & dimensions Width 226 mm Depth 211 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n ...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th & 11th Generation Intel&174; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, PRIME H510M-E provides daily users & DIY PC builders a range of performance tuning options via intuitive software & firmware features. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Search Function Quickly & easily find the option or setting you need. ASUS User Profile Port configuration settings between different BIOS versions or share them with friends. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. EZ XMP Improve DRAM performance with one click. Cool to the Core Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. Cooler by Design Prime H510 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS. Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert means that you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU- & CPU-intensive tasks. 4-Pin PWM/DC Fan Each onboard header supports PWM or DC mode. Build on a Solid Foundation Prime H510 series is built to handle the additional cores & increased bandwidth of 11th Generation Intel&174; Core&132;&162; processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. M.2 (up to 32 Gbps) M.2 slot supports data-transfer speeds of up to 32 Gbps via x 4 PCI Express 3.0 bandwidth, enabling quicker boot-up & app load times with OS or application drives. PCIe 4.0 ASUS H510 motherboards are designed specifically for 11th Generation Intel&174; Core&132;&162; CPUs & offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth & superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. USB (Universal Serial Bus) 3.2 Gen 1 Type-A Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including rear-panel USB (Universal Serial Bus) Type-A connectors with fast USB (Universal Serial Bus) 3.2 Gen 1 connectivity for compatible cases. Intel&174; 1 Gb Ethernet Intel&174; Ethernet Connection I219-V reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer. Small Details Make a Big Difference Prime H510 series adds the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look. Outstanding Audio Combined onboard features deliver elevated audio Intelligent design & premium hardware create audio quality unlike anything you've ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left & Right Tracks Ensures minimal crosstalk between audio paths. Premium Japanese Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard & mouse preferences. This software even features dedicated product registration & highlight to help you stay in touch with the ASUS community. Safe Slot Core Safe Slot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6X-stronger retention & 1.3X-greater shearing resistance than standard expansion slots. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies. DRAM Overcurrent Protection Short-circuit damage prevention Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless-Steel Back I/O 3X corrosion-resistance for greater durability Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels. LANGuard Pumped-up throughput 2.5X higher surge tolerance ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection. 1000+ Compatible devices & components The Prime H510 series provides superior compatibility with thousands of components & our Qualified Vendor List (QVL) identifies memory compatibility, giving you more choices for worry-free PC-building experiences. 8000+ Validation hours Every ASUS motherboards is subjected to more than 8, 000 hours of stringent tests, including burn-in, environmental, compatibility, software & safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.\n\n\n\n Internal I/ONumber of M.2 (M) slots 112V power connector Yes Supported storage drive interfaces M.2, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1TPM connector Yes S/PDIF out connector Yes Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 1 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel H510 Supported processor sockets LGA 1200 (Socket H5) Parallel processing technology support Not supported HDMI version 2.0 Motherboard form factormicro ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel H510 Supported processor sockets LGA 1200 (Socket H5) Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel Pentium GSupported processor sockets LGA 1200 (Socket H5) Processor socket LGA 1200 Memory Number of memory slots 2 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3200 MHz Maximum internal memory 64 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATA IIINumber of storage drives supported 5 Graphics Parallel processing technology support Not supported Maximum resolution 4096 x 2304 pixels Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 Display Port version 1.4USB connector type USB Type-AUSB 2.0 ports quantity 2VGA (D-Sub) ports quantity 1PS/2 ports quantity 2 Microphone in Yes Headphone outputs 3HDMI version 2.0HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi No Wake-on-LAN ready Yes LAN controller Intel&174; I219-VEthernet interface type Gigabit Ethernet Features Windows operating systems supported Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel H510 Supported processor sockets LGA 1200 (Socket H5) Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCAudio chip Realtek ALC887 / Realtek ALC897 Expansion slots Number of M.2 (M) slots 1PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIClear CMOS jumper Yes BIOS memory size 128 Mbit Video Maximum resolution 4096 x 2304 pixels Software Windows operating systems supported Windows 10 x 64 Drivers included Yes Weight & dimensions Width 226 mm Depth 211 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n ...

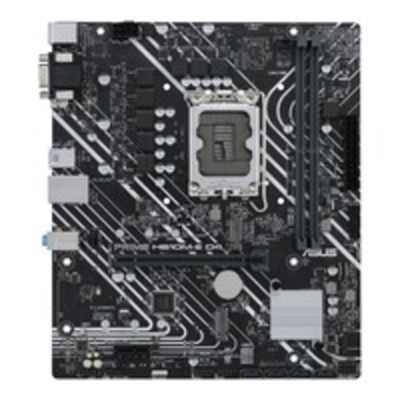

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel&174; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime H610 provides users & PC DIY builders a range of performance tuning options via intuitive software & firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. Intelligent Control All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption & maximizes energy savings with Away mode " a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. Flexible cooling controls Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click. Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency & power-efficiency settings. It also means that you can fine-tune your CPU for ultimate stability & performance. * Specifications vary by models. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. EZ XMP Improve DRAM performance with one click. Aura On/ Off Mode (Stealth) Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch. COOLING Prime H610 series are engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. Heatsinks VRM Heatsink & Thermal Pad VRM heatsink & thermal pad improve heat transfer from the MOSFETs & chokes for better cooling performance. Cooler by Design Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert 2+ means that you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU- & CPU-intensive tasks. Smart Protection A dedicated integrated circuit protects each fan header from overheating & overcurrent. 4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans. PERFORMANCE Prime H610 series are built to handle the additional cores & increased bandwidth of 12th Generation Intel&174; processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Storage Dual M.2 slots (up to 32 Gbps) Prime H610M-A D4 offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up & app load times with OS or application drives. * Actual transmission speeds will be lower than the theoretical maximum speed. Connectivity PCIe&174; 4.0 Prime H610 motherboards are designed specifically for 12th Generation Intel&174; Core&132;&162; CPUs & offer PCIe&174; 4.0 connectivity for the latest GPUs. The wide bandwidth & superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. USB (Universal Serial Bus) 3.2 Gen 2 ports Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including rear-panel USB (Universal Serial Bus) Type-A ports with fast USB (Universal Serial Bus) 3.2 Gen 2 for transmission speeds of up to 10 Gbps. Intel&174; 1 Gb Ethernet Intel&174; Ethernet Connection I219-V reduces CPU overhead & offers exceptionally high TCP & UDP throughput for faster, smoother data transfer. Personalization Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips & devices connected to the onboard RGB headers " & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 Headers Three addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community. Q-LED Core The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. Fortified PCIe slot prevents damage Safe Slot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safe Slot Core provides 1.6x stronger retention & 1.3x greater shearing resistance than standard expansion slots. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies. DRAM Overcurrent Protection Short-circuit damage prevention Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless-Steel Back I/O 3X corrosion-resistance for greater durability Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels. LANGuard Pumped-up throughput 2.5X higher surge tolerance ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection.\n\n\n\n Internal I/ONumber of M.2 (M) slots 212V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 1TPM connector Yes S/PDIF out connector Yes Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 2 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Number of displays supported 3 Motherboard chipset family Intel Motherboard chipset Intel H610HDMI version 2.1 Motherboard form factormicro ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64, Windows 11 x 64 Motherboard chipset family Intel Motherboard chipset Intel H610 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel&174; Pentium&174;, Intel&174; Pentium&174; Gold Maximum number of SMP processors 1 Processor socket LGA 1700 Memory Number of memory slots 2 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz Maximum internal memory 64 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATAGraphics Number of displays supported 3 Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 Display Port version 1.4USB 2.0 ports quantity 4VGA (D-Sub) ports quantity 1PS/2 ports quantity 2 Microphone in Yes Headphone outputs 1HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi No Ethernet interface type Gigabit Ethernet Features Windows operating systems supported Windows 10 x 64, Windows 11 x 64 Motherboard chipset family Intel Motherboard chipset Intel H610 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCExpansion slots Number of M.2 (M) slots 2PCI Express x 1 (Gen 3.x) slots 1PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIBIOS memory size 128 Mbit Software Windows operating systems supported Windows 10 x 64, Windows 11 x 64 Drivers included Yes Weight & dimensions Width 244 mm Depth 211 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n ...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel&174; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime H610 provides users & PC DIY builders a range of performance tuning options via intuitive software & firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. Intelligent Control All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption & maximizes energy savings with Away mode " a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. Flexible cooling controls Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert software. Auto-Tuning mode intelligently configures all parameters with a single click. Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency & power-efficiency settings. It also means that you can fine-tune your CPU for ultimate stability & performance. * Specifications vary by models. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. EZ XMP Improve DRAM performance with one click. COOLING Prime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. Cooler by Design Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS. Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert means that you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU- & CPU-intensive tasks. Smart Protection A dedicated integrated circuit protects each fan header from overheating & overcurrent. 4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans. PERFORMANCE Prime H610 series are built to handle the additional cores & increased bandwidth of 12th Generation Intel&174; processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Storage M.2 slot (up to 32 Gbps) Prime H610M-D D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up & app load times with OS or application drives. * Actual transmission speeds will be lower than the theoretical maximum speed. Connectivity PCIe&174; 4.0 Prime H610 motherboards are designed specifically for 12th Generation Intel&174; Core&132;&162; CPUs & offer PCIe&174; 4.0 connectivity for the latest GPUs. The wide bandwidth & superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. USB (Universal Serial Bus) 3.2 Gen 1 ports Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including rear-panel USB (Universal Serial Bus) Type-A ports with fast USB (Universal Serial Bus) 3.2 Gen 1 for transmission speeds of up to 5 Gbps. Audio Combined onboard features deliver elevated audio Intelligent design & premium hardware create audio quality unlike anything you've ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left & Right Tracks Ensures minimal crosstalk between audio paths. Premium Audio Capacitors Premium parts provide a sound signature with exceptional fidelity. Personalization Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard & mouse preferences. This software even features dedicated product registration & highlight to help you stay in touch with the ASUS community. Q-LED Core The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. Fortified PCIe slot prevents damage Safe Slot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safe Slot Core provides 1.6x stronger retention & 1.3x greater shearing resistance than standard expansion slots. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies. DRAM Overcurrent Protection Short-circuit damage prevention Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless-Steel Back I/O 3X corrosion-resistance for greater durability Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels. LANGuard Pumped-up throughput 2.5X higher surge tolerance ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection.\n\n\n\n Internal I/ONumber of M.2 (M) slots 112V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 1USB 3.2 Gen 1 (3.1 Gen 1) connectors 1TPM connector Yes S/PDIF out connector Yes Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 1 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Number of displays supported 2 Motherboard chipset family Intel Motherboard chipset Intel H610HDMI version 2.1 Motherboard form factormicro ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64, Windows 11 x 64 Motherboard chipset family Intel Motherboard chipset Intel H610 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel&174; Pentium&174;, Intel&174; Pentium&174; Gold Maximum number of SMP processors 1 Processor socket LGA 1700 Memory Number of memory slots 2 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz Maximum internal memory 64 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATAGraphics Number of displays supported 2 Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 2.0 ports quantity 4VGA (D-Sub) ports quantity 1PS/2 ports quantity 1 Microphone in Yes Headphone outputs 1HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Network Ethernet LANYes Wi-Fi No Ethernet interface type Gigabit Ethernet Features Windows operating systems supported Windows 10 x 64, Windows 11 x 64 Motherboard chipset family Intel Motherboard chipset Intel H610 Audio output channels 7.1 channels Motherboard form factormicro ATXComponent for PCExpansion slots Number of M.2 (M) slots 1PCI Express x 16 (Gen 3.x) slots 1PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIBIOS memory size 128 Mbit Software Windows operating systems supported Windows 10 x 64, Windows 11 x 64 Drivers included Yes Weight & dimensions Width 234 mm Depth 203 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n ...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel&174; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime H610 provides users & PC DIY builders a range of performance tuning options via intuitive software & firmware features.\n\n FLEXIBILITY\n Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.\n\n Intelligent Control\n\n All-Around Energy Efficiency\n The Energy Processing Unit (EPU) automatically optimizes power consumption & maximizes energy savings with Away mode " a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.\n\n Flexible cooling controls\n Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert software. Auto-Tuning mode intelligently configures all parameters with a single click.\n\n Precise Digital Power Control\n The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency & power-efficiency settings. It also means that you can fine-tune your CPU for ultimate stability & performance.\n* Specifications vary by models.\n\n UEFI BIOS\n The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.\n\n Advanced Tuning for Serious Tweakers\n An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.\n\n Quick & Simple Setup\n EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time.\n\n Intuitive Graphical Fan Control\n Fine-tune individual fan settings simply by dragging a curve with the mouse.\n\n EZ XMP\n Improve DRAM performance with one click.\n\n COOLING\n Prime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads.\n\n Cooler by Design\n Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.\n\n Multiple Temperature Sources\n Each header can dynamically reference three thermal sensors. Fan Xpert means that you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU- & CPU-intensive tasks.\n\n Smart Protection\n A dedicated integrated circuit protects each fan header from overheating & overcurrent.\n\n 4-Pin PWM/DC Fan\n Each onboard header supports auto-detection of PWM or DC fans.\n\n PERFORMANCE\n Prime H610 series are built to handle the additional cores & increased bandwidth of 12th Generation Intel&174; processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options.\n\n Storage\n M.2 slot (up to 32 Gbps)\n Prime H610M-K D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up & app load times with OS or application drives.\n* Actual transmission speeds will be lower than the theoretical maximum speed.\n\n Connectivity\n PCIe&174; 4.0\n Prime H610 motherboards are designed specifically for 12th Generation Intel&174; Core&132;&162; CPUs & offer PCIe&174; 4.0 connectivity for the latest GPUs. The wide bandwidth & superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.\n\n USB 3.2 Gen 1 Type-A\n Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including rear-panel USB (Universal Serial Bus) Type-A connectors with fast USB (Universal Serial Bus) 3.2 Gen 1 connectivity for compatible cases.\n\n CUSTOMIZATION\n Audio\n\n Combined onboard features deliver elevated audio\n Intelligent design & premium hardware create audio quality unlike anything you've ever experienced.\n\n Audio Shielding\n Separates analog/digital signal domains, significantly reducing multi-lateral interference.\n\n Separate Layer for Left & Right Tracks\n Ensures minimal crosstalk between audio paths.\n\n Personalization\n\n Armoury Crate\n\n Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard & mouse preferences. This software even features dedicated product registration & highlight to help you stay in touch with the ASUS community.\n\n Q-LED Core\n The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.\n\n Fortified PCIe slot prevents damage\n Safe Slot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safe Slot Core provides 1.6x stronger retention & 1.3x greater shearing resistance than standard expansion slots.\n\n Overvoltage Protection\n World-class circuit-protecting power design\n An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.\n\n DRAM Overcurrent Protection\n Short-circuit damage prevention\n Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices.\n\n Stainless-Steel Back I/O\n 3X corrosion-resistance for greater durability\n Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.\n\n LANGuard\n Pumped-up throughput 2.5X higher surge tolerance\n ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection.\n\n\n\n\n\n\n\n Model: PRIME H610M-K D4\n\n\n\n Manual: https://d 5bm 31en 4blvo.cloudfront.net/uploads/pdf/mmo_96535513_1641471854_3589_57824.pdf\n\n\n\n ...

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel&174; processors. Boasting a robust power design, comprehensive cooling solutions & intelligent tuning options, Prime H670 provides users & PC DIY builders a range of performance tuning options via intuitive software & firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS Prime series. The Prime H670 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. Intelligent Control All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption & maximizes energy savings with Away mode " a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. Flexible Air- & Liquid-Cooling Controls ASUS Fan Xpert 2+ software provides comprehensive control over fans, water pumps & all-in-one (Ai O) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There&153;s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps & Ai O coolers can also be controlled via the UEFI BIOS. Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency & power-efficiency settings. It also means that you can fine-tune your CPU for ultimate stability & performance. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak & tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, & various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Quick & Simple Setup EZ mode displays vital settings & stats & also offers guided wizards, drag-&-drop functionality, & one-click application of important settings " all to help you get your rig up & running in no time. AI Overclocking Enable AI Overclocking via a shortcut. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. Aura On/ Off Mode (Stealth) Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch. COOLING Prime H670 series are engineered with multiple onboard heatsinks & an array of hybrid fan headers to ensure your rig stays cool & stable under intense workloads. Heatsinks M.2 Heatsink M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws. VRM Heatsink & Thermal Pad VRM heatsink & thermal pad improve heat transfer from the MOSFETs & chokes for better cooling performance. Cooler by Design Prime H670 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert 2+ means that you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU- & CPU-intensive tasks. AIO pump Header A dedicated PWM/DC header for self-contained water-cooling setups. *AIO Pump header supports 1 amp, & Water Pump+ header supports 3 amps. Smart Protection A dedicated integrated circuit protects each fan header from overheating & overcurrent. 4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans. PERFORMANCE Prime H670 series are built to handle the additional cores & increased bandwidth of 12th Generation Intel&174; processors. ASUS H670 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling & flexible transfer options. Robust Power Design Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. Prime H670-PLUS D4 is geared to cater to the demands of these high-core-count CPUs. Pro Cool Connector Proprietary connector augments the motherboard's link to the PSU with 8 pin connector that passes 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. DDR4 5066 (OC) Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS Opti Mem technology carefully maps memory signal pathways across different PCB layers to reduce path distance, & it adds shielding zones that significantly reduce crosstalk. ASUS Opti Mem Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS Opti Mem technology carefully maps memory signal pathways across different PCB layers to reduce vias & adds shielding zones that significantly reduce crosstalk. ASUS Opti Mem benefits: enhanced memory stability & compatibility Allows lower memory latencies at equivalent voltages enhanced memory frequency margin Motherboards with Opti Mem technology were tested with Synopsys HSPICE simulation software Storage Three M.2 slots (up to 64 Gbps) Prime H670-PLUS D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe&174; 4.0, enabling quicker boot-up & app load times with OS or application drives. * Actual transmission speeds will be lower than the theoretical maximum speed. Connectivity PCIe&174; 4.0 Slot Prime H670 motherboards are designed specifically for 12th Generation Intel&174; Core&132;&162; CPUs & offer PCIe&174; 4.0 connectivity for the latest GPUs. The wide bandwidth & superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. USB (Universal Serial Bus) 3.2 Gen 2 Type-C&174; Numerous USB (Universal Serial Bus) ports support high-end rigs loaded with peripherals, including rear USB (Universal Serial Bus) Type-C&174; connectors with fast USB (Universal Serial Bus) 3.2 Gen 2 for transmission speeds of up to 10 Gbps. Thunderbolt&132;&162; 4 Support Prime H670-PLUS D4 features Thunderbolt&132;&162; 4 support via an on-board header. With the latest Intel-certified ASUS Thunderbolt EX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. in addition, this card has a daisy-chain function for multi-screen connection & supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices. Realtek 2.5 Gb Ethernet 2.5 Gb Ethernet Connection reduces CPU overhead & offers faster, smoother data transfer. Personalization Aura Sync Outshine the Competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips & devices connected to the onboard RGB headers " & it can all be synced with an ever-growing portfolio of Aura-capable hardware. Addressable Gen 2 Headers Three addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate means that you can easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & news to help you stay in touch with the ASUS community. Q-LED The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components &149; CPU, RAM, graphics card, storage devices &149; are functioning normally during startup. Safe Slot Core+ Safe Slot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, & the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards. Strengthened solder points around the PCIe & DIMM pins. Metal inserts keep graphics cards properly aligned during installation. The metal side-panels feature hooks that firmly clasp the slot body. LANGuard Pumped-up throughput 2.5X higher surge tolerance ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology & premium anti-EMI surface-mounted capacitors to improve throughput & ensure a more reliable connection. Overvoltage Protection World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies. DRAM Overcurrent Protection Short-circuit damage prevention Onboard resettable fuses prevent overcurrent & short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system & connected devices. Stainless-Steel Back I/O 3X corrosion-resistance for greater durability Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.\n\n\n\n Internal I/ONumber of M.2 (M) slots 3 Thunderbolt headers 112V power connector Yes Supported storage drive interfaces M.2, SATAUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2S/PDIF out connector Yes Number of SATA III connectors 4 Number of COM connectors 1 Number of chassis fan connectors 3 Front panel audio connector Yes EPS power connector (8-pin) Yes CPU fan connector Yes ATX Power connector (24-pin) Yes RGB LED pin header Yes Technical details Number of displays supported 2 Motherboard chipset family Intel Motherboard chipset Intel H670HDMI version 2.1 Motherboard form factor ATXComponent for PCAudio Audio output channels 7.1 channels Performance Supported storage drive types HDD & SSDWindows operating systems supported Windows 10 x 64, Windows 11 x 64 Motherboard chipset family Intel Motherboard chipset Intel H670RAID levels 0, 1, 5, 10 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel Core i 5, Intel Core i 7, Intel Core i 9, Intel&174; Pentium&174;, Intel&174; Pentium&174; Gold Maximum number of SMP processors 1 Processor socket LGA 1700 Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel Non-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4266, 4400, 4600, 4800, 5000, 5066 MHz Maximum internal memory 128 GBUnbuffered memory Yes Storage controllers Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATARAID levels 0, 1, 5, 10 Graphics Number of displays supported 2 Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Display Port version 1.4USB connector type USB Type-A, USB (Universal Serial Bus) Type-CUSB 2.0 ports quantity 2 Microphone in Yes Headphone outputs 1HDMI version 2.1HDMI ports quantity 1 Ethernet LAN (RJ-45) ports 1 Display Ports quantity 1 Network Ethernet LANYes Wi-Fi No Ethernet interface type 2.5 Gigabit Ethernet Features Windows operating systems supported Windows 10 x 64, Windows 11 x 64 Motherboard chipset family Intel Motherboard chipset Intel H670 Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCExpansion slots Number of M.2 (M) slots 3PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 (Gen 3.x) slots 1PCI Express x 16 (Gen 4.x) slots 1BIOSBIOS type UEFI AMIBIOS memory size 192 Mbit Software Windows operating systems supported Windows 10 x 64, Windows 11 x 64 Drivers included Yes Weight & dimensions Width 305 mm Depth 244 mm Packaging content Drivers included Yes Cables included SATA\n\n\n\n ...

The Prime X299-A II caters to users with serious pursuits: Those who prefer to put their high-core-count processors to more productive use. This high-end desktop board combines cutting-edge performance with our signature features, including an enhanced VRM tailored for running the CPU performance at stock speeds, intuitive cooling control, next-gen connectivity, & extensive customization. Get the most out of all your cores Intel&174;'s high-end desktop platform raises the stakes with updated Intel Core&132;&162; X-Series Processors that boast cores, cache, & bandwidth. The Prime X299-A II is ready for the additional processing power that plows through CPU-intensive tasks, & the extra bandwidth means that you can add more GPUs & NVMe SSDs to accelerate a wide range of work. Robust Power Design The LGA 2066 socket is compatible with Intel Core X-Series Processors with up to 18 cores, over 44 PCI Express&174; lanes, & 165-watt thermal design power (TDP). Those specs require serious power, so the Prime X299-A II is equipped with an enhanced power solution that

Includes:: 12 power stages that line up neatly along the top edge of the PCB. Multi-GPU support Fully loaded takes on a new meaning when you have over 44 PCI Express lanes stemming from the CPU. Those lanes can be split in an x 16/x 16/x 8 configuration spanning the board's trio of PCIe x 16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of work. Achieve speed with onboard M.2 Professional applications require fast solid-state storage, which is why the Prime X299-A II is equipped with three M.2 slots that are compatible with the latest NVMe SSDs. All slots support longer 110 mm drives, & they can be configured into bootable RAID arrays connected directly to the CPU via Intel VROC technology. VROC Upgrade your RAID Use onboard M.2 slots & ASUS Hyper M.2 x 16 Card V2* to take advantage of Intel's Virtual RAID on CPU (VROC)** by connecting the three M.2 drives in RAID configurations. With VROC, your RAID arrays are easily configured to be bootable, & traditional DMI bottlenecks are eliminated so that your storage is not held back by other traffic. USB (Universal Serial Bus) 3.2 Gen 2 front-panel connector Future-proof connectivity Plenty of USB (Universal Serial Bus) ports are provided to support high-end rigs loaded with peripherals, including a front-panel header with faster USB (Universal Serial Bus) 3.2 Gen 2 connectivity for compatible cases. Intel Ethernet More throughput, less CPU usage & great gaming experiences The latest Intel I219-V Ethernet has the advantage of reducing CPU overhead & offering exceptionally high TCP & UDP throughput for faster, smoother data transfer. Cool to the core Effective cooling is extremely important, even at stock speeds. That is why the Prime X299-A II allows consolidated cooling control of the entire system, even for the most hardcore rigs. It comes equipped with onboard heatsinks, an array of fan headers, & options for water pump or AIO headers. M.2 Heatsinks Two M.2 slots are covered by heatsinks to combat temperature-induced throttling that can affect performance during heavy, sustained storage loads. Backplate A reinforced backplate improves the stability of the board, & the included thermal pad efficiently directs heat away from the VRM & other components. Cooler by design Prime X299-A II features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS. Each header can dynamically reference three thermal sensors, & via Fan Xpert 4 you can even map the temperature of supported ASUS graphics cards to optimize cooling for GPU- & CPU-intensive tasks. Tune it your way Comprehensive controls form the foundation of the ASUS Prime series. The Prime X299-A II packs flexible tools to tune every aspect of your system to deliver the performance that you desire. AI Overclocking ASUS AI Overclocking makes automatic tuning faster & smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU & cooling to predict the optimal configuration for each individual system. 5-way Optimization One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking & cooling profiles that are tailored for your rig.
- An automated tuning utility that optimizes overclocking & cooling profiles for your unique system configuration.
- Fans stay quiet as a whisper for everyday computing, & deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
- All-new stress test that allows users to optimize & overclock for CPU or memory-centric workloads. UEFI BIOS The renowned UEFI BIOS provides everything you need to configure, tweak, & tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans. Advanced tuning for serious tweaker When you're ready for a deeper dive into the configuration of your system, delve into the UEFI's Advanced mode & take complete control. Each section is intuitively organized, & a built-in search feature makes it easy to find the options you need. Advanced functions are coded with the intelligence to adapt to your settings, & when you're ready to take charge, parameters have the granularity to dial in performance just the way you want. Prediction AI Overclocking monitors system vitals such as temperature, fan speed, & power draw to estimate overclocking performance. AI Overclocking Guide The AI Overclocking Guide means that you can enable AI Overclocking or to view a quick guide. Search Function Quickly & easily find the option or setting that you're looking for. ASUS User Profile Port configuration settings between different BIOS versions or share them with friends. Breeze setup with ease Designed to simplify setup, EZ mode presents all the vital settings & stats on one single page. With guided wizards, drag-&-drop functionality, & one-click application of important settings, your rig will be up & running in no time. AI Overclocking Enable AI Overclocking intelligence via shortcut Intuitive Graphical Fan Control Fine-tune individual fans simply by dragging a curve with the mouse. EZ XMP Improve DRAM performance with one click. Aura On/ Off mode (Stealth) Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch. Little things make a big difference We pay careful attention to all the little details that improve your overall experience, from integrating a flashing utility directly into the UEFI to simplifying firmware updates or displaying your system vital signs. Prime X299-A II provides the tools you need to personalize your build & stay on top of things. Pre-mounted I/O Shield Set up without slip-ups Form meets function in the pre-mounted I/O shield that we pioneered with the ROG series. Now available on Prime X299-A II, this feature streamlines the installation process for budding builders & savvy enthusiasts alike. Flex Key A multi-purpose button The Flex Key maps the rarely used Reset button on the front-panel of your chassis to a different function. Instead of leaving the button set to a dated function, you can reassign it to change performance profiles, boot directly into the UEFI, toggle Aura Sync lighting, & much more. BIOS Flash Back&132;&162; Update your BIOS without CPU & DRAM The Prime X299-A II supports USB (Universal Serial Bus) BIOS Flash Back&132;&162;, which can perform low-level firmware updates using only a power supply & a USB (Universal Serial Bus) stick with the required file. ASUS Node A header to keep ahead ASUS Node is a proprietary bi-directional interface that allows ASUS motherboards to communicate with other system components, opening up a wealth of new options for system builders.&1 Intel Optane memory ready Intel Optane&132;&162; is a revolutionary non-volatile memory technology supported by Prime X299-A II. Intel Optane memory modules accelerate attached storage to reduce boot & load times, so everything feels faster & more responsive. Intel X299 chipset The Intel X299 chipset supports LGA 2066-socket Intel Core X-Series Processors. It provides enhanced performance by utilizing serial point-to-point links, allowing increased bandwidth & stability. in addition, X299 provides a maximum 10 USB (Universal Serial Bus) 3.2 Gen 1 ports, 8 SATA 6 Gbps ports & up to 32 Gbps M.2 support for faster data retrieval. Intel&174; Core&132;&162; X-series processors for LGA 2066 socket Intel Core X-series processors (6-core & above): 4-channel (8-DIMM), over 44 PCI Express 3.0/2.0 lanes.\n\n\n\n Internal I/ONumber of M.2 (M) slots 3 Thunderbolt headers 1 Front panel connector Yes Supported storage drive interfaces M.2, SATA IIIUSB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 Number of SATA III connectors 8 Number of EATX power connectors 2 Number of COM connectors 1 Number of chassis fan connectors 2 Front panel audio connector Yes CPU fan connector Yes ATX Power connector (24-pin) Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel&174; X299 Supported processor sockets LGA 2066 Parallel processing technology support 2-Way SLI, 3-Way Cross Fire X, 3-Way SLI, Quad-GPU Cross Fire X, Quad-GPU SLICooling type Passive Motherboard form factor ATXComponent for PCAudio Audio output channels 7.1 channels Performance HDD size 2.5/3.5" Supported storage drive types HDD & SSDIntel Extreme Memory Profile (XMP) Yes Windows operating systems supported Windows 10 Education x 64, Windows 10 Enterprise x 64, Windows 10 Home x 64, Windows 10 Pro x 64, Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel&174; X299RAID levels 0, 1, 5, 10 Supported processor sockets LGA 2066 Cooling type Passive Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Core&132;&162; X-series Supported processor sockets LGA 2066 Maximum number of SMP processors 1 Processor socket LGA 2066 (Socket R4) Processor lithography 14 nm Memory Number of memory slots 8 Memory slots type DIMMSupported memory types DDR4-SDRAMNon-ECCYes Supported memory clock speeds 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4266 MHz Maximum internal memory 256 GBUnbuffered memory Yes Storage controllers HDD size 2.5/3.5" Supported storage drive types HDD & SSDSupported storage drive interfaces M.2, SATA IIIRAID levels 0, 1, 5, 10 Graphics Parallel processing technology support 2-Way SLI, 3-Way Cross Fire X, 3-Way SLI, Quad-GPU Cross Fire X, Quad-GPU SLIRear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2USB 2.0 ports quantity 2S/PDIF out port Yes PS/2 ports quantity 1 Microphone in Yes Headphone outputs 1 Ethernet LAN (RJ-45) ports 1 Network Ethernet LANYes Wi-Fi No LAN controller Intel&174; I219-VEthernet interface type Gigabit Ethernet Features Power source type ATXWindows operating systems supported Windows 10 Education x 64, Windows 10 Enterprise x 64, Windows 10 Home x 64, Windows 10 Pro x 64, Windows 10 x 64 Motherboard chipset family Intel Motherboard chipset Intel&174; X299 Supported processor sockets LGA 2066 Cooling type Passive Audio output channels 7.1 channels Motherboard form factor ATXComponent for PCAudio chip Realtek ALC S1220 A Expansion slots Number of M.2 (M) slots 3PCI Express x 1 (Gen 3.x) slots 2PCI Express x 16 (Gen 3.x) slots 3BIOSBIOS type UEFI AMIBIOS memory size 128 Mbit ACPI version 6.1 System Management BIOS (SMBIOS) version 3.1 Power Power source type ATXProcessor special features Intel Extreme Memory Profile (XMP) Yes Intel&174; Optane&132;&162; Memory Ready Yes Software Windows operating systems supported Windows 10 Education x 64, Windows 10 Enterprise x 64, Windows 10 Home x 64, Windows 10 Pro x 64, Windows 10 x 64 Drivers included Yes Weight & dimensions Width 305 mm Depth 244 mm Packaging content Utilities included Yes Drivers included Yes Other features HDD size 2.5/3.5" Utilities included Yes Processor lithography 14 nm\n\n\n\n




...

Dressed in a professional attire, the Prime X570 series cater to users with serious pursuits in mind, who prefer to put their Ryzen&132;&162; processors to more productive use. Prime X570, known for its all-around specs & ASUS signature features,

Includes:: a wide range of tuning options for accessible performance.\n\n Hosting the latest Ryzen processor with increased number of cores & bandwidth, the Prime X570 series is ready for action with stable power, intuitive cooling & flexible transfer options. It provides all the fundamentals to increase your everyday productivity.\n\n Power delivery enhancements\n The 3rd Gen AMD Ryzen&132;&162; processors boast more cores & bandwidth, demanding more power than typical desktop CPUs. Prime X570-P is geared up for the demands of these high-core-count processors, offering a stable power to ensure optimal performance.\n\n Pro Cool connectors\n It augments the motherboard's link to the PSU with 8+4 pin connectors that pass 12V power directly to the processors. Based on our Pro Cool design, these jacks use solid pins that can handle more current than hollow-pin connectors.\n\n Dual PCIe 4.0 M.2 slots\n Achieve speed with onboard M.2\n With PCIe 4.0 M.2 Slot supports up to 22110 & provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.\n\n Safe Slot\n Protect your Graphics Card Investment\n Safe Slot is the PCIe slot reinvented by ASUS & engineered to provide superior retention & shearing resistance. Manufactured in a single step using a new insert-molding process, Safe Slot integrates the slot with fortifying metal for an inherently stronger slot, which is firmly anchored to the PCB through additional solder points.\n\n ASUS Opti Mem\n Proprietary Memory Design\n ASUS Opti Mem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies & lower latencies.\n\n USB 3.2 Gen 2\n Ultimate-speed 10 Gbps with USB (Universal Serial Bus) 3.2 Gen 2 onboard\n With backward-compatible USB (Universal Serial Bus) 3.2 Gen 2 Type-A&132;&162;, you'll experience ultimate connection flexibility & blazing data-transfer speeds of up to 10 Gbps.\n* The USB (Universal Serial Bus) ports under the LAN port require a 3rd Gen AMD Ryzen processor for USB (Universal Serial Bus) 3.2 Gen 2 speeds.\n\n LANGuard\n Pumped-up throughput, 2.5X higher surge tolerance\n ASUS LANGuard is a hardware-level networking protection that employs signal-coupling technology & premium anti-EMI surface-mounted capacitors to ensure a more reliable connection & better throughput.\n\n Cooler by design\n Prime X570-P features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.\n\n Active Chipset Heatsink Solution\n Dedicated cooling for unthrottled transfers\n PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Prime X570-P features an actively cooled heatsink to prevent throttling during sustained transfers.\n\n Outstanding audio\n Realtek codec & unique design features for pristine, powerful audio\n Prime X570-P utilize a unique audio codec designed in close collaboration with Realtek " the Realtek S1200A. It also features an unprecedented 108d B signal-to-noise ratio for the stereo line-out & a 103d B SNR for the line-in, providing pristine audio quality.\n\n The Prime X570 series feature software & firmware controls that make performance accessible to anyone. Prime X570 series also include options allowing you to personalize your build, & helping you to tune your rig to perform the way you want it.\n\n Armoury Crate\n Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for ASUS product, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & highlight to help you stay in touch with the ASUS community.\n\n Aura Sync RGB headers\n Outshine the competition\n A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard's RGB headers, with a variety of functional presets for external LED strips. & it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.\n\n Addressable Gen 2 RGB header\n Prime X570-P's Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.\n\n Brighten Up Your Build\n LED-illuminated control for PCH\n Built-in LED lighting options illuminate your build in a variety of eye-catching styles.\n\n- AMD AM4 Socket: Ready for 3rd & 2nd Gen AMD Ryzen&132;&162; processors\n- Enhanced power solution: 8+4 Dr MOS power stages, Pro Cool connectors, alloy chokes & durable capacitors for stable power delivery\n- Industry-leading cooling options: Comprehensive controls for fans & AIO pump, via Fan Xpert 4 or the acclaimed UEFI\n- ASUS Opti Mem: Careful routing of traces & vias to preserve signal integrity for enhanced memory overclocking\n- Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB (Universal Serial Bus) 3.2 Gen 2 ports\n- Aura Sync RGB header: Synchronize RGB header with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips Feature Feature Value Processor manufacturer AMDProcessor socket Socket AM4 Compatible processor series AMD Ryzen Maximum number of SMP processors 1 Supported memory types DDR4-SDRAMNumber of memory slots 4 Memory slots type DIMMMaximum internal memory 128 GBMemory channels Dual Unbuffered memory Y Supported storage drive interfaces Serial ATA IIIRAID levels 0, 1, 10 Parallel processing technology support 2-Way Cross Fire X Maximum resolution 4096 x 2160 pixels USB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 Number of SATA III connectors 3S/PDIF out connector Y Front panel audio connector Y Front panel connector YATX Power connector (24-pin)YNumber of EATX power connectors 1CPU fan connector Y Number of chassis fan connectors 3 Number of COM connectors 1TPM connector Y12V power connector YRGB LED pin header YUSB 2.0 ports quantity 2USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4 Ethernet LAN (RJ-45) ports 1PS/2 ports quantity 1HDMI ports quantity 1HDMI version 1.4b Ethernet LANYWi-Fi N Ethernet interface type Gigabit Ethernet LAN controller Realtek RTL8111 H Wake-on-LAN ready Y Component for PCMotherboard form factor ATXMotherboard chipset family AMDMotherboard chipset AMD X570 Audio output channels 7.1 channels Windows operating systems supported Windows 10 Education x 64, Windows 10 Enterprise x 64, Windows 10 Home x 64, Windows 10 Pro x 64, Windows 10 x 64 Number of M.2 (M) slots 2BIOS type UEFI AMIBIOS memory size 256 Mbit ACPI version 6.2 Clear CMOS jumper Y System management BIOS (SMBIOS) version 3.2 Width 305 mm Depth 244 mm Cables included SATAQuick installation guide Y Drivers included Y

...

Dressed in a professional attire, the Prime X570 series cater to users with serious pursuits in mind, who prefer to put their Ryzen&132;&162; processors to more productive use. Prime X570, known for its all-around specs & ASUS signature features,

Includes:: a wide range of tuning options for accessible performance.\n\n Hosting the latest Ryzen processor with increased number of cores & bandwidth, the Prime X570 series is ready for action with stable power, intuitive cooling & flexible transfer options. It provides all the fundamentals to increase your everyday productivity.\n\n Power delivery enhancements\n The 3rd Gen AMD Ryzen&132;&162; processors boast more cores & bandwidth, demanding more power than typical desktop CPUs. Prime X570-P is geared up for the demands of these high-core-count processors, offering a stable power to ensure optimal performance.\n\n Pro Cool connectors\n It augments the motherboard's link to the PSU with 8+4 pin connectors that pass 12V power directly to the processors. Based on our Pro Cool design, these jacks use solid pins that can handle more current than hollow-pin connectors.\n\n Dual PCIe 4.0 M.2 slots\n Achieve speed with onboard M.2\n With PCIe 4.0 M.2 Slot supports up to 22110 & provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.\n\n Safe Slot\n Protect your Graphics Card Investment\n Safe Slot is the PCIe slot reinvented by ASUS & engineered to provide superior retention & shearing resistance. Manufactured in a single step using a new insert-molding process, Safe Slot integrates the slot with fortifying metal for an inherently stronger slot, which is firmly anchored to the PCB through additional solder points.\n\n ASUS Opti Mem\n Proprietary Memory Design\n ASUS Opti Mem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies & lower latencies.\n\n USB 3.2 Gen 2\n Ultimate-speed 10 Gbps with USB (Universal Serial Bus) 3.2 Gen 2 onboard\n With backward-compatible USB (Universal Serial Bus) 3.2 Gen 2 Type-A&132;&162;, you'll experience ultimate connection flexibility & blazing data-transfer speeds of up to 10 Gbps.\n* The USB (Universal Serial Bus) ports under the LAN port require a 3rd Gen AMD Ryzen processor for USB (Universal Serial Bus) 3.2 Gen 2 speeds.\n\n LANGuard\n Pumped-up throughput, 2.5X higher surge tolerance\n ASUS LANGuard is a hardware-level networking protection that employs signal-coupling technology & premium anti-EMI surface-mounted capacitors to ensure a more reliable connection & better throughput.\n\n Cooler by design\n Prime X570-P features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.\n\n Active Chipset Heatsink Solution\n Dedicated cooling for unthrottled transfers\n PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Prime X570-P features an actively cooled heatsink to prevent throttling during sustained transfers.\n\n Outstanding audio\n Realtek codec & unique design features for pristine, powerful audio\n Prime X570-P utilize a unique audio codec designed in close collaboration with Realtek " the Realtek S1200A. It also features an unprecedented 108d B signal-to-noise ratio for the stereo line-out & a 103d B SNR for the line-in, providing pristine audio quality.\n\n The Prime X570 series feature software & firmware controls that make performance accessible to anyone. Prime X570 series also include options allowing you to personalize your build, & helping you to tune your rig to perform the way you want it.\n\n Armoury Crate\n Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you easily customize RGB lighting & effects for every compatible device in your arsenal. The software also provides control of settings for ASUS product, including keyboard & mouse preferences. Armoury Crate even features dedicated product registration & highlight to help you stay in touch with the ASUS community.\n\n Aura Sync RGB headers\n Outshine the competition\n A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard's RGB headers, with a variety of functional presets for external LED strips. & it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.\n\n Addressable Gen 2 RGB header\n Prime X570-P's Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.\n\n Brighten Up Your Build\n LED-illuminated control for PCH\n Built-in LED lighting options illuminate your build in a variety of eye-catching styles.\n\n- AMD AM4 Socket: Ready for 3rd & 2nd Gen AMD Ryzen&132;&162; processors\n- Enhanced power solution: 8+4 Dr MOS power stages, Pro Cool connectors, alloy chokes & durable capacitors for stable power delivery\n- Industry-leading cooling options: Comprehensive controls for fans & AIO pump, via Fan Xpert 4 or the acclaimed UEFI\n- ASUS Opti Mem: Careful routing of traces & vias to preserve signal integrity for enhanced memory overclocking\n- Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB (Universal Serial Bus) 3.2 Gen 2 ports\n- Aura Sync RGB header: Synchronize RGB header with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips Feature Feature Value Processor manufacturer AMDProcessor socket Socket AM4 Compatible processor series AMD Ryzen Maximum number of SMP processors 1 Supported memory types DDR4-SDRAMNumber of memory slots 4 Memory slots type DIMMMaximum internal memory 128 GBMemory channels Dual Unbuffered memory Y Supported storage drive interfaces Serial ATA IIIRAID levels 0, 1, 10 Parallel processing technology support 2-Way Cross Fire X Maximum resolution 4096 x 2160 pixels USB 2.0 connectors 2USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 Number of SATA III connectors 6S/PDIF out connector Y Front panel audio connector Y Front panel connector YATX Power connector (24-pin)YNumber of EATX power connectors 1CPU fan connector Y Number of chassis fan connectors 3 Number of COM connectors 1TPM connector Y12V power connector YRGB LED pin header YUSB 2.0 ports quantity 2USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4 Ethernet LAN (RJ-45) ports 1PS/2 ports quantity 1HDMI ports quantity 1HDMI version 1.4b Ethernet LANYWi-Fi N Ethernet interface type Gigabit Ethernet LAN controller Realtek RTL8111 H Wake-on-LAN ready Y Component for PCMotherboard form factor ATXMotherboard chipset family AMDMotherboard chipset AMD X570 Audio output channels 7.1 channels Windows operating systems supported Windows 10 Education x 64, Windows 10 Enterprise x 64, Windows 10 Home x 64, Windows 10 Pro x 64, Windows 10 x 64 Number of M.2 (M) slots 2BIOS type UEFI AMIBIOS memory size 256 Mbit ACPI version 6.2 Clear CMOS jumper Y System management BIOS (SMBIOS) version 3.2 Width 305 mm Depth 244 mm Cables included SATAQuick installation guide Y Drivers included Y

...
