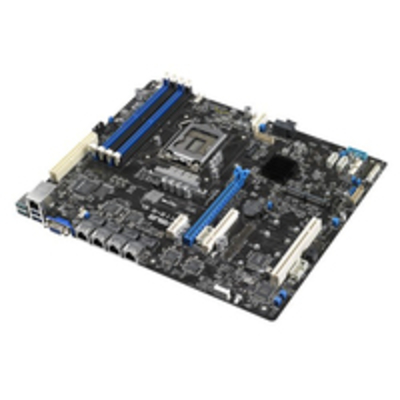

ASUS P11C-C/4L LGA 1151 (Socket H4) ATX Intel C242

Product Description

Industry-standard ATX server board with multiple expandability options\n \n P11C-C/4L is a server motherboard based on the Intel Xeon E platform & Intel C242 chipset offering quad server-class Intel Ethernet & flexible expandability with dual M.2, six SATA 6G, two PCIe, & one PCI slot for legacy devices.\n \n The layout is rack-optimized placement where the CPU & memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.\n \n Dual M.2 for up to 32 Gbps performance & data redundancy\n \n P11C-C/4L comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup & read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.\n \n NVMe high-speed storage interface\n \n P11C-C/4L features NVMe technology, which offers reduced latency, lower power-consumption & faster CPU-to-storage performance for better throughput. A flexible NVMe upgrade package provides a switchable storage interface with a PCIe to U.2 add-on card or M.2 to U.2 adapter for more drive choices. \n \n High-speed mini-SAS HD connections\n \n P11C-C/4L comes with a mini-SAS HD connector that support up to four SATA for 6 Gb/s connectivity with external devices & cleaner cable routing. P11C-C/4L also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12 Gb/s SAS storage & integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity & performance of P11C-C/4L, making it a great upgrade option.\n \n Quad Intel I210AT Gigabit Ethernet\n \n P11C-C/4L features quad server-class Intel Ethernet ports with the I210 controllers & teaming support that speed up the network bandwidth & the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast & reliable network.\n \n TPM-M 2.0 ready\n \n P11C-C/4L supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords & data. It helps to enhance network security, protect digital identities, & ensure platform integrity.\n \n Comprehensive IT infrastructure management\n \n P11C-C/4L features an optional embedded i KVM module & is bundled with ASUS Control Center to provide comprehensive out-of-band & in-band management features for small & mid-size businesses.\n \n The optional ASMB9-i KVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, & BSOD capture, providing around-the-clock remote monitoring & diagnostics " even if the operating system is down or offline " through a user-friendly, web-based graphical interface that works with all major browsers.\n \n ASUS Control Center (ACC) is a centralized & integrated IT management platform for monitoring & controlling ASUS commercial products, including servers, workstations & digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, & one-click software updates & dispatching, allowing easier server management for any IT infrastructure.\n \n Enhanced serviceability\n \n With its power button located on the front I/O panel, P11C-C/4L is designed to provide easier maintenance & deployment for diverse applications.\n \n P11C-C/4L has a visible Q-Code/port 80 LED display for simple monitoring of the entire boot process, from power on through loading of the operating system.\n \n Quick initialization guidance\n \n P11C-C/4L provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation & easy troubleshooting.\n \n ASUS Pro Cool connector\n \n ASUS Pro Cool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss & increases cost savings.\n\n\n\n Internal I/ONumber of M.2 (M) slots 2USB 2.0 connectors 1USB 3.2 Gen 1 (3.1 Gen 1) connectors 1TPM connector Yes Number of SATA III connectors 6 Number of chassis fan connectors 6EPS power connector (8-pin) Yes ATX Power connector (24-pin) Yes Technical details Motherboard chipset family Intel Motherboard chipset Intel C242 Motherboard form factor ATXComponent for PCPerformance Motherboard chipset family Intel Motherboard chipset Intel C242RAID levels 0, 1, 5, 10 Motherboard form factor ATXComponent for PCProcessor Processor manufacturer Intel Compatible processor series Intel&174; Celeron&174;, Intel&174; Core&132;&162; i 3, Intel&174; Pentium&174;, Intel&174; Xeon&174; Processor socket LGA 1151 (Socket H4) Memory Number of memory slots 4 Memory slots type DIMMSupported memory types DDR4-SDRAMMemory channels Dual-channel ECCYes Non-ECCYes Supported memory clock speeds 2400, 2666 MHz Maximum internal memory 64 GBStorage controllers RAID levels 0, 1, 5, 10 Graphics Graphics adapter AST2500 Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2VGA (D-Sub) ports quantity 1 Ethernet LAN (RJ-45) ports 4 Network Ethernet LANYes LAN controller Intel&174; I210-ATFeatures Motherboard chipset family Intel Motherboard chipset Intel C242 Motherboard form factor ATXComponent for PCExpansion slots Number of M.2 (M) slots 2PCI slots 1PCI Express x 8 slots 1PCI Express x 16 slots 1 Operational conditions Storage temperature (T-T)10
- 35 &176;COperating temperature (T-T)-40
- 70 &176;COperating relative humidity (H-H)20
- 90% Video Graphics adapter AST2500 Weight & dimensions Package weight 1.3kg Weight 760 g Width 305 mm Depth 244 mm Other features Package weight 1.3kg Weight 760 g\n\n\n\n
