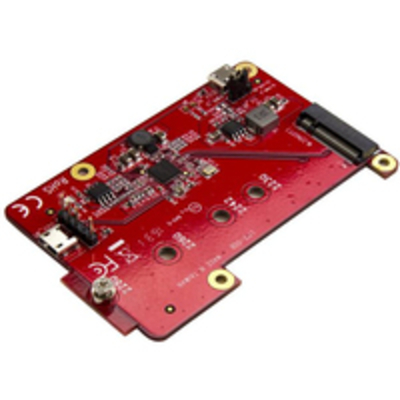

StarTech.com USB To M.2 SATA Converter For Raspberry Pi And
Development Boards
Increase the data storage capacity of your Raspberry Pi or other development board, by connecting it directly to an M.2 NGFF SATA SSD. Perfect for custom projects and applications, this USB to M.2 SATA converter supports all models of Raspberry Pi as well as other development boards.\n\nAdd storage capacity to your development board\nThis convenient USB 2.0 to M.2 SATA converter lets you overcome data storage limitations of your development board by enabling you to connect an M.2 SATA drive through your board&153;s USB-A port.\n\nA convenient integrated solution\nThe USB to M.2 SATA converter integrates seamlessly with your existing development board. It&153;s the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage
and IoT/automation solutions. It enables you to utilize your M.2 SATA drives with your dev board, and take advantage of the small form factor of M.2 SATA which makes it ideal for applications with space limitations.\n\nEasy to install\nCompatible with M.2 SATA drives (2230, 2242, 2260, and 2280), the converter is easy to install and doesn&153;t require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.\n\nStarTech.com provides industry-leading support to get you up and running quickly. The PIB2M21 is backed by a StarTech.com 2-year warranty and free lifetime technical support.\n\nNote:\nThis converter works with M.2 SATA SSDs only. To see which type of M.2 drive you
have, simply look at the number of notches (or keys) on the drive end that connects with the M.2 socket. SATA-based M.2 drives have two notches (an M key and a B key), while PCIe-based M.2 drives have just one notch (an M key).\n\nRaspberry Pi is a trademark of the Raspberry Pi FoundationFeatureFeature ValueHost interfaceMicro-USBOutput interfaceM.2InternalYProduct colourRedMean time between failures (MTBF)5839751 hRoHS complianceYCertificationCE, FCCChipsetRenesas - &181;PD720231AData transfer rate (max)6 Gbit/sUSB poweredYOperating temperature (T-T)5 - 50 &176;CStorage temperature (T-T)-25 - 70 &176;COperating relative humidity (H-H)15 - 90%Width56 mmDepth88 mmHeight11 mmWeight21.8 gCables includedUSBQuick installation guideYPackage width142 mmPackage depth170 mmPackage height30
mmPackage volume100 cm&179;
and IoT/automation solutions. It enables you to utilize your M.2 SATA drives with your dev board, and take advantage of the small form factor of M.2 SATA which makes it ideal for applications with space limitations.\n\nEasy to install\nCompatible with M.2 SATA drives (2230, 2242, 2260, and 2280), the converter is easy to install and doesn&153;t require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.\n\nStarTech.com provides industry-leading support to get you up and running quickly. The PIB2M21 is backed by a StarTech.com 2-year warranty and free lifetime technical support.\n\nNote:\nThis converter works with M.2 SATA SSDs only. To see which type of M.2 drive you
have, simply look at the number of notches (or keys) on the drive end that connects with the M.2 socket. SATA-based M.2 drives have two notches (an M key and a B key), while PCIe-based M.2 drives have just one notch (an M key).\n\nRaspberry Pi is a trademark of the Raspberry Pi FoundationFeatureFeature ValueHost interfaceMicro-USBOutput interfaceM.2InternalYProduct colourRedMean time between failures (MTBF)5839751 hRoHS complianceYCertificationCE, FCCChipsetRenesas - &181;PD720231AData transfer rate (max)6 Gbit/sUSB poweredYOperating temperature (T-T)5 - 50 &176;CStorage temperature (T-T)-25 - 70 &176;COperating relative humidity (H-H)15 - 90%Width56 mmDepth88 mmHeight11 mmWeight21.8 gCables includedUSBQuick installation guideYPackage width142 mmPackage depth170 mmPackage height30
mmPackage volume100 cm&179;
Product Description
Reviews/Comments
Add New
Intelligent Comparison
Available
StarTech.com USB To M.2 SATA Converter For Raspberry Pi And Development Boards Transparent Communications
£19.12
Available
StarTech.com USB To M.2 SATA Converter For Raspberry Pi And Development Boards Transparent Communications
£19.12
