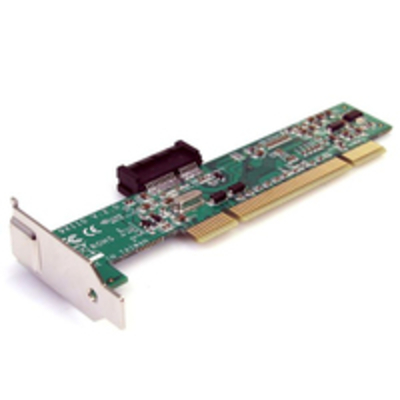

StarTech.com PCI To PCI Express Adapter Card

Product Description

Install half-height/low profile x 1 PCI Express interface cards in a standard PCI expansion slot\n\n The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x 1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.\n\n The PCI to PCI Express Adapter features an innovative bracket design that adapts & secures the low profile PCI Express card into the converted slot, ensuring a versatile & economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.\n\n The Star Tech.com Advantage\n\n- The unique bracket design allows a low profile/half-height PCI Express card to work seamlessly in a PCI-based expansion slot\n- Backed by a Star Tech.com 2-year warranty & free lifetime technical support\n\n- Innovative bracket design adapts & secures the existing low profile/half-height bracket of the PCI Card\n- PCI revision 2.3 compliant with up to 133 M Bps of available bandwidth\n- LP4 Power Connector Included for Universal Voltage PCI Cards (3.3V/5V)\n- Compliant with PCI-to-PCIe Bridge Architecture Spec Revision 1.2\n- No driver or software installation Feature Feature Value Host interface PCIOutput interface PCIe Expansion card standard PCI 2.3 Internal Y Ro HS compliance Y Certification CE, FCC, TAAChipset Pericom
- PI7C9X111SLOperating temperature (T-T)0
- 85 &176;CStorage temperature (T-T)-10
- 95 &176;COperating relative humidity (H-H)0
- 95% Width 60 mm Depth 135 mm Height 20 mm Weight 32 g Quantity 1 Manual Y Package width 140 mm Package depth 173 mm Package height 33 mm Package weight 102 g
